Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

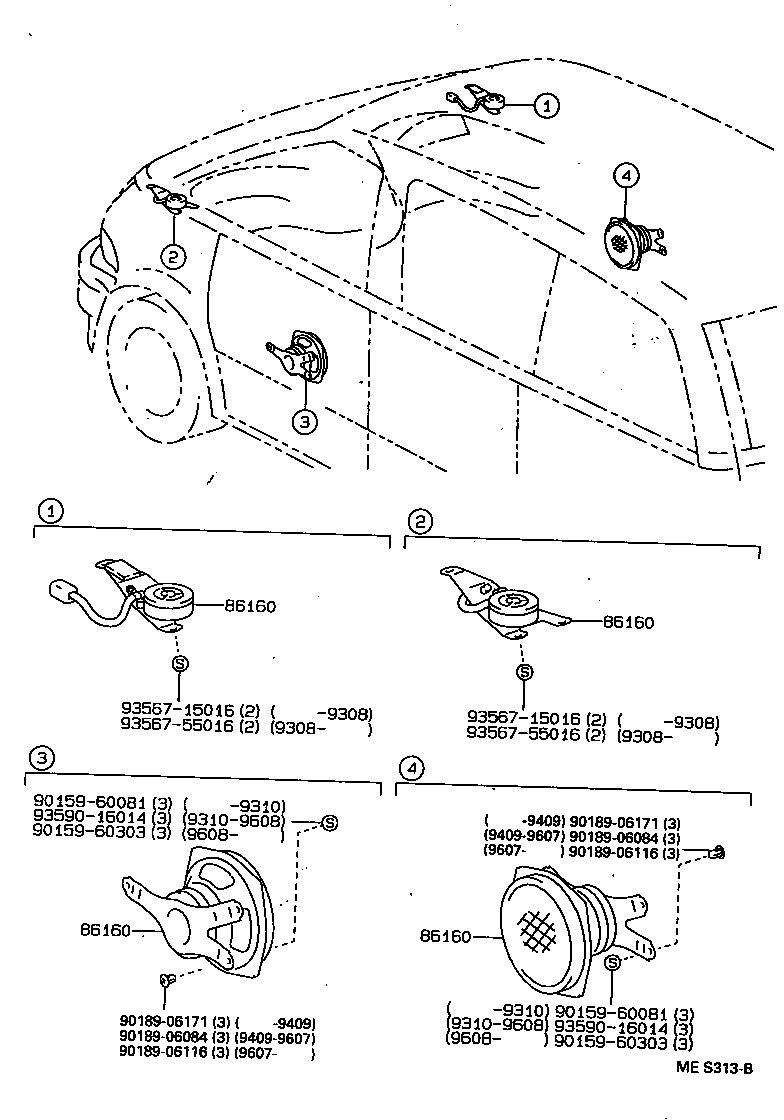

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-28140 note |
Speaker Assy, Front NO.1
1991-08 → 1993-08
ended
|
TCR1#,2# | ¥8,200 | |
| 86160-28140 note |
Speaker Assy, Front NO.1
1993-08 → 1996-08
ended
|
TCR1#,2# | ¥8,200 | |
| 86160-28150 note |
Speaker Assy, Front NO.1
1991-08 → 1993-08
ended
|
TCR1#,2# | ¥8,200 | |
| 86160-28150 note |
Speaker Assy, Front NO.1
1993-08 → 1996-08
ended
|
TCR1#,2# | ¥8,200 | |
| 86160-28290 note |
Speaker Assy, Front NO.1
1991-08 → 1993-08
ended
|
TCR1#,2# | ¥7,400 | |
| 86160-28290 note |
Speaker Assy, Front NO.1
1993-08 → 1999-12
ended
|
TCR1#,2# | ¥7,400 | |
| 86160-28300 note |
Speaker Assy, Front NO.1
1991-08 → 1993-08
ended
|
TCR1#,2# | ¥7,400 | |
| 86160-28300 note |
Speaker Assy, Front NO.1
1993-08 → 1999-12
ended
|
TCR1#,2# | ¥7,400 | |
| 86160-28440 note |
Speaker Assy, Front NO.1
1996-08 → 1999-12
ended
|
TCR1#,2# | ¥13,200 | |
| 86160-28450 note |
Speaker Assy, Front NO.1
1996-08 → 1999-12
ended
|
TCR1#,2# | ¥13,200 | |
| 86160-95D01 note |
Speaker Assy, Front NO.1
1990-05 → 1991-08
ended
|
TCR11,21 | ¥6,300 | |
| 86160-95D08 note |
Speaker Assy, Front NO.1
1990-05 → 1991-08
ended
|
TCR11,21 | ¥7,500 | |
| 86160-95D09 note |
Speaker Assy, Front NO.1
1990-05 → 1991-08
ended
|
TCR11,21 | ¥7,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
