Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

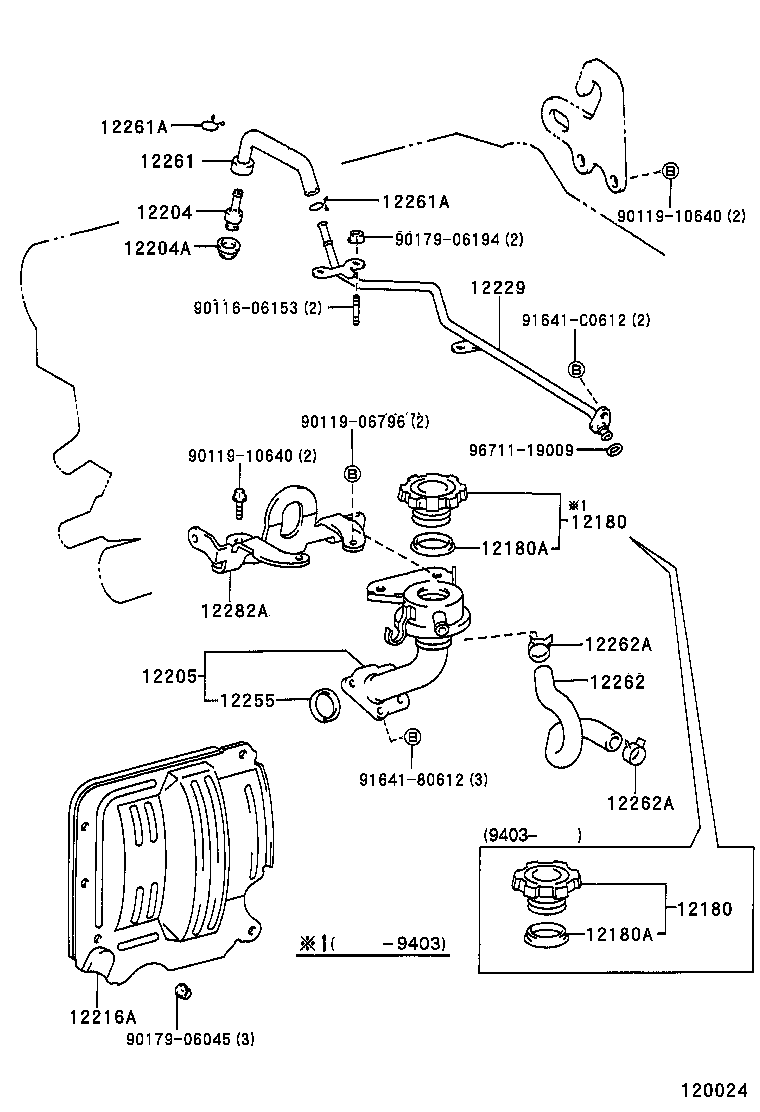

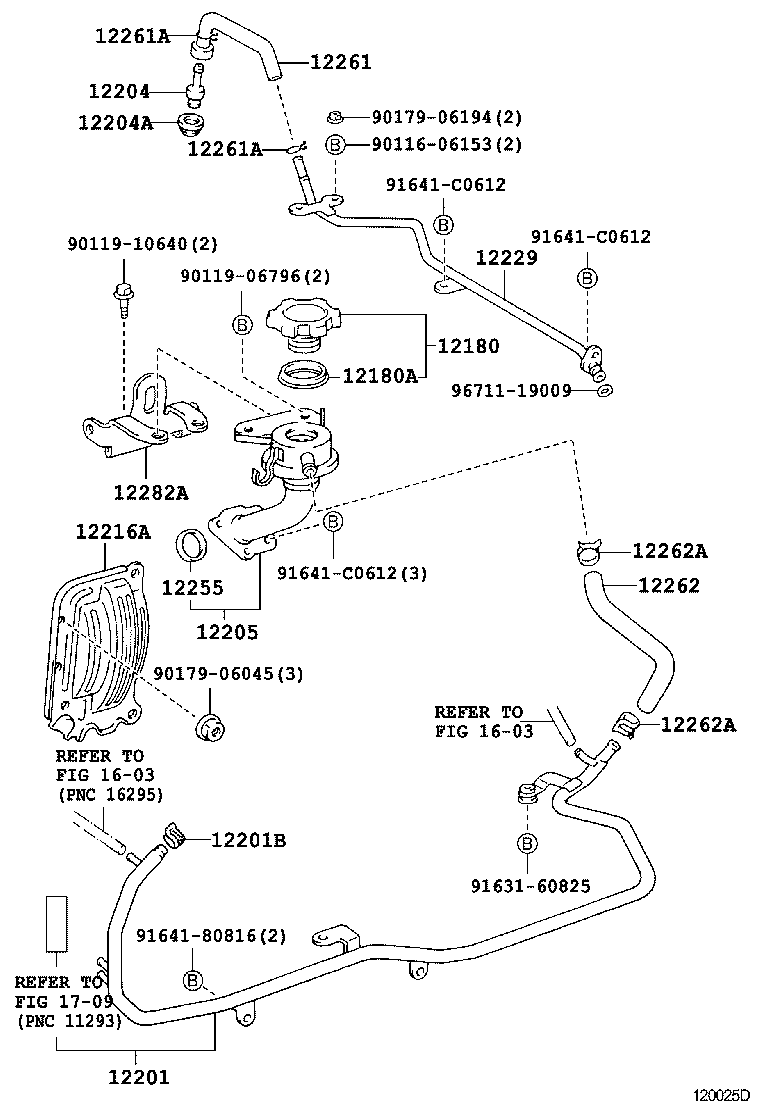

Ventilation Hose
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12180 | Cap Assy, Oil Filler |
| 12180A | Gasket, Oil Filler Cap |
| 12201 | Tube Sub-assy, Ventilation |
| 12201B | Clip(FOR VENTILATION TUBE HOSE) |
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12205 | Case Sub-assy, Ventilation |
| 12216A | Plate, Oil Baffle |
| 12229 | Pipe, Ventilation |
| 12255 | Gasket, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12282A | Hanger, Engine, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
