Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

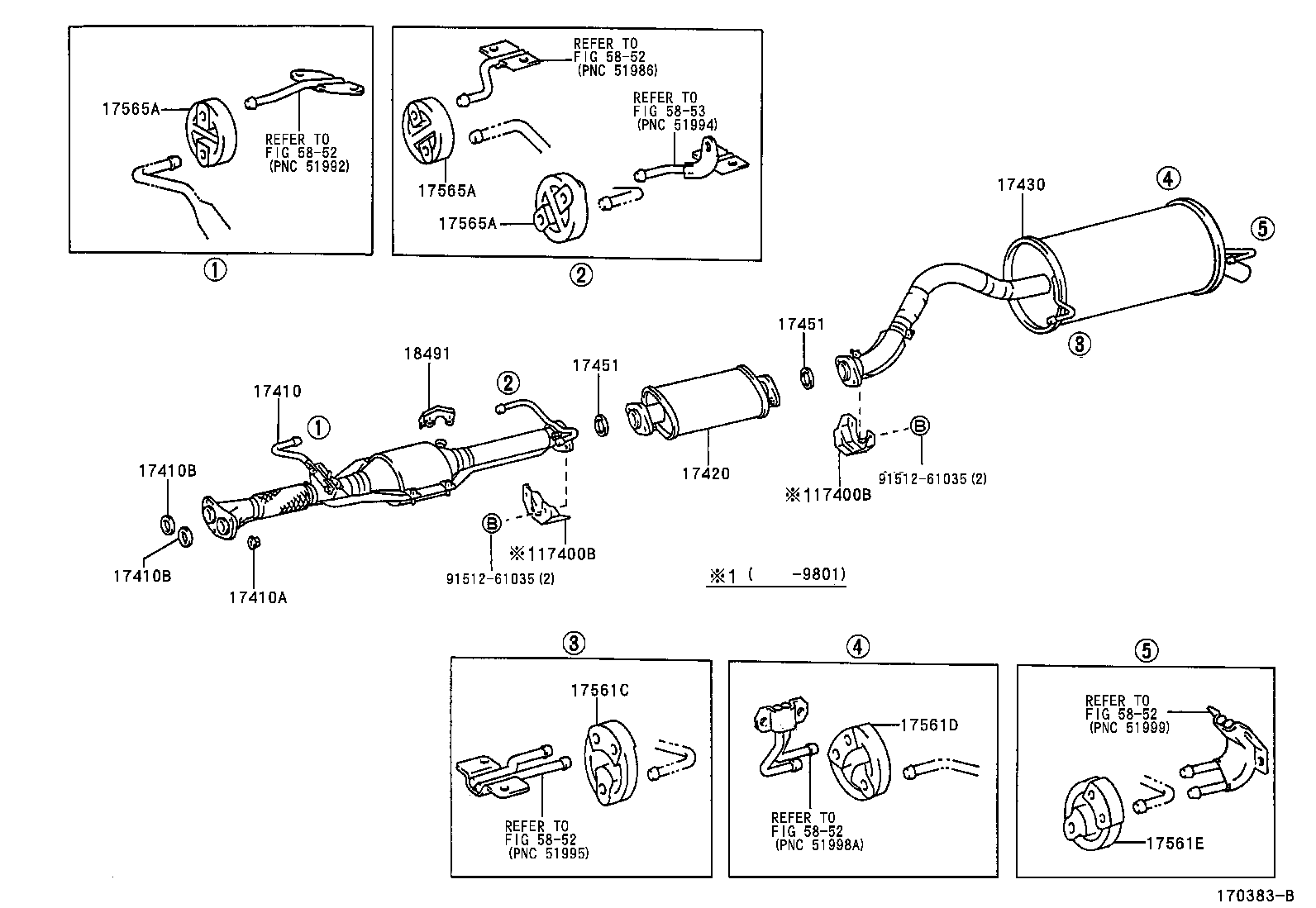

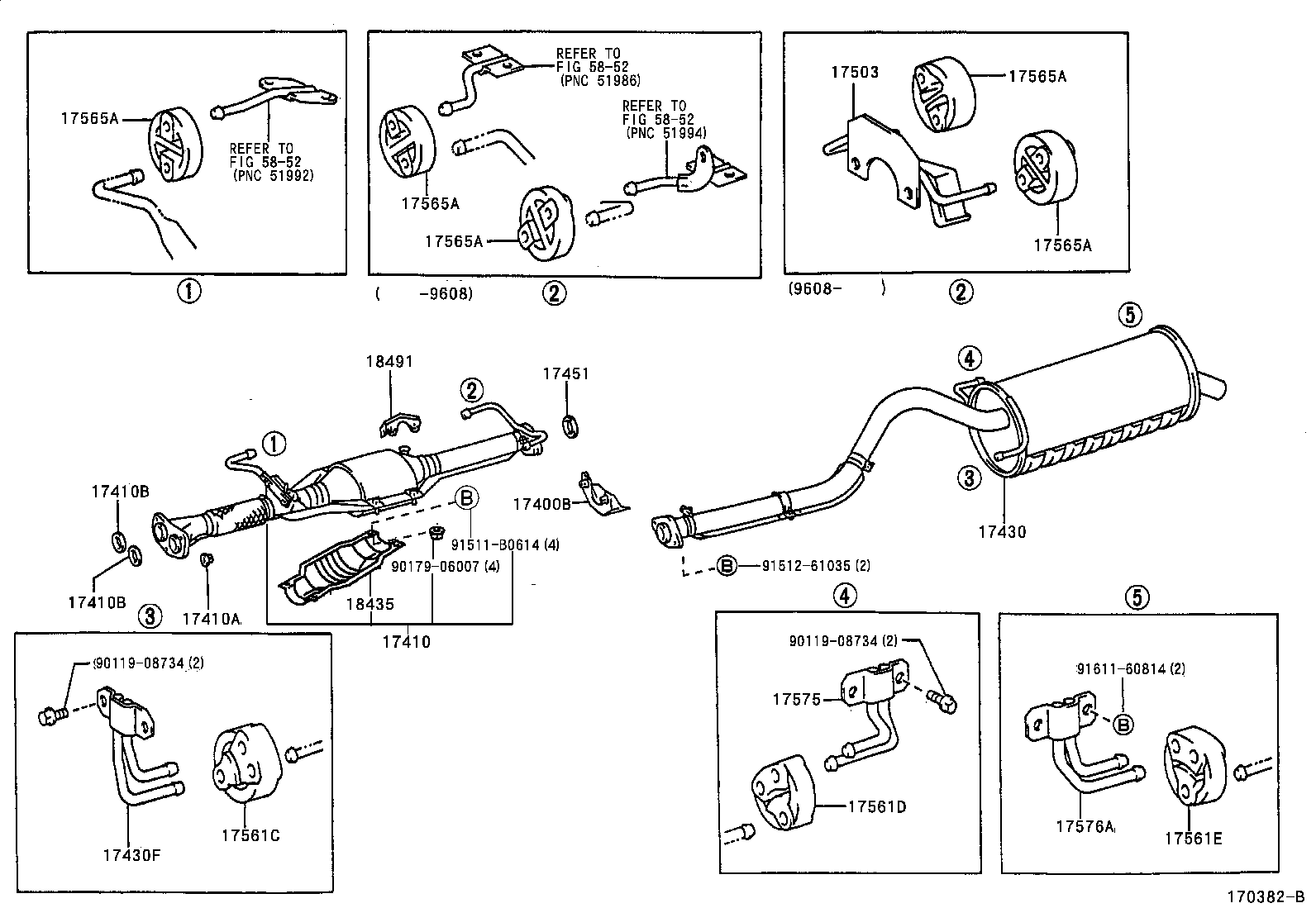

Exhaust Pipe
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17561C | Support, Exhaust Pipe, NO.1 |
| 17561D | Support, Exhaust Pipe, NO.1 |
| 17561E | Support, Exhaust Pipe, NO.1 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17576A | Bracket, Exhaust Pipe Support, NO.6 |
| 17582 | Bracket, Catalytic Converter Support, Upper |
| 18435 | Protector, Catalytic Converter |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
