Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

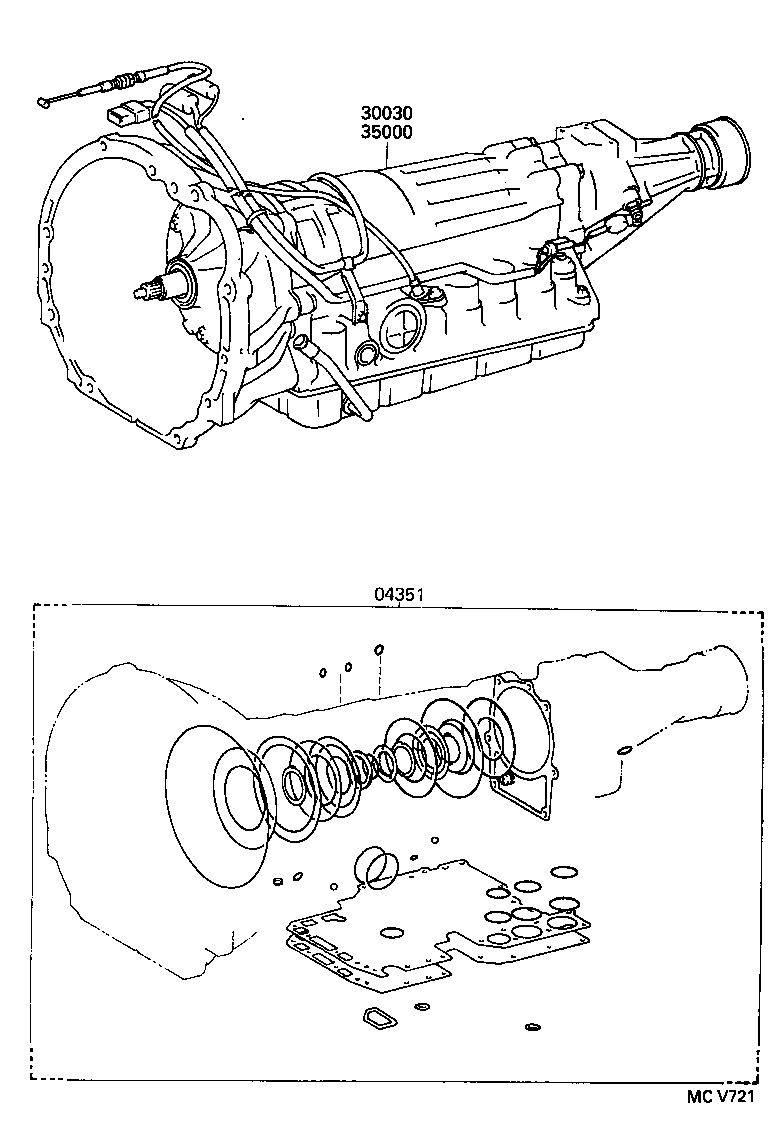

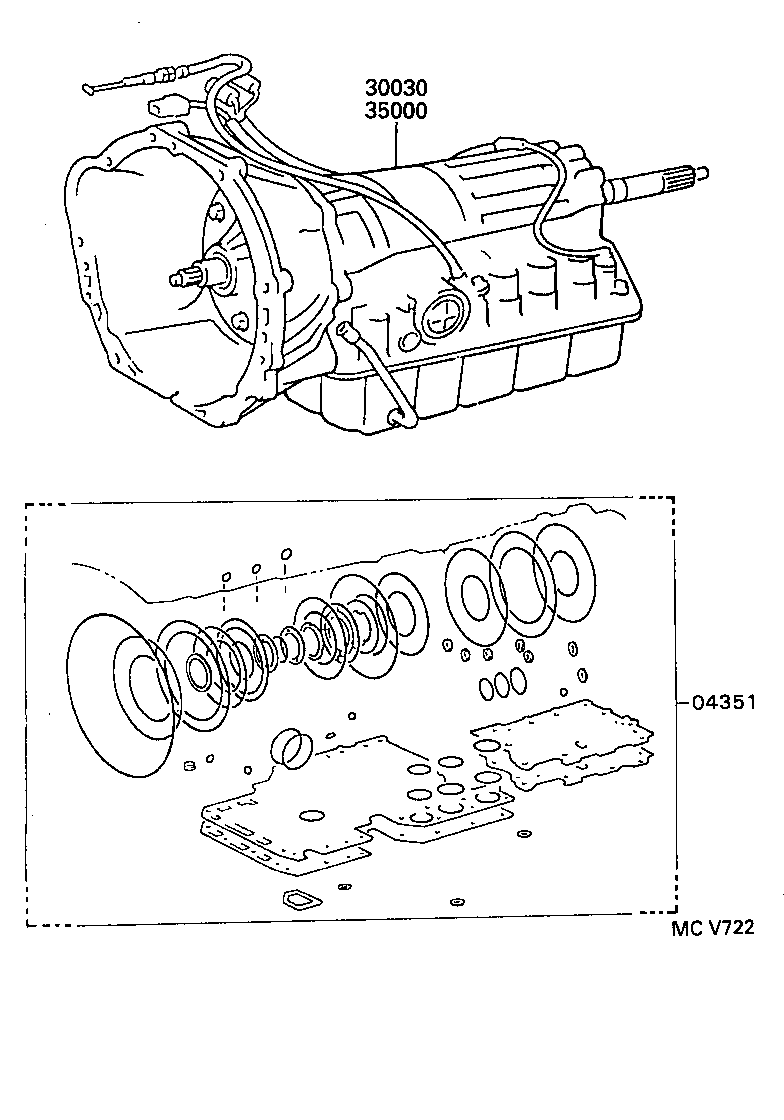

Figure MCV720 MCV720 1990-05 → 1998-01 Figure MCV721 MCV721 1994-08 → — Figure MCV722 MCV722 1994-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
