Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

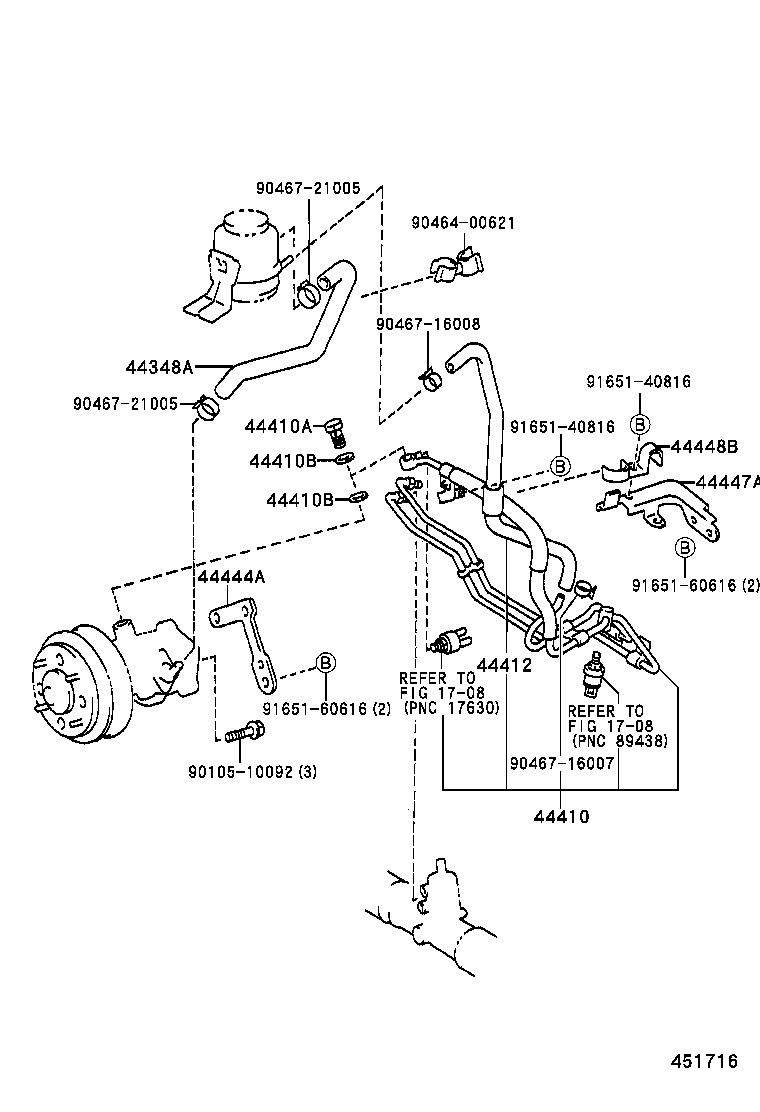

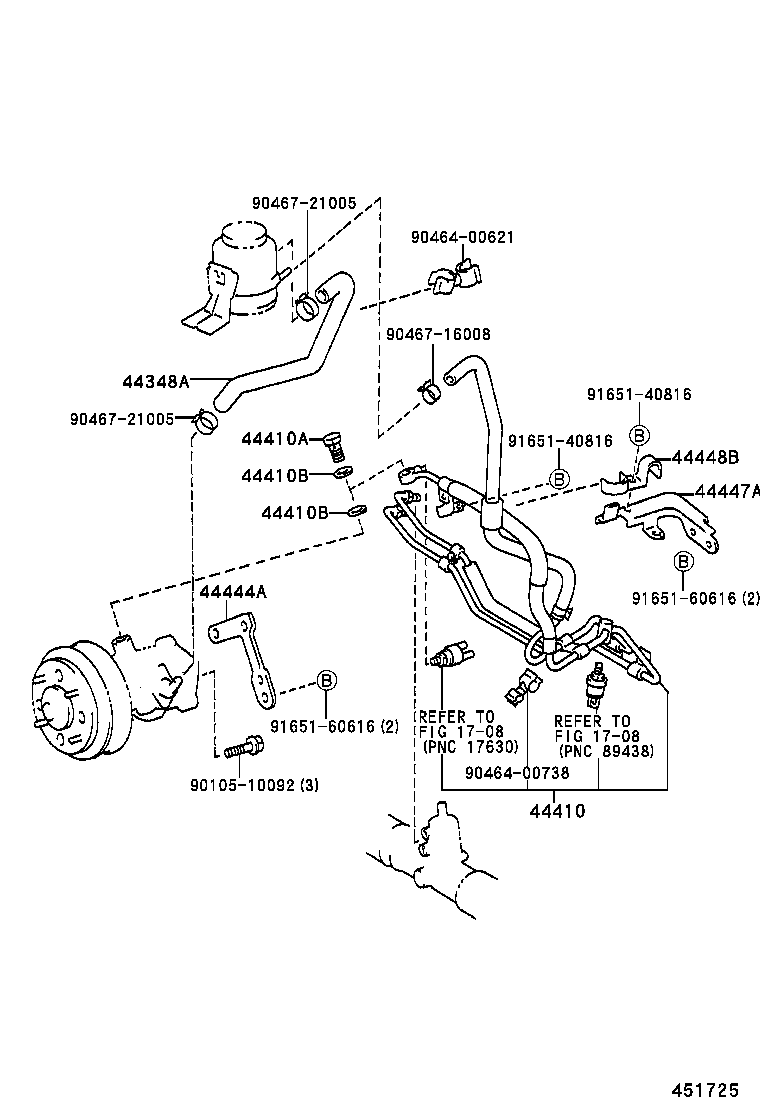

Power Steering Tube
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44412 | Hose, Return |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44444A | Stay, Pump, Rear NO.1 |
| 44447A | Bracket, Hose Support, NO.1 |
| 44448B | Bracket, Hose Support, NO.2 |
| 44457B | Bracket, Power Steering Tube Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
