Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

170 part groups · 13 illustrations

Illustrations

710329A 1990-05 → 1994-08

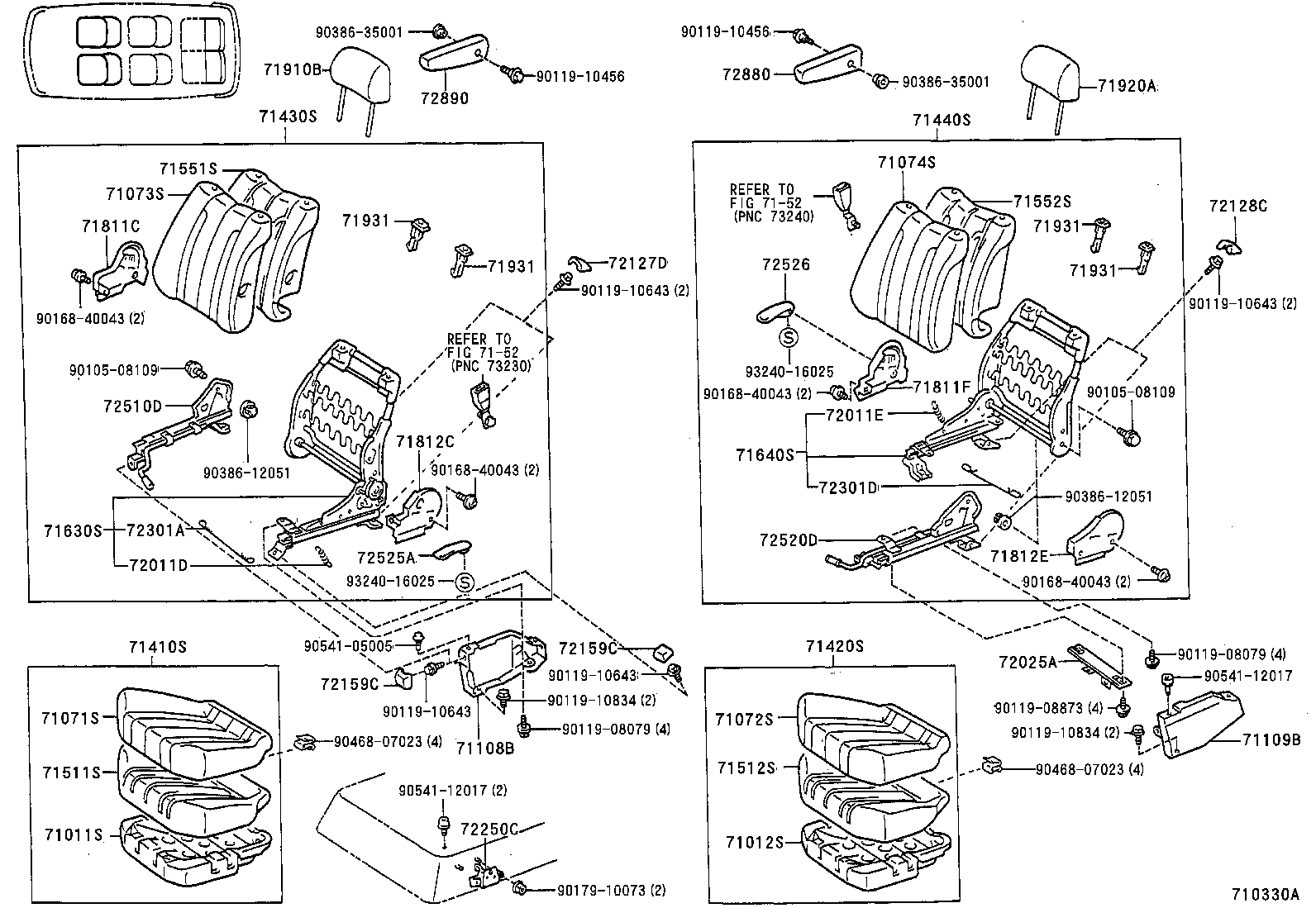

710330A 1994-08 → 1996-08

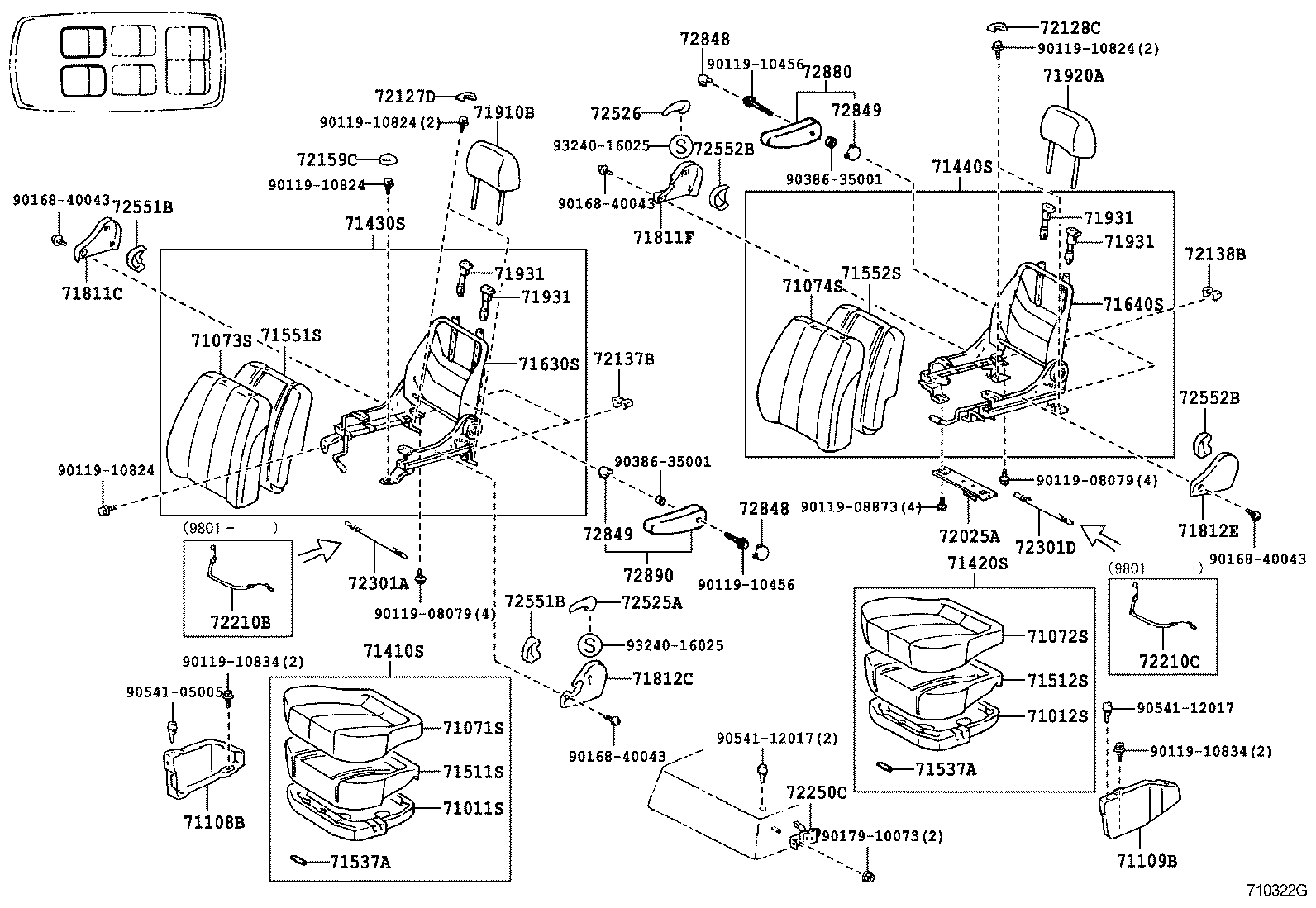

710322G 1996-08 → —

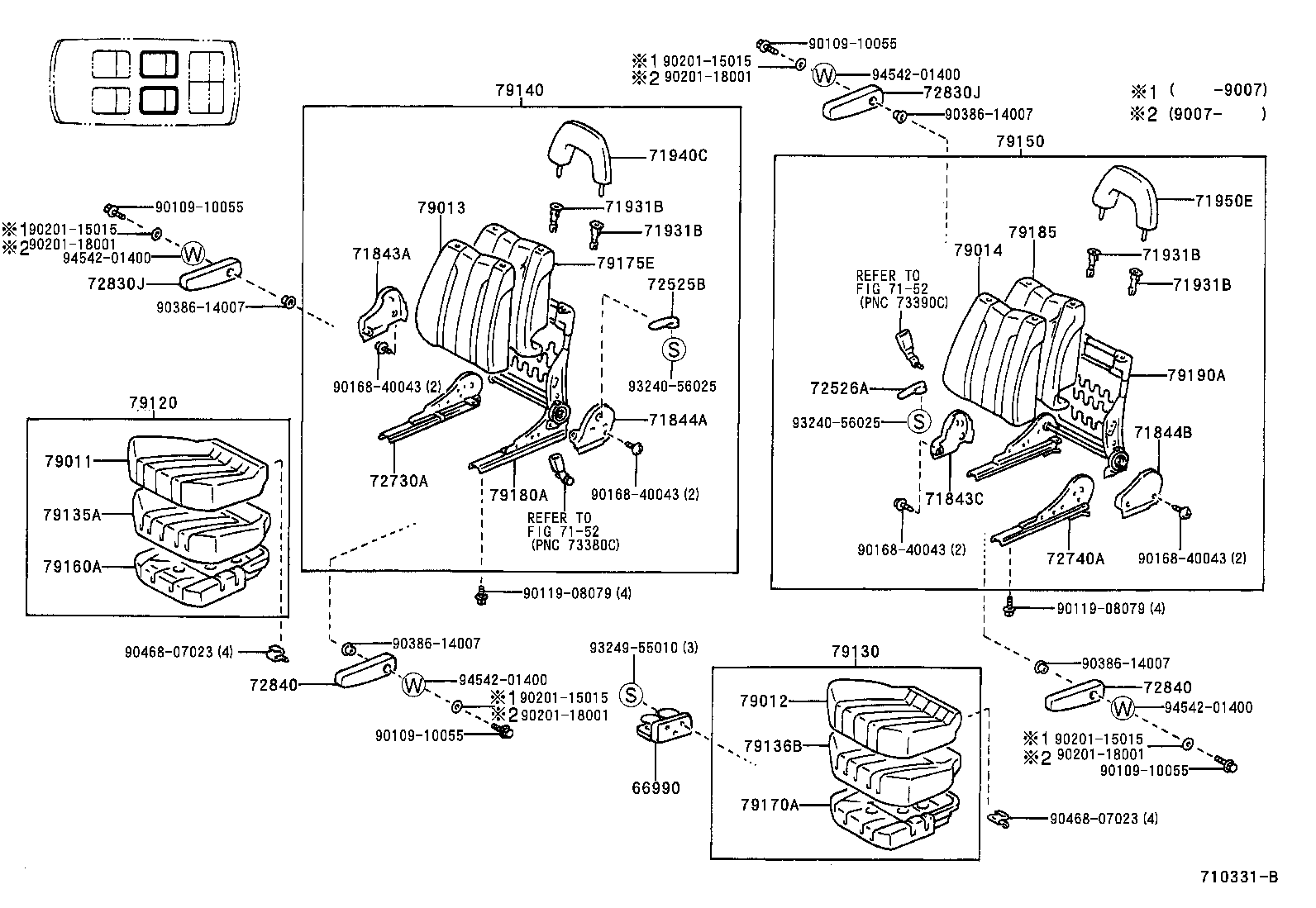

710331B 1990-05 → 1994-08

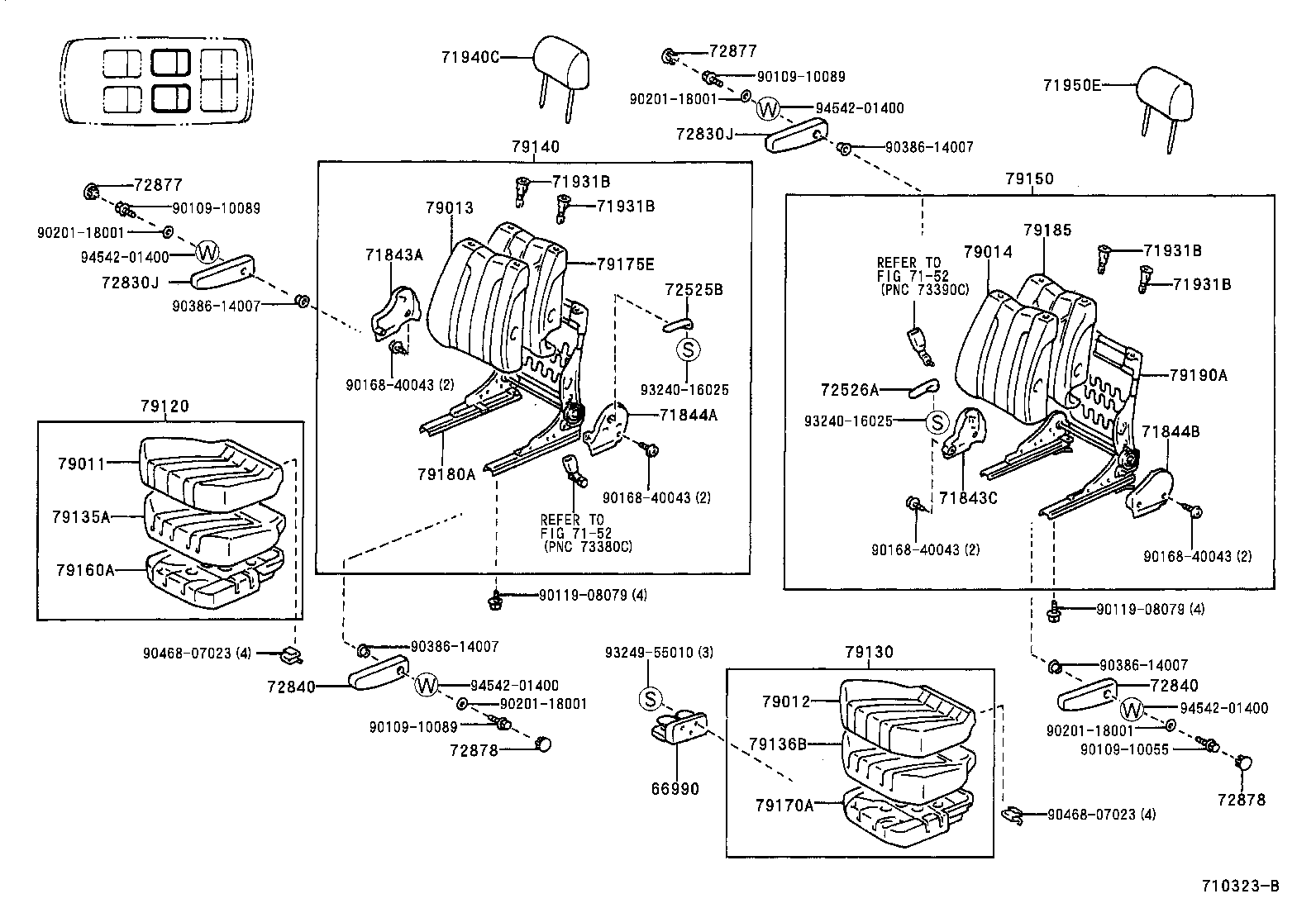

710323B 1994-08 → 1996-08

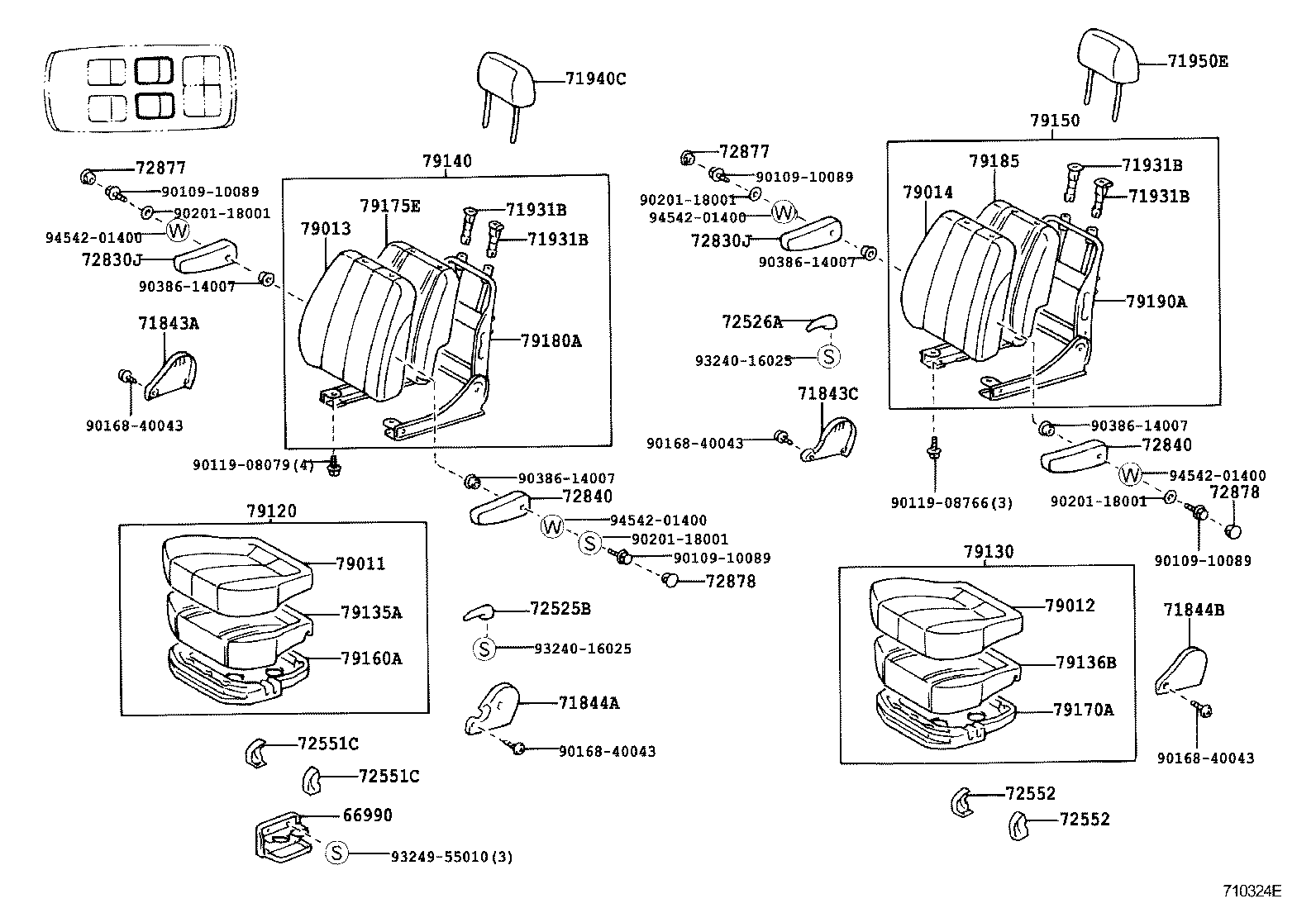

710324E 1996-08 → —

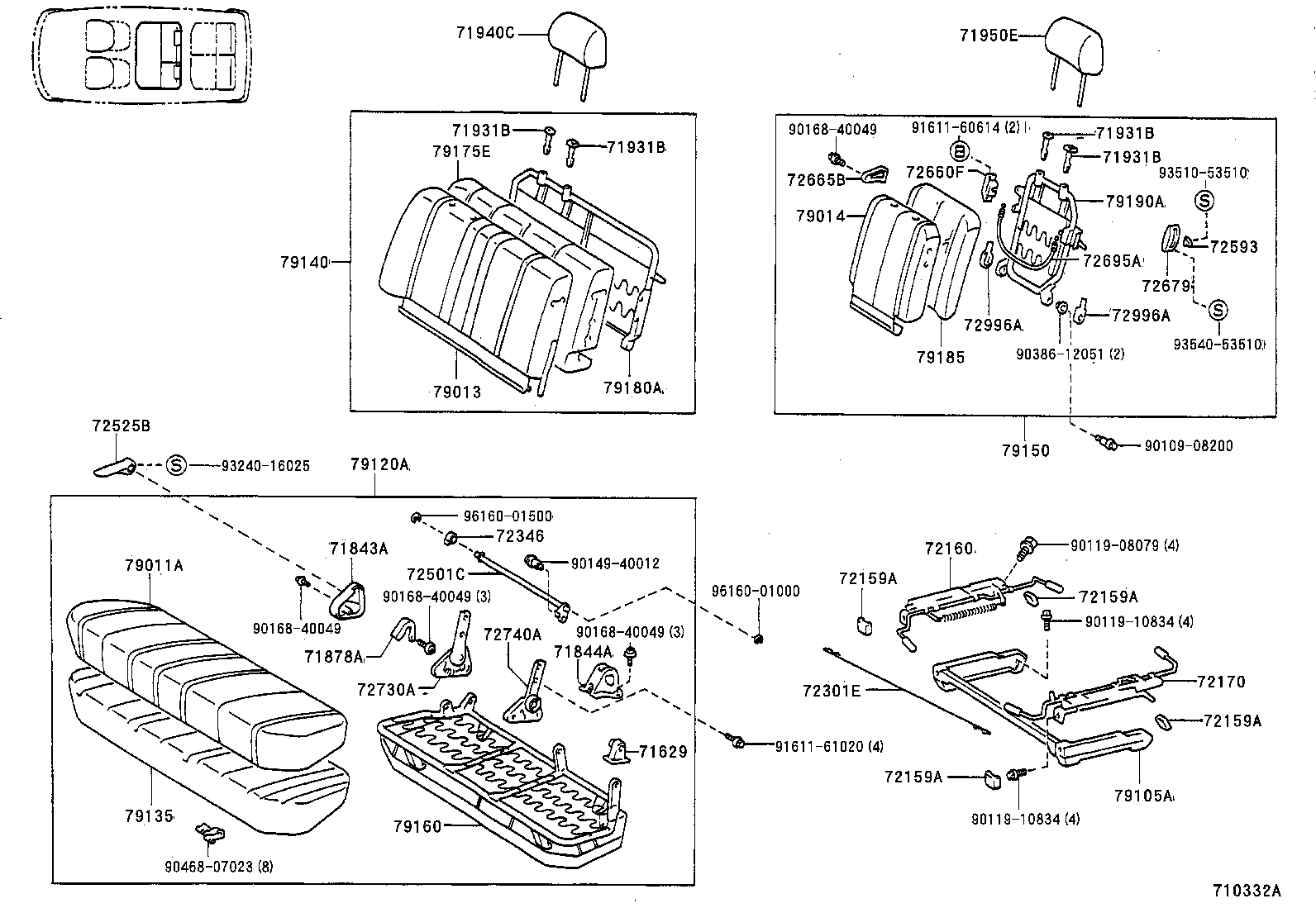

710332A 1993-02 → 1998-01

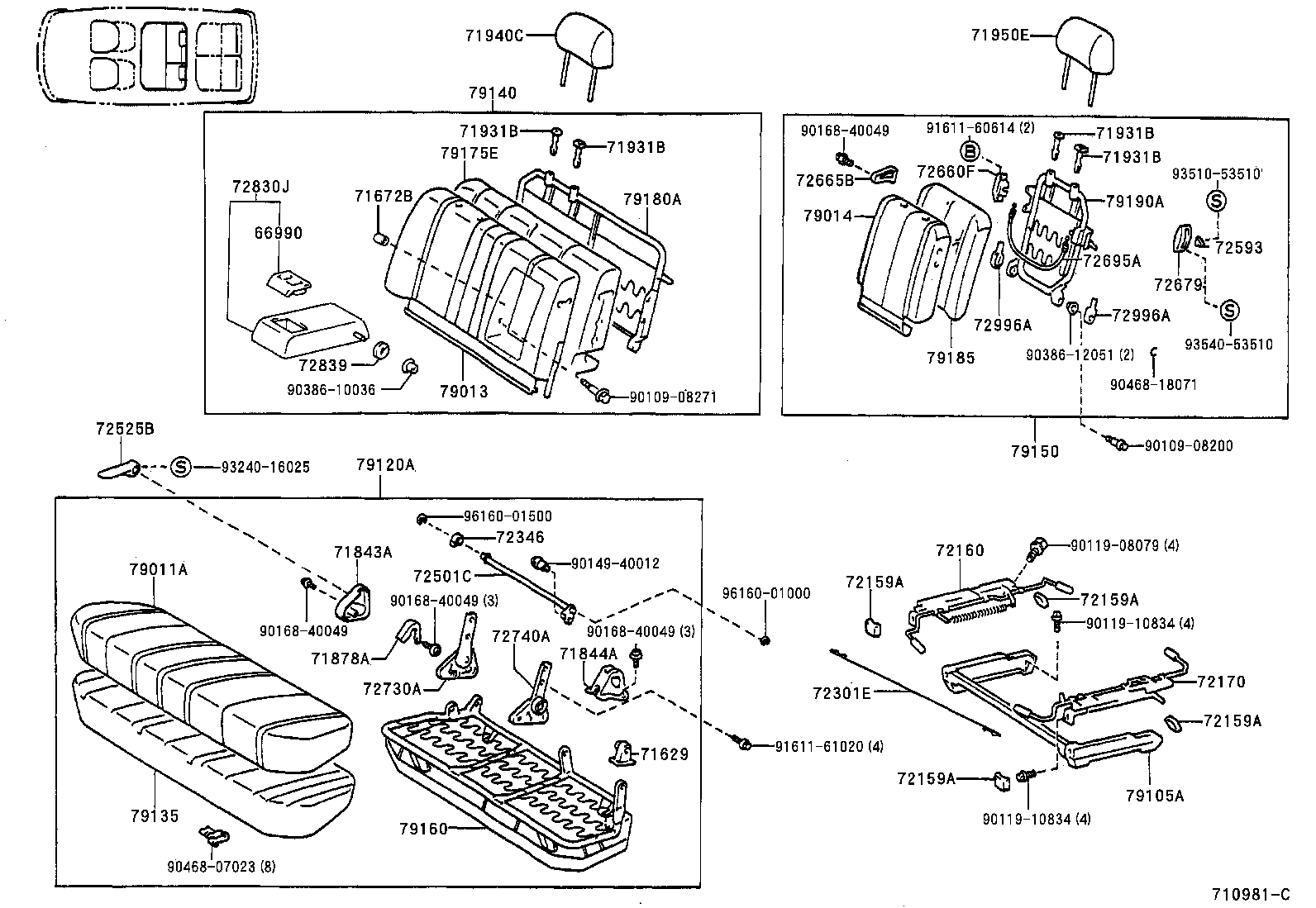

710981C 1998-01 → —

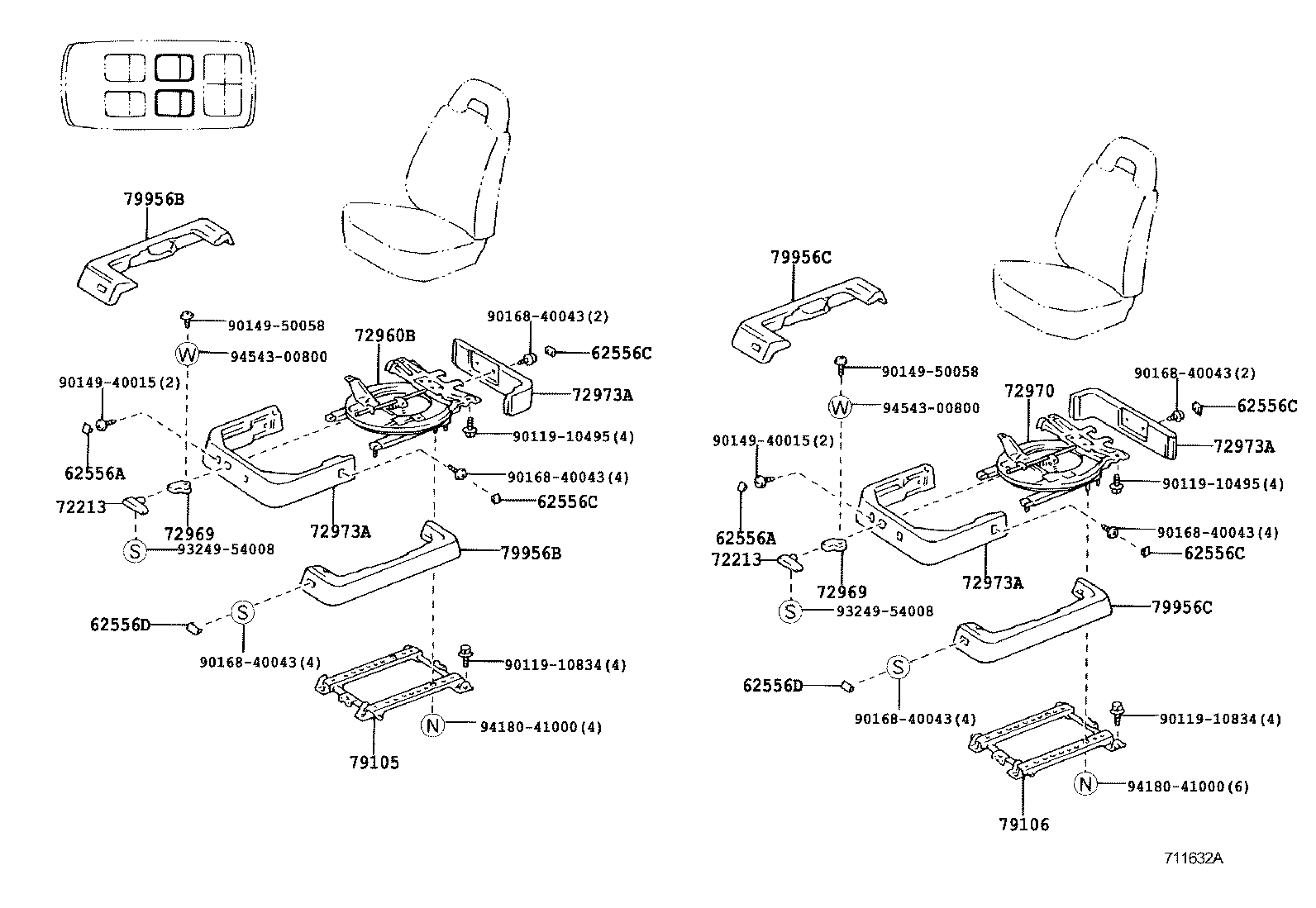

711632A 1990-05 → 1994-08

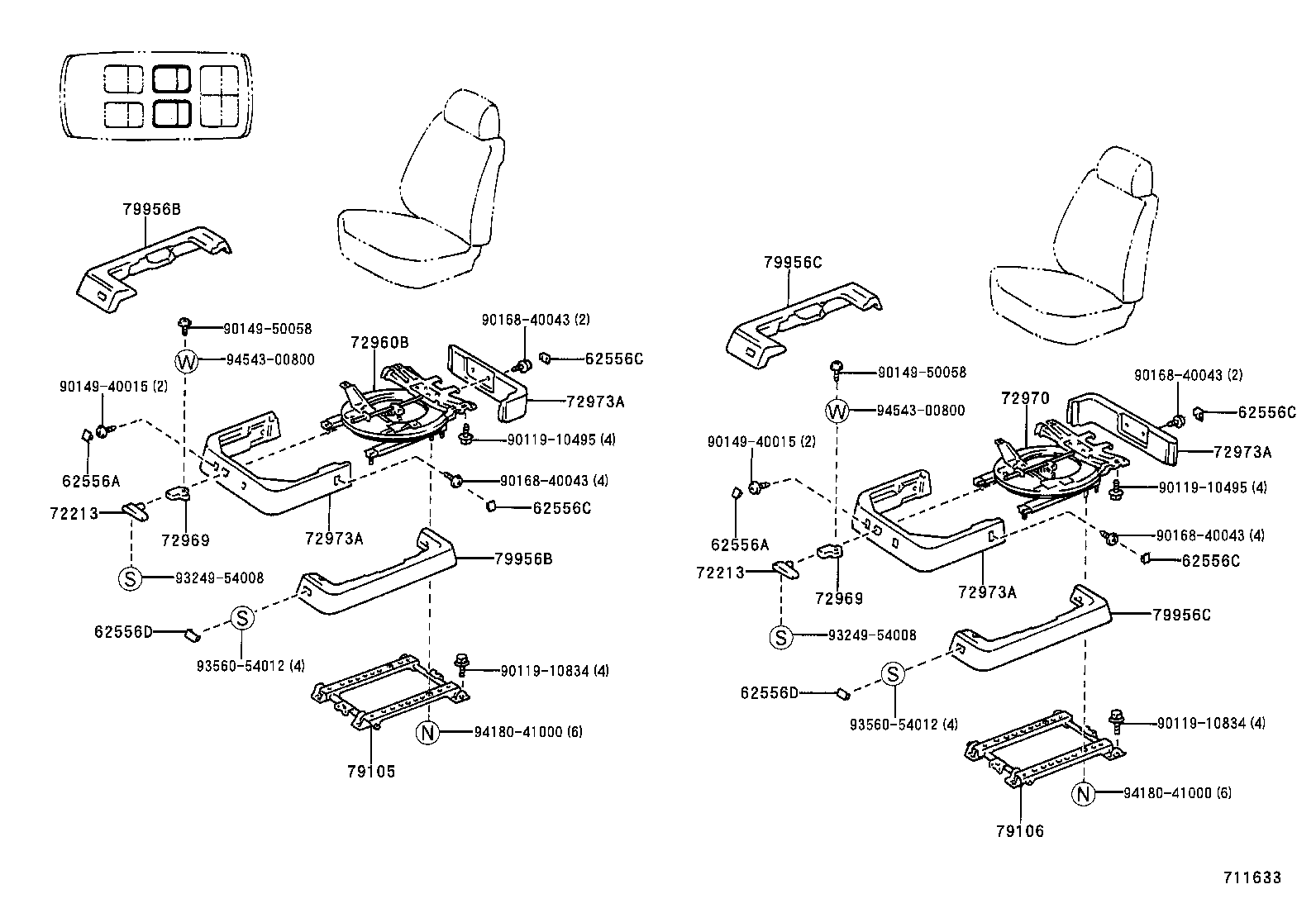

711633 1994-08 → 1996-08

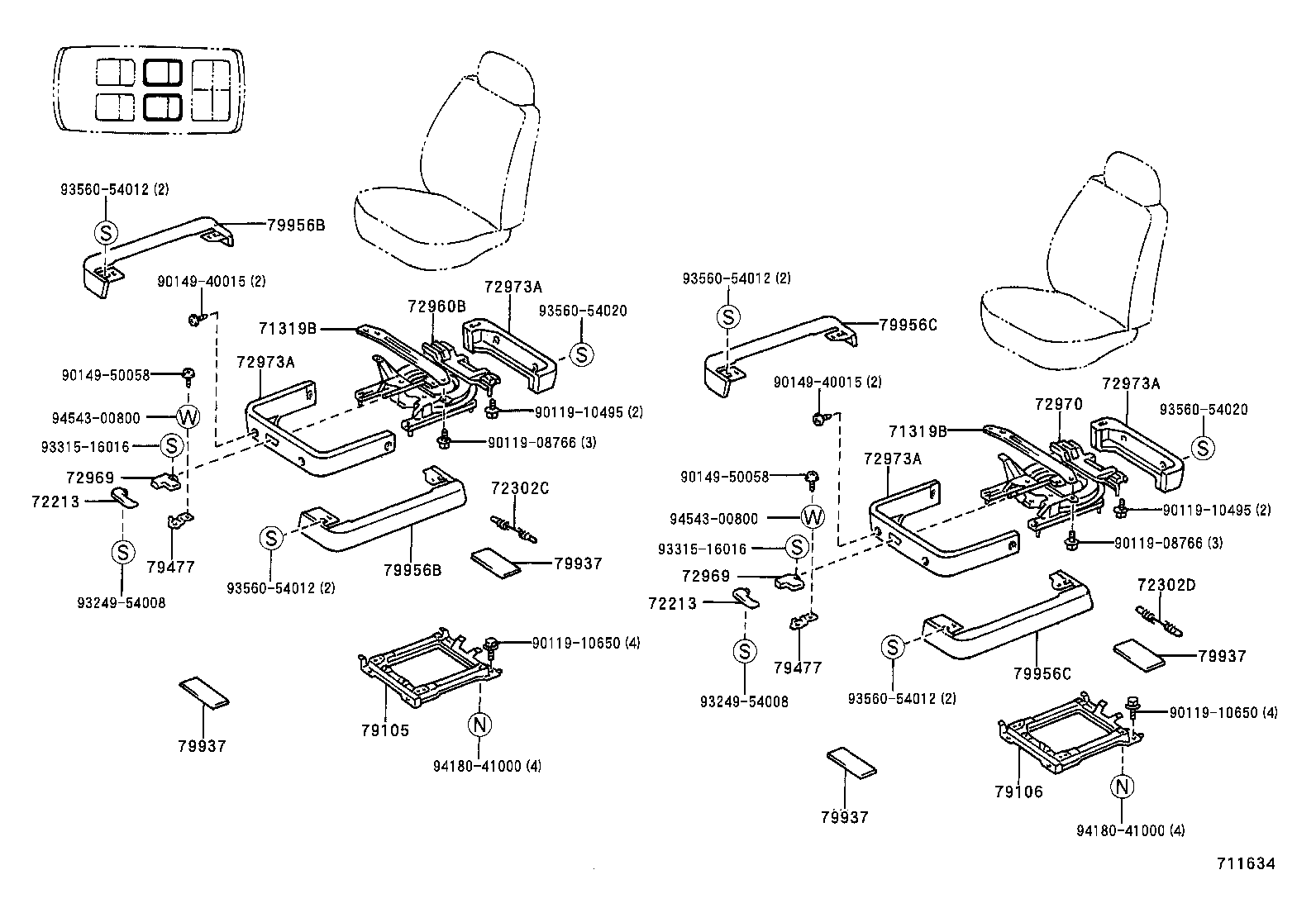

711634 1996-08 → —

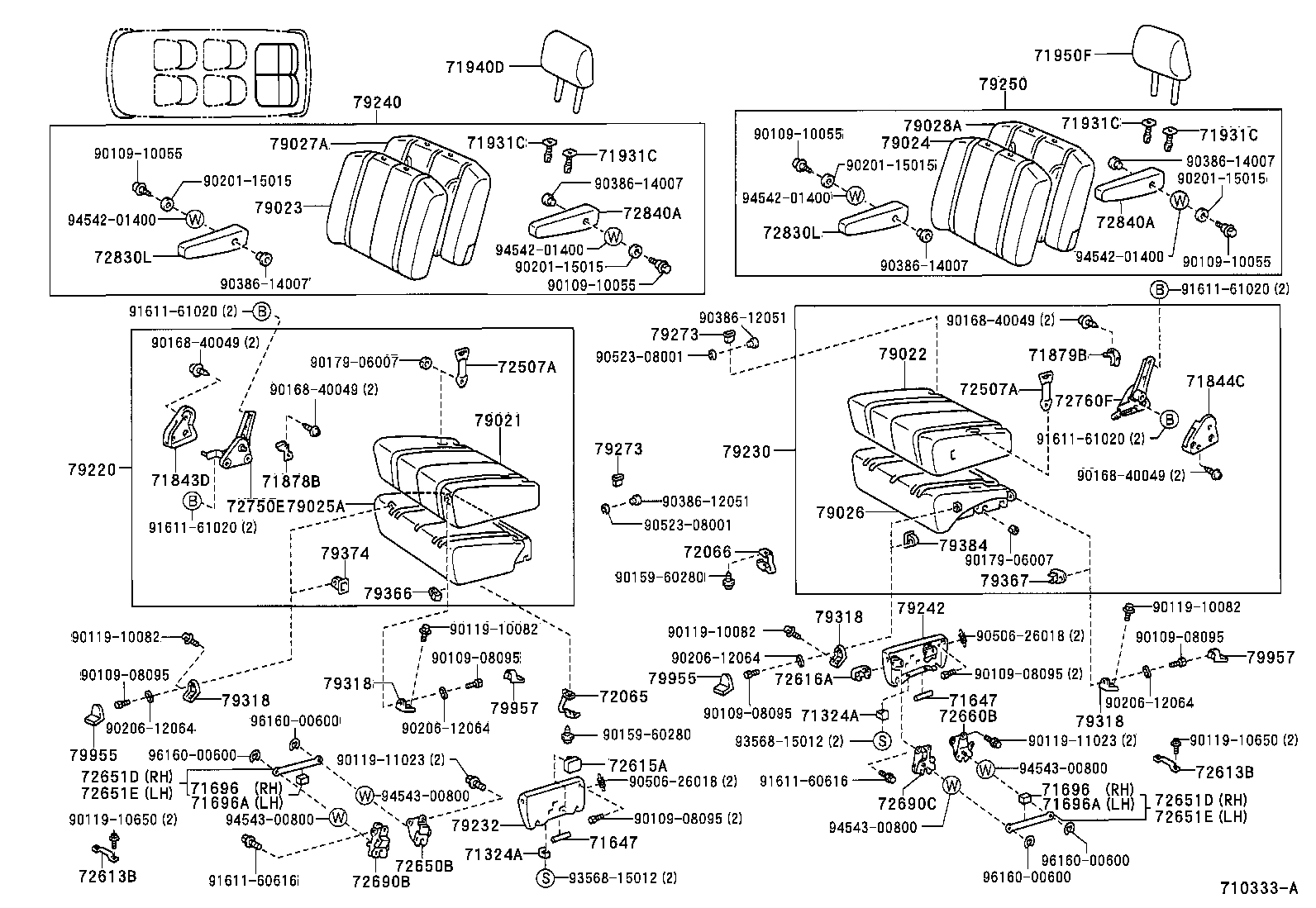

710333A 1990-05 → 1994-08

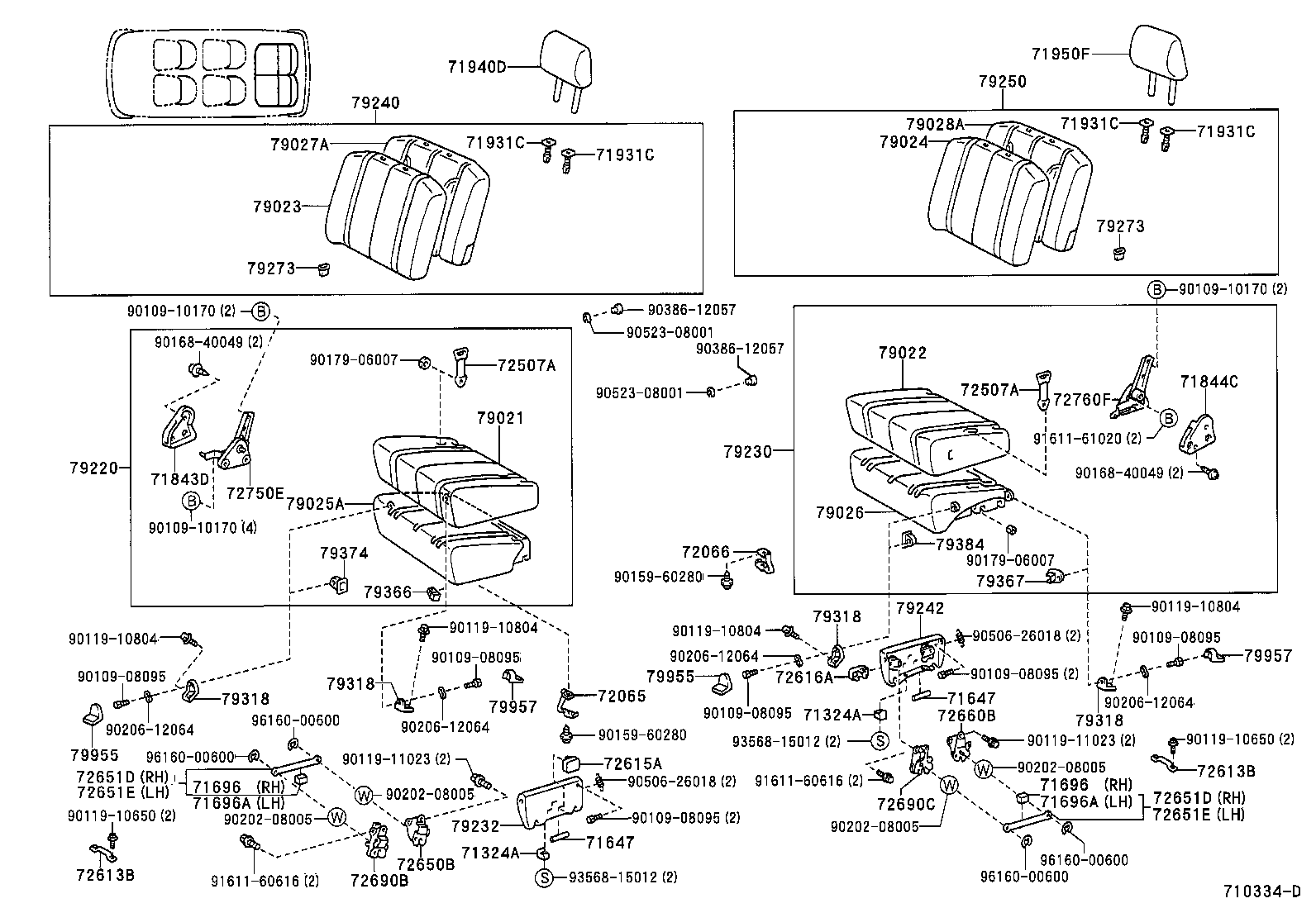

710334D 1994-08 → —

Part groups

PNC	Description
62556A	Cap, Rear Seat Side Garnish
62556C	Cap, Rear Seat Side Garnish, NO.2
62556D	Cap, Rear Seat Side Garnish, NO.3
66990	Holder Assy, Cup
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71108B	Leg Sub-assy, Front Seat, RH
71109B	Leg Sub-assy, Front Seat, LH
71319B	Bracket, Rear Seat Stay
71324A	Cushion, Rear Seat
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71672B	Silencer, Rear Seatback, RH
71696	Protector, Rear Seat, NO.2
71696A	Protector, Rear Seat, NO.2 LH
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843C	Cover, Reclining Adjuster, RH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844B	Cover, Reclining Adjuster, LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71878A	Cover, Rear Seat Reclining, Inner RH
71878B	Cover, Rear Seat Reclining, Inner RH
71879B	Cover, Rear Seat Reclining, Inner LH
71910B	Headrest Assy, Front Seat
71920A	Headrest Assy, Front Seat, LH
71931	Support, Front Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940C	Headrest Assy, Rear NO.1 Seat, RH
71940D	Headrest Assy, Rear NO.2 Seat, RH
71950E	Headrest Assy, Rear NO.1 Seat, LH
71950F	Headrest Assy, Rear NO.2 Seat, LH
72011D	Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
72011E	Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER)
72025A	Striker Sub-assy, Front Seat Lock
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72127D	Cover, Seat Track Bracket, Front, RH
72128C	Cover, Seat Track Bracket, Front, LH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72159A	Cover, Rear Seat Track Bracket
72159C	Cover, Front Seat Track Bracket
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72213	Knob, Seat Track Adjusting Handle
72250C	Lock Assy, Front Seat
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72301E	Wire Sub-assy, Rear NO.1 Seat Track Equalizing, RH
72302C	Wire Sub-assy, Rear Seat Track Equalizing, RH
72302D	Wire Sub-assy, Rear Seat Track Equalizing, LH
72346	Hook, Reclining Connecting
72501C	Pipe Sub-assy, Reclining Connecting
72507A	Handle Sub-assy, Reclining Release
72510D	Adjuster Assy, Reclining Seat, Outer RH
72520D	Adjuster Assy, Reclining Seat, Outer LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72551B	Cover, Reclining Hinge, RH
72551C	Cover, Reclining Hinge, NO.2
72552	Cover, Reclining Hinge, NO.2
72552B	Cover, Reclining Hinge, LH
72593	Knob, Reclining Remote Control Lever
72613B	Striker, Rear Seat Lock
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72650B	Lock Assy, Rear NO.3 Seat, RH
72651D	Rod, Rear Seatback Lock, RH
72651E	Rod, Rear Seatback Lock, LH
72660B	Lock Assy, Rear NO.3 Seat, LH
72660F	Lock Assy, Rear Seat, LH
72665B	Cover, Rear Seatback Lock
72679	Bezel, Rear Seatback Lock Control
72690B	Lever Assy, Seat Cushion Lock Release, RH
72690C	Lever Assy, Seat Cushion Lock Release, LH
72695A	Cable, Rear Seat Lock Control
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72750E	Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
72760F	Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH
72830J	Armrest Assy, Rear NO.1 Seat, RH
72830L	Armrest Assy, Rear NO.2 Seat, RH
72839	Shim, Rear Seat Armrest Hinge
72840	Armrest Assy, Rear NO.1 Seat, LH
72840A	Armrest Assy, Rear NO.2 Seat, LH
72848	Cap, NO.3 Seat Armrest
72849	Cap, Seat Armrest, NO.2
72877	Cover, Seat Armrest, RH
72878	Cover, Seat Armrest, LH
72880	Armrest Assy, Seat, C RH
72890	Armrest Assy, Seat, C LH
72960B	Table Assy, Rear Seat Turn, RH
72969	Knob, Rear Seat Turn Lock
72970	Table Assy, Rear Seat Turn, LH
72973A	Cover, Rear Seat Turn Table
72996A	Cover, Rear Seatback
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79025A	Pad Sub-assy, NO.2 Seat Cushion, RH
79026	Pad Sub-assy, NO.2 Seat Cushion, LH
79027A	Pad Sub-assy, NO.2 Seatback, RH
79028A	Pad Sub-assy, NO.2 Seatback, LH
79105	Leg Sub-assy, NO.1 Seat, RH
79105A	Leg Sub-assy, NO.1 Seat
79106	Leg Sub Assy, NO.1 Seat, LH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79130	Cushion Assy, NO.1 Seat, LH
79135	Pad, NO.1 Seat Cushion
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79140	Back Assy, NO.1 Seat, RH
79150	Back Assy, NO.1 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79160A	Spring Assy, NO.1 Seat Cushion, RH
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79175E	Pad, NO.1 Seatback, RH
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79190A	Spring Assy, NO.1 Seatback, LH
79220	Cushion Assy, NO.2 Seat, RH
79230	Cushion Assy, NO.2 Seat, LH
79232	Leg, Rear NO.2 Seat, RH
79240	Back Assy, NO.2 Seat, RH
79242	Leg, Rear NO.2 Seat, LH
79250	Back Assy, NO.2 Seat, LH
79273	Cover, NO.2 Seat Hinge
79318	Bracket, NO.3 Seat Leg
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79374	Cover, NO.3 Seat Leg, Rear RH
79384	Cover, NO.3 Seat Leg, Rear LH
79477	Bracket, Rear Seat Turn Set Link, NO.1
79937	Cover, Rear Seat Leg, NO.2
79955	Cover, Rear Seat Front Bracket, Front
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79957	Cover, Rear Seat Rear Bracket, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
