Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

45 part groups · 15 illustrations

Illustrations

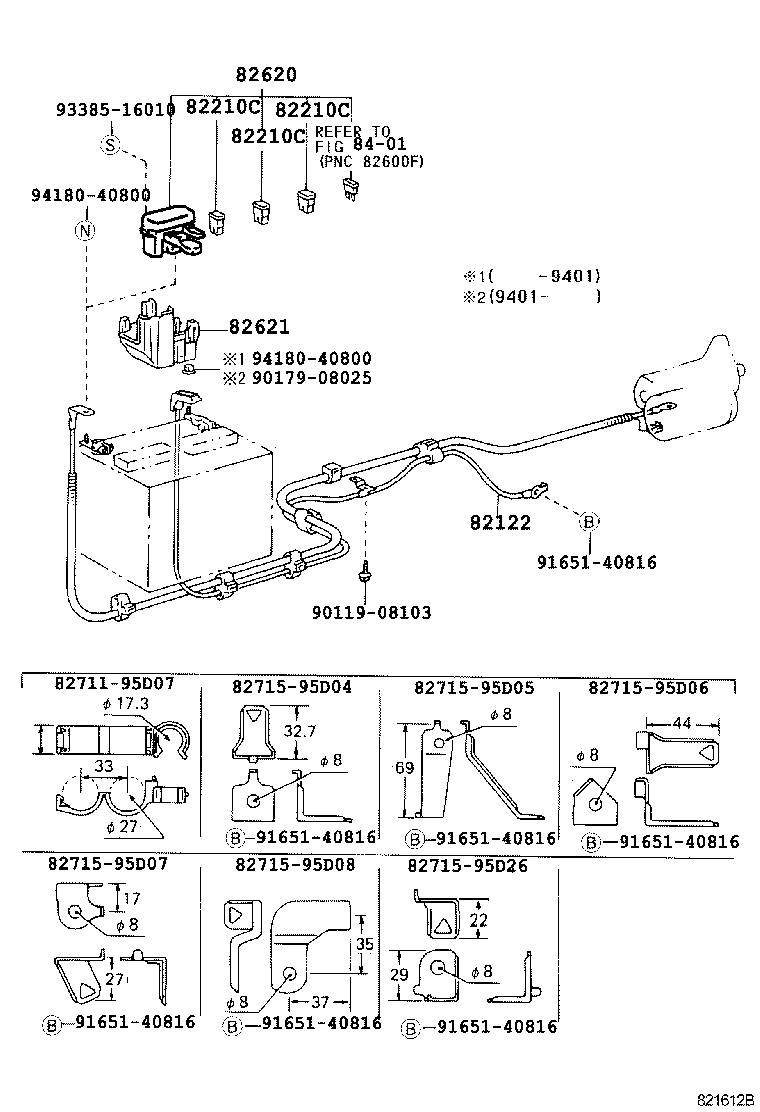

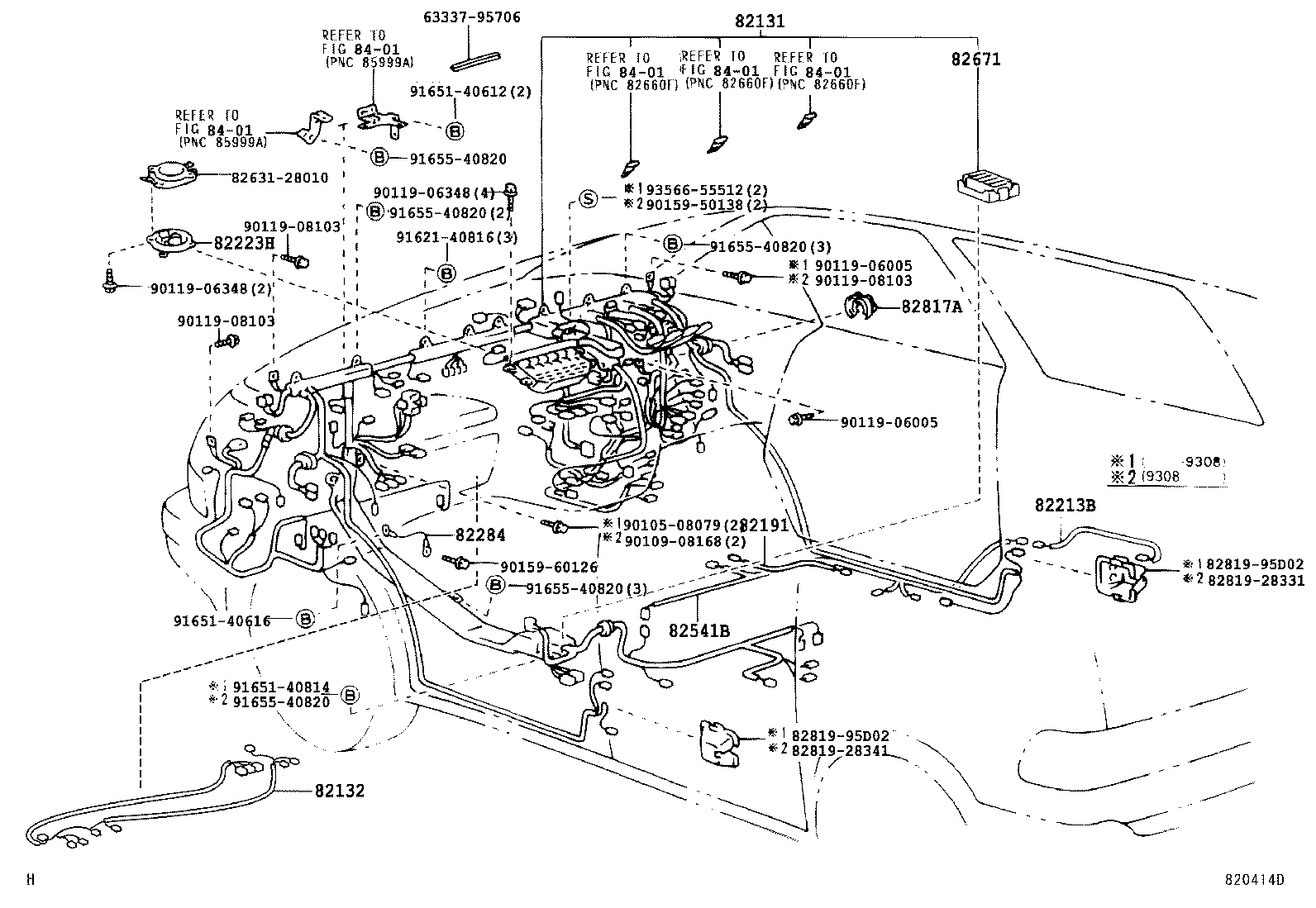

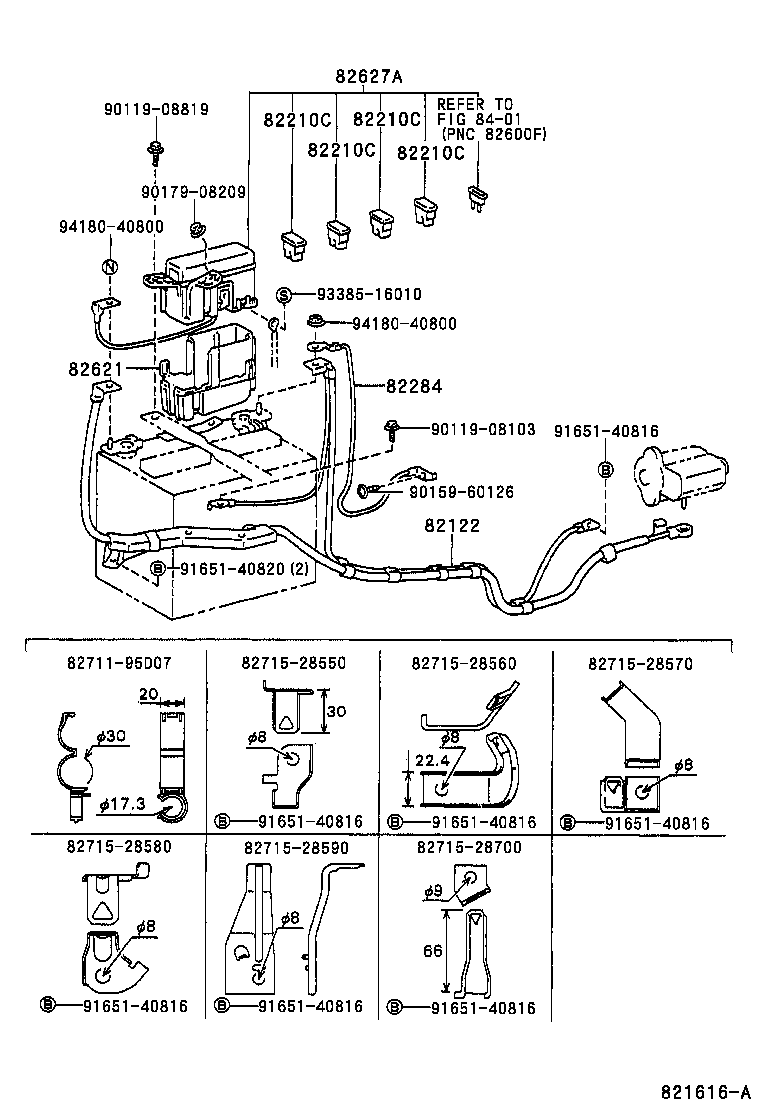

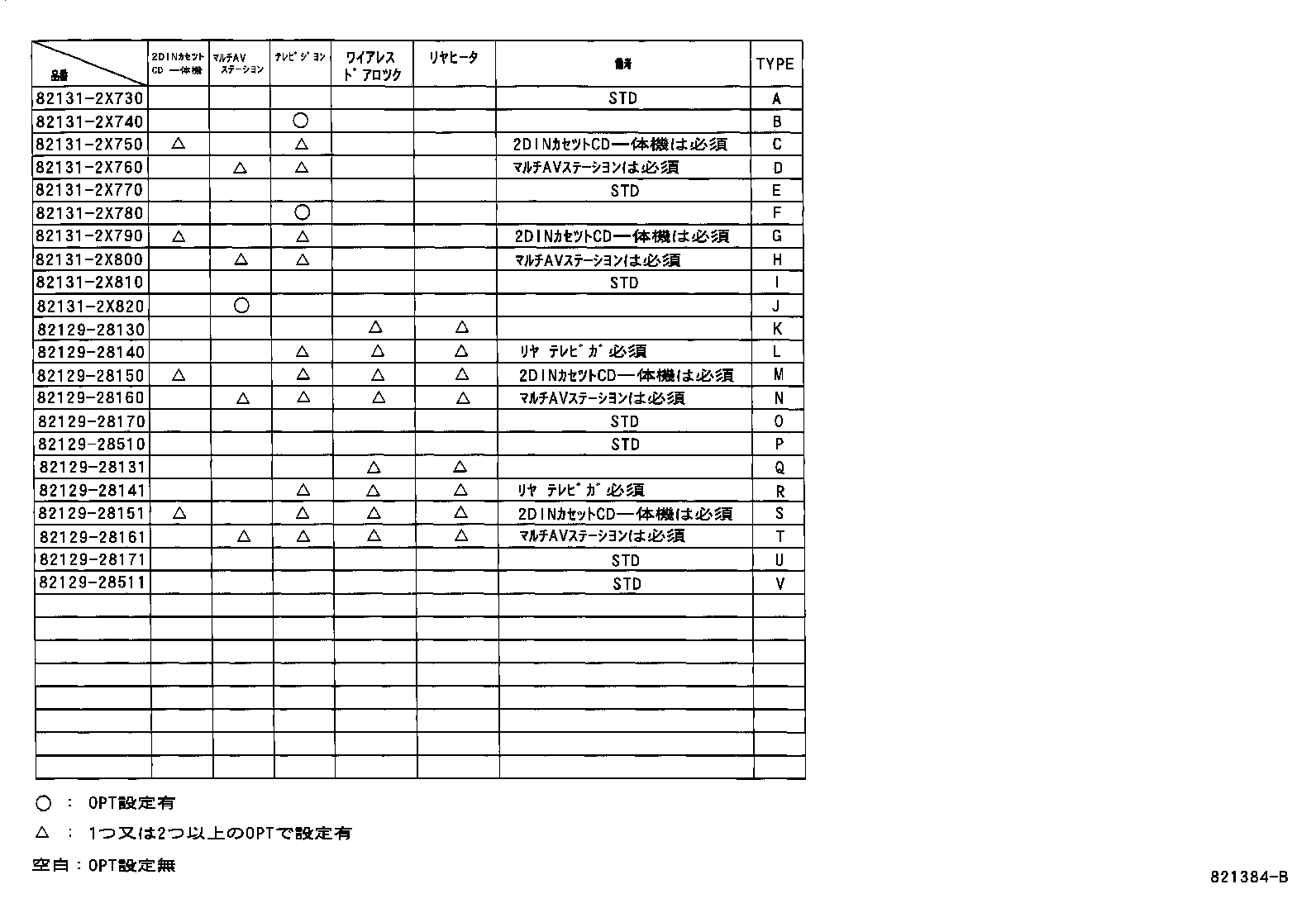

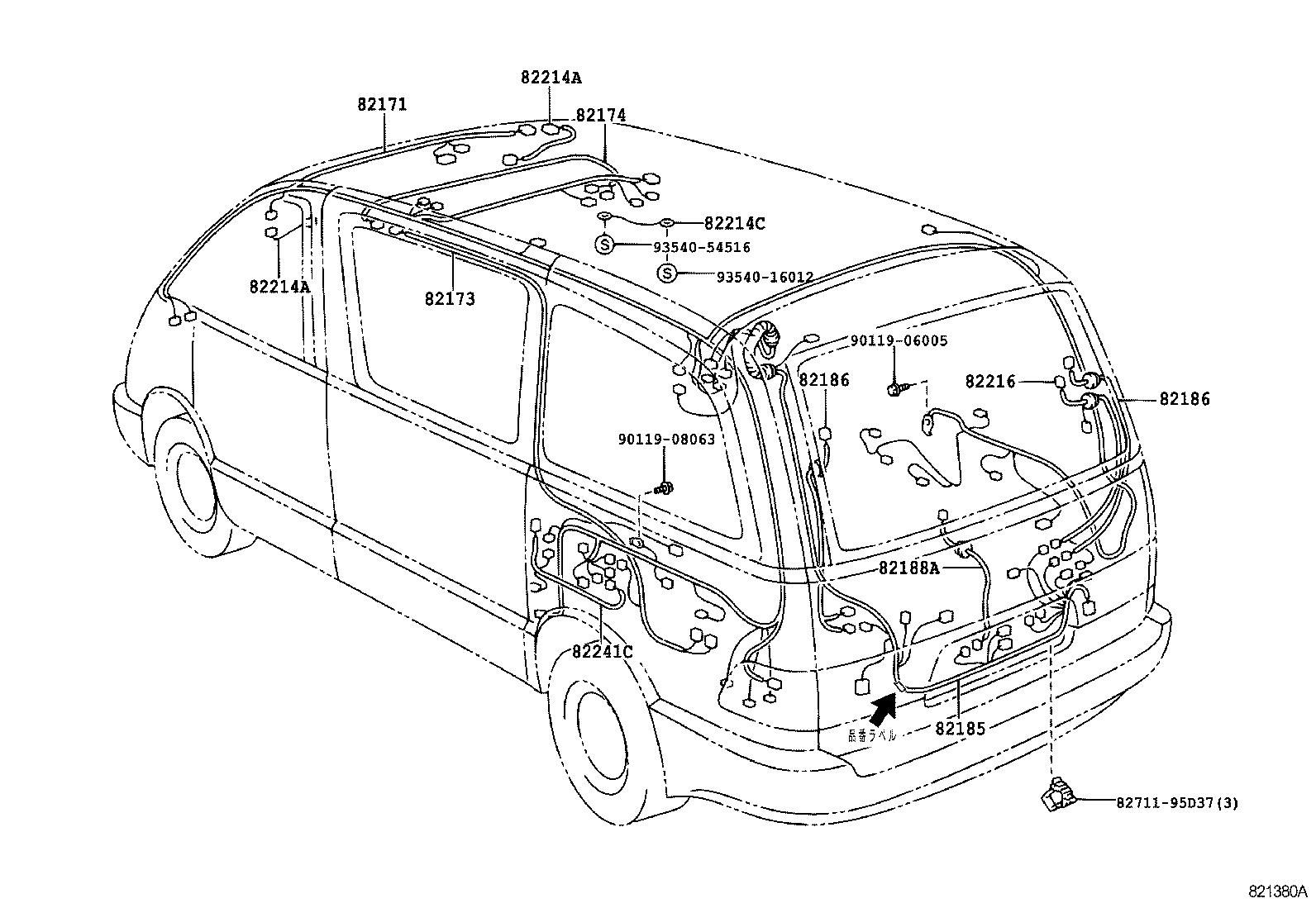

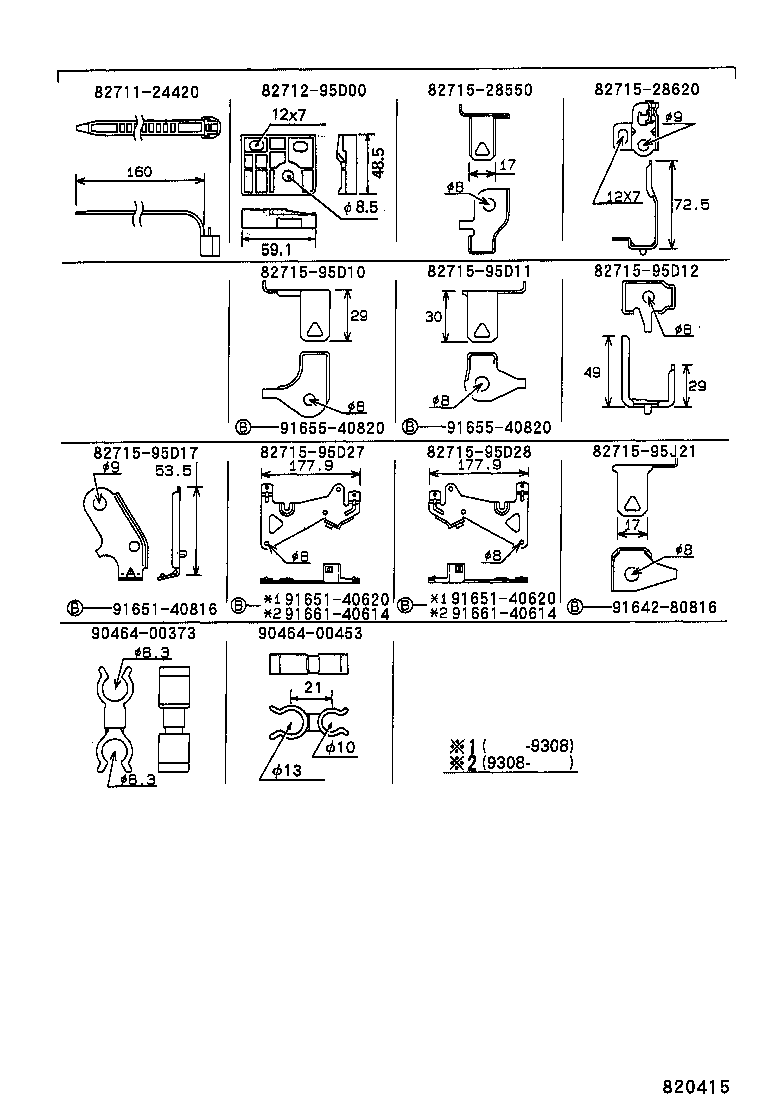

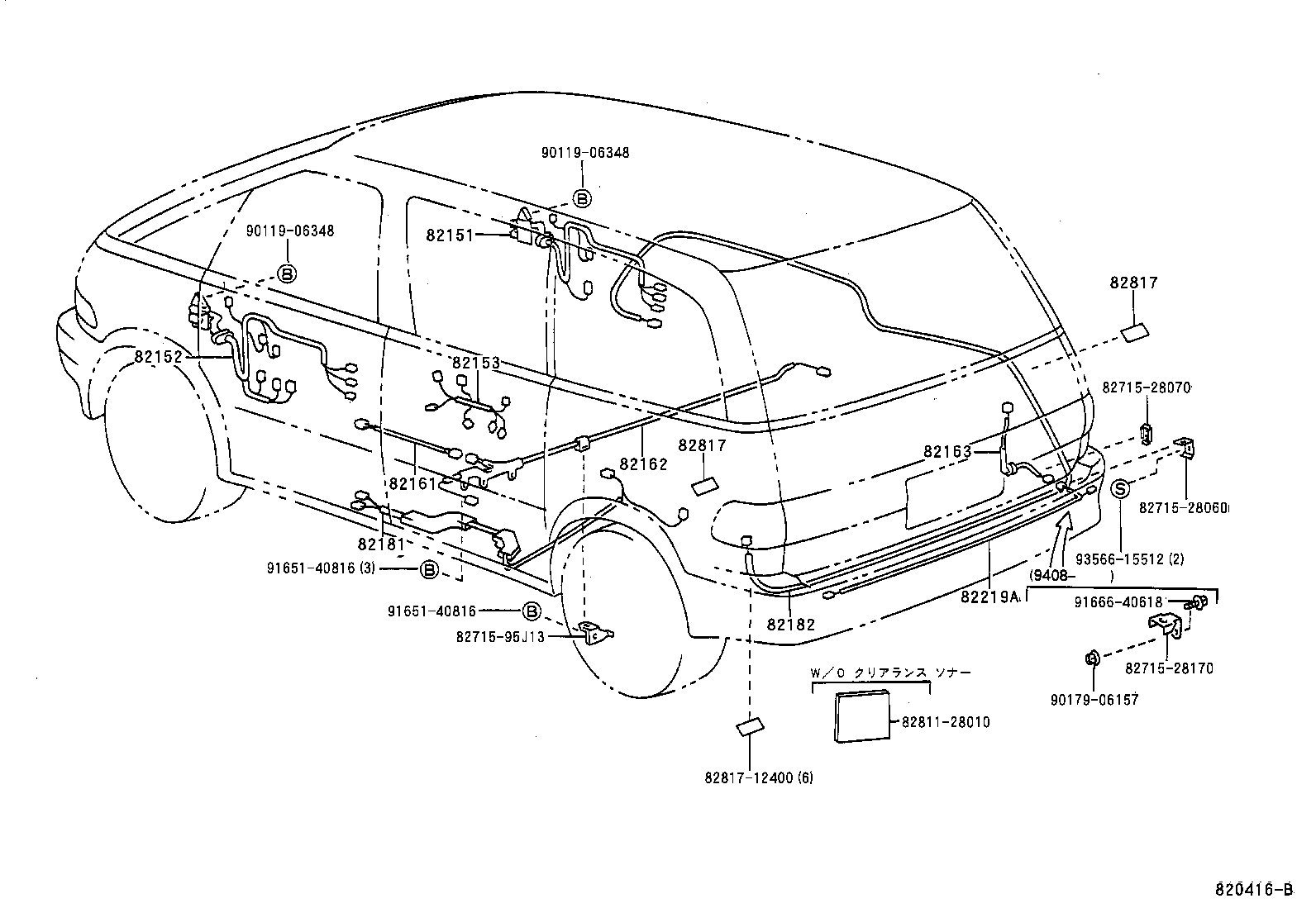

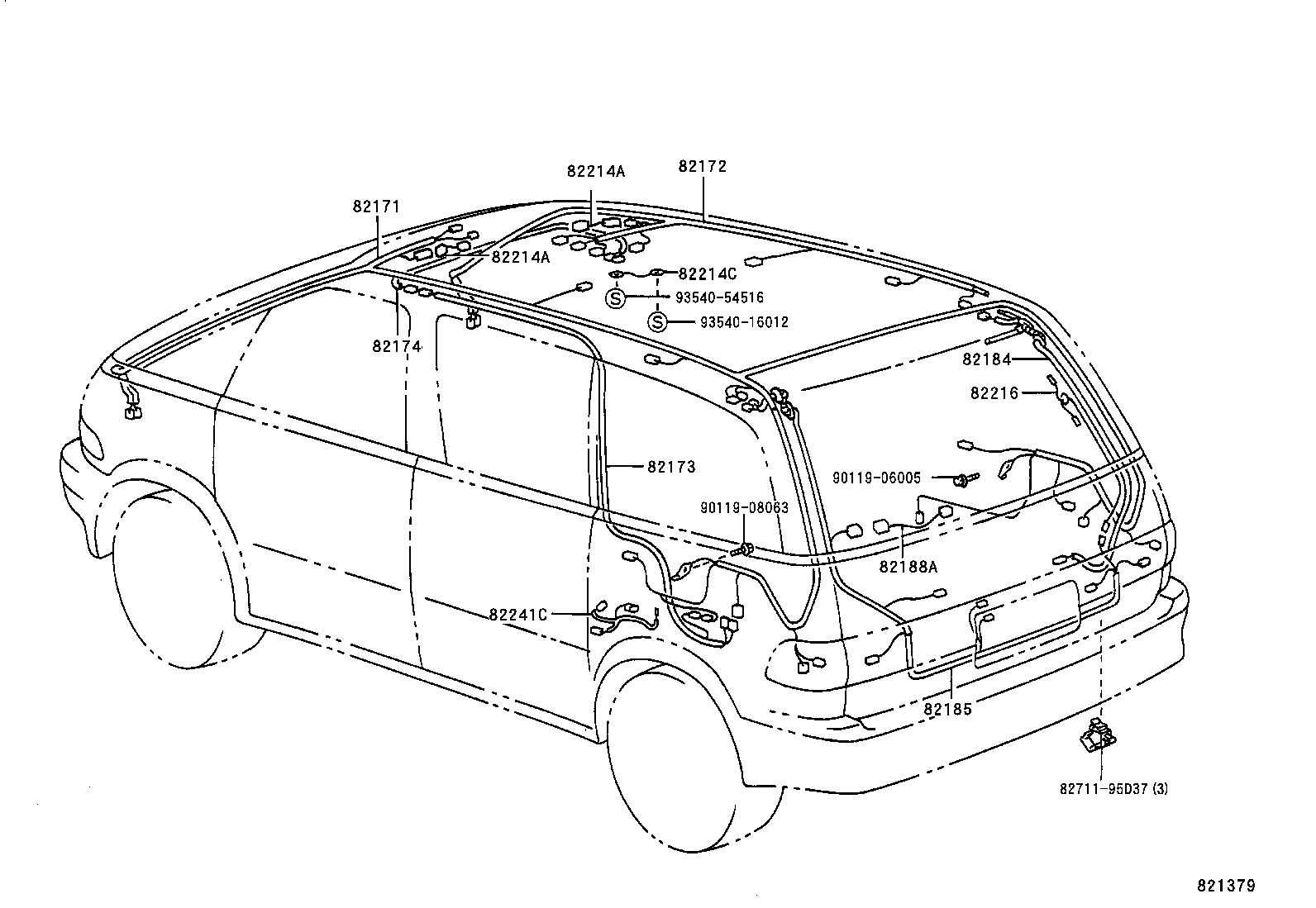

Figure 820413B 820413B 1990-05 → — Figure 821615B 821615B 1990-05 → — Figure 821616A 821616A 1994-08 → — Figure 820414D 820414D 1990-05 → — Figure 820397A 820397A 1990-05 → 1993-08 Figure 820398B 820398B 1993-08 → 1996-08 Figure 821384B 821384B 1996-08 → — Figure MEQ836 MEQ836 1990-05 → — Figure 820415 820415 1990-05 → — Figure 820416B 820416B 1990-05 → — Figure 821379 821379 1990-05 → 1993-08 Figure 821380A 821380A 1993-08 → — Figure 820412 820412 1990-05 → — Figure 821966 821966 1994-07 → — Figure MEP871C MEP871C 1990-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82191 Wire, Front Seat, RH
82210C Fusible Link
82213B Wire, Heater
82214A Wire, Lamp
82214C Wire, Room Lamp
82216 Wire, Rear Window Defogger
82219A Wire, Sensor
82223H Wire, Fuse Block
82241C Wire, Relay
82261A Wire, Alternator
82284 Wire, Earth
82345 Diode
82541B Wire, Seat Adjuster
82620 Block Assy, Fusible Link
82621 Cover, Fusible Link
82627A Wire, Fusible Link
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823A Cap, Terminal, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
