Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07
Meter
17 part groups · 6 illustrations
Part groups

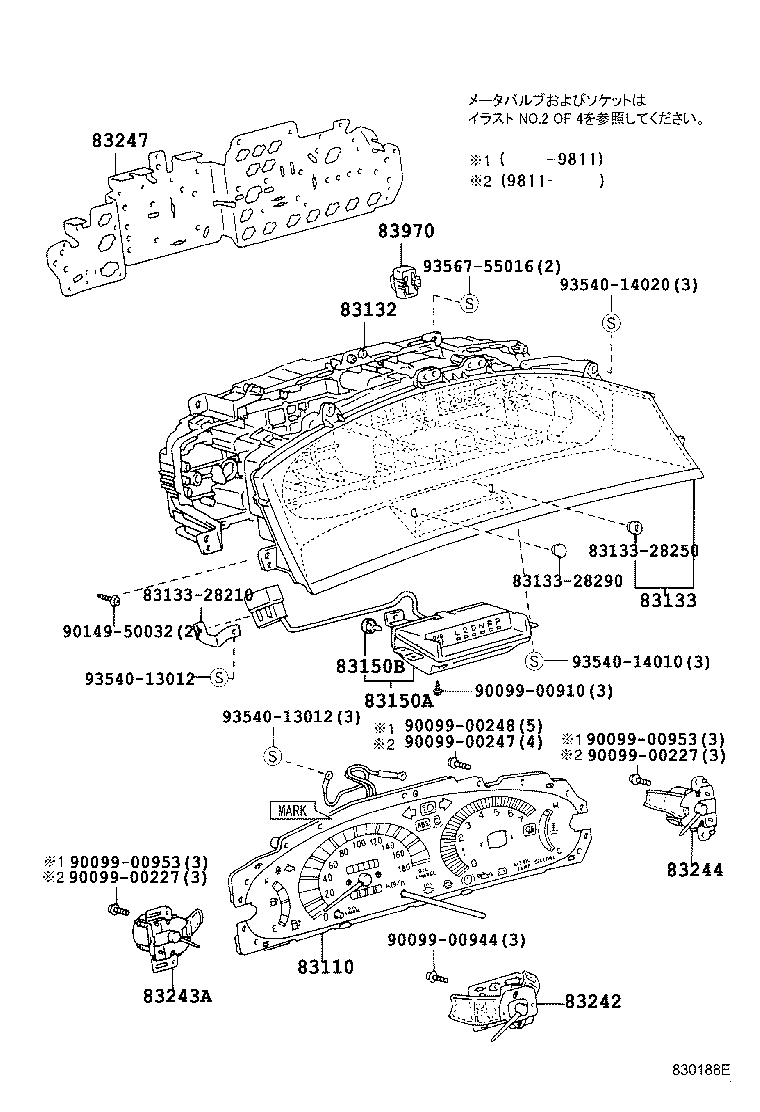

| PNC | Description |
|---|---|

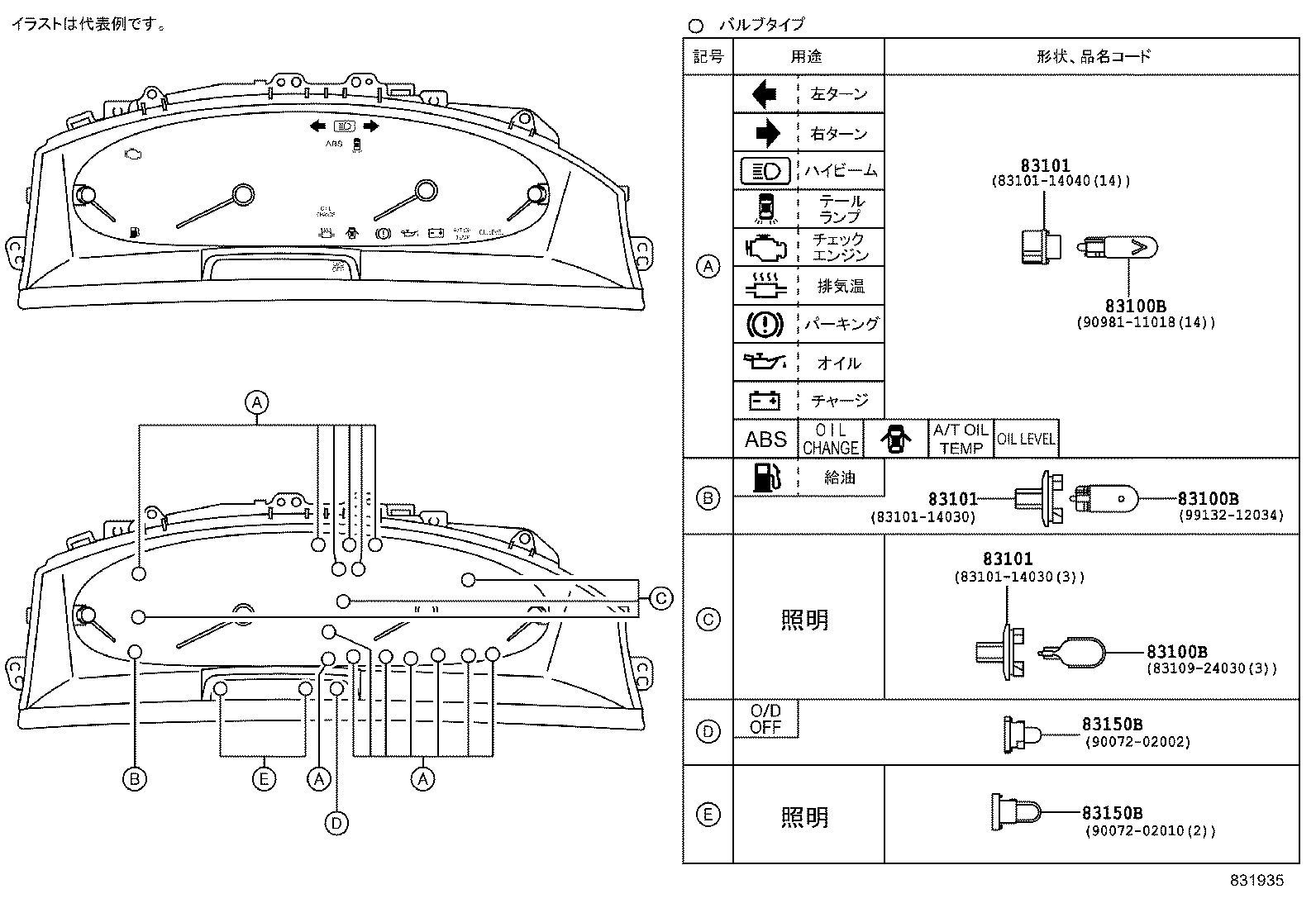

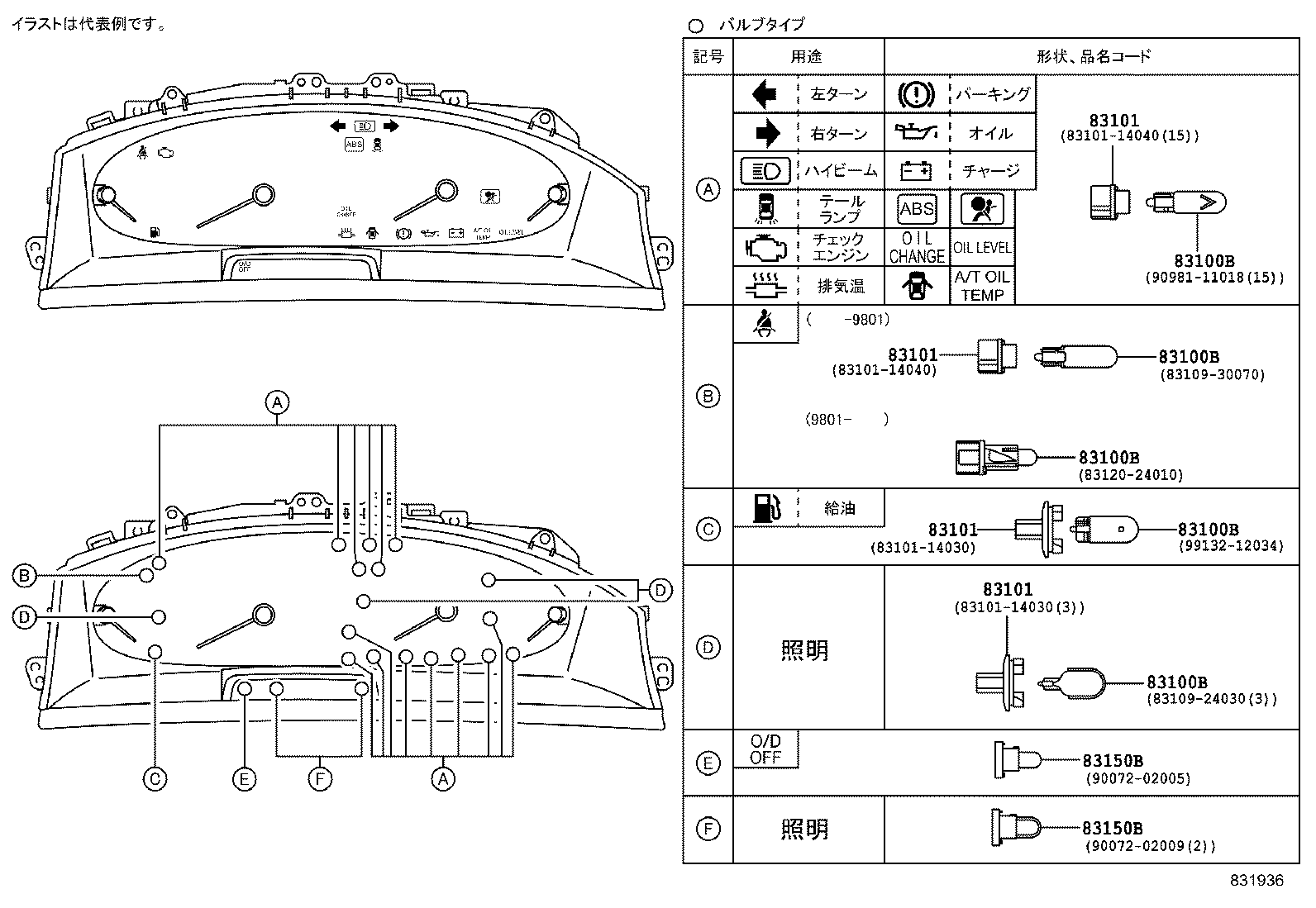

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83150A | Indicator Assy |
| 83150B | Bulb (FOR INDICATOR) |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83248 | Chime, Speed Warning |
| 83783 | Key, Speedmeter Sensor |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
