Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07
Overdrive & Electronic Controlled Transmission
11 part groups · 6 illustrations

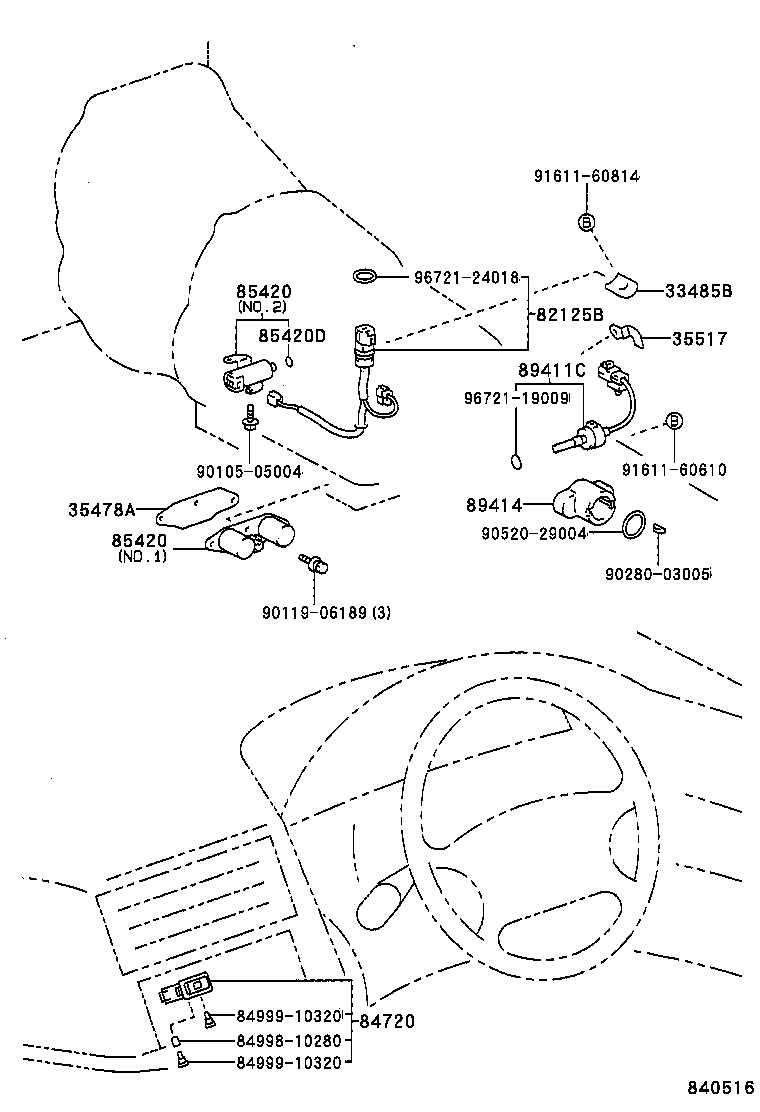

Part groups
| PNC | Description |
|---|---|
| 33485B | Plate, Transmission Wire |
| 33485C | Plate, Speedometer Sleeve Lock |
| 35478A | Gasket, Shift Control Solenoid |
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89429A | Sensor, Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
