Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07
Abs & Vsc
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |

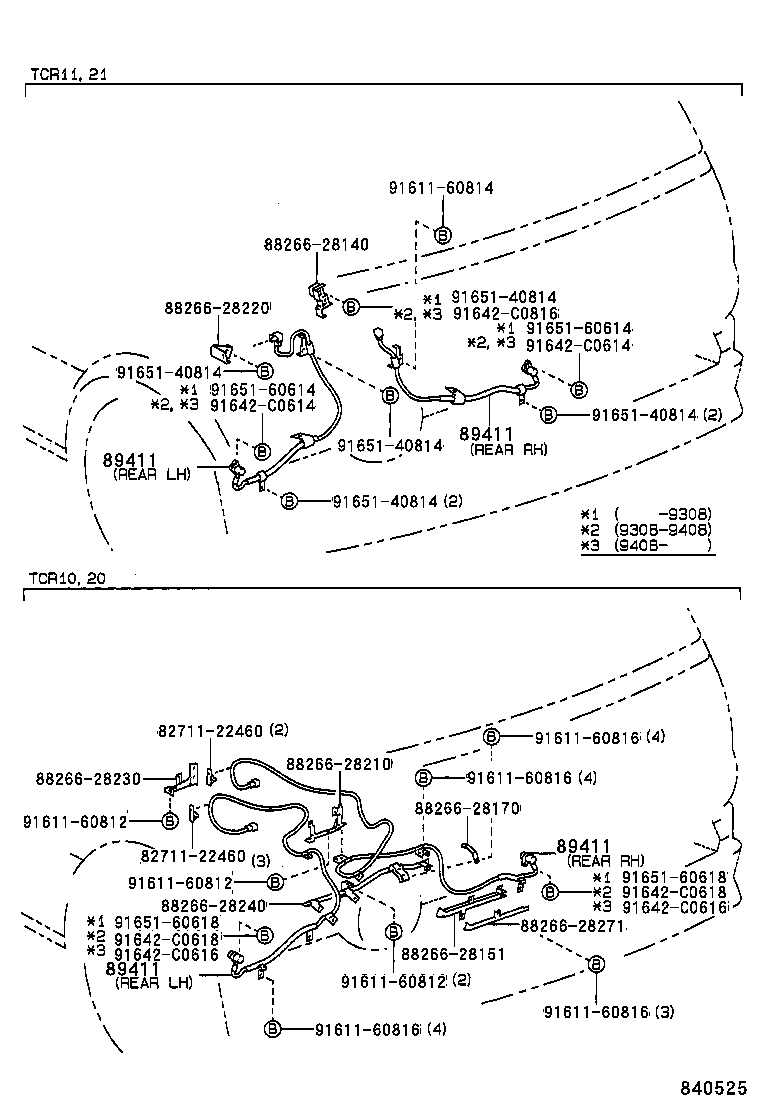

| 89411 | Sensor, Speed |
| 89439B | Bracket, Sensor |
| 89441A | Sensor, Deceleration |

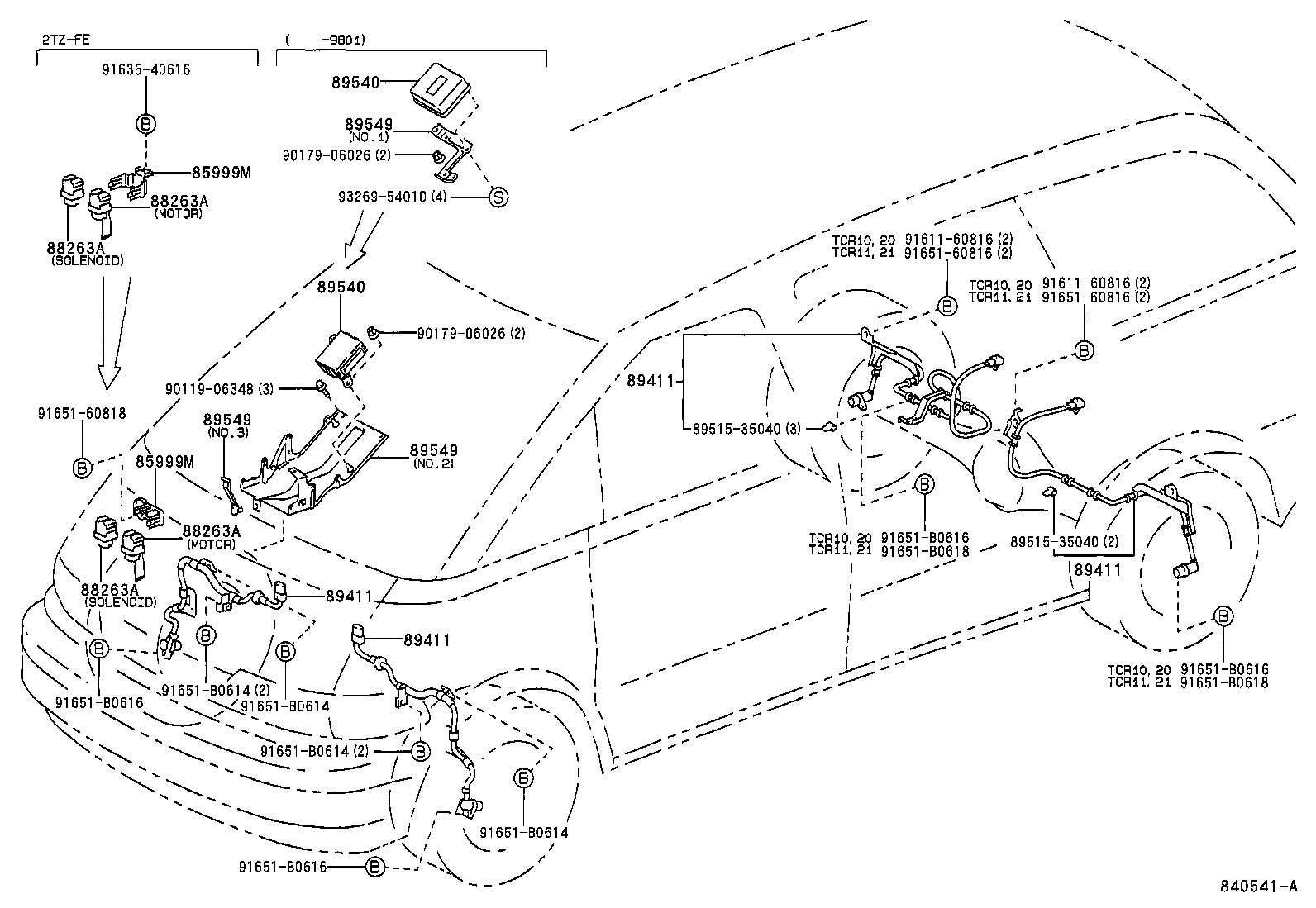

| 89540 | Computer Assy, Skid Control |
| 89549 | Bracket, Skid Control Computer |
| 89638 | Cover, Brake Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
