Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

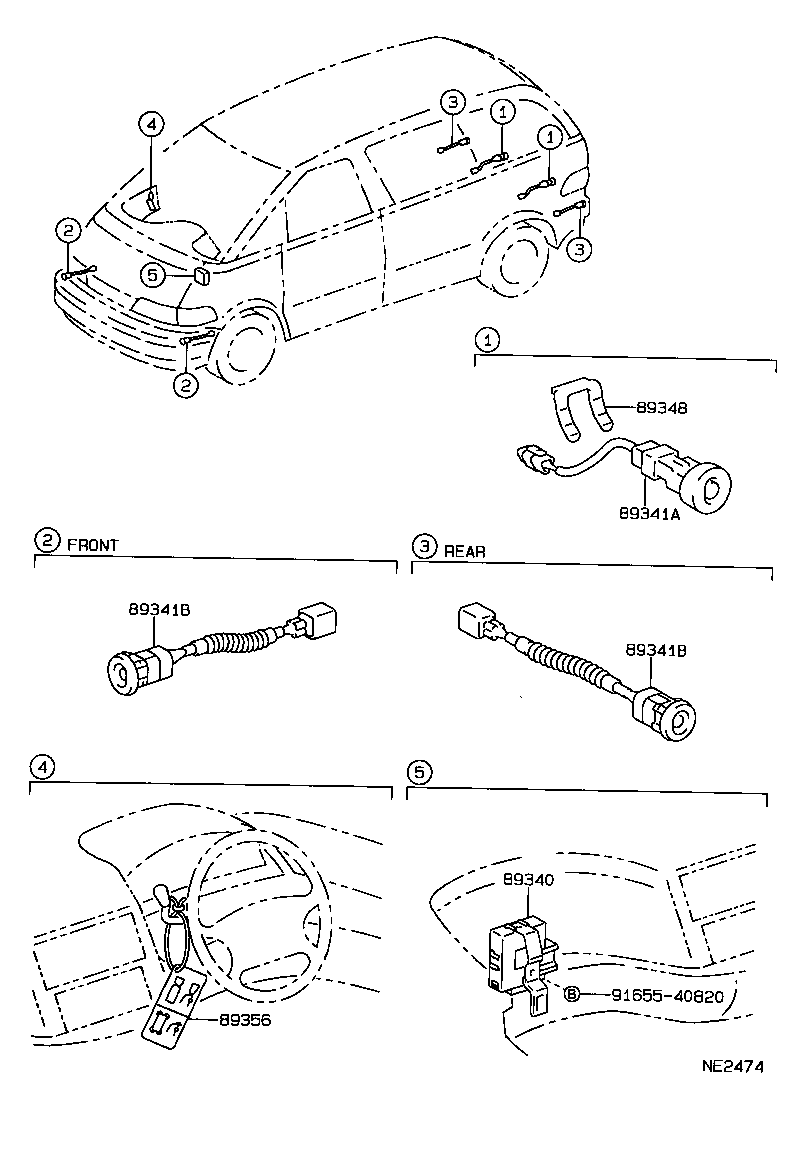

Clearance & Back Sonar
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89340 | Computer Assy, Rear Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89348 | Retainer, Ultrasonic Sensor, NO.1 |
| 89356 | Label, Clearance Warning Information |
| 89358 | Nut, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
