Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 3 illustrations

Illustrations

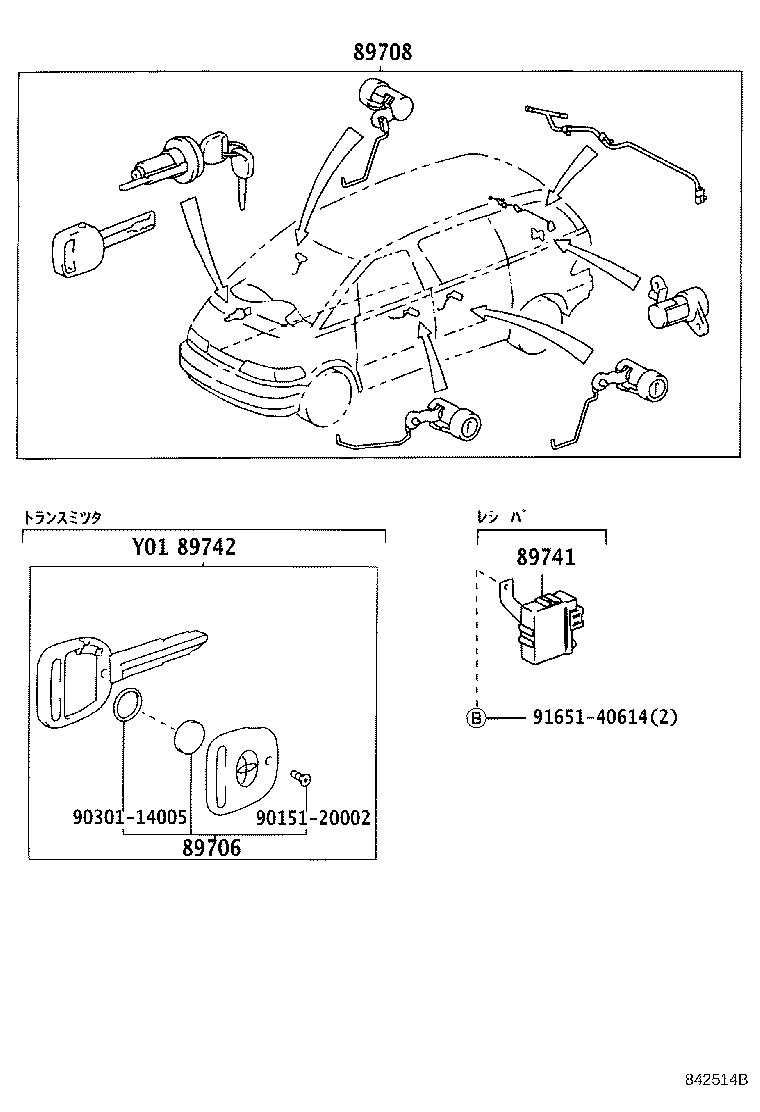

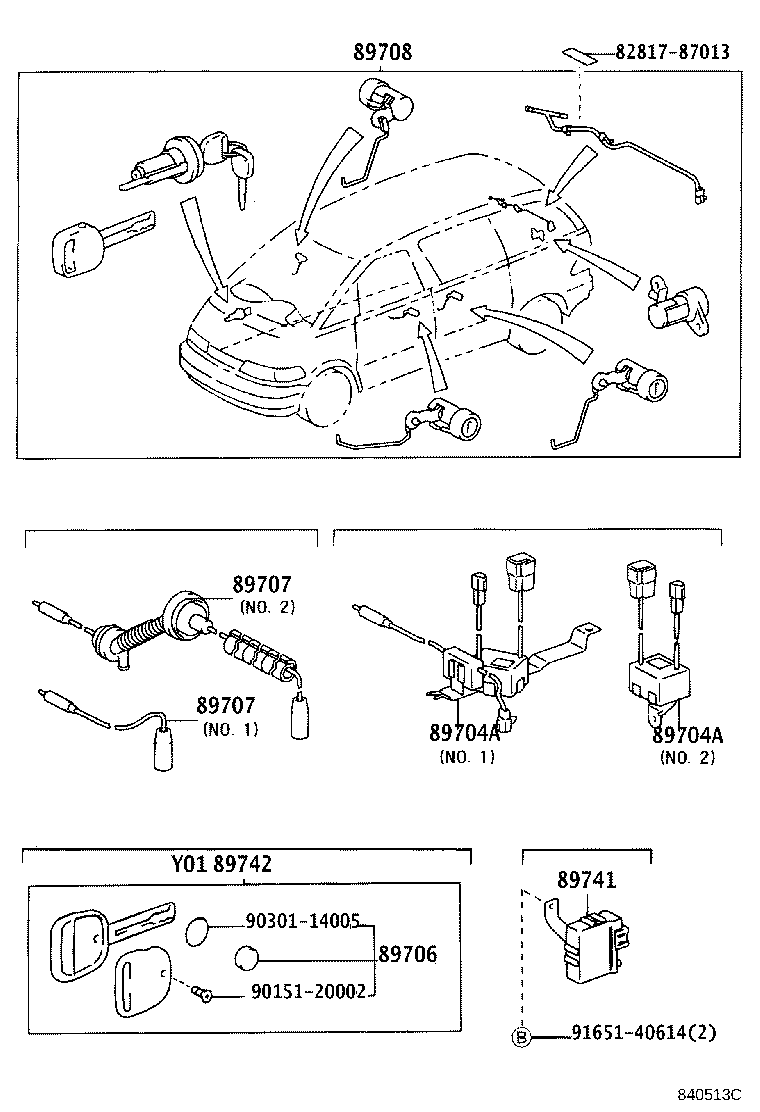

Figure 84L254 84L254 1990-05 → 1996-08 Figure 840513C 840513C 1996-08 → 1998-08 Figure 842514B 842514B 1998-08 → —

Part groups

PNCDescription
84113D Bracket, Switch
84987 Switch, Wireless Door Lock Main
89704 Control Set, Wireless Door Lock
89704A Filter, Noise(FOR WIRELESS DOOR LOCK)
89705 Transmitter, Door Control
89706 Battery Set, Transmitter
89707 Cord Sub-assy, Wireless Door Lock
89708 Cylinder Set, Wireless Door Lock
89741 Receiver, Door Control
89742 Transmitter, Door Control
89743 Receiver, Door Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
