Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 4 illustrations

Illustrations

Figure 860202A

860202A 1990-05 → —

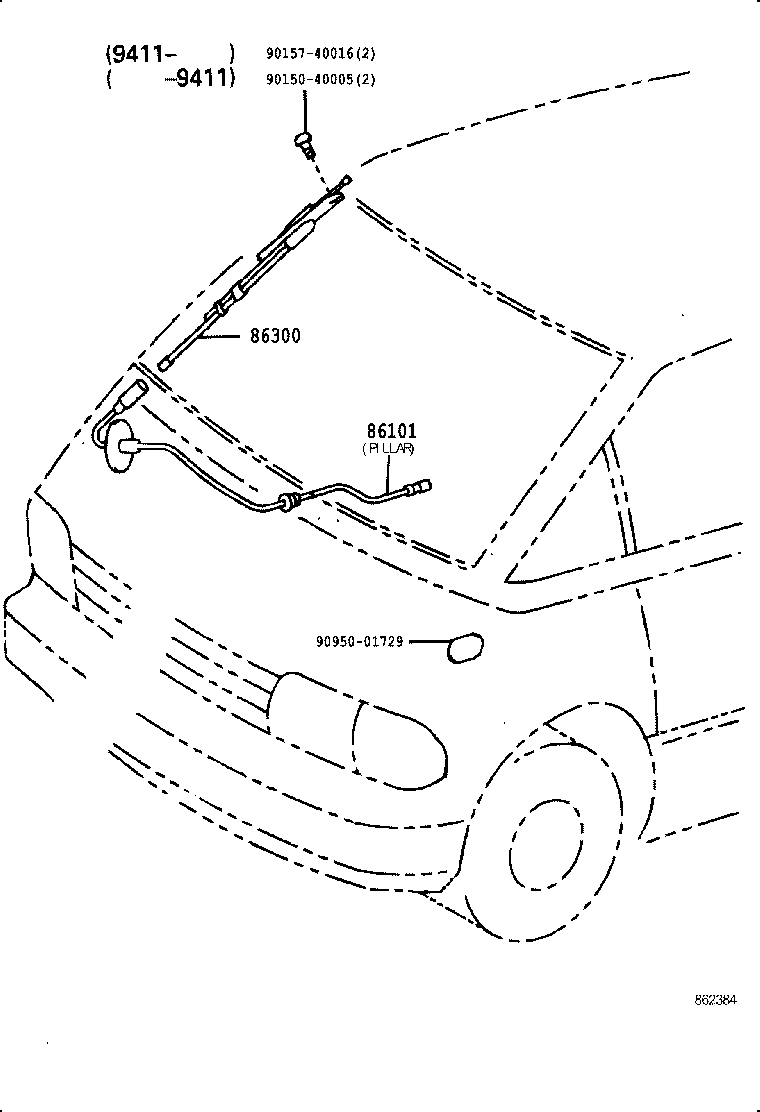

862384 1993-02 → —

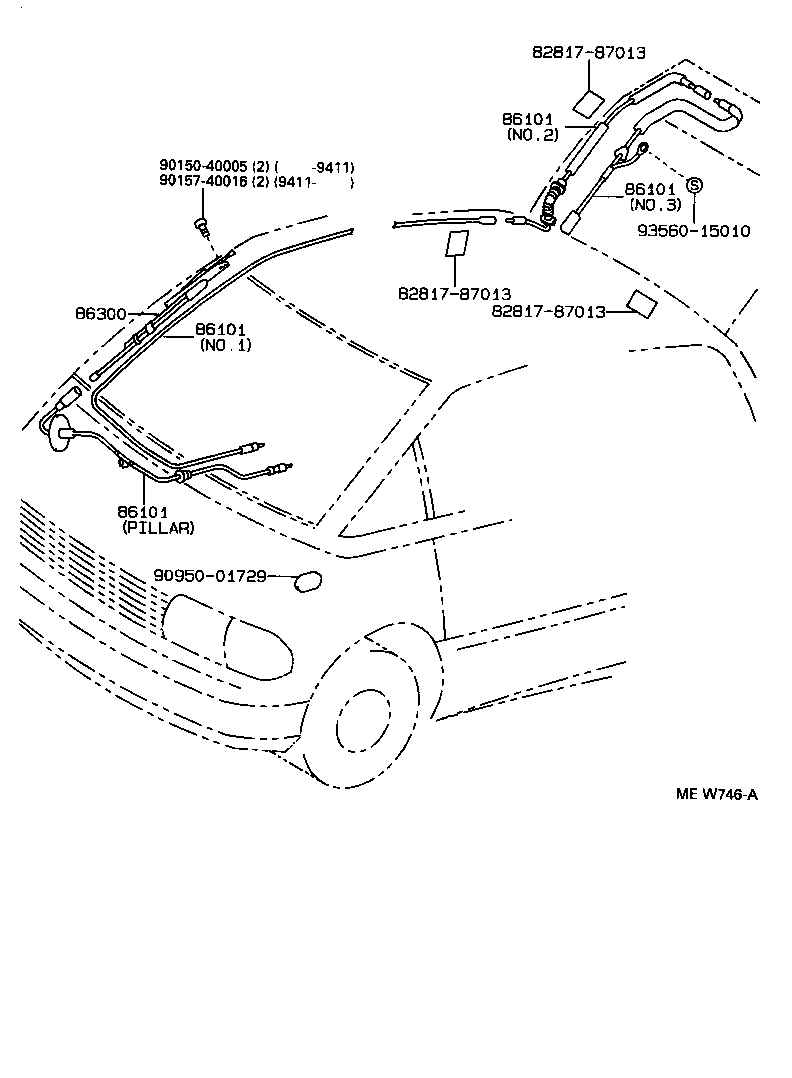

Figure MEW746A

MEW746A 1993-08 → —

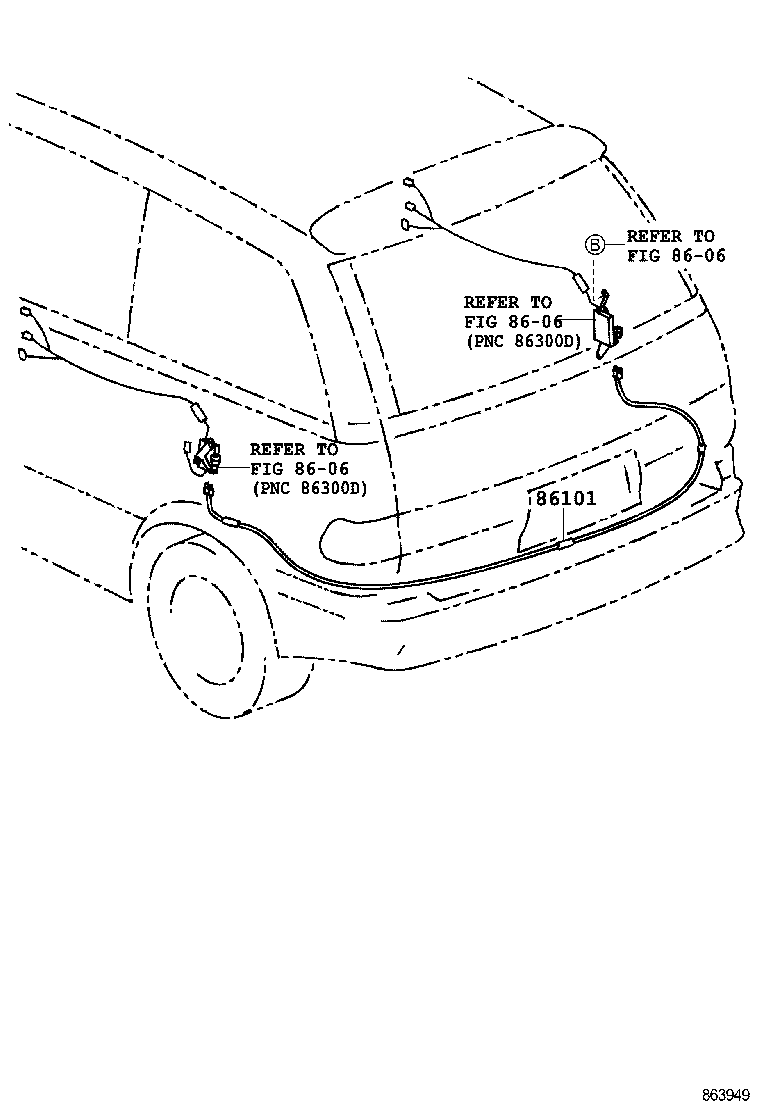

863949 1991-08 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86300C	Antenna Assy, Amplifier, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
