Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07
Camera & Rear Monitor Display
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

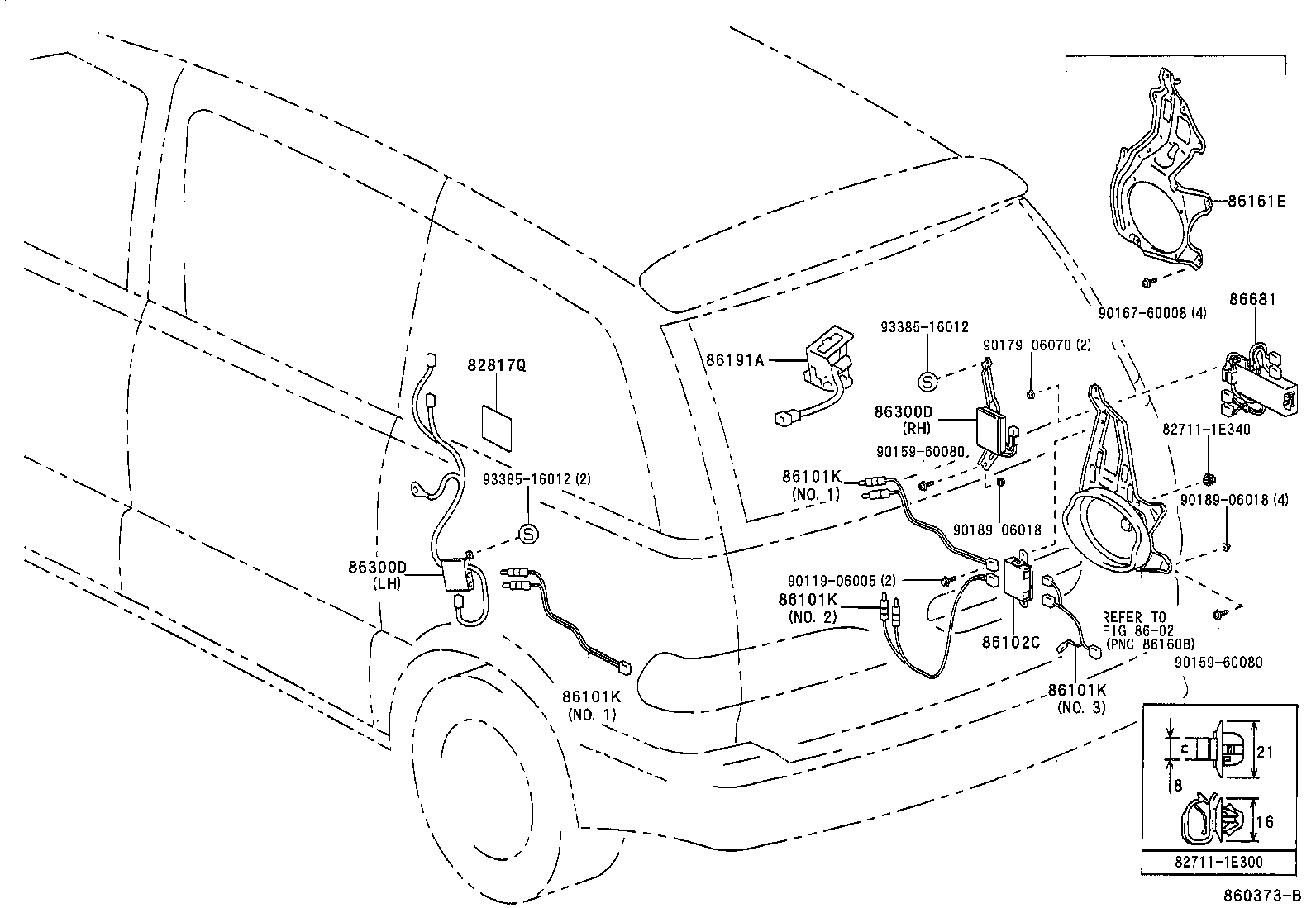

| 82817Q | Protector, Wiring Harness, NO.15 |
| 86010A | Tuner Assy, Television |
| 86015 | Parts Set, Television |
| 86060 | Amplifier Assy, Television |
| 86101K | Cord Sub-assy, Television Antenna |
| 86102C | Selector Sub-assy, Antenna |
| 86117A | Bracket, Television Display, A |
| 86161E | Antenna Selector Bracket |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86280H | Amplifier Assy, Stereo Component |
| 86285A | Bracket, Amplifier, NO.2 |
| 86300D | Antenna Assy, Television Amplifier |
| 86680A | Display Assy, Television |
| 86681 | Divider, Antenna |
| 86683 | Relay, Television |

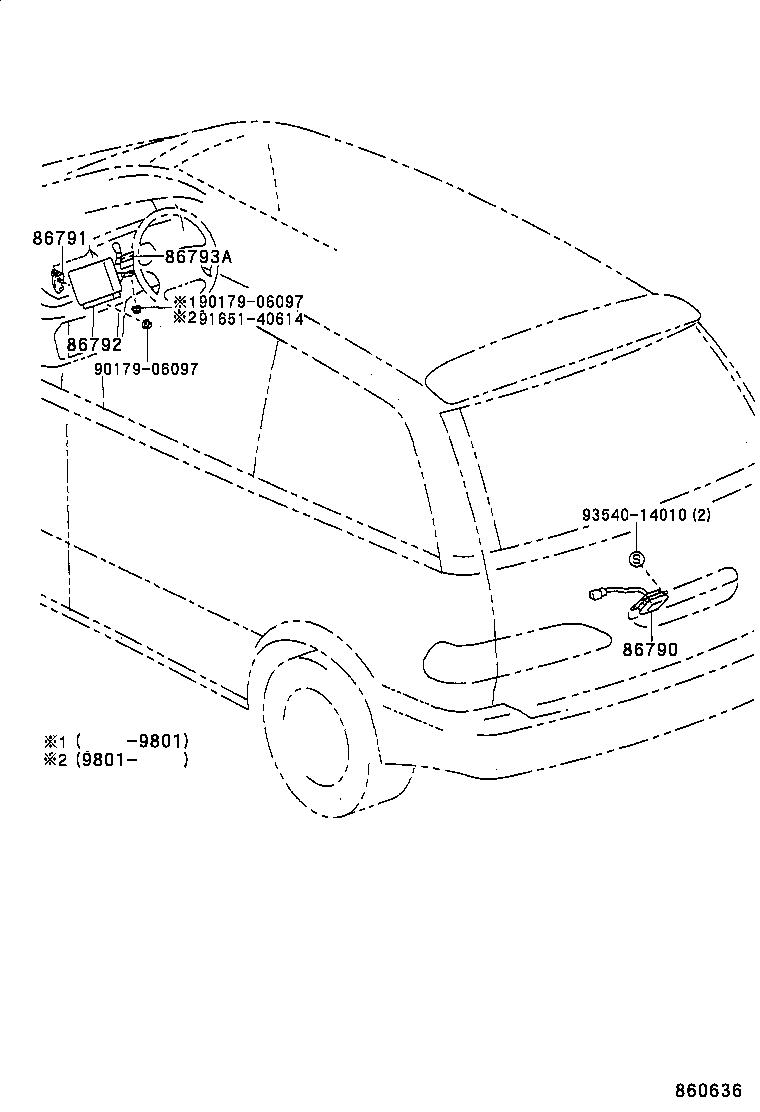

| 86790 | Camera Assy, Television |
| 86791 | Bracket, Television Camera |
| 86792 | Controller, Television Camera |
| 86793A | Label, Television Camera Information |
| 88268B | Bracket, Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
