Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 2 illustrations

Illustrations

Figure 167004A

167004A 2000-02 → —

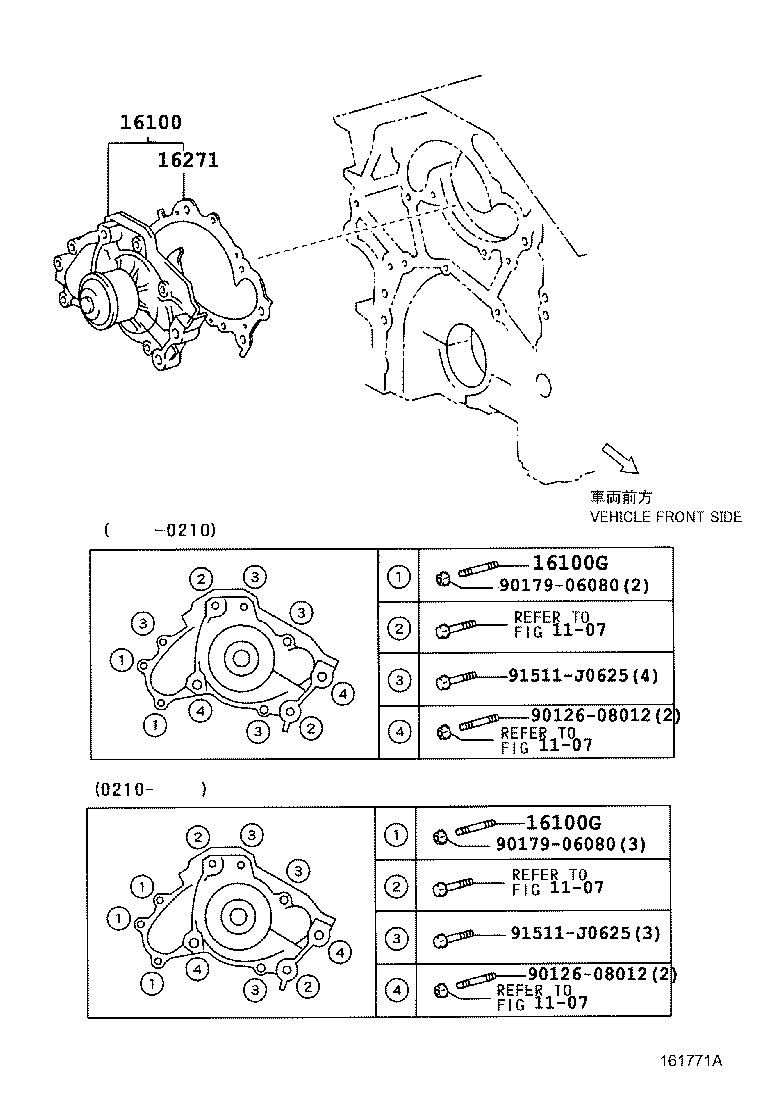

Figure 161771A

161771A 1999-12 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100G	Bolt, Stud(FOR WATER PUMP SET)
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
