Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

28 part groups · 3 illustrations

Illustrations

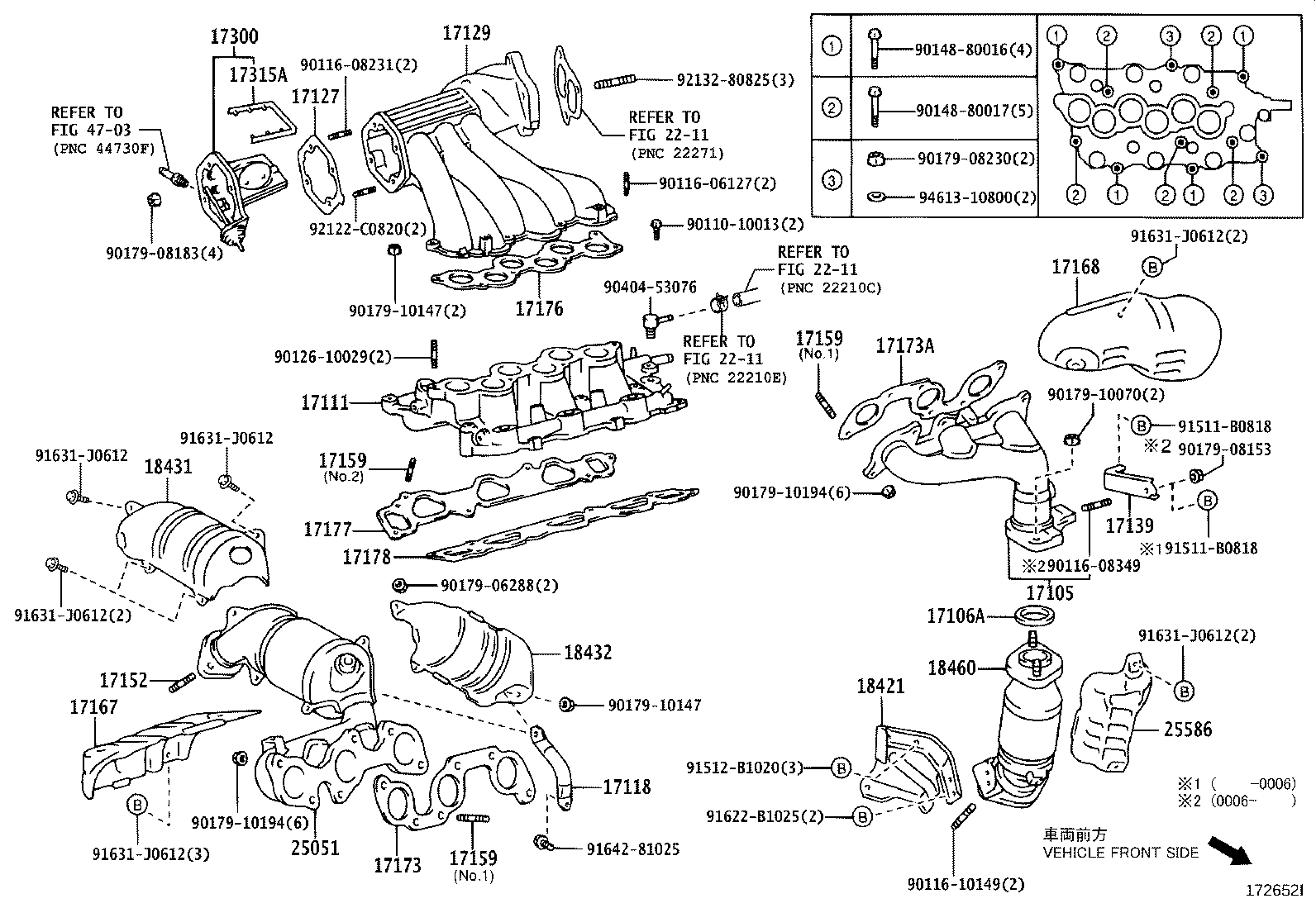

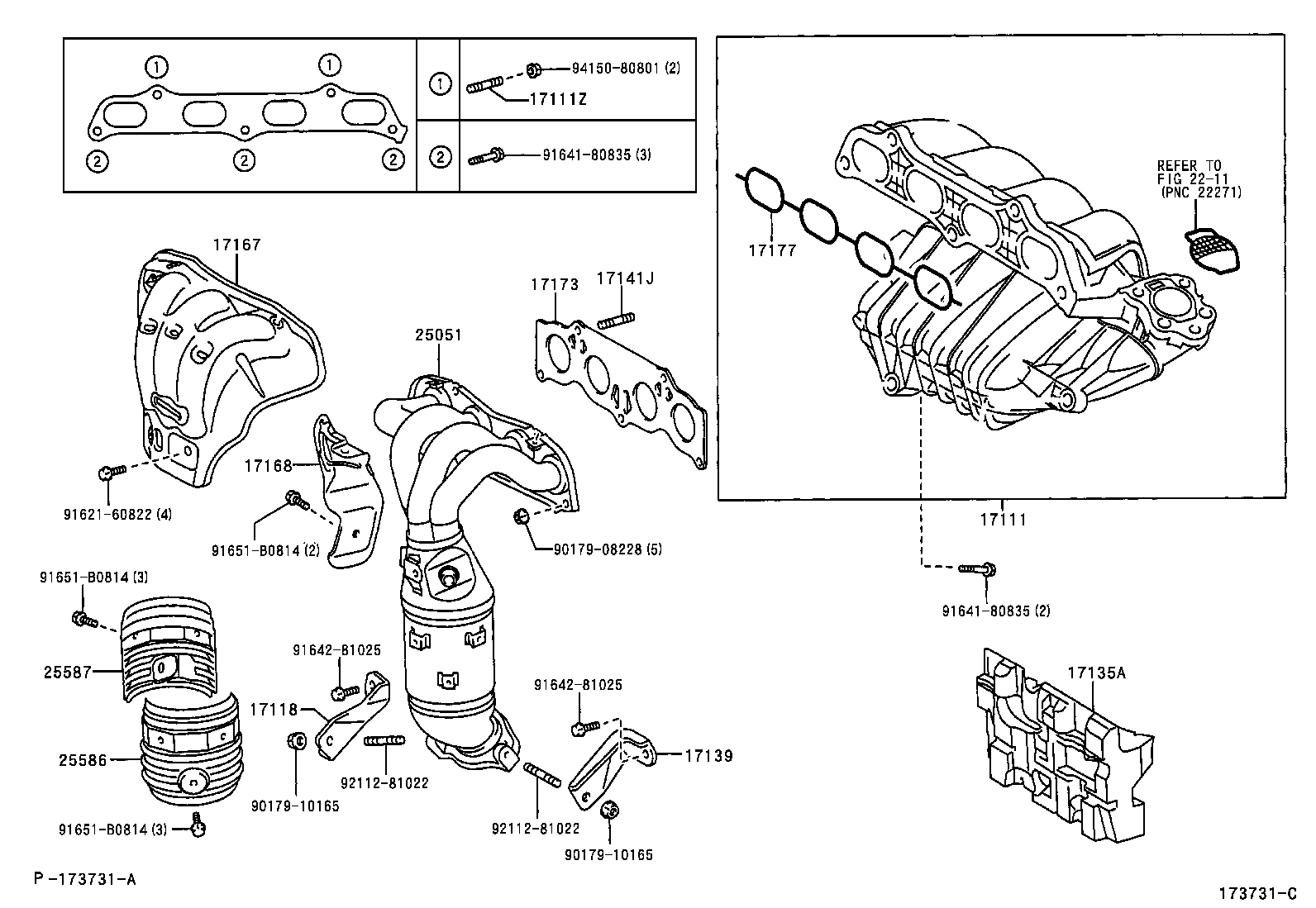

Figure 172442F 172442F 2000-02 → 2003-04 Figure 173731C 173731C 2003-04 → — Figure 172652I 172652I 1999-12 → —

Part groups

PNCDescription
17105 Manifold Sub-assy, Exhaust, LH
17106A Gasket, Exhaust Pipe
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17135A Insulator, Intake Manifold, NO.1
17139 Stay, Manifold, NO.2
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17300 Valve Assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
18421 Stay, Converter Protector, LH
18431 Insulator, Catalytic Converter, Upper
18432 Insulator, Catalytic Converter, Lower
18460 Converter Assy, Monolithic, LH
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
