Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 6 illustrations

Illustrations

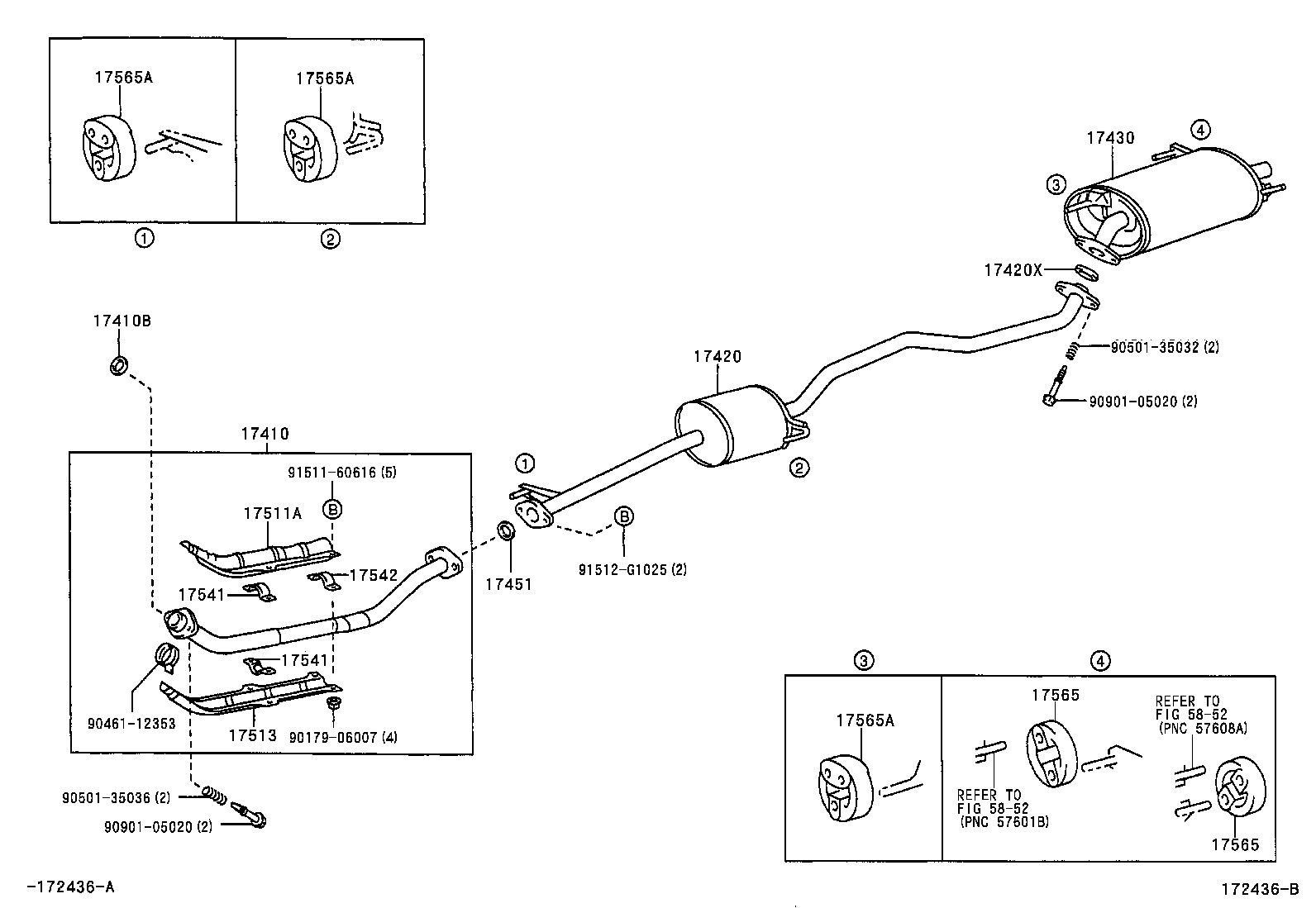

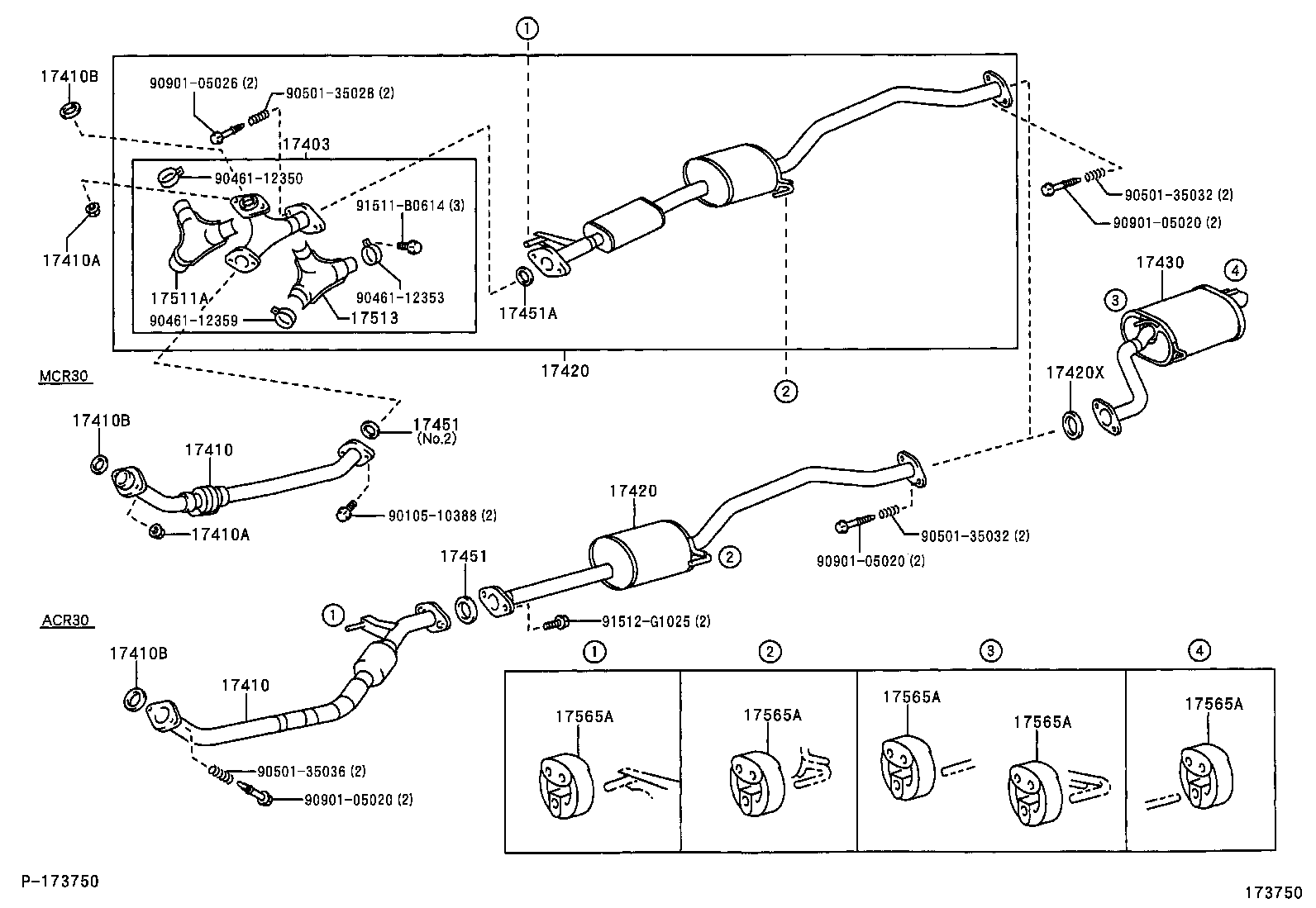

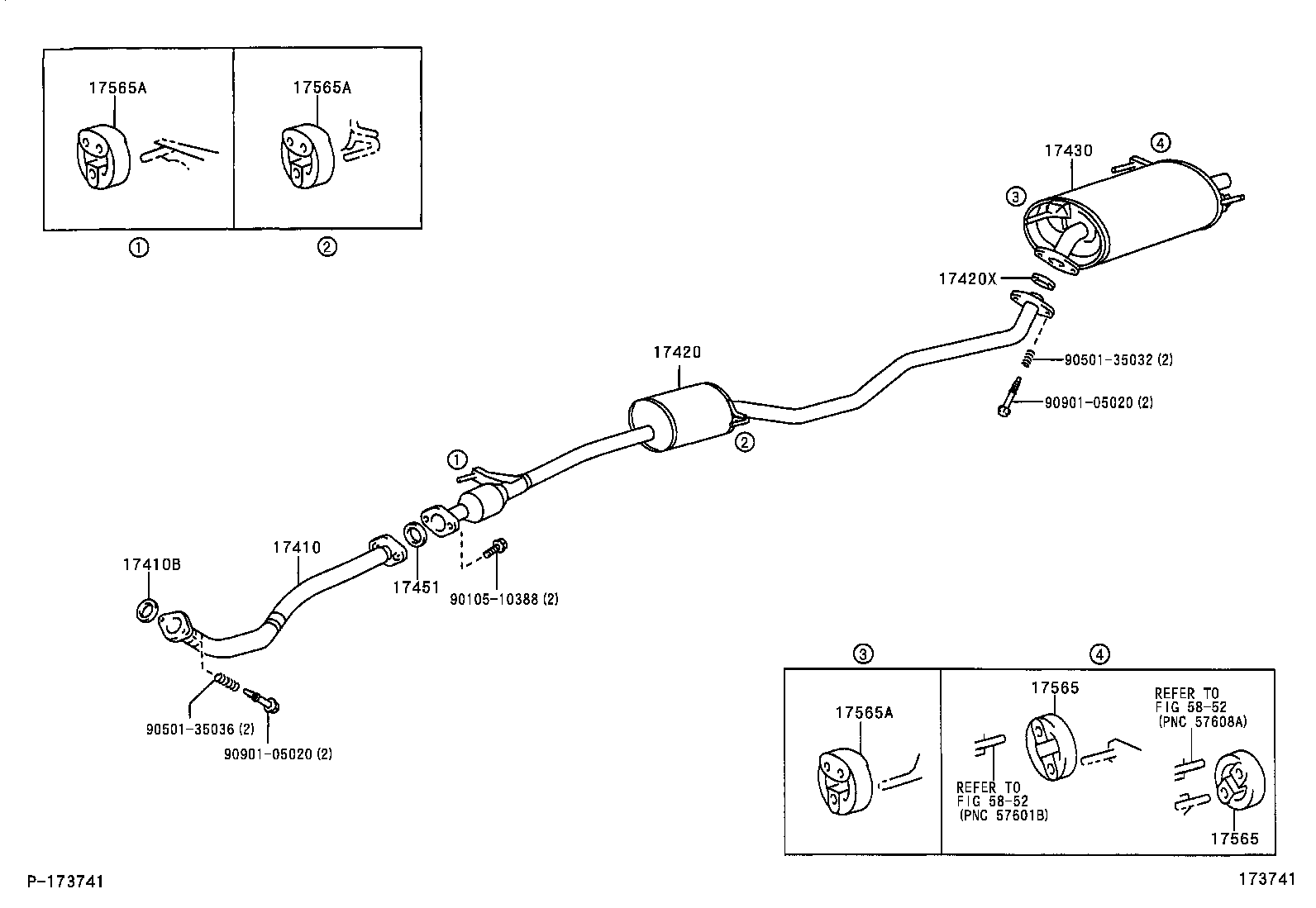

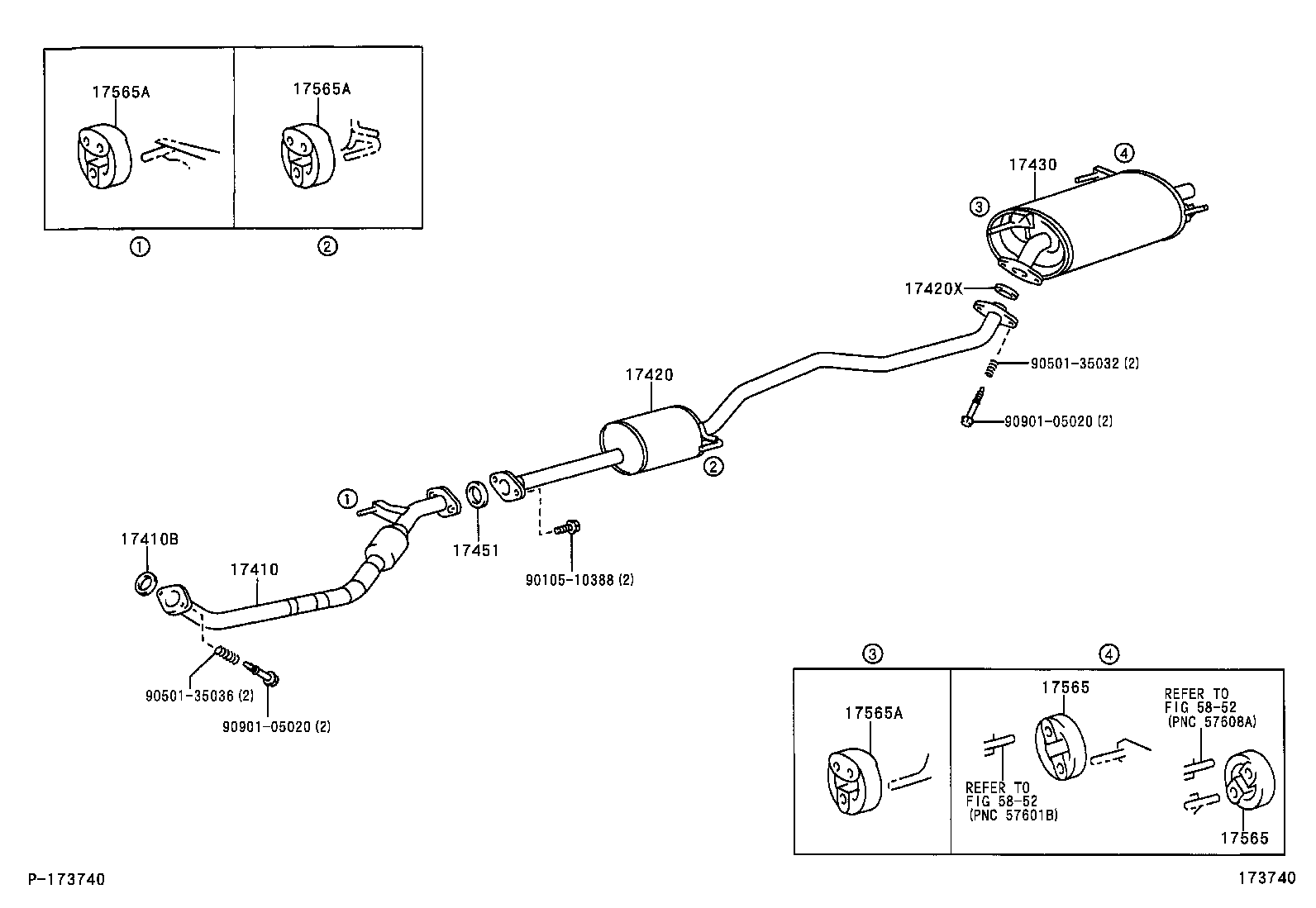

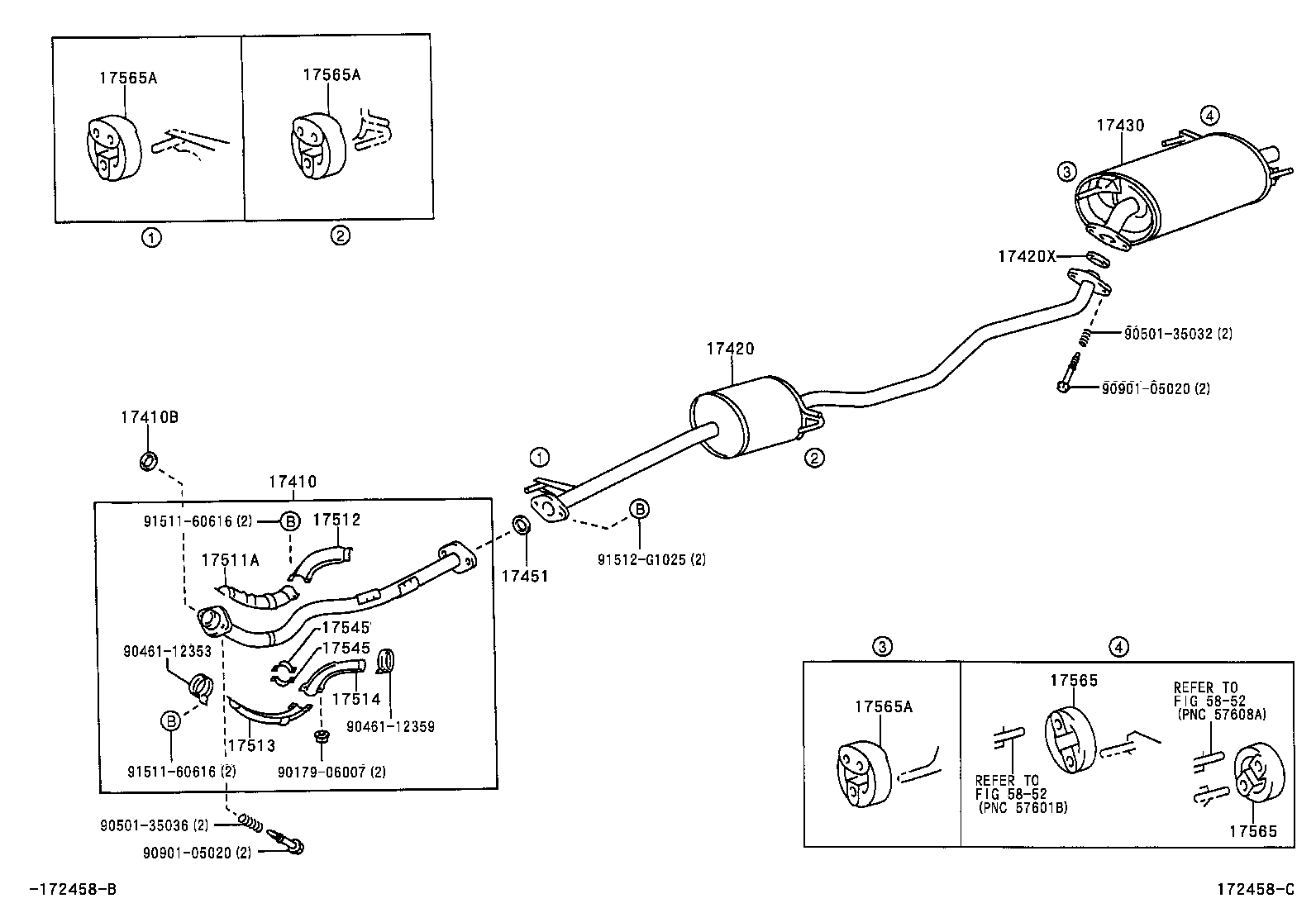

Figure 172404B 172404B 1999-12 → — Figure 172436B 172436B 2000-02 → 2003-04 Figure 173740 173740 2003-04 → — Figure 172458C 172458C 2000-02 → 2003-04 Figure 173741 173741 2003-04 → — Figure 173750 173750 2003-04 → —

Part groups

PNCDescription
17403 Pipe Sub-assy, Exhaust, Front NO.3
17404 Pipe Sub-assy, Exhaust Forked
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17511A Insulator, Exhaust Pipe, Upper NO.1
17512 Insulator, Exhaust Pipe, Upper NO.2
17513 Insulator, Exhaust Pipe, Lower NO.1
17514 Insulator, Exhaust Pipe, Lower NO.2
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17545 Stay, Exhaust Pipe Protector, NO.5
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
