Toyota Estima T/L
1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan
Discontinued model
Data version 2006-10

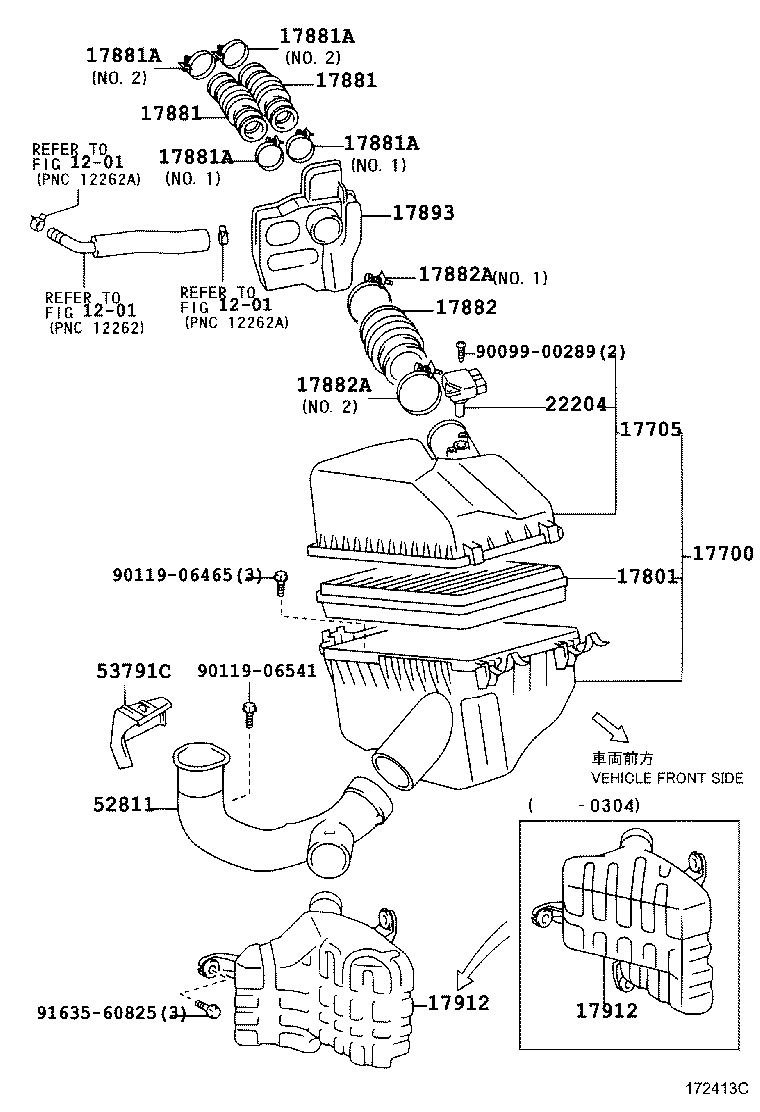

Air Cleaner
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17119A | Bracket, Air Cleaner |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17912 | Duct, Cool Air Intake, NO.2 |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22204A | Ring, O(FOR INTAKE AIR FLOW METER) |
| 52811 | Duct, Cool Air Intake, NO.1 |
| 53791C | Cover, Cool Air Intake Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
