Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 2 illustrations

Illustrations

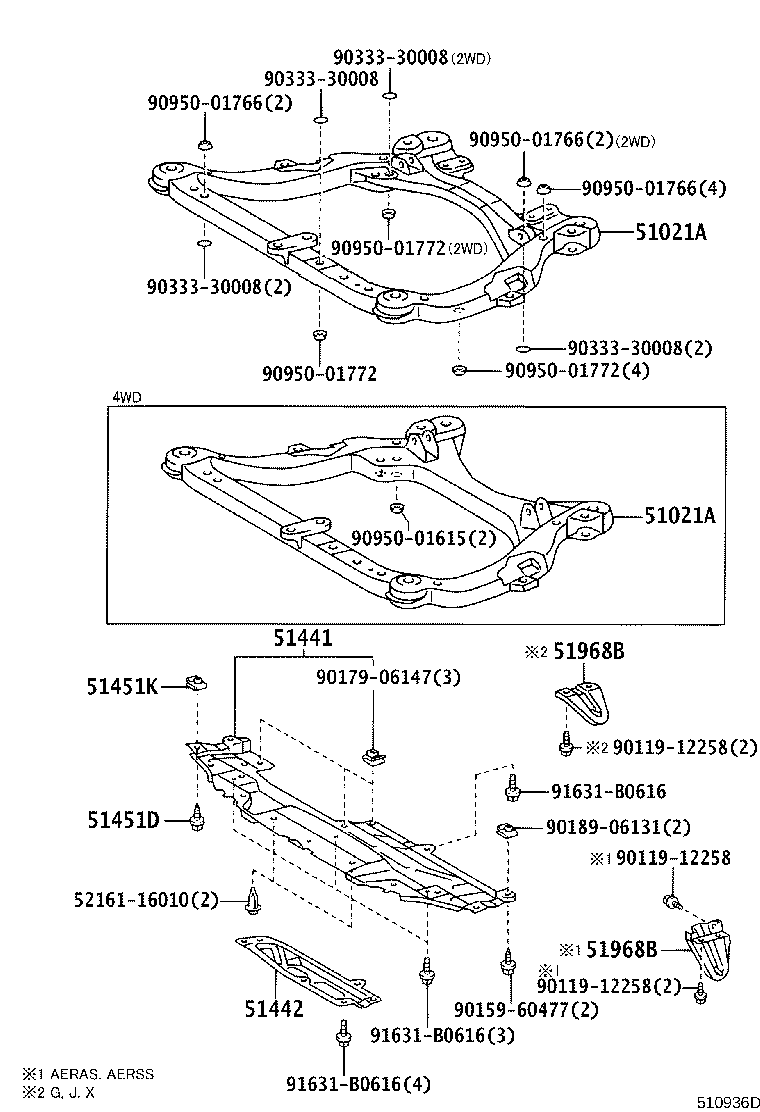

Figure 510564M 510564M 1999-12 → 2003-04 Figure 510936D 510936D 2003-04 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51451D Screw, NO.1
51451K Grommet, Screw, NO.1
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
