Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 4 illustrations

Illustrations

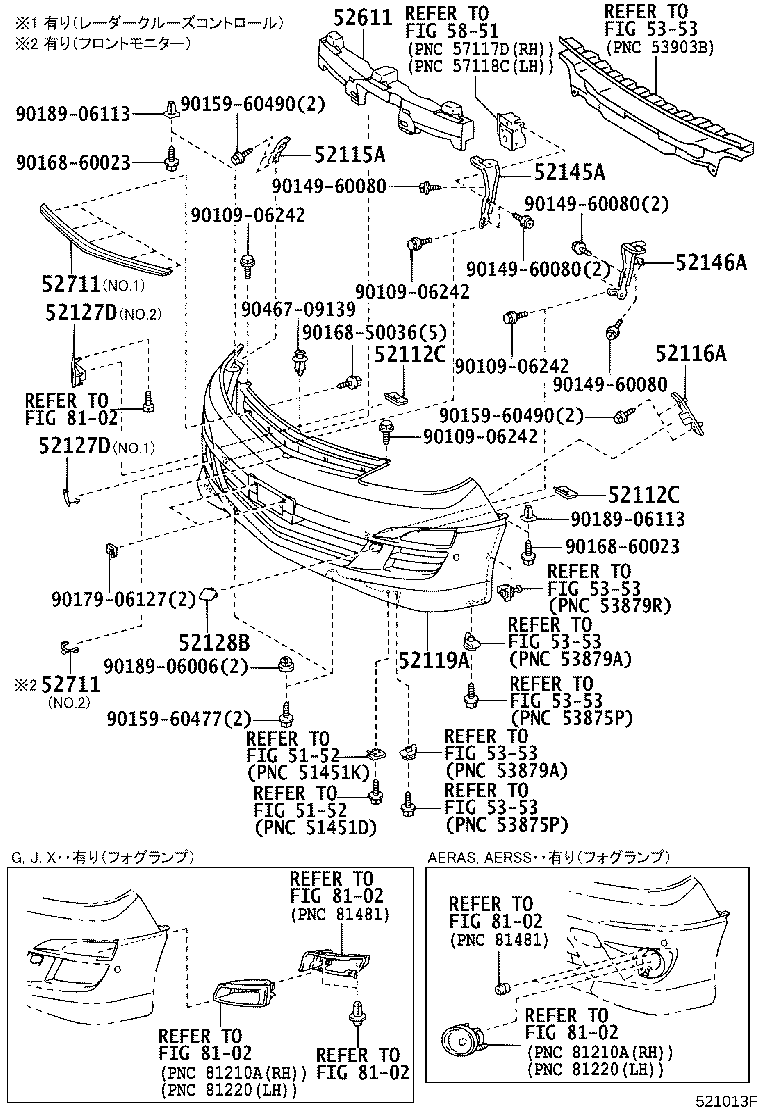

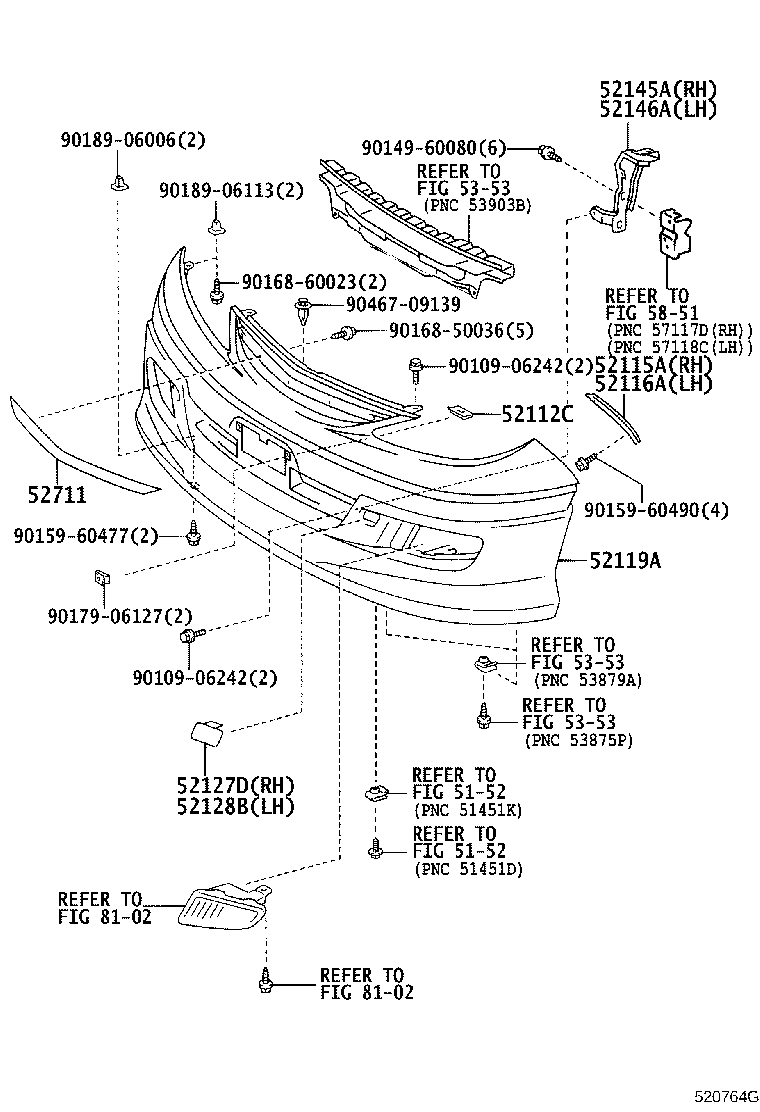

Figure 520594N 520594N 1999-12 → 2001-04 Figure 520594N 520594N 2001-04 → 2003-04 Figure 520764G 520764G 2001-04 → 2003-04 Figure 521013F 521013F 2003-04 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
