Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10

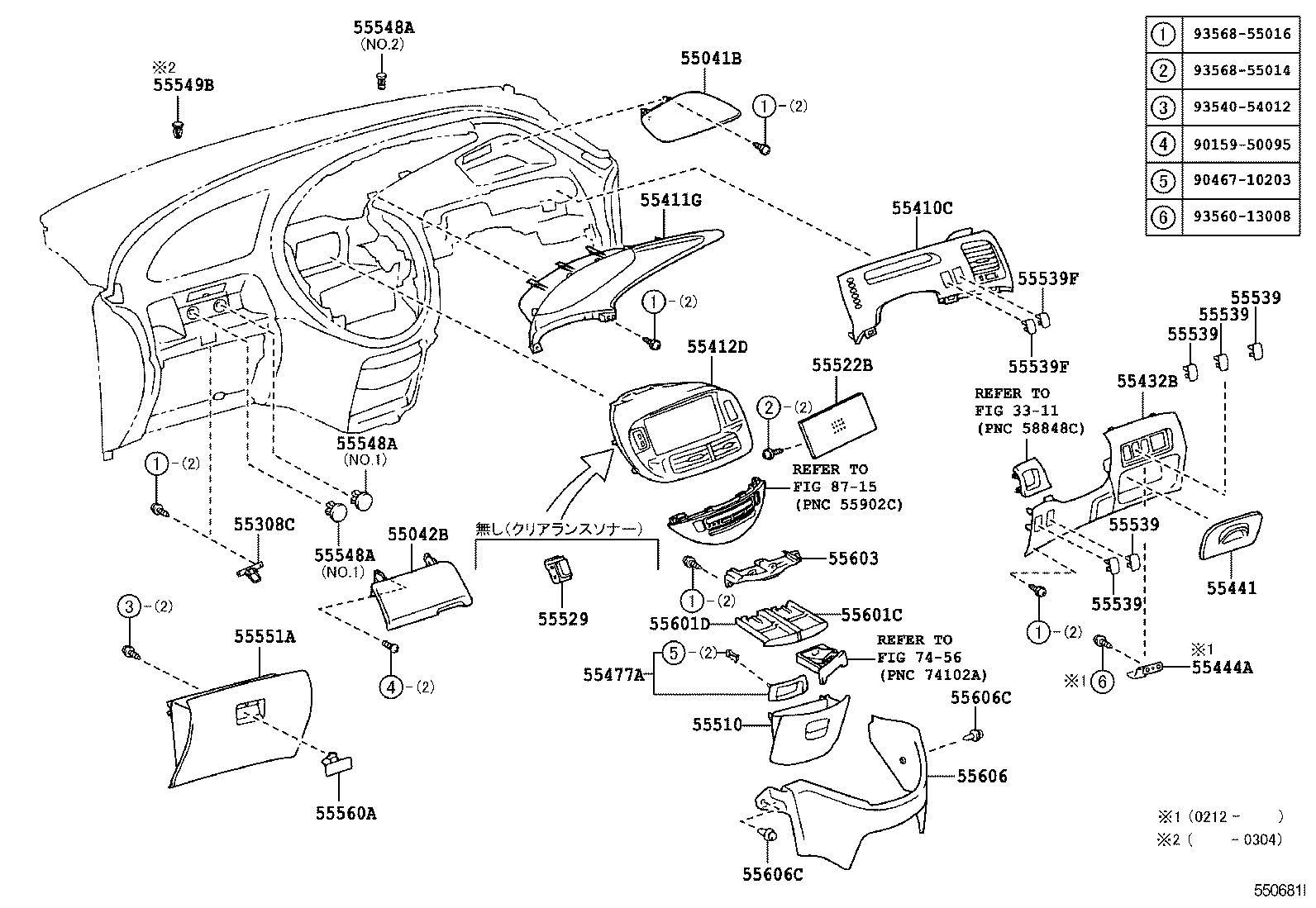

Instrument Panel & Glove Compartment

36 part groups · 2 illustrations

PNC	Description
55041B	Door Sub-assy, Instrument Panel Box, NO.1
55042B	Door Sub-assy, Instrument Panel Box, NO.2
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55308C	Bracket Sub-assy, Instrument Panel, Center
55326A	Stay, Instrument Panel, NO.1
55331	Reinforcement, Instrument Panel
55345A	Clip, Instrument Panel, NO.1
55349A	Cushion, Instrument Panel
55355A	Plate, Instrument Panel
55410C	Panel Assy, Instrument Cluster Finish
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55425D	Base, Airbag Passenger Mounting
55432B	Panel, Instrument Panel Finish, Lower
55441	Box, Instrument Panel
55444A	Spring, Instrument Panel Box
55477A	Bezel, Cigarette Lighter Hole
55510	Door Assy, Glove Compartment
55522B	Cover, Radio Tuner Opening
55529	Cover, Warning Lamp Hole
55539	Cover, Spare Switch Hole
55539F	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55549B	Cover, Instrument Panel Hole, NO.2
55551A	Door, Glove Compartment, Outer
55560A	Lock Assy, Glove Compartment Door
55601C	Tray Sub-assy, Instrument Panel Under
55601D	Tray Sub-assy, Instrument Panel Under, LH
55603	Case Sub-assy, Instrument Panel Cup Holder
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55606C	Clip(FOR INSTRUMENT PANEL UNDER COVER)
55660	Register Assy, Instrument Panel, NO.2
55950	Nozzle Assy, Defroster
55951	Nozzle, Defroster, Front
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
