Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

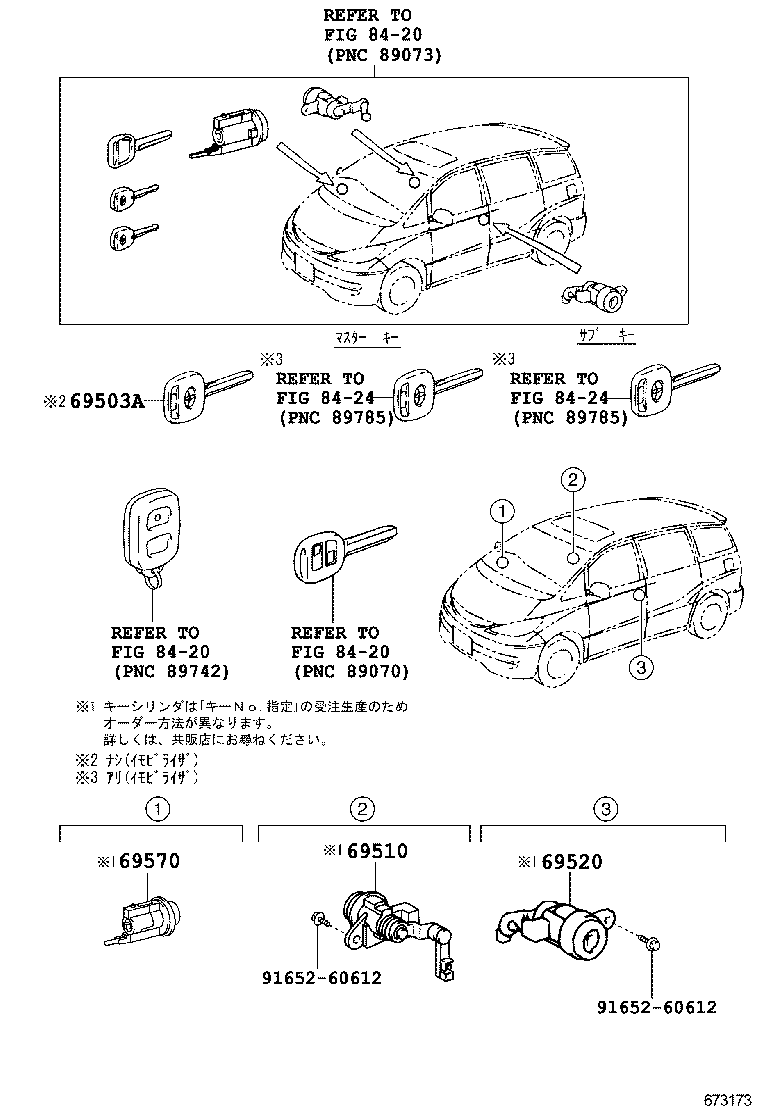

Figure 671877B 671877B 1999-12 → 2003-04 Figure 673173B 673173B 2003-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69570 Cylinder Assy, Ignition Switch Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
