Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

25 part groups · 2 illustrations

Illustrations

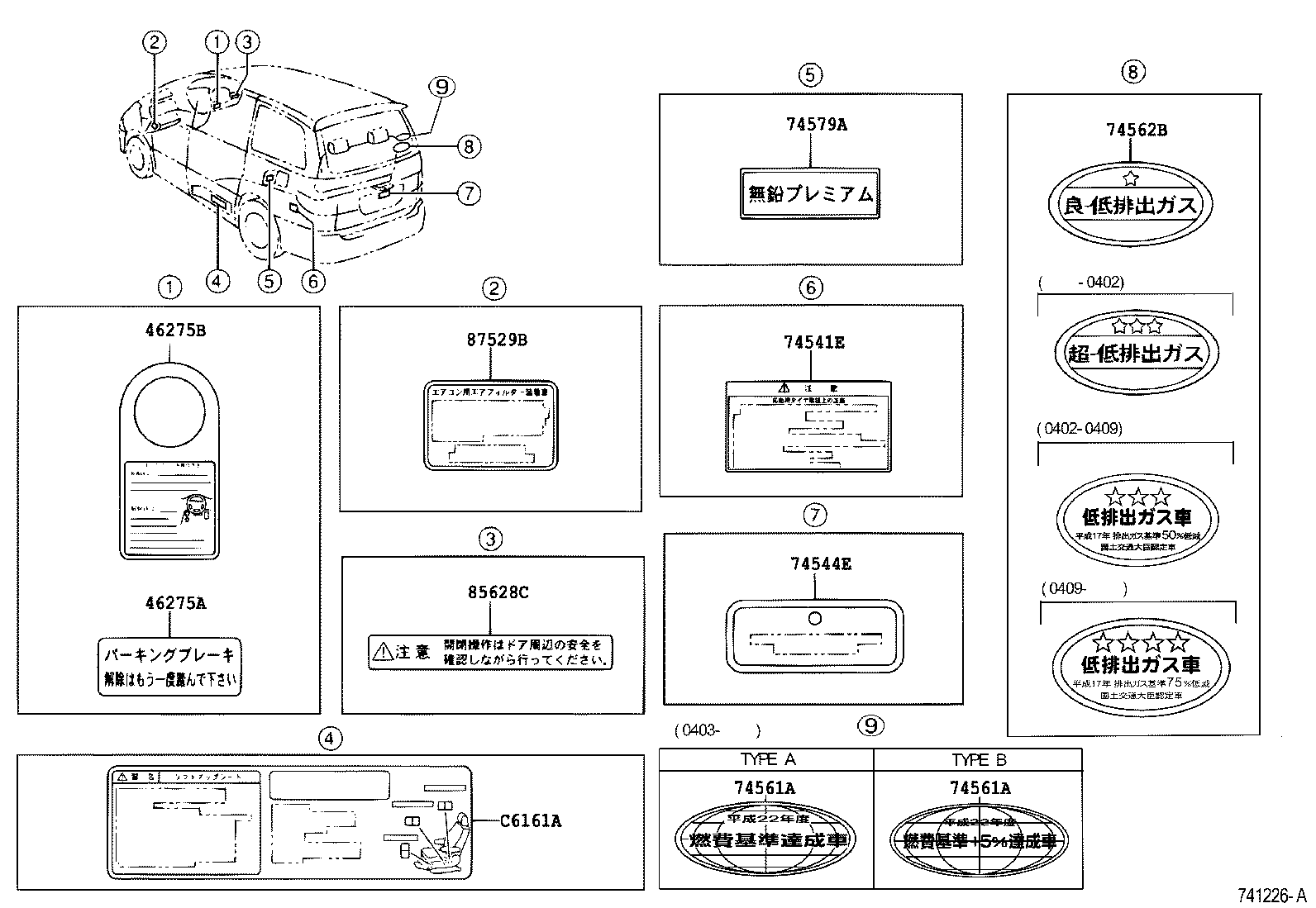

Figure 740712Q 740712Q 1999-12 → — Figure 741226C 741226C 1999-12 → —

Part groups

PNCDescription
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
47996C Label, Brake Bleed Caution
69339A Plate, Child Protector Lock Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74525D Label, Slide Door Pocket Information
74528E Label, Power Slide Door Notice
74528H Label, Power Slide Door Caution
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74541G Plate, Safety Caution
74544E Label, Rear NO.2 Seat Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74751 Label, Tire Pressure Information
75341B Plate, Hood Name
85628C Label, Automatic Door
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
C6111 Plate, Safety Caution
C6161A Label, Power Lift Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
