Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

3 part groups · 3 illustrations

Illustrations

Figure 811782B

811782B 1999-12 → 2003-04

Figure 811782B

811782B 2003-04 → —

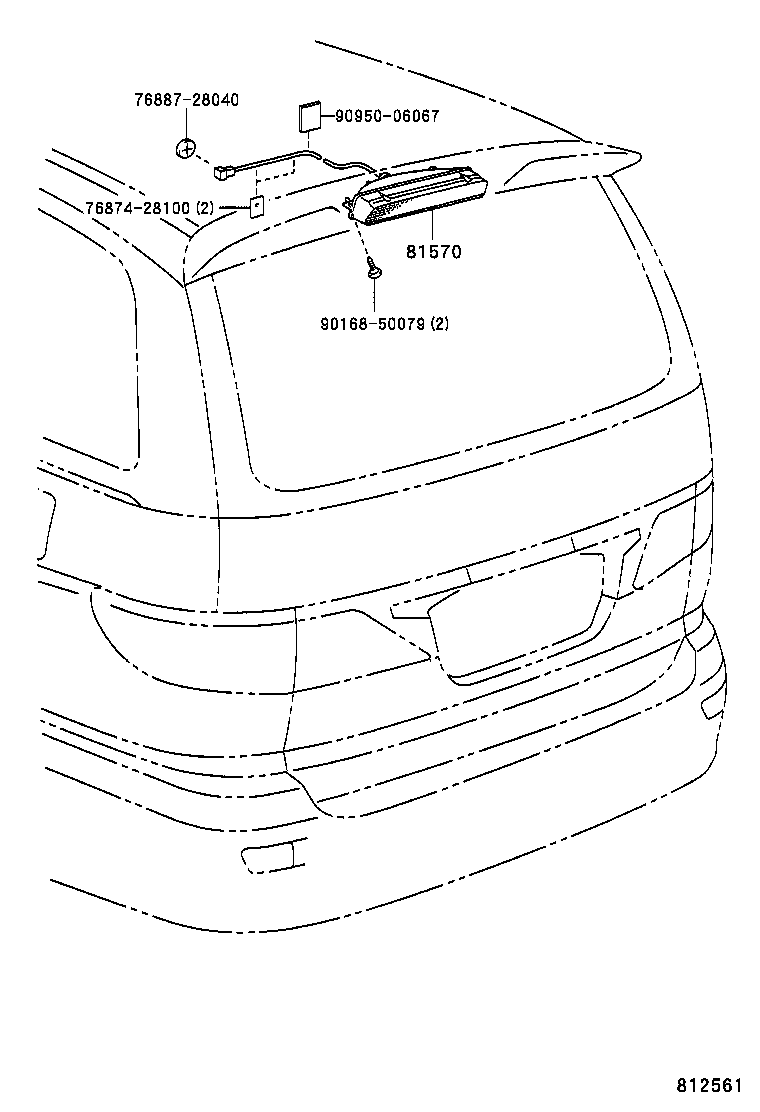

812561 2003-04 → —

Part groups

PNC	Description
81570	Lamp Assy, Center Stop
81570B	Bulb (FOR CENTER STOP LAMP)
81576	Socket & Wire, Center Stop Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
