Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

50 part groups · 12 illustrations

Illustrations

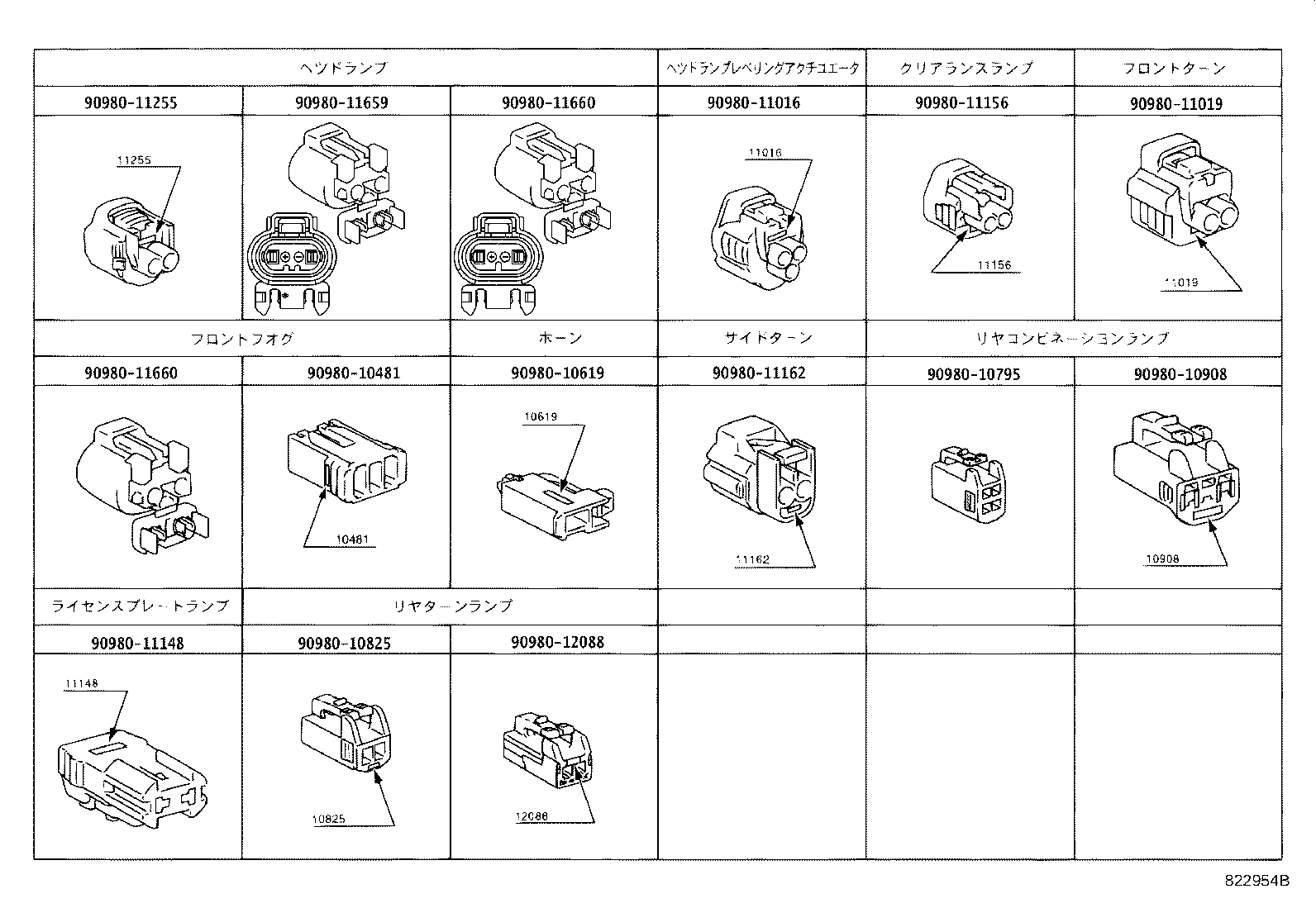

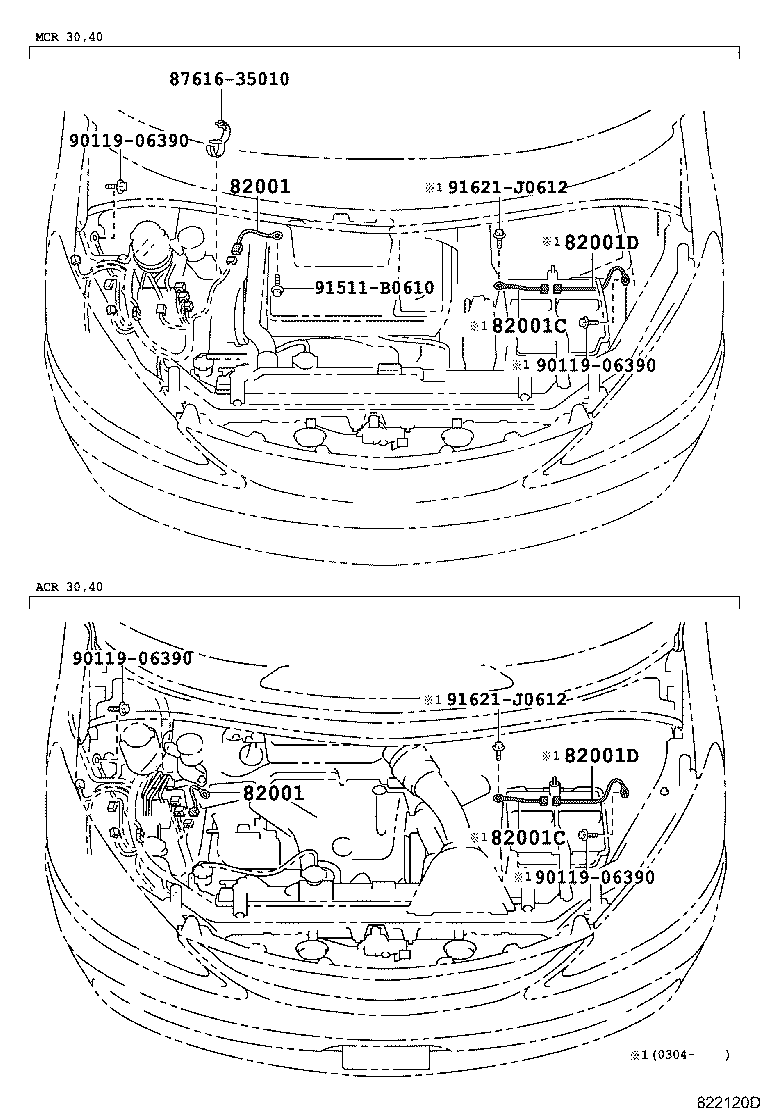

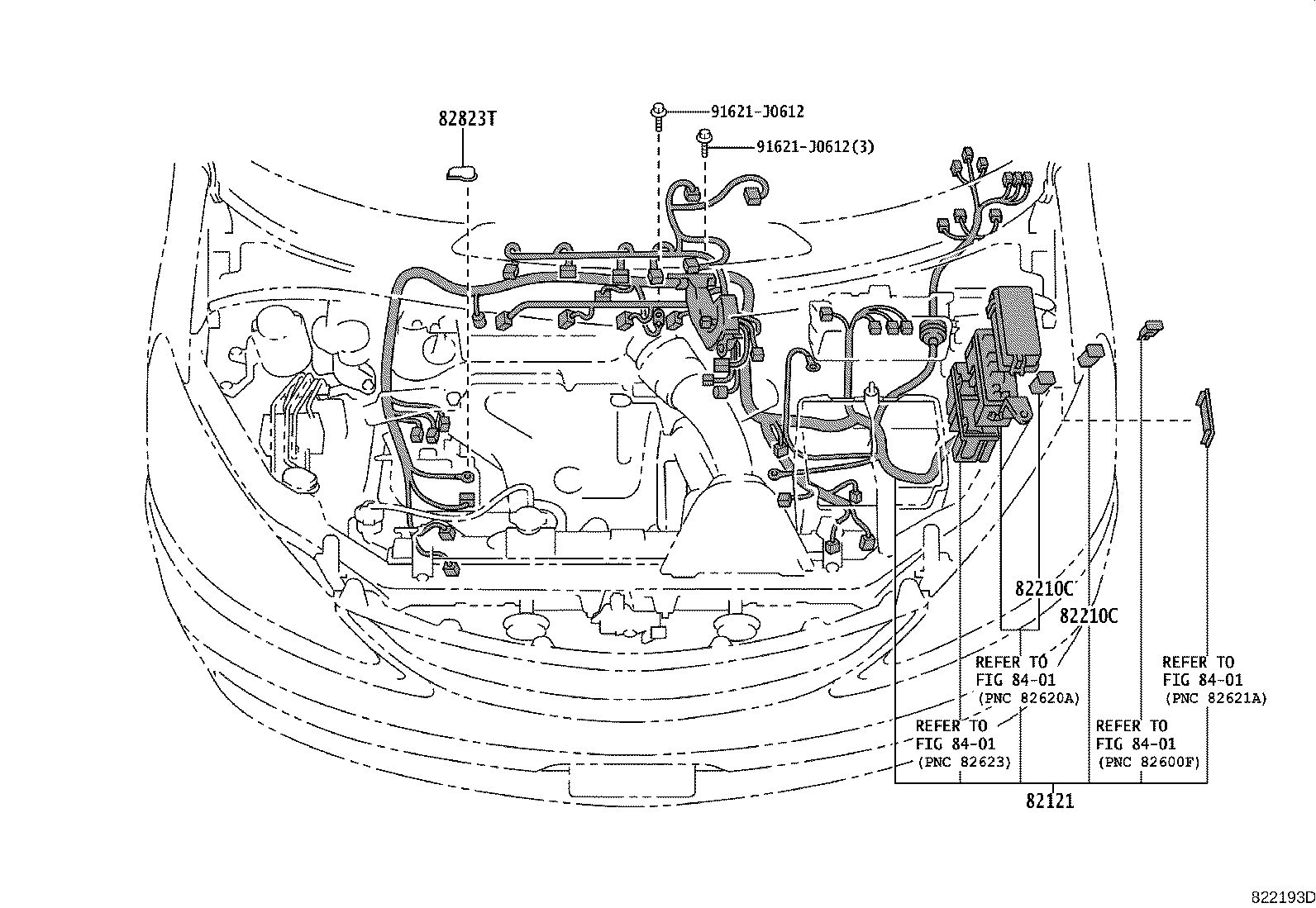

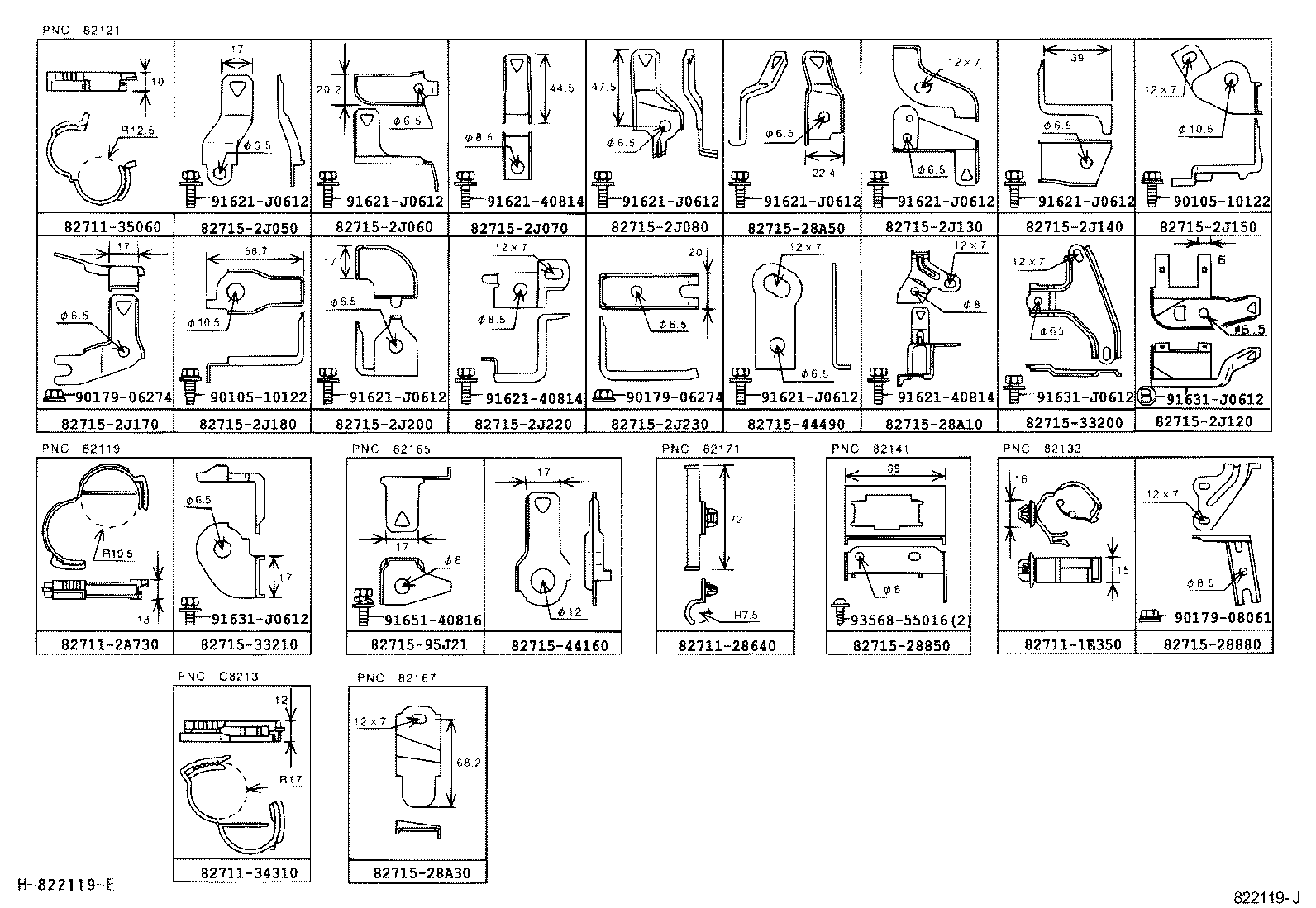

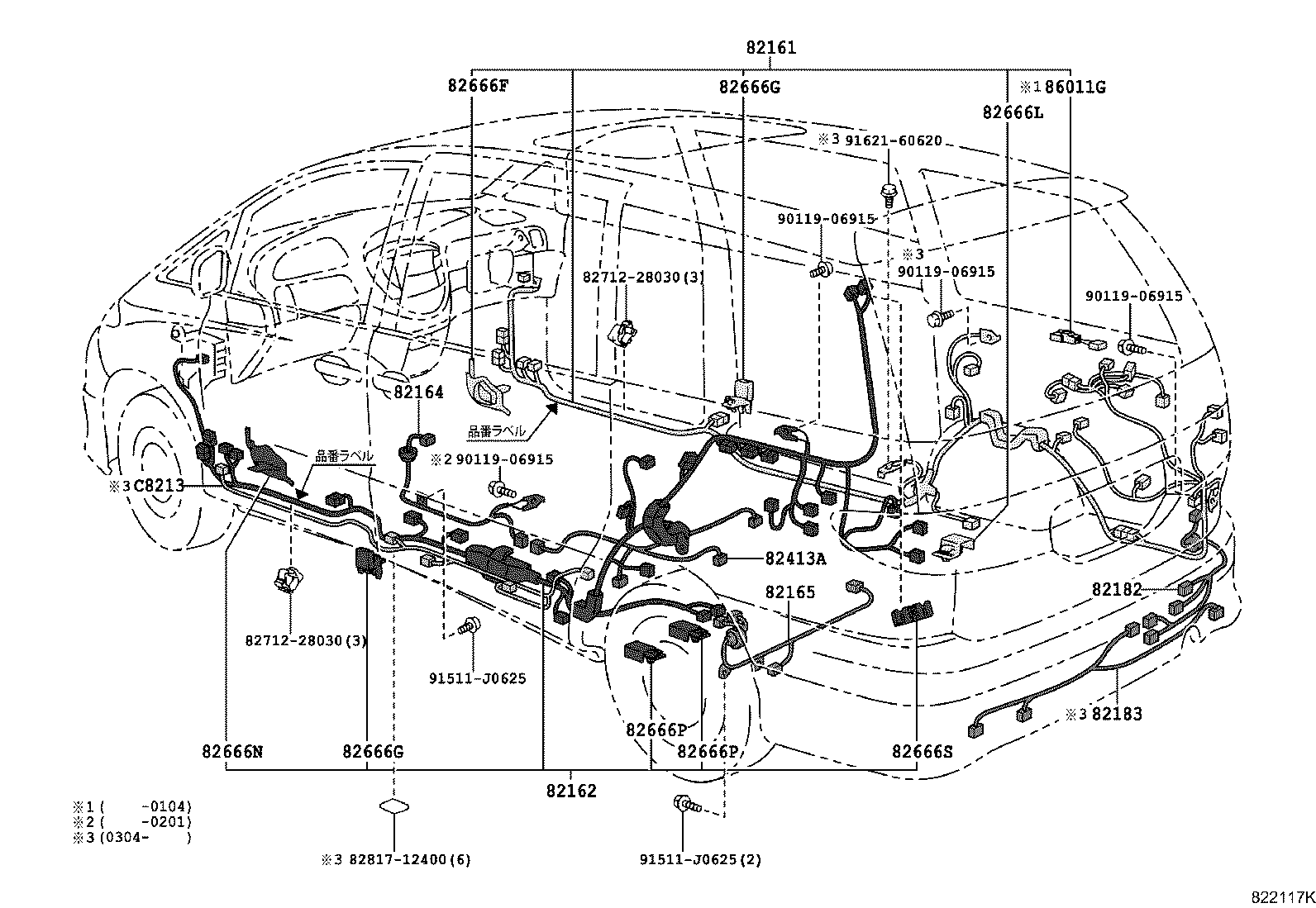

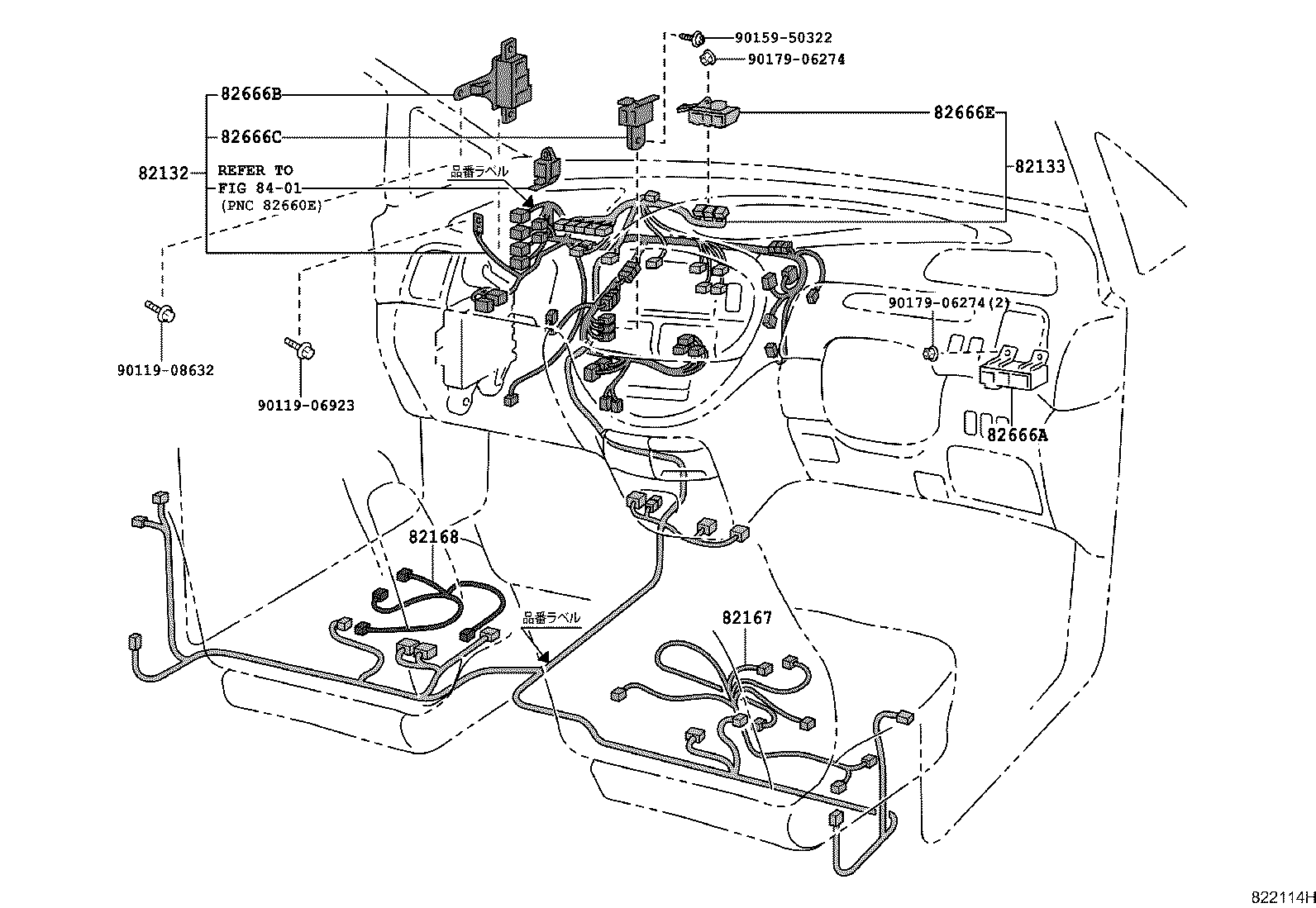

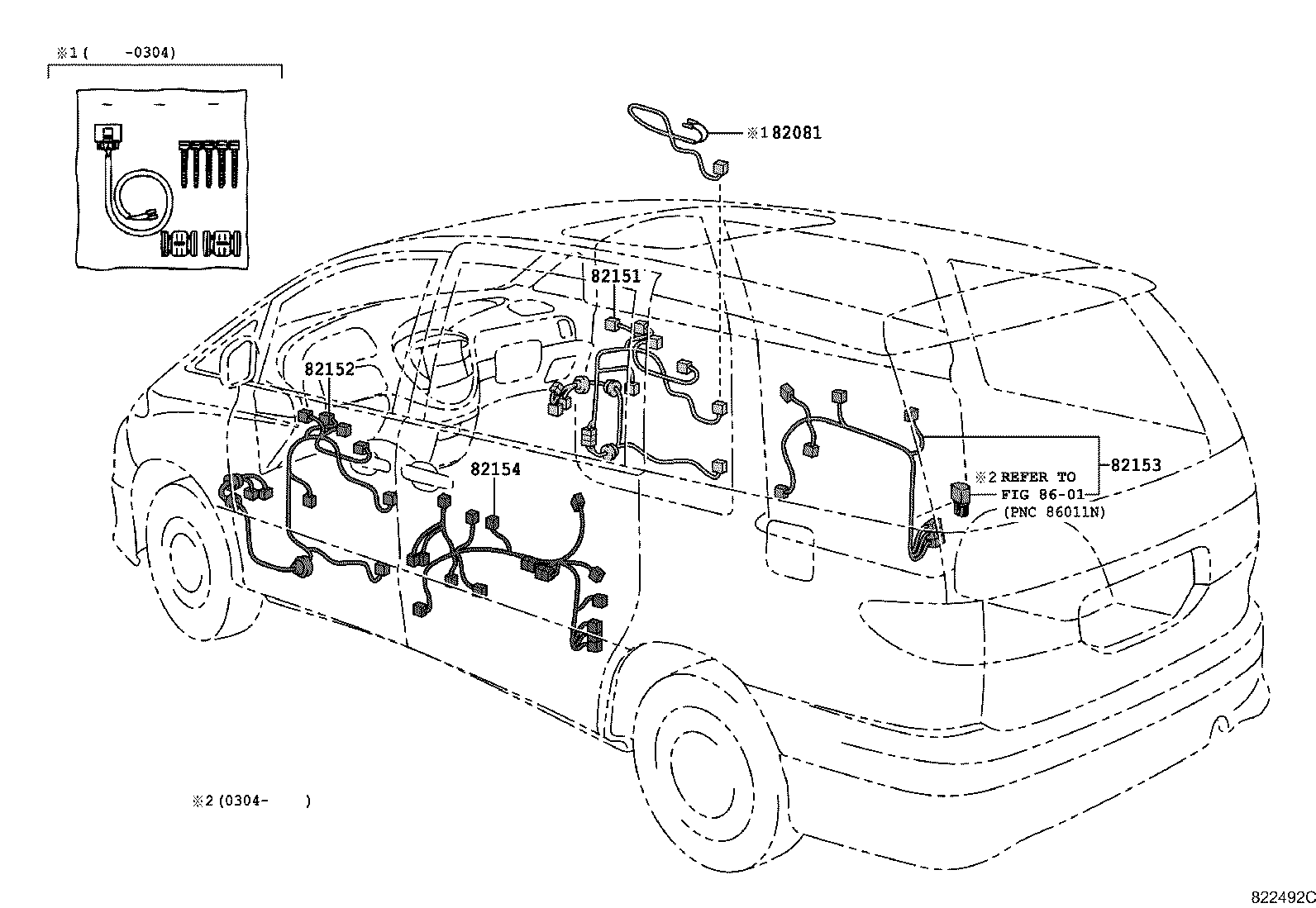

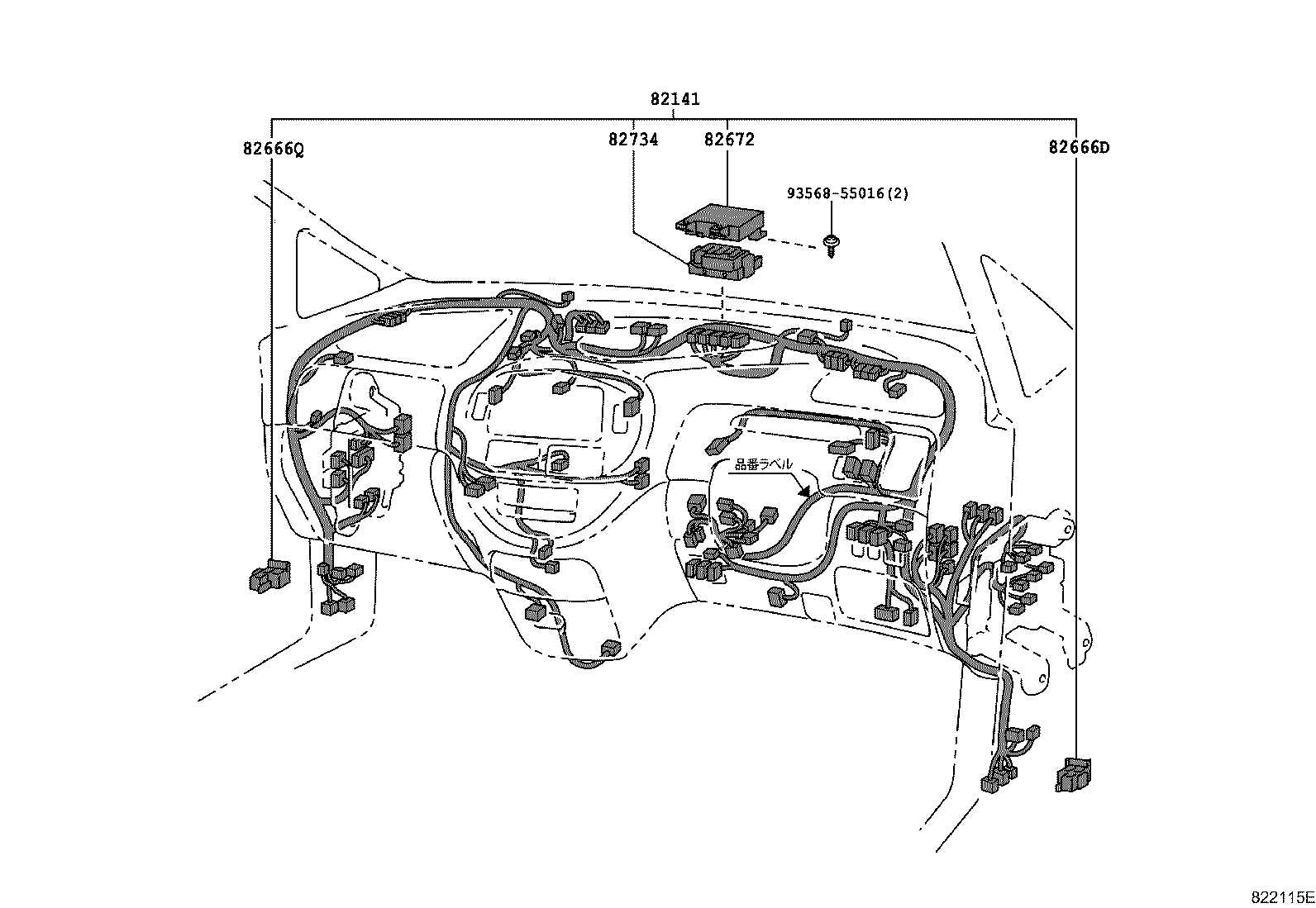

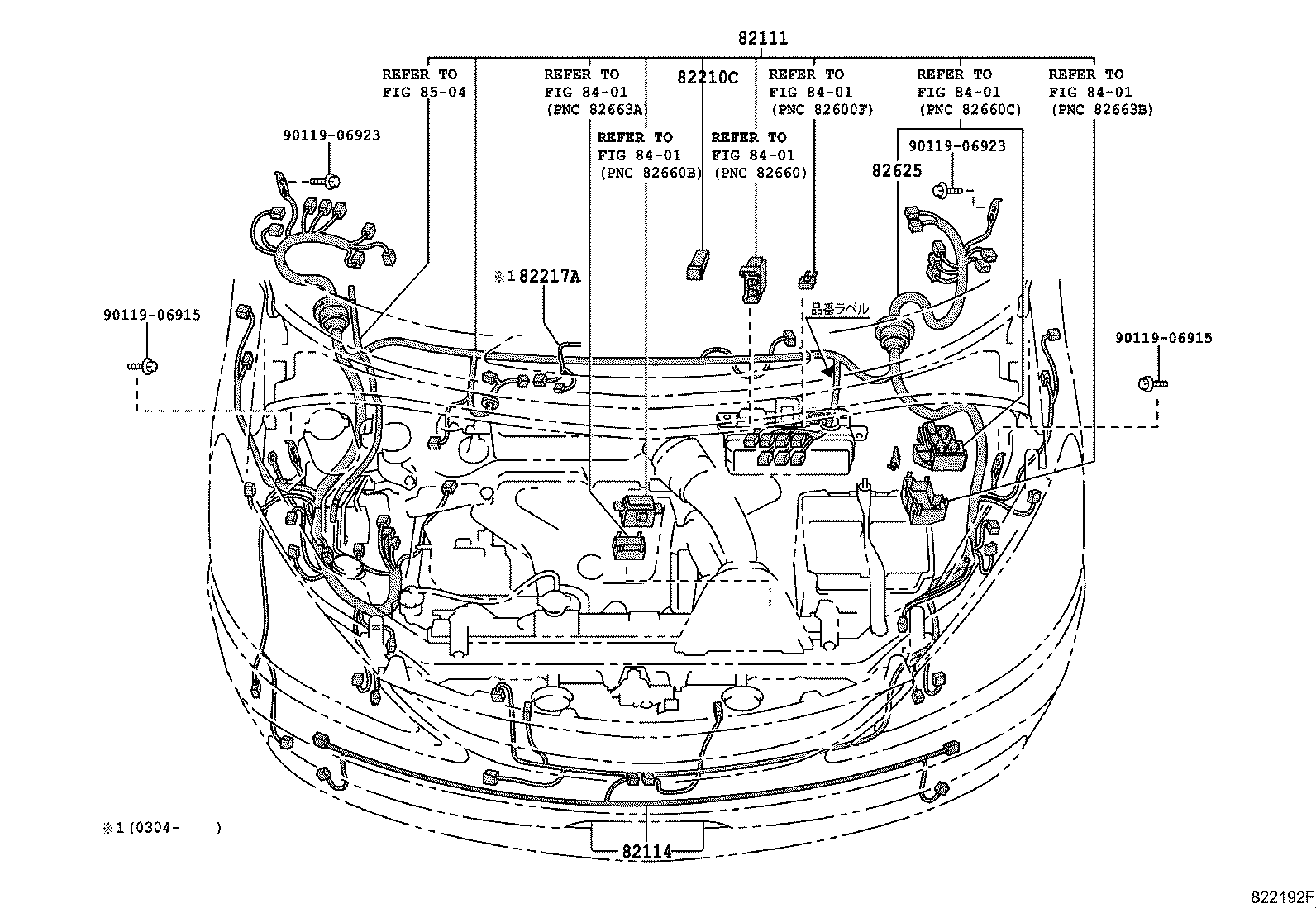

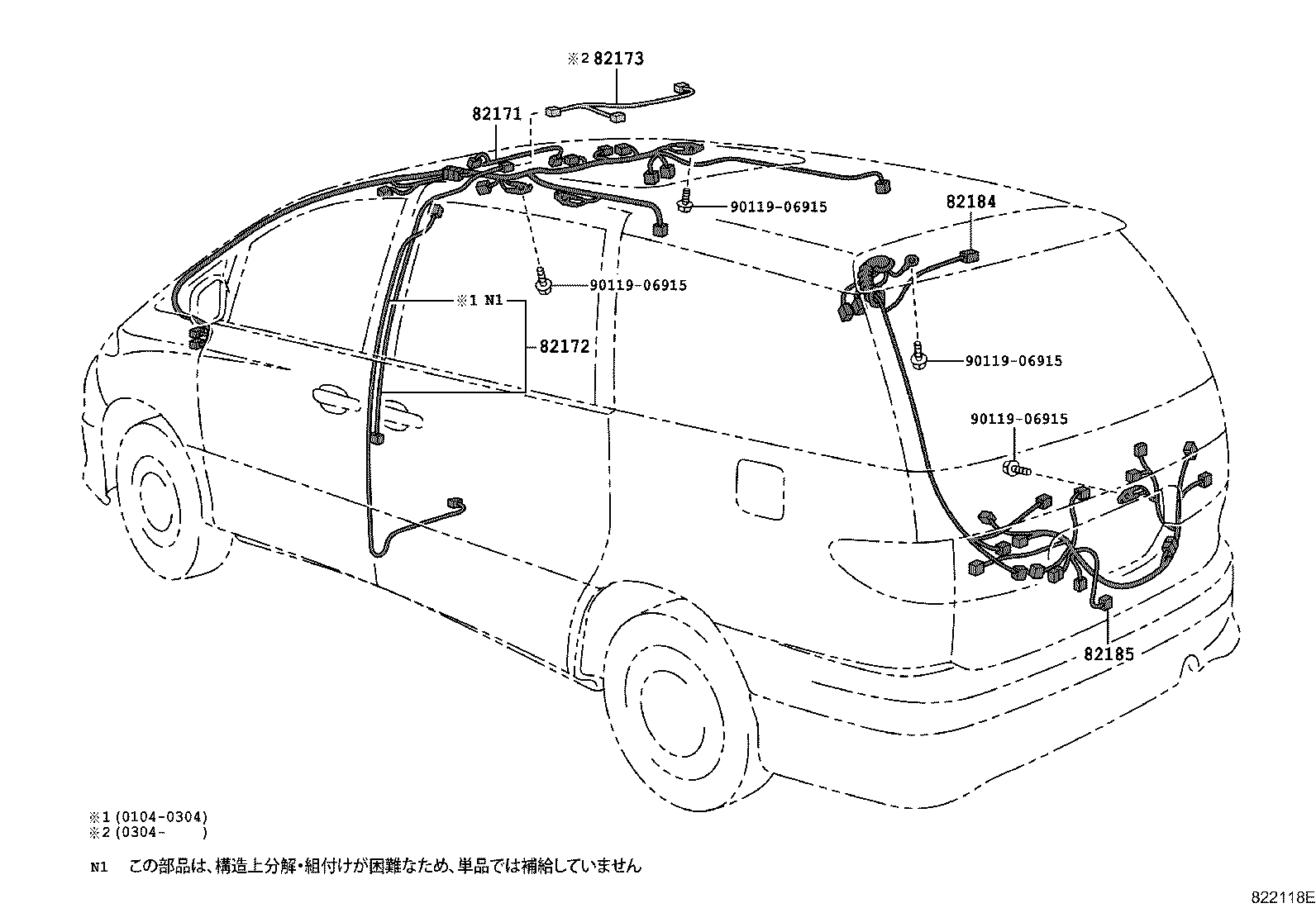

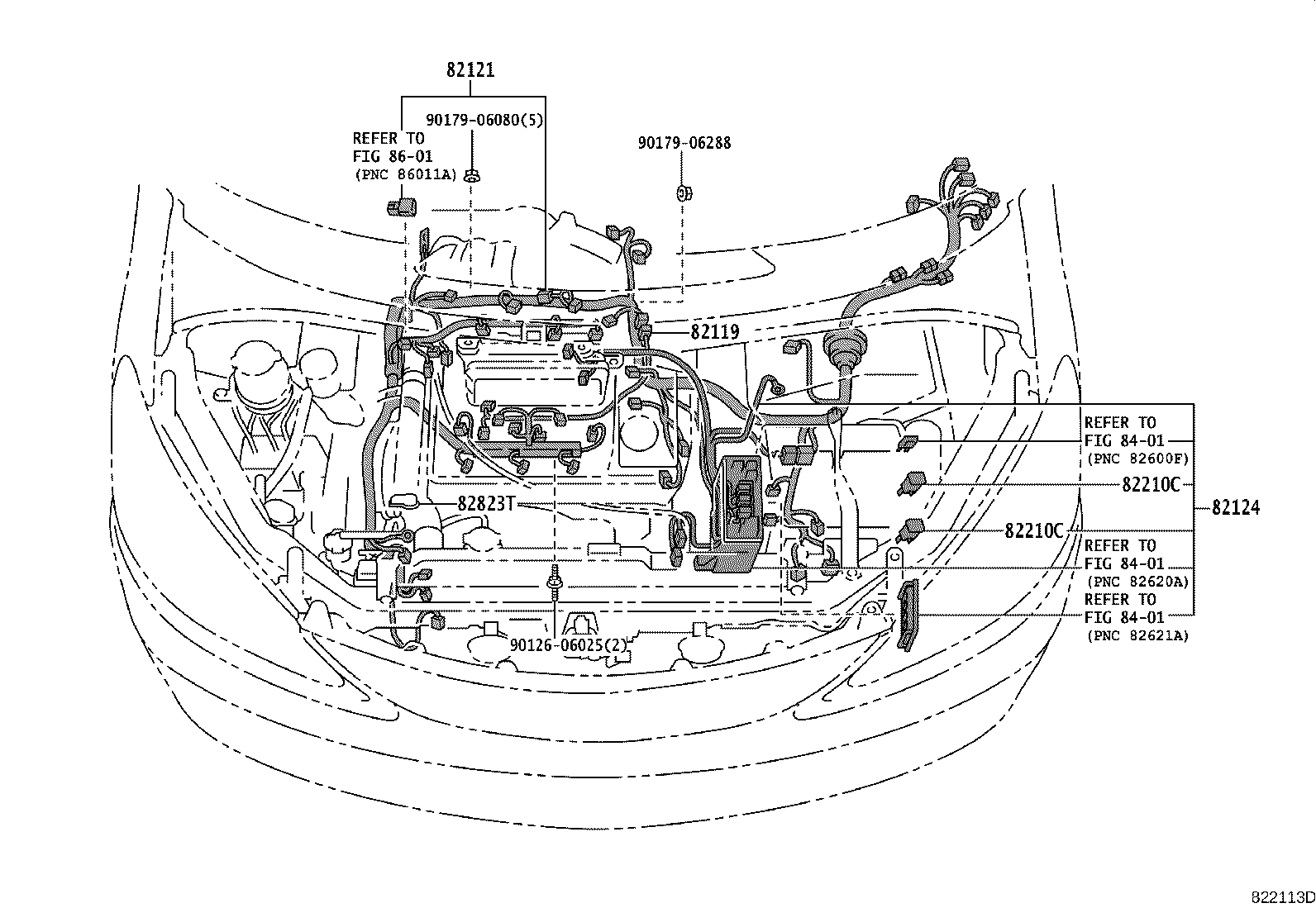

Figure 822112E 822112E 1999-12 → — Figure 822192F 822192F 2000-02 → — Figure 822113D 822113D 1999-12 → — Figure 822193D 822193D 2000-02 → — Figure 822114H 822114H 1999-12 → — Figure 822115E 822115E 1999-12 → — Figure 822492C 822492C 1999-12 → — Figure 822117K 822117K 1999-12 → — Figure 822118E 822118E 1999-12 → — Figure 822119J 822119J 1999-12 → — Figure 822120D 822120D 1999-12 → — Figure 822954B 822954B 1999-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82081 Wiring Assy, Door Lock
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82119 Wire, Sensor
82121 Wire, Engine
82124 Wire, Engine, NO.4
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82217A Wire, Front Window Defogger
82413A Wire, Fuel Tank
82625 Terminal, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82672 Cover, Junktion Block
82734 Block, Center Junction
82823T Cap, Alternator Terminal
86011G Condenser
C8213 Wire, Power Lift Motor TO Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
