Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 14 illustrations

Illustrations

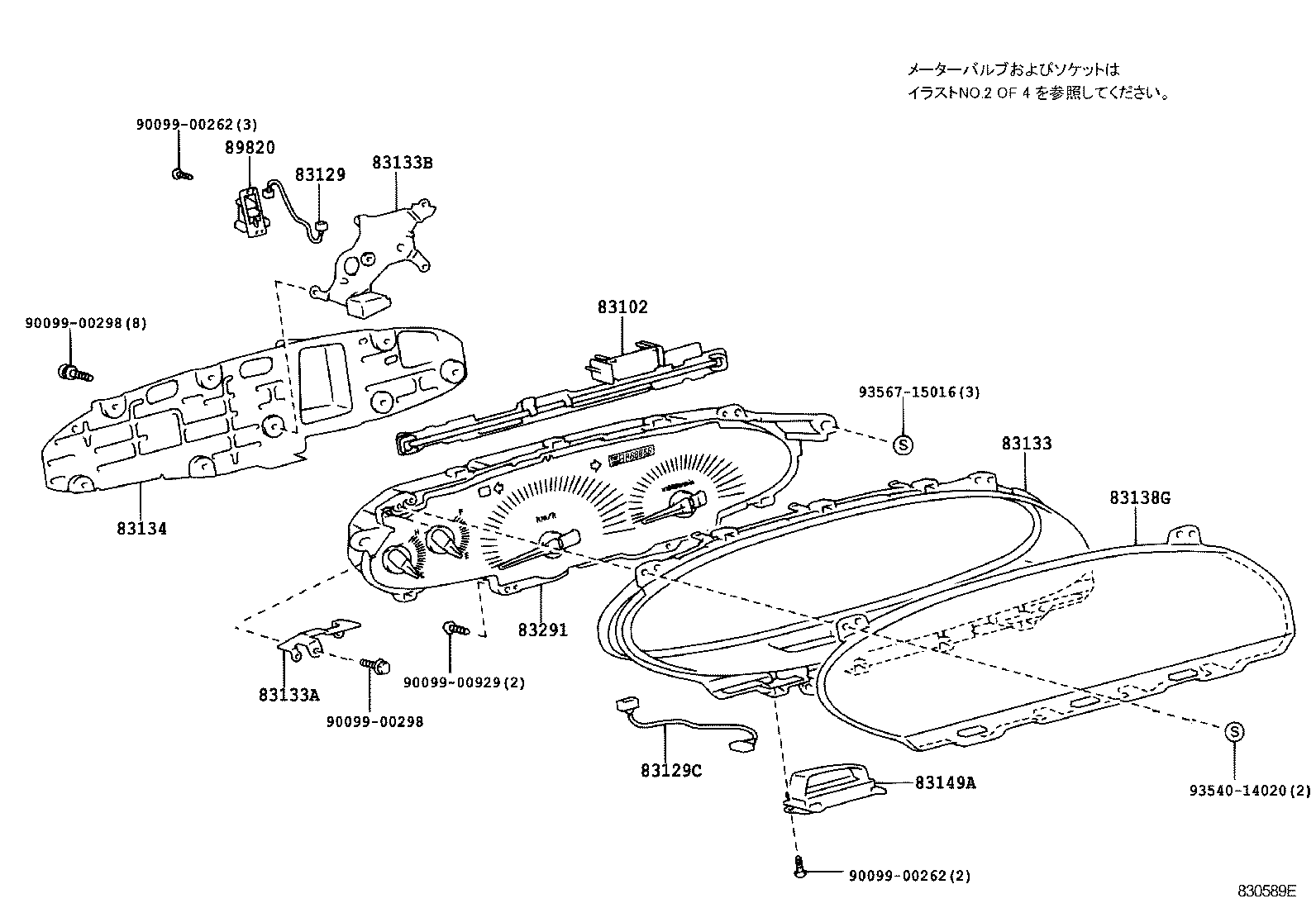

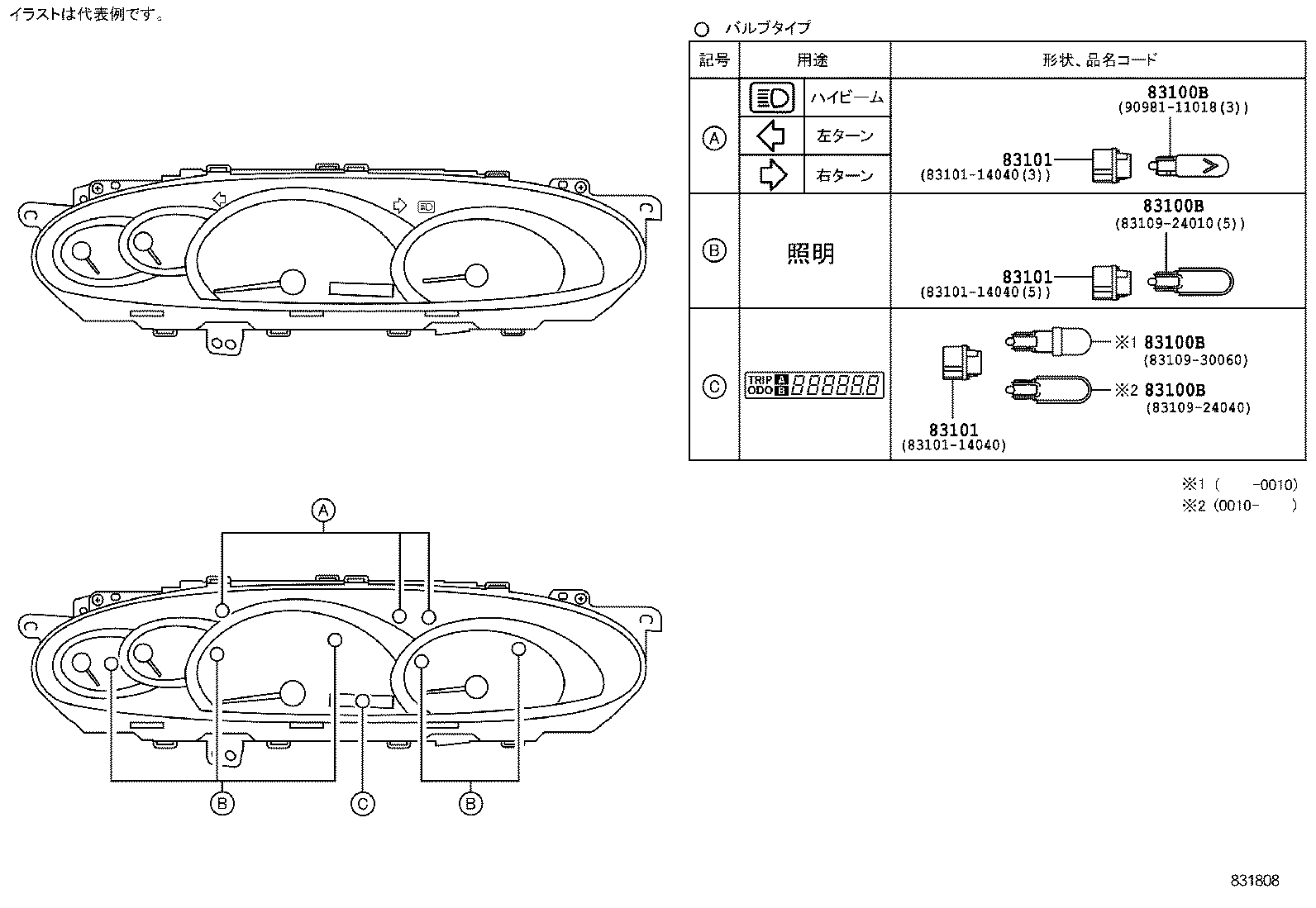

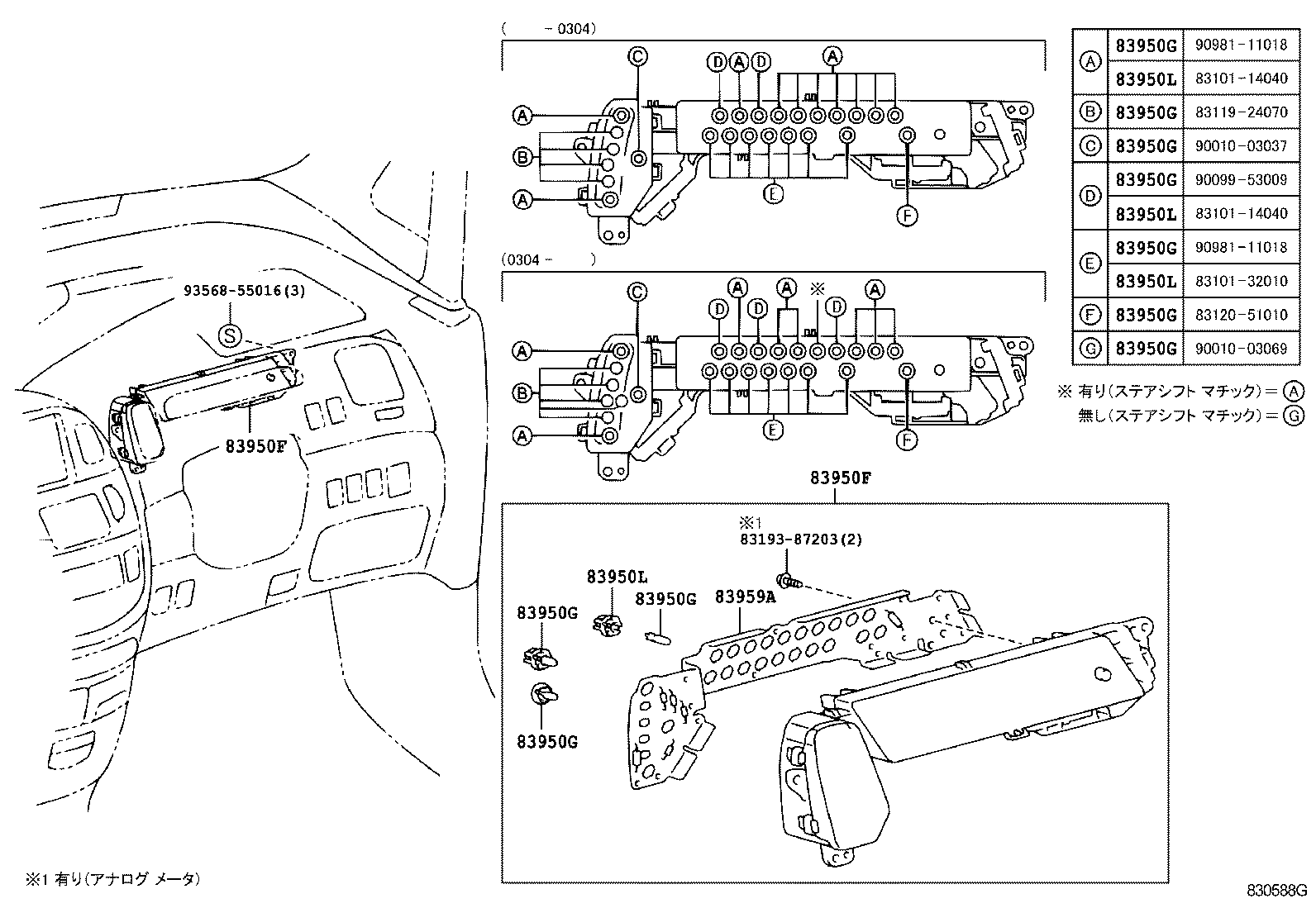

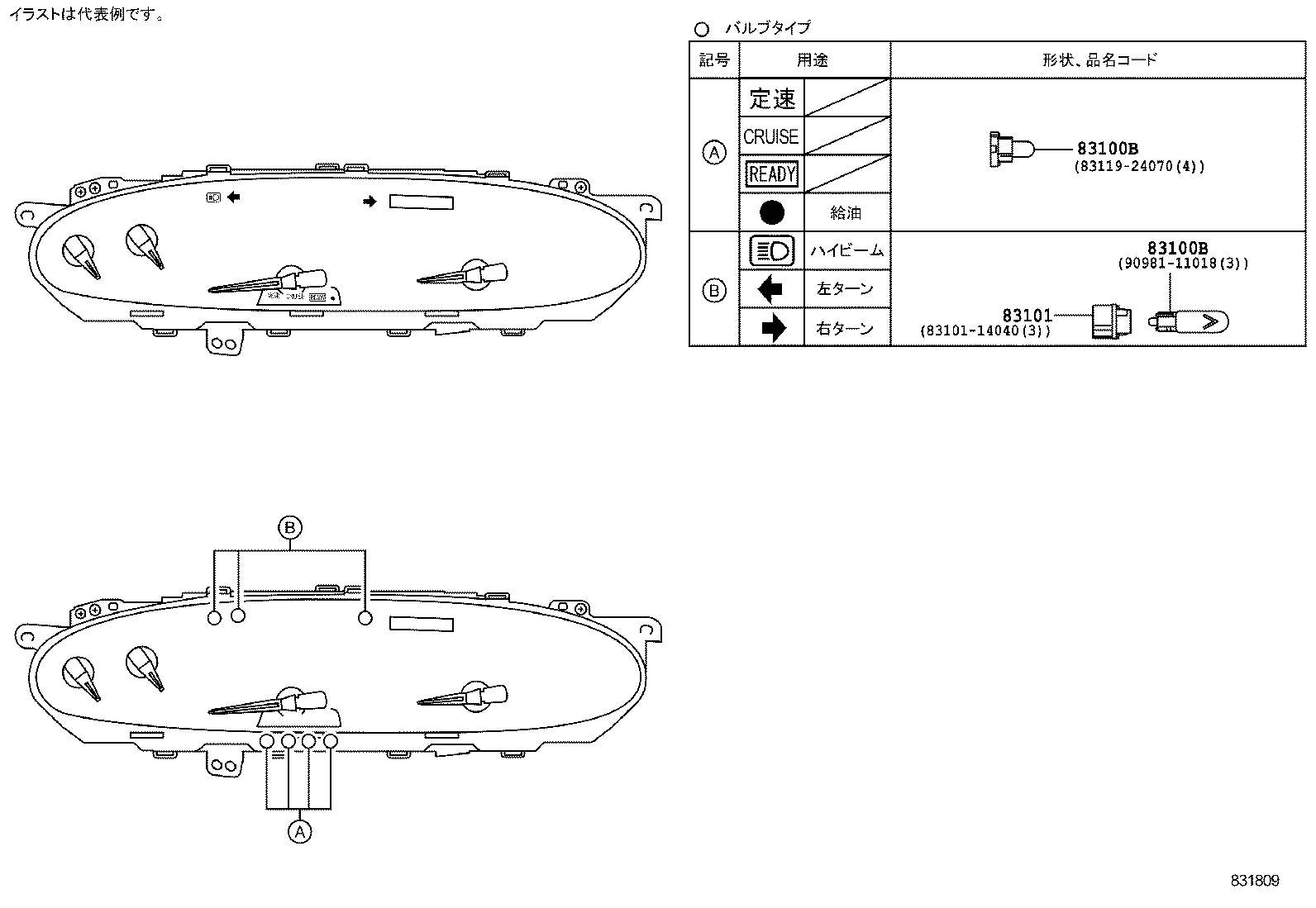

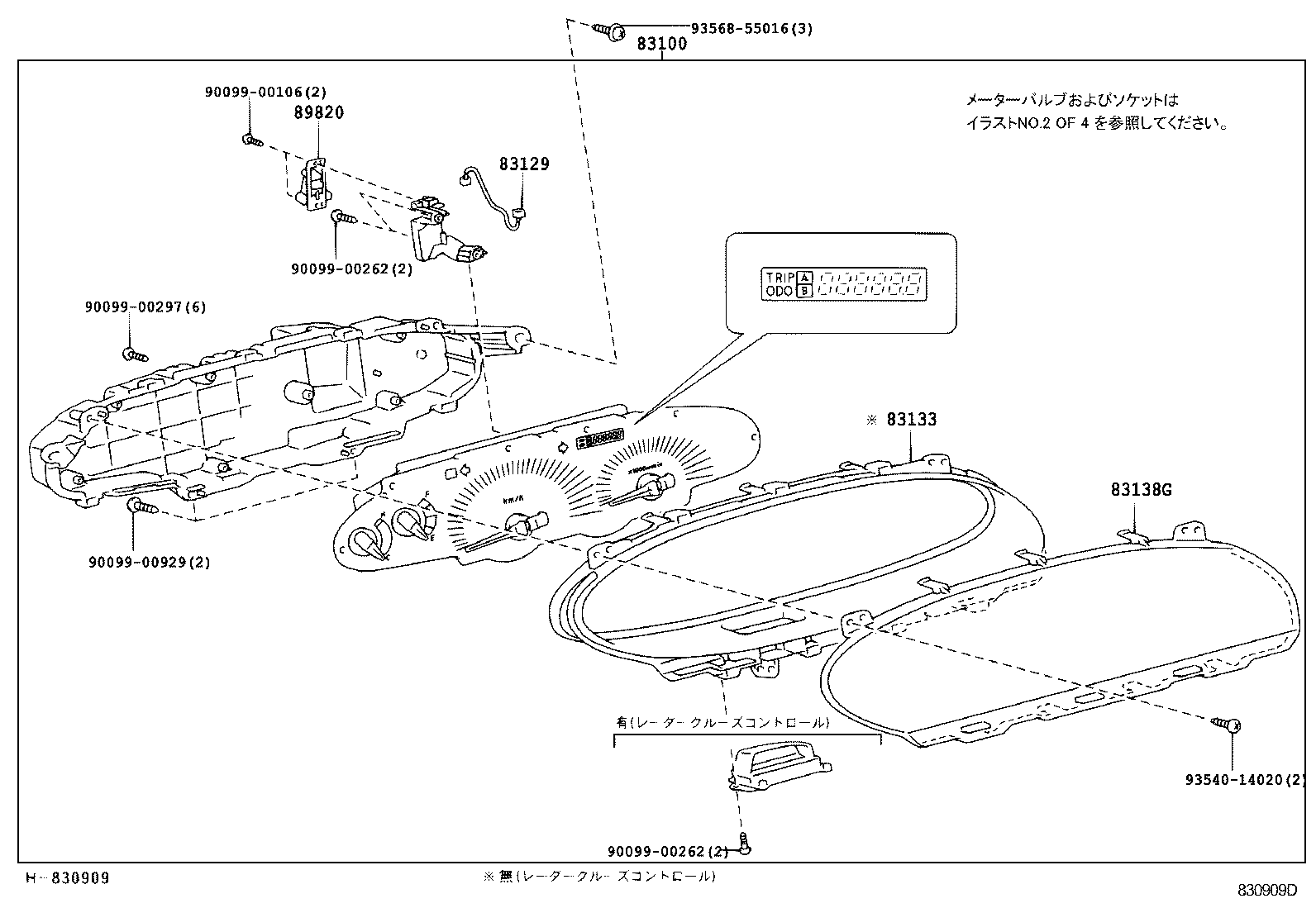

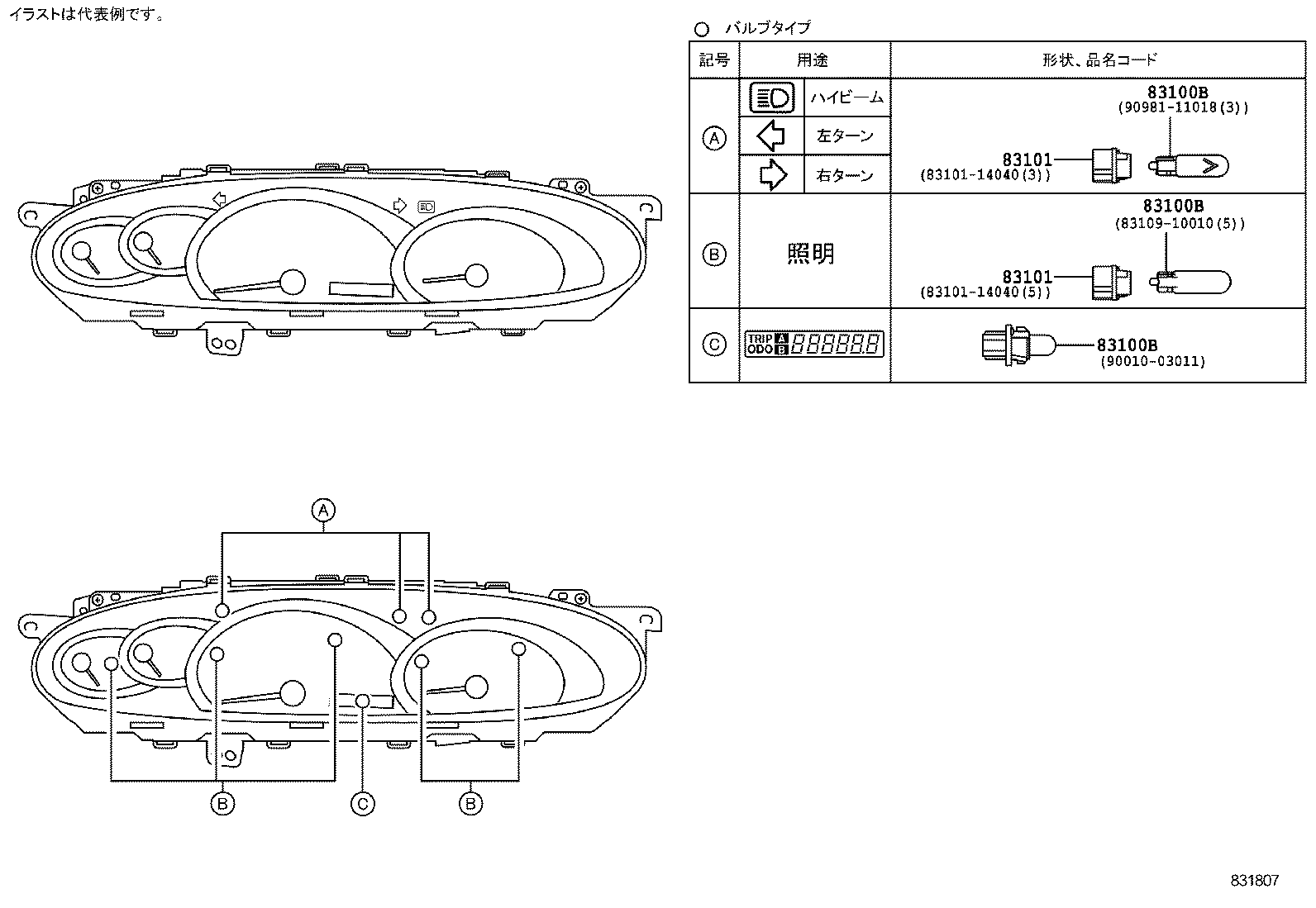

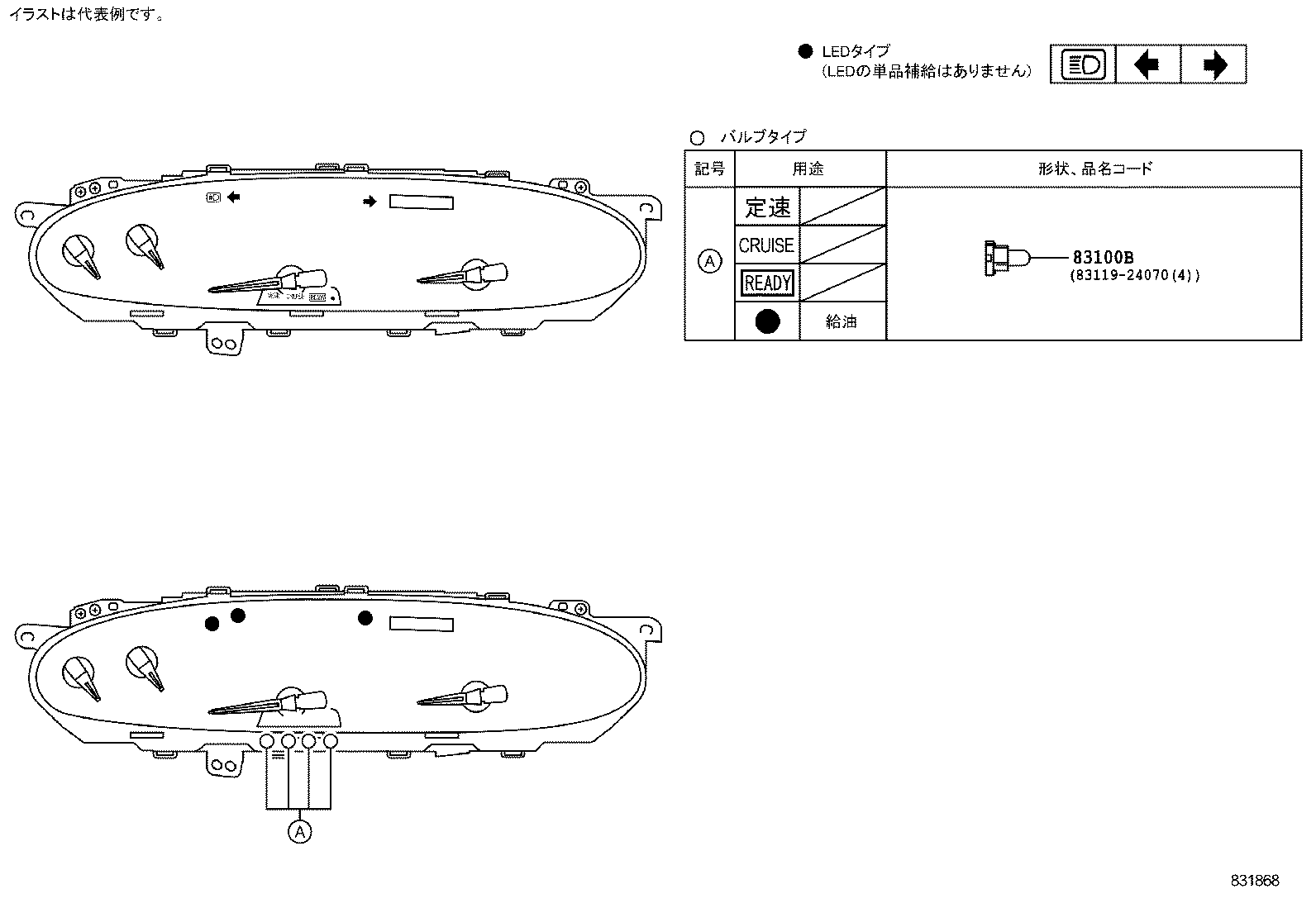

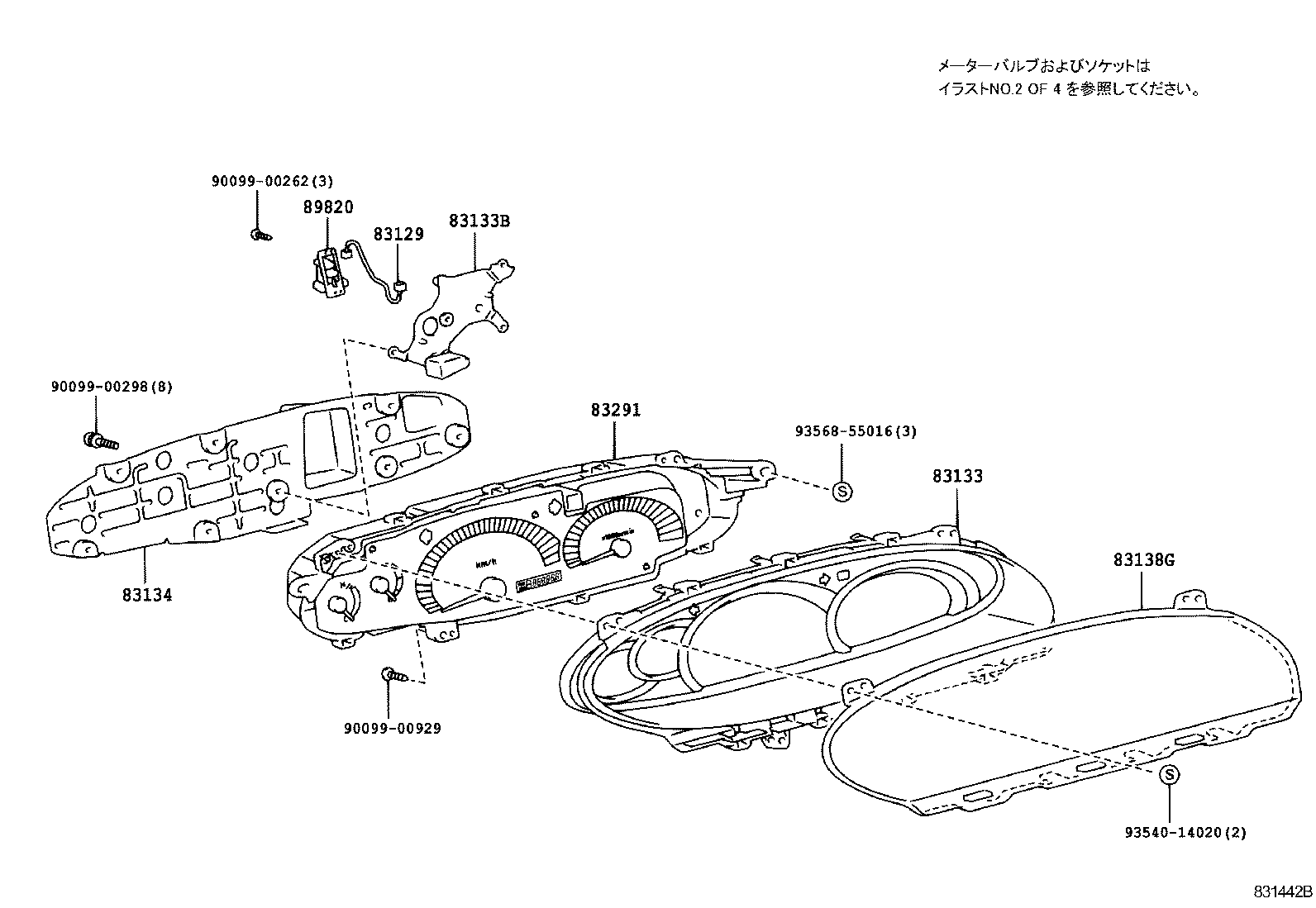

Figure 830671D 830671D 2000-06 → 2001-06 Figure 831442B 831442B 1999-12 → 2003-04 Figure 831442B 831442B 2003-04 → — Figure 830589E 830589E 1999-12 → 2003-04 Figure 830589E 830589E 2001-04 → 2003-04 Figure 830909D 830909D 2003-04 → — Figure 831807 831807 2000-06 → 2001-06 Figure 831808 831808 1999-12 → 2003-04 Figure 831808 831808 2003-04 → — Figure 831809 831809 1999-12 → 2003-04 Figure 831809 831809 2001-04 → 2003-04 Figure 831868 831868 2003-04 → — Figure 830588G 830588G 1999-12 → — Figure 830608A 830608A 2000-02 → 2003-04

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83129 Wire, Meter
83129C Wire, Combination Meter
83133 Plate, Combination Meter, NO.1
83133A Plate, Combination Meter, NO.2
83133B Plate, Combination Meter, NO.3
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83149A Plate, Meter Circuit, NO.2
83291 Computer, Combination Meter
83910 Clock Assy
83950F Lamp Assy, Telltale
83950G Bulb, Telltale Lamp
83950L Socket, Telltale Lamp
83959A Plate, Telltale Lamp Circuit
89820 Sensor Assy, Inclination
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
