Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

120 part groups · 14 illustrations

Illustrations

843960A 1999-12 → —

843961D 2000-02 → 2003-04

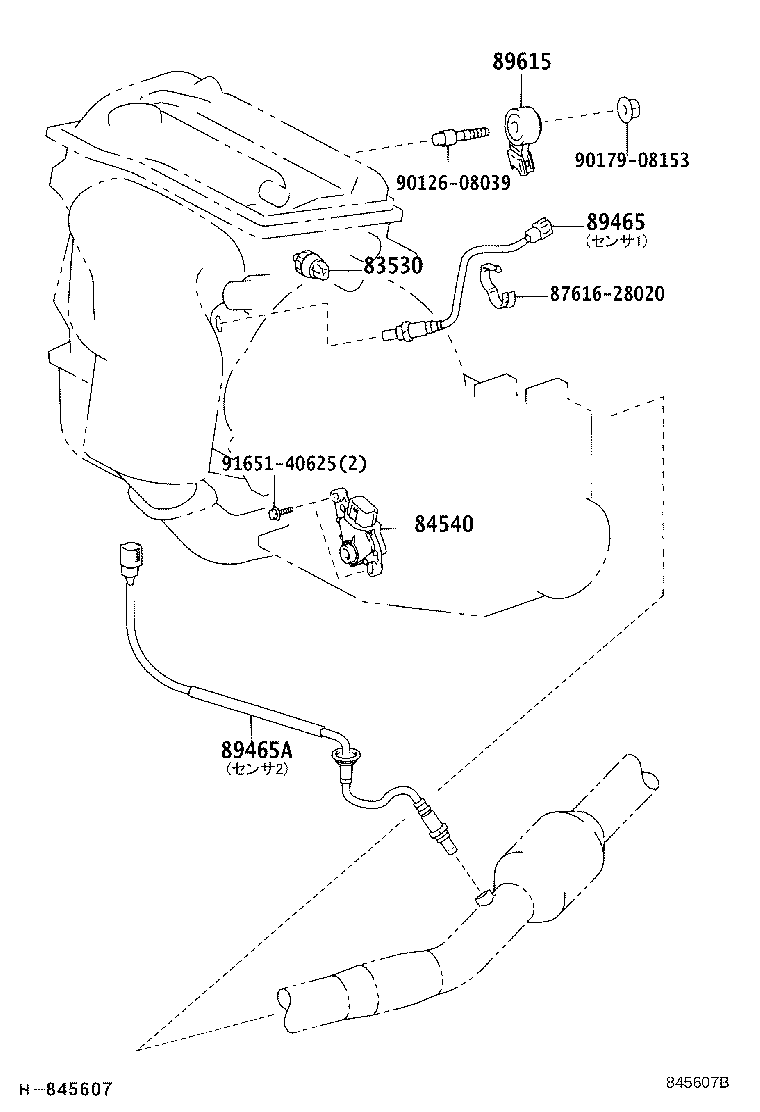

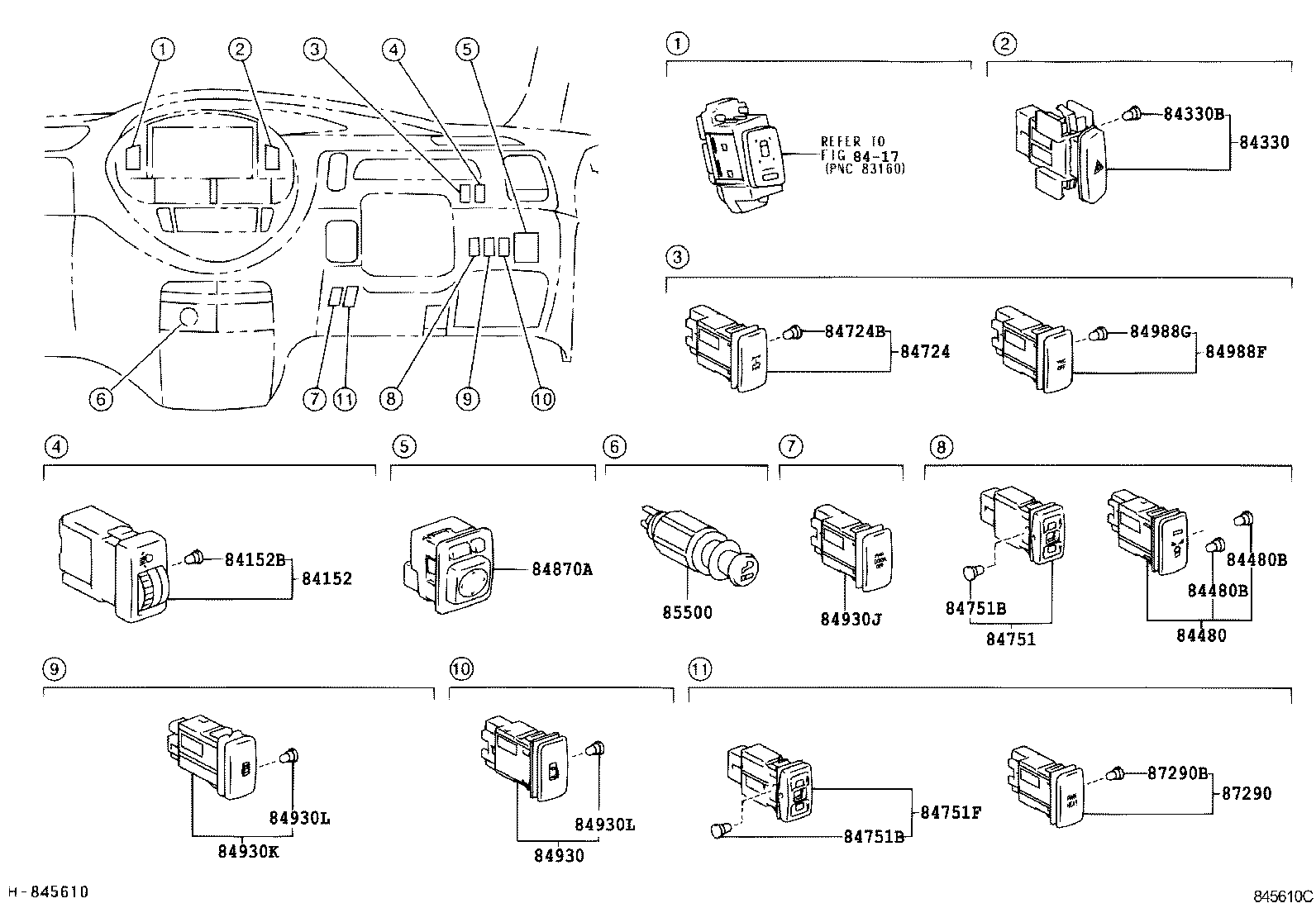

845607B 2003-04 → —

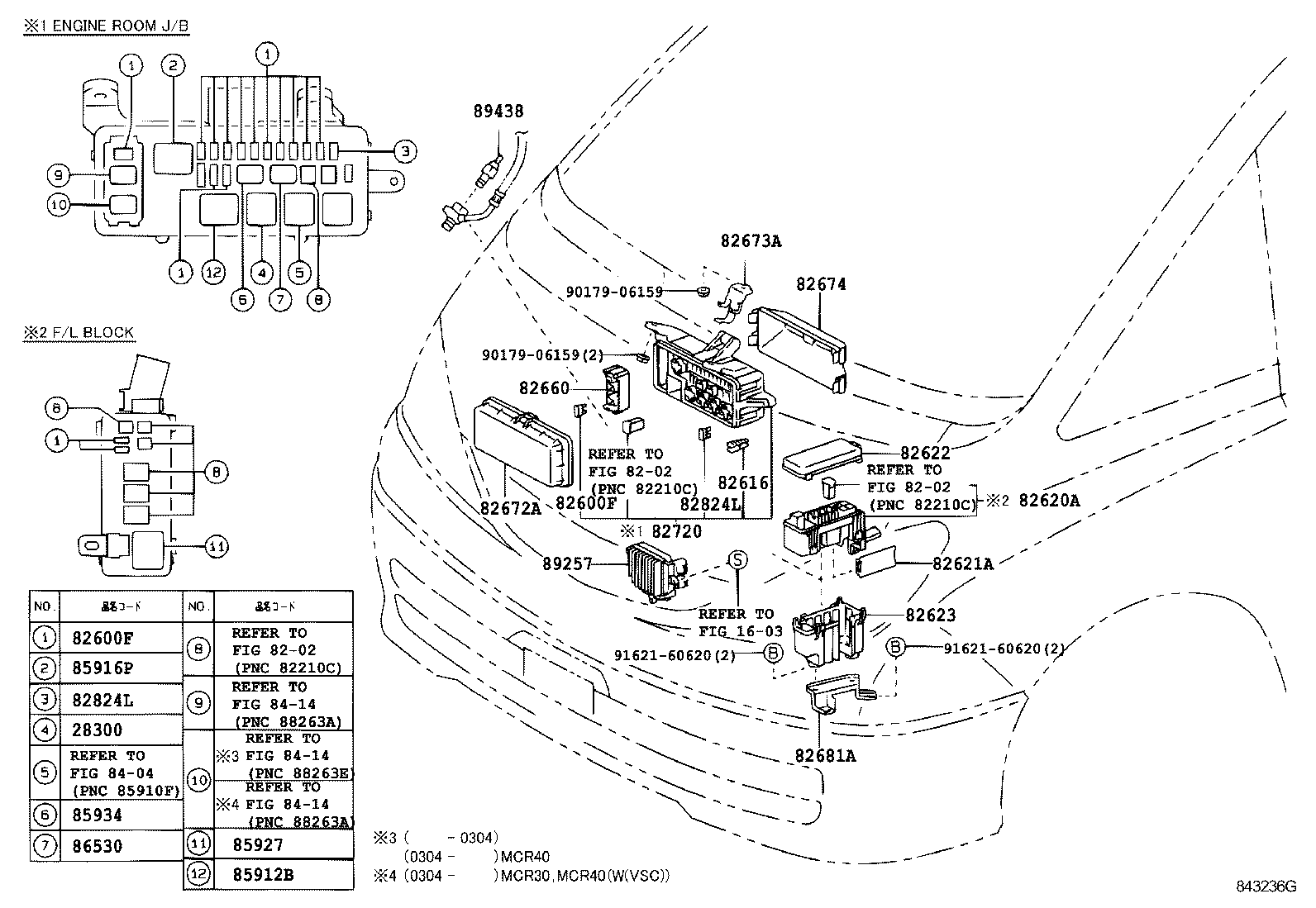

843236G 1999-12 → —

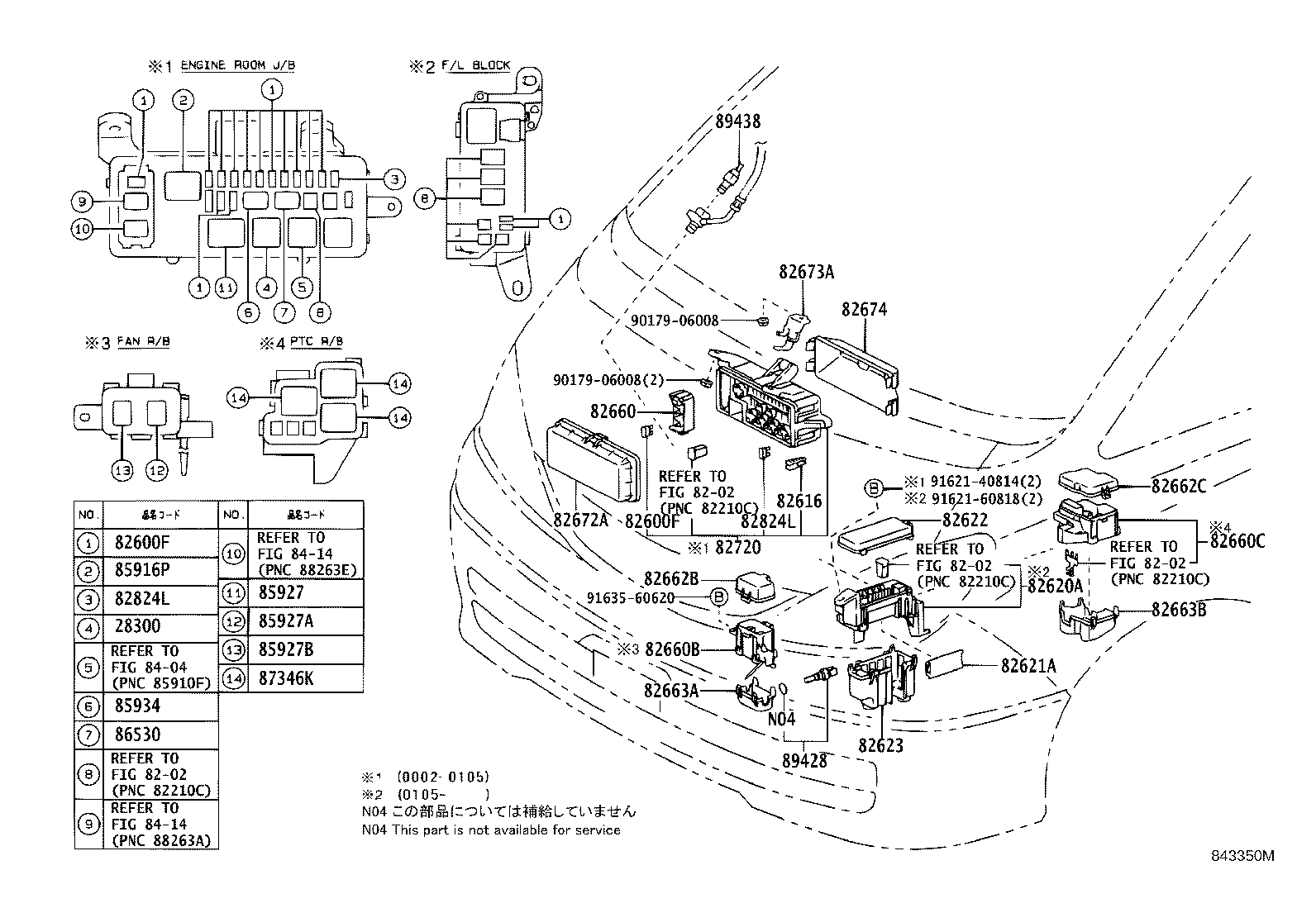

843350M 1999-12 → 2003-04

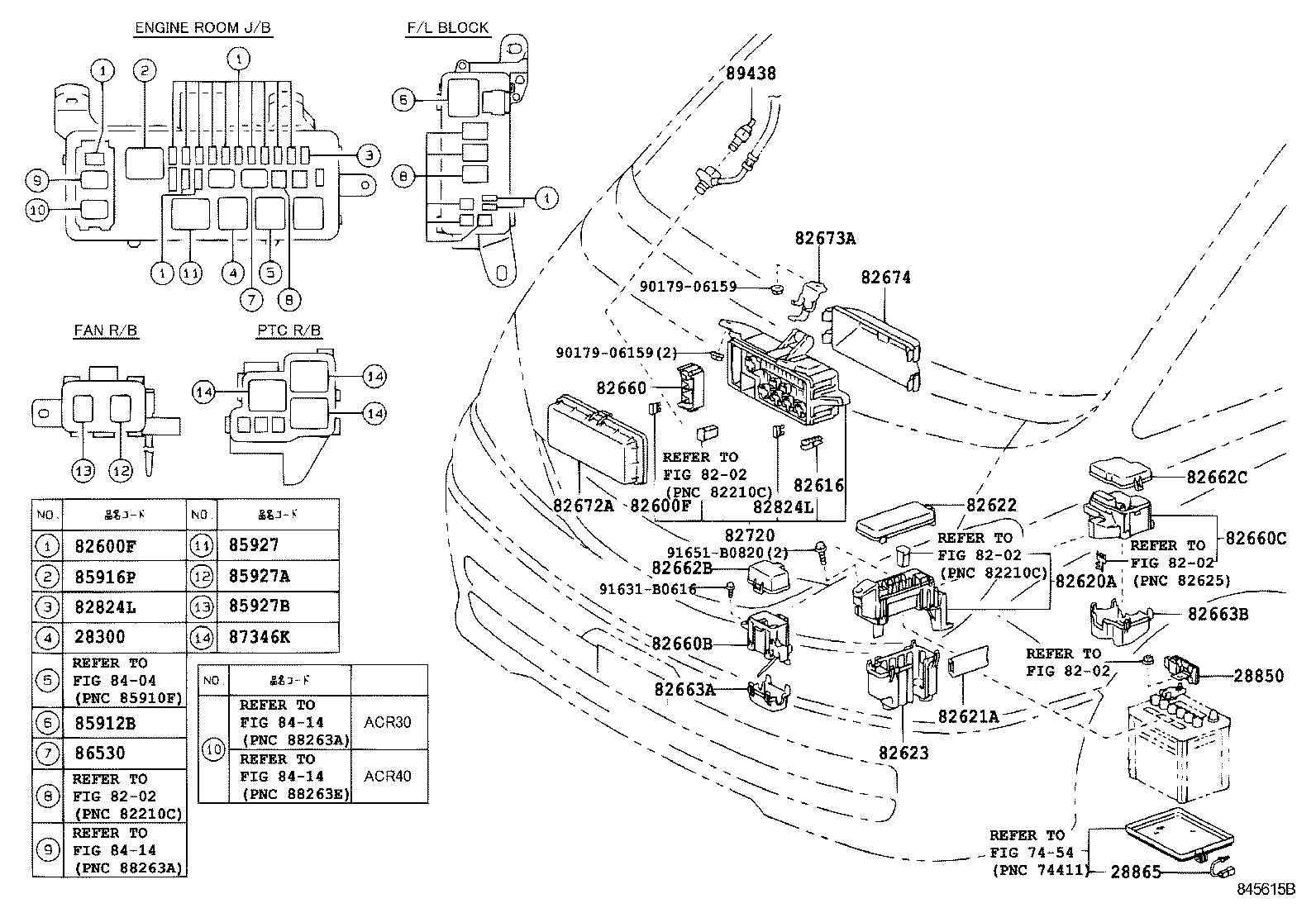

845615B 2003-04 → —

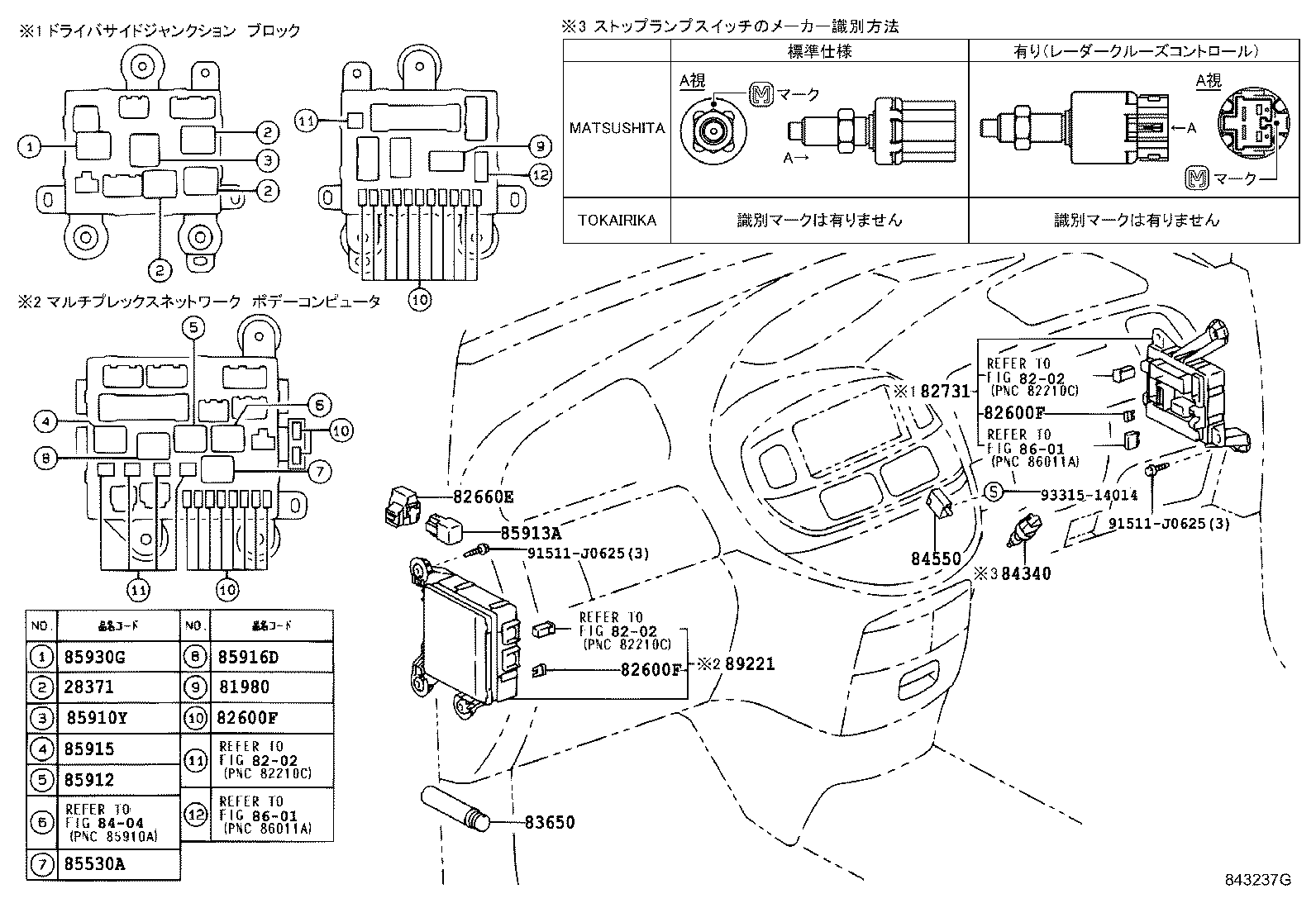

843237G 1999-12 → 2003-04

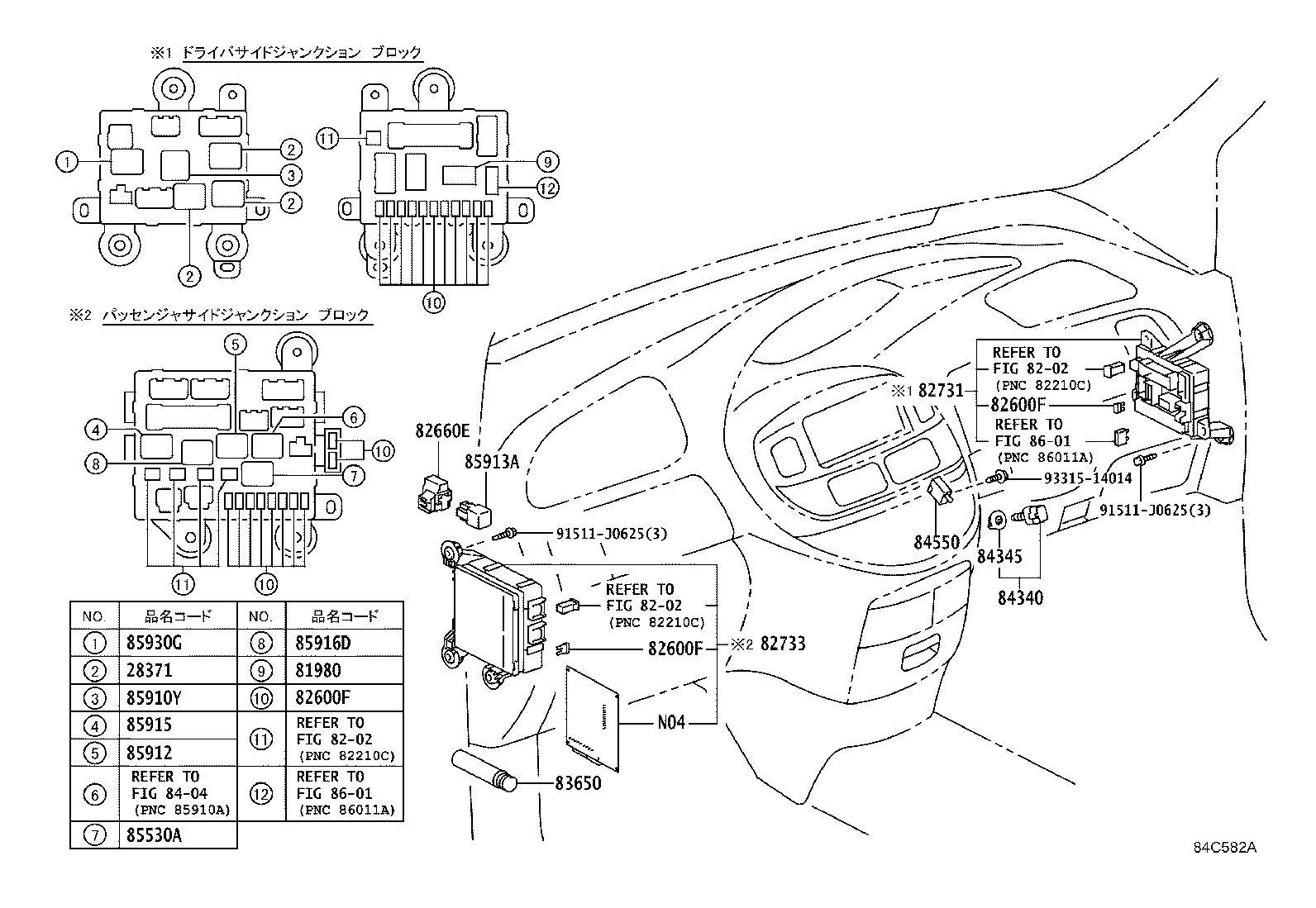

84C582A 2003-04 → —

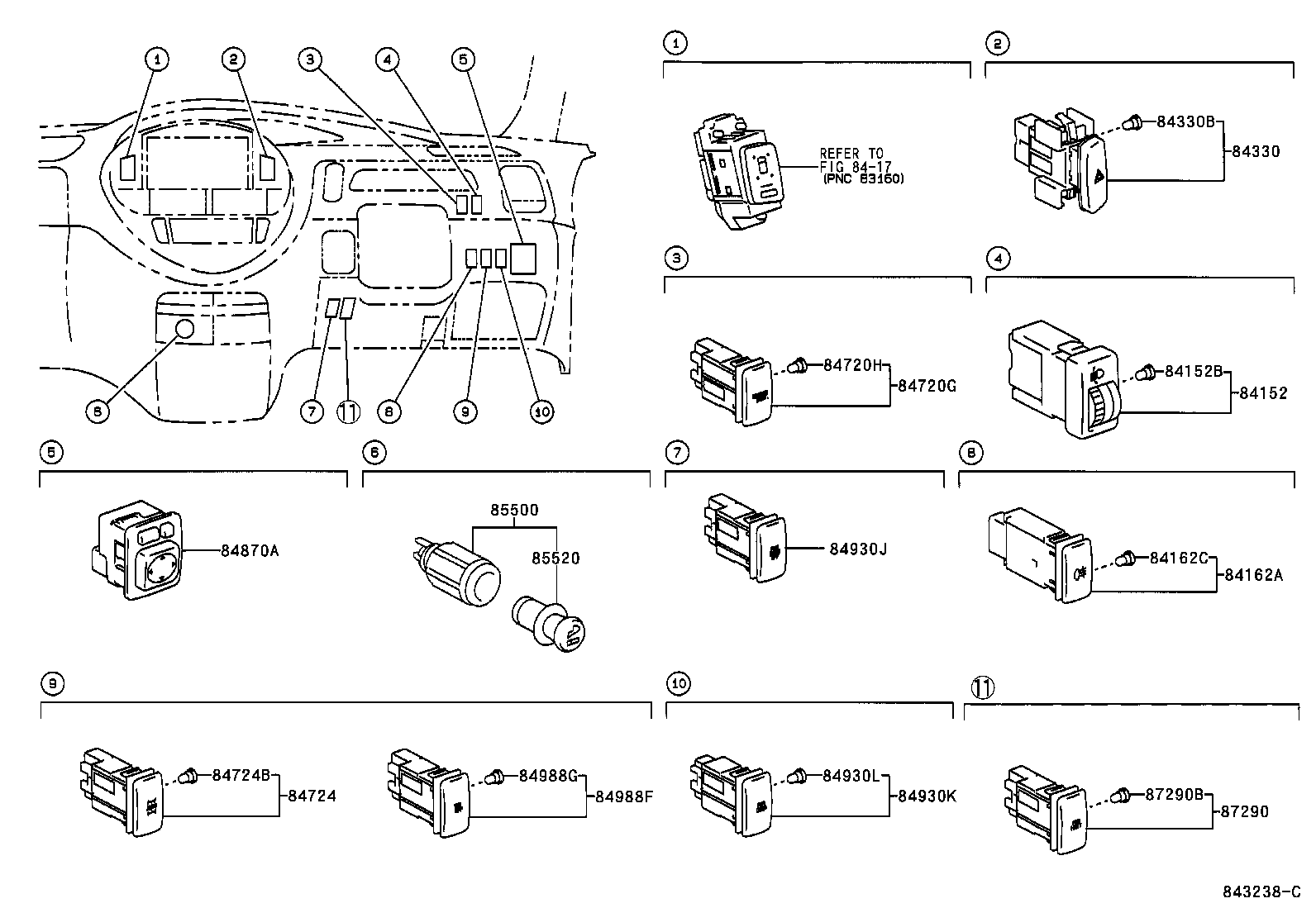

843238C 1999-12 → 2003-04

845610C 2003-04 → —

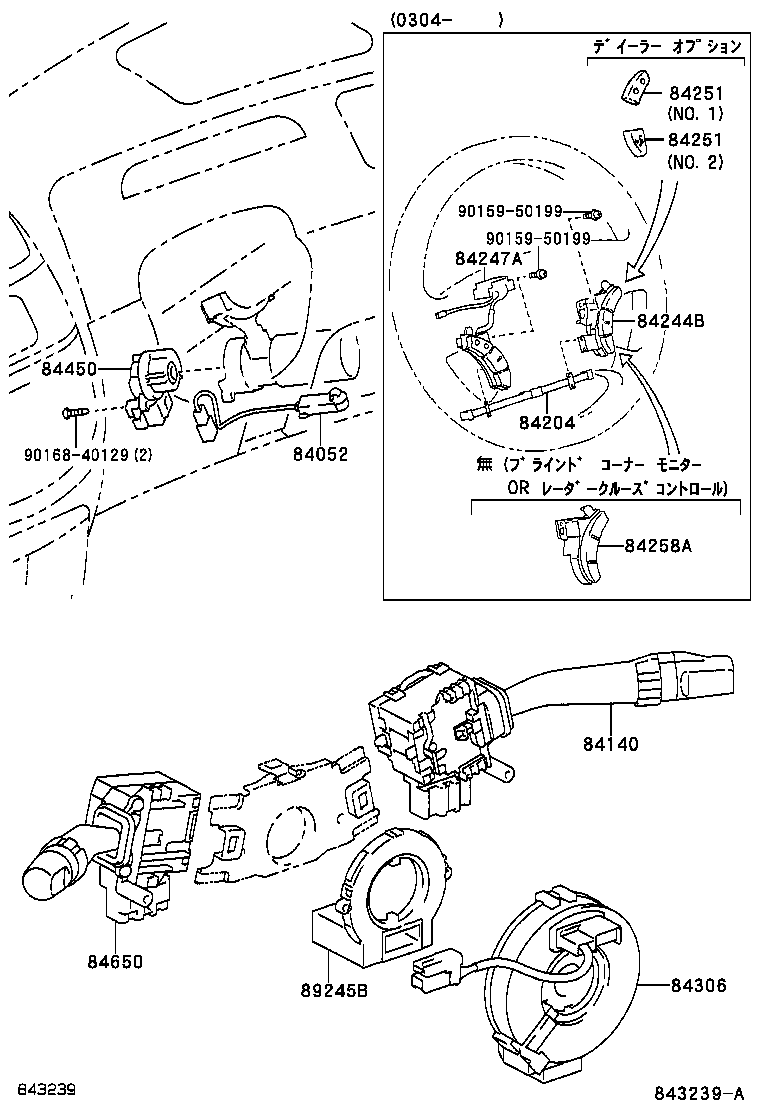

843239A 1999-12 → —

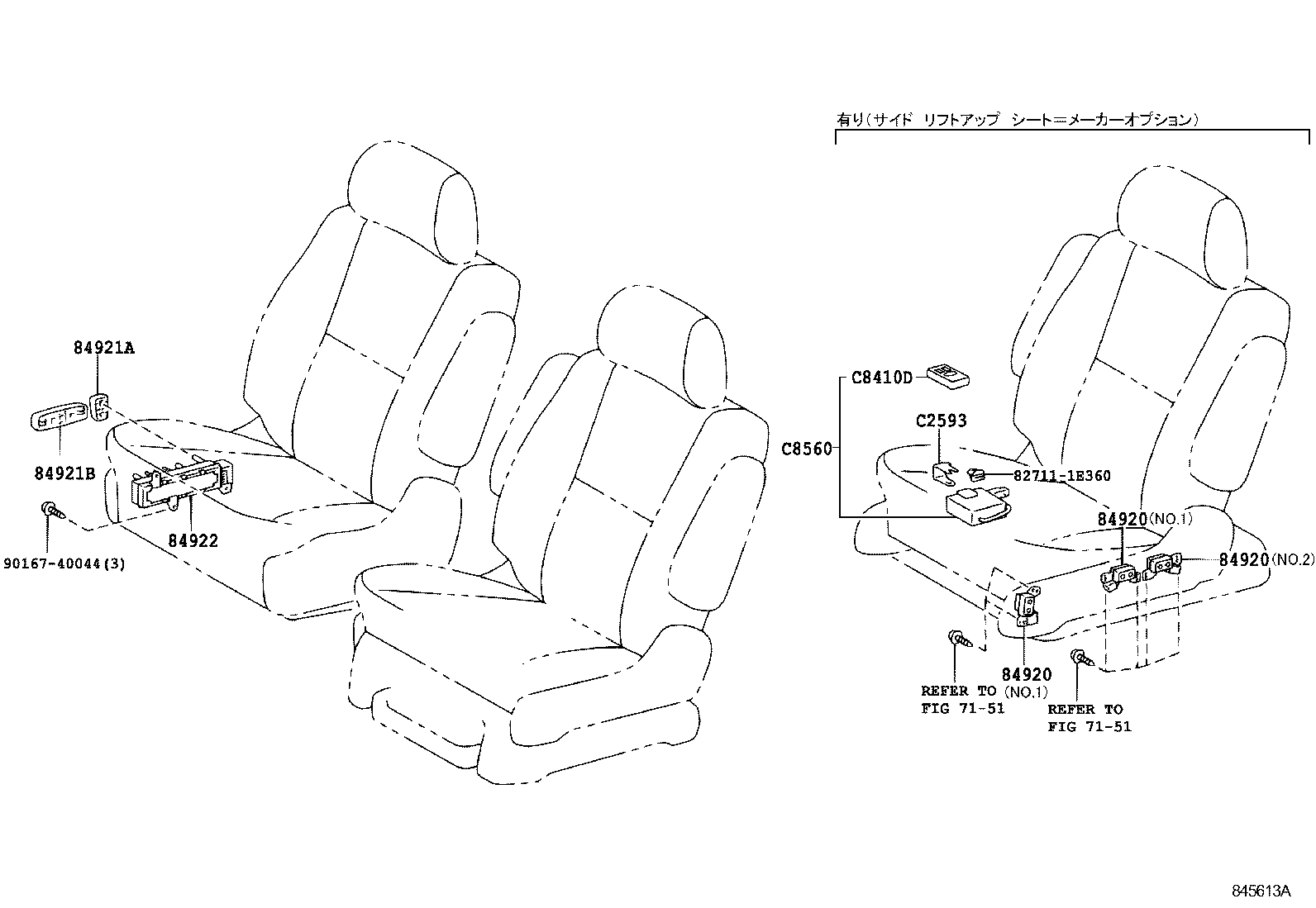

845613A 2003-04 → —

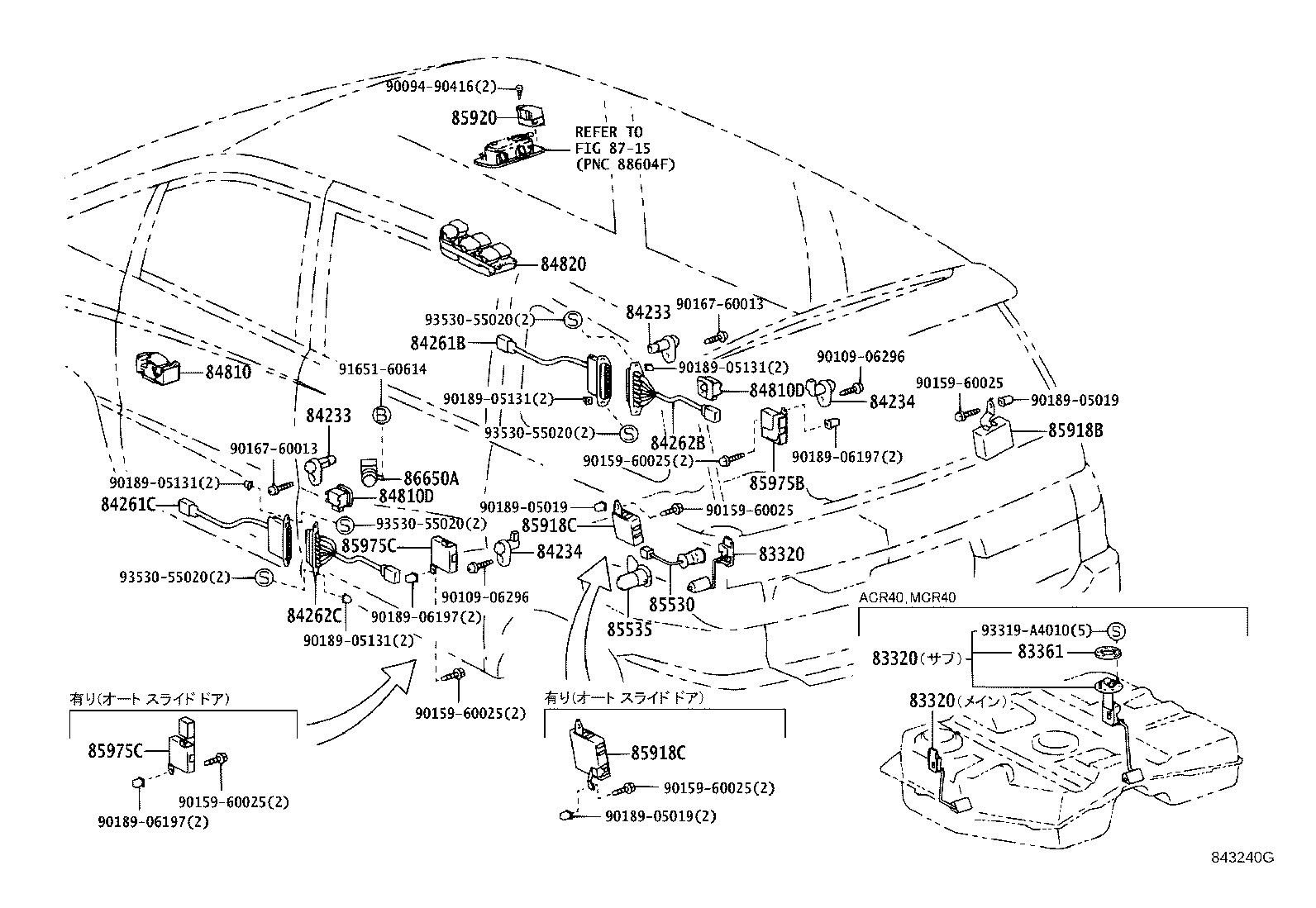

843240G 1999-12 → 2003-04

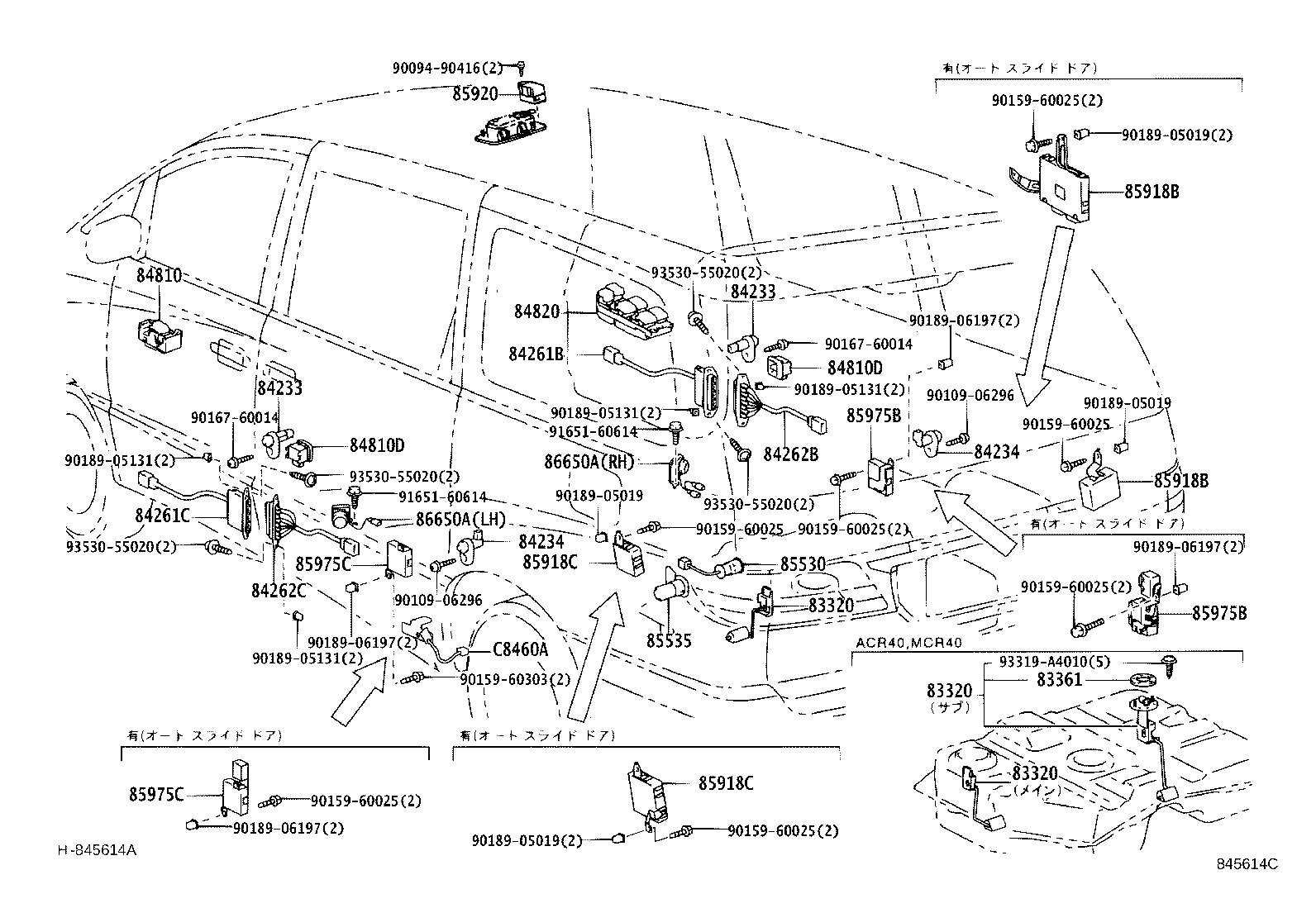

845614C 2003-04 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28371	Relay, Ignition, NO.1
28850	Sensor Assy, Battery Current
28865	Sensor, Battery Thermometer
81980	Flasher Assy, Turn Signal
82600F	Fuse, Fuse Block
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82622	Cover, Fusible Link, Upper
82623	Cover, Fusible Link, Lower
82660	Block Assy, Relay, Engine Room
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660E	Block Assy, Relay
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82674	Cover, Junction Block Lower
82681A	Bracket, Fuse Block
82720	Block Assy, Engine Room Junction
82731	Block, Driver Side Junction
82733	Block, Passenger Side Junction
82824L	Pin, Short
83320	Gage Assy, Fuel Sender
83361	Gasket, Fuel Sender Gage
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A	Switch, Rear Fog Lamp
84162C	Bulb (FOR REAR FOG LAMP SWITCH)
84204	Cable Sub-assy, Steering Pad Switch
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B	Switch, Steering Pad, RH
84247A	Switch, Steering Pad, LH
84251	Knob, Steering Pad Switch
84258A	Cover, Steering Pad, RH
84261B	Junction, Slide Door Control,Male
84261C	Junction, Slide Door Control,Male NO.1
84262B	Junction, Slide Door Control, Female
84262C	Junction, Slide Door Control, Female, NO.1
84306	Cable Sub-assy, Spiral
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84480	Switch Assy, Main
84480B	Bulb, Main Switch Assy
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84720G	Switch Assy, Cruise Distance
84720H	Bulb, Cruise Distance Switch
84724	Switch, 4 Wheel Drive Control
84724B	Bulb, 4 Wheel Drive Control Switch
84751	Switch, Seat Heater
84751B	Bulb, Seat Heater Switch
84751F	Switch, Seat Heater
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84870A	Switch Assy, Outer Mirror
84920	Switch Assy, Power Seat
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922	Switch, Front Power Seat
84930	Switch Assy, Door Control
84930J	Switch Assy, Auto Slide Door Main
84930K	Switch Assy, Auto Slide Door Control
84930L	Bulb, Auto Slide Door Control Switch
84988F	Switch, Traction Control
84988G	Bulb, Traction Control Switch
85500	Lighter Assy, Cigarette
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85535	Panel, Cigarette Lighter Heat Diffuse
85910Y	Relay, Rear Heater
85912	Relay, Defogger
85912B	Relay, Defogger(FOR FRONT WINDOW)
85913A	Relay, Heater Control
85915	Relay, Main
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85918B	Relay, Door Control, RH
85918C	Relay, Door Control, LH
85920	Relay & Switch Assy, Sliding Roof
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85930G	Relay, Acc
85934	Relay, Magnet-clutch
85975B	Relay, Slide Door Closer, RH
85975C	Relay, Slide Door Closer, LH
86530	Relay Assy, Horn
86650A	Buzzer Assy, Door Opening
87290	Switch Assy, Heater
87290B	Bulb (FOR HEATER SWITCH)
87346K	Relay, Ptc Heater
89221	Computer, Multiplex Network Body
89245B	Sensor, Steering
89257	Computer, Cooling Fan
89428	Switch, Temperature Detect, NO.2
89438	Switch, Power Steering Oil Pressure
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89615	Sensor, Knock Control
C2593	Bracket, Wireless Box, FR
C8410D	Switch Assy, Control, NO.1
C8460A	Switch Assy, Limit, LH NO.2
C8560	Relay Assy, Lifter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
