Toyota Estima T/L
1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan
Discontinued model
Data version 2006-10
Electronic Fuel Injection System

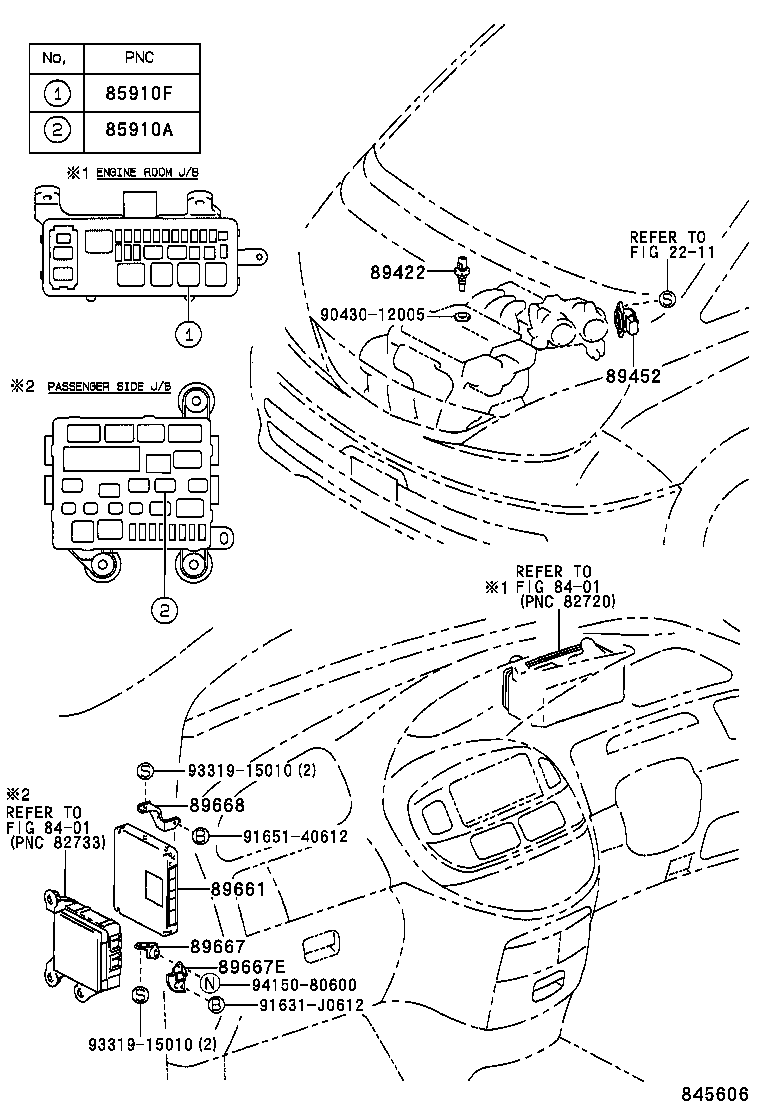

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89667E | Bracket, Engine Control Computer, NO.1 |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
