Toyota Estima T/L
1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan
Discontinued model
Data version 2006-10
Cruise Control (AUTO DRIVE)

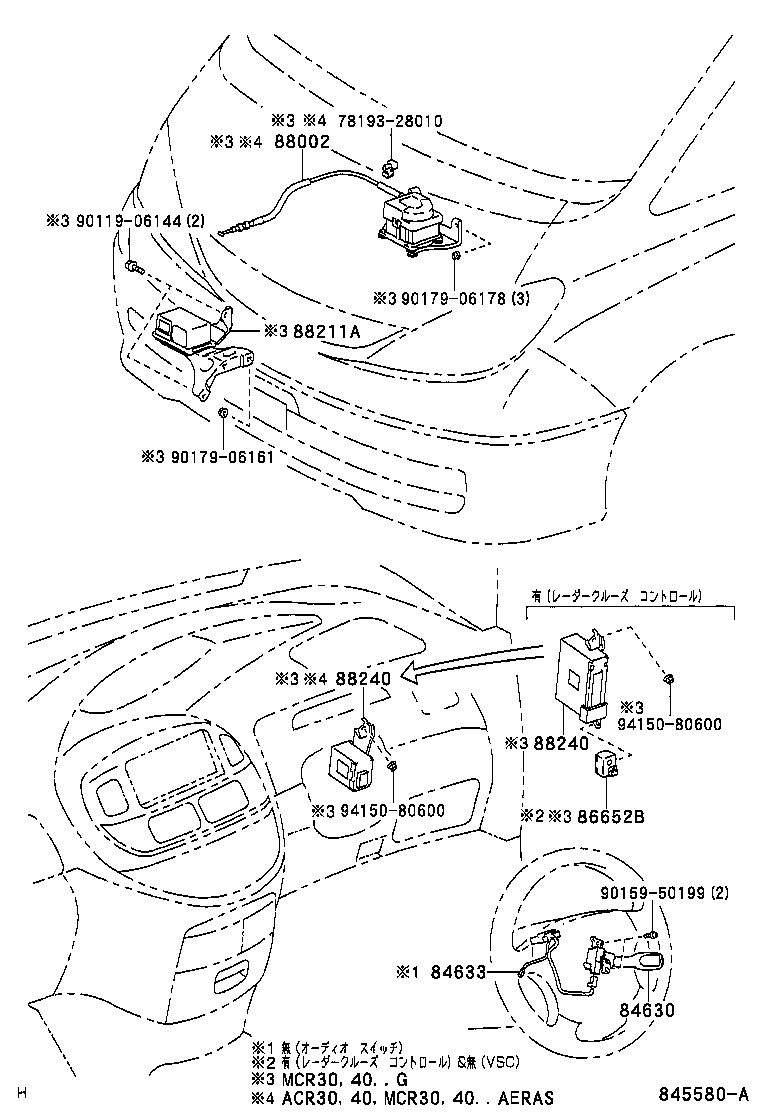

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84630 | Switch Assy, Cruise Control Main |
| 84633 | Wire, Cruise Control Switch |
| 86652B | Buzzer, Skid Control |
| 88002 | Cruise Control(AUTO DRIVE) Set |
| 88211A | Sensor, Laser Radar |
| 88240 | Computer Assy, Cruise Control |
| 88240A | Computer Assy, Distance Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
