Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

5 part groups · 3 illustrations

Illustrations

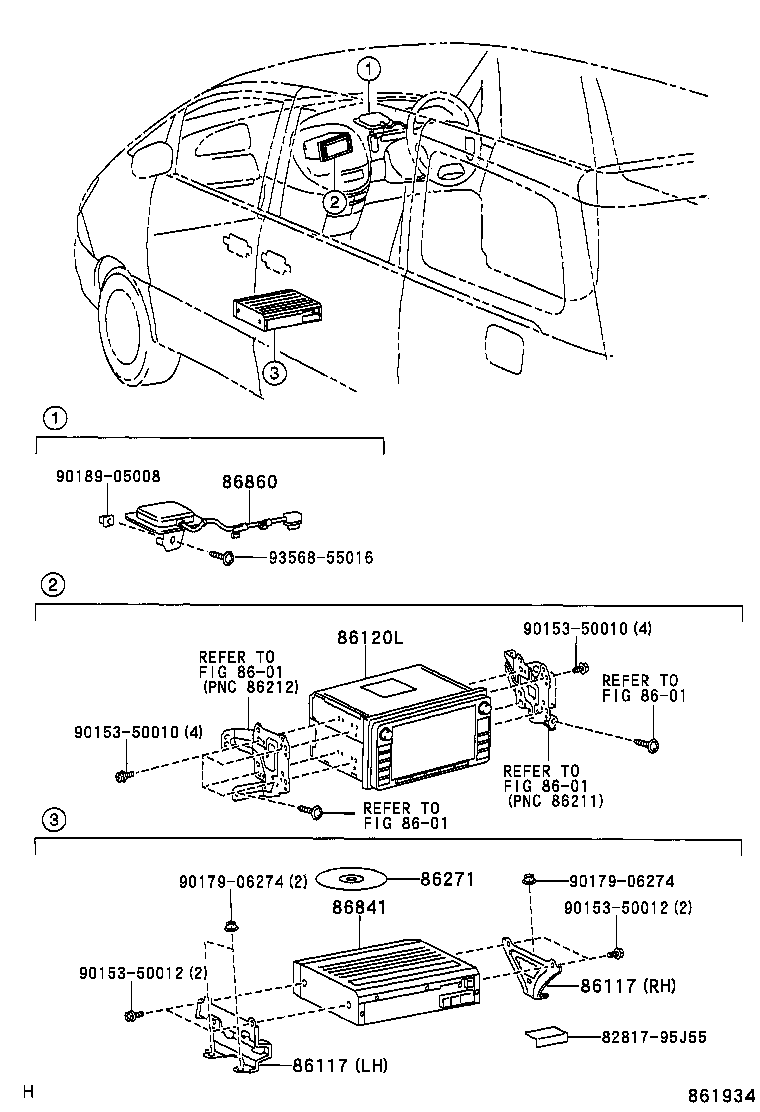

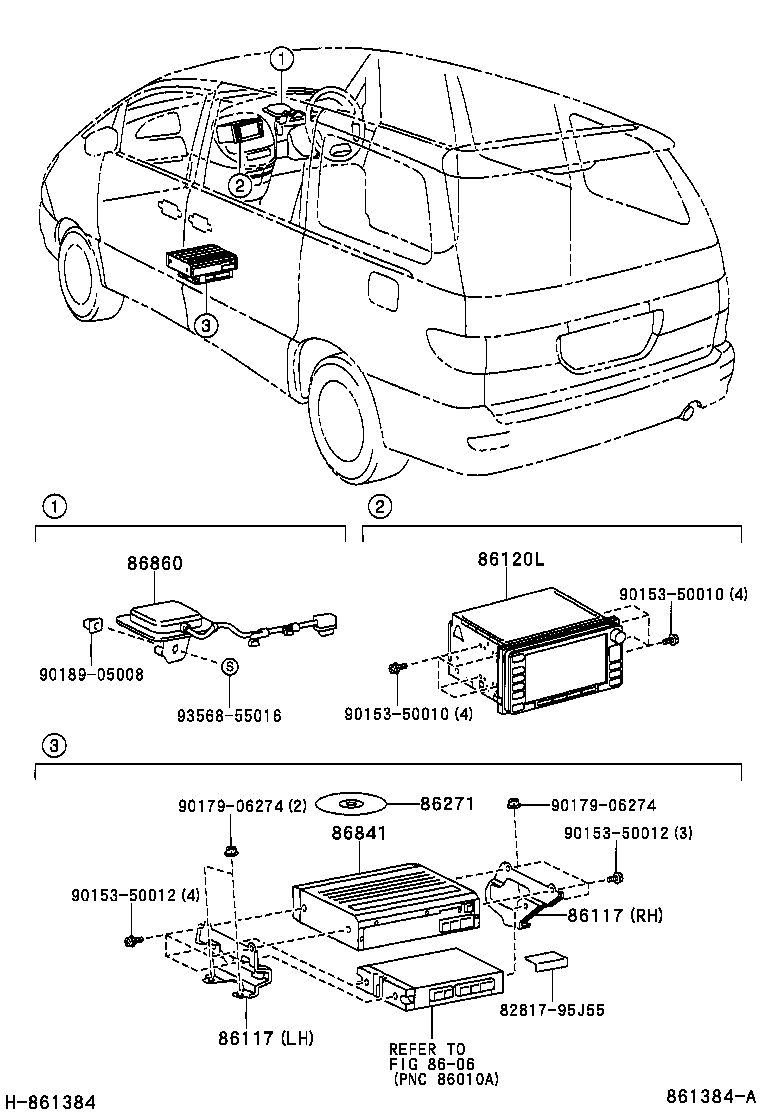

Figure 861074B 861074B 1999-12 → 2001-04 Figure 861384A 861384A 2001-04 → 2003-04 Figure 861934 861934 2003-04 → —

Part groups

PNCDescription
86117 Bracket, Multi-display Controller, A
86120L Receiver Assy, Navigation
86271 Disc, Disc Player
86841 Computer, Navigation
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
