Toyota Estima T/L

1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 8 illustrations

Illustrations

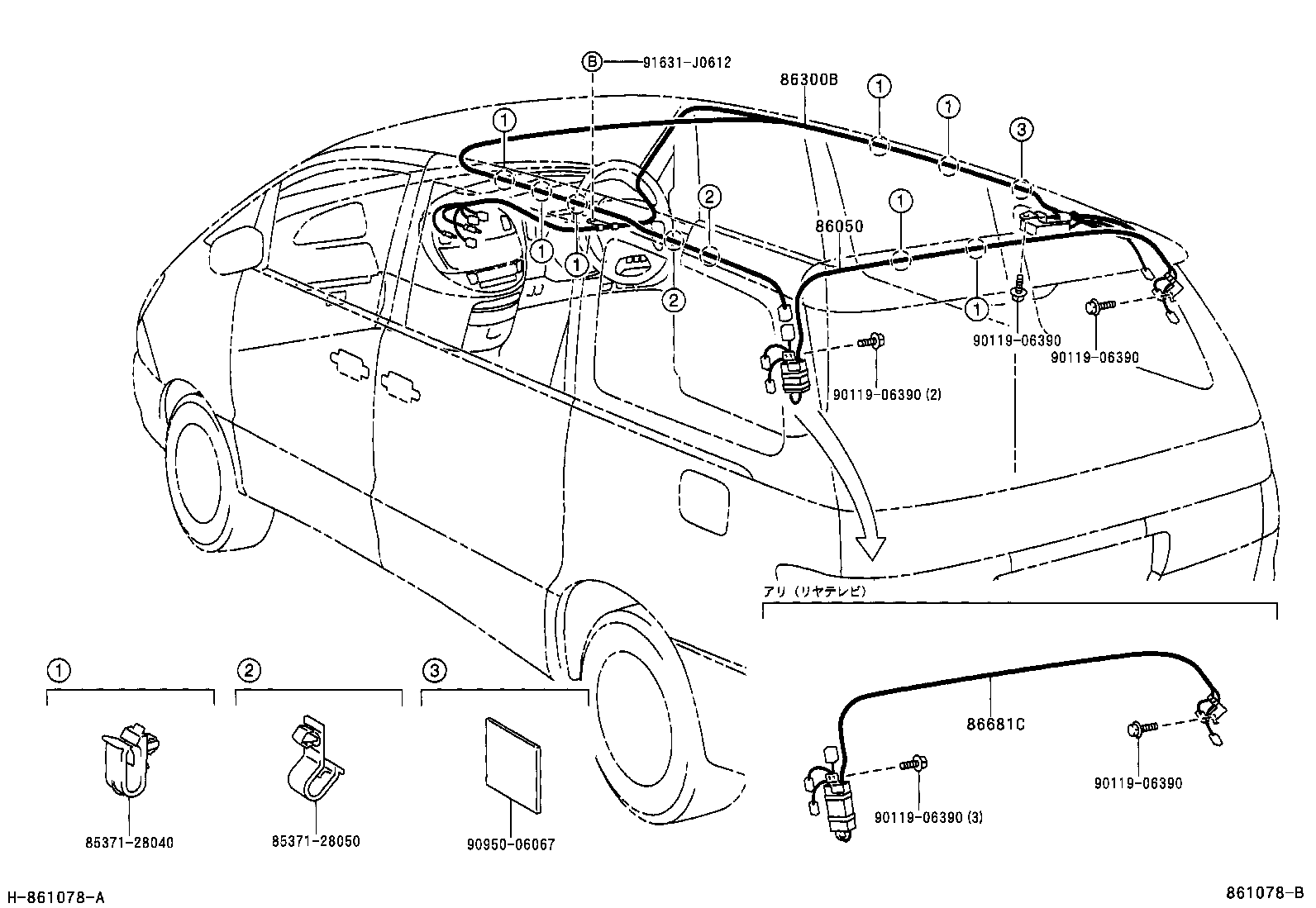

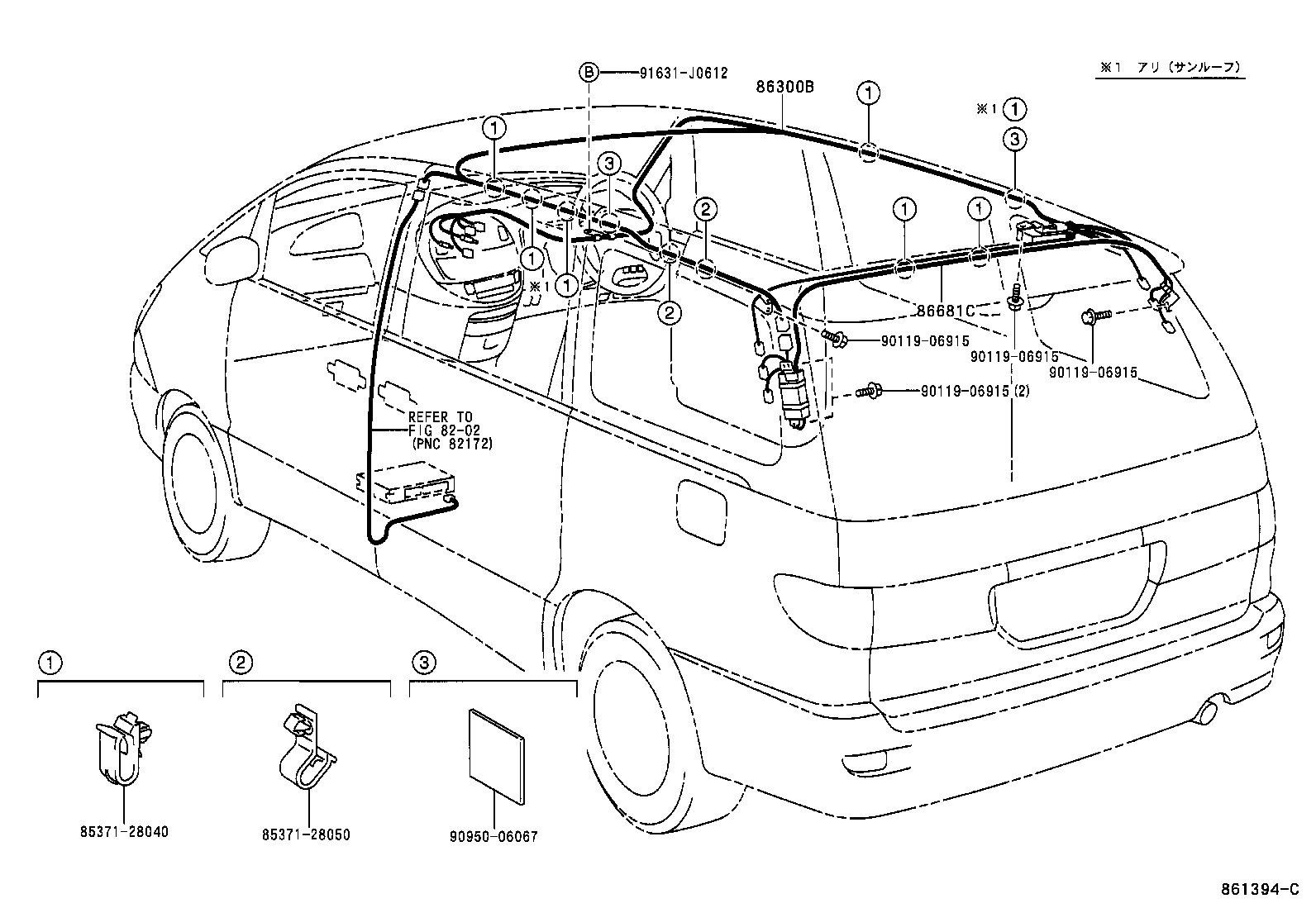

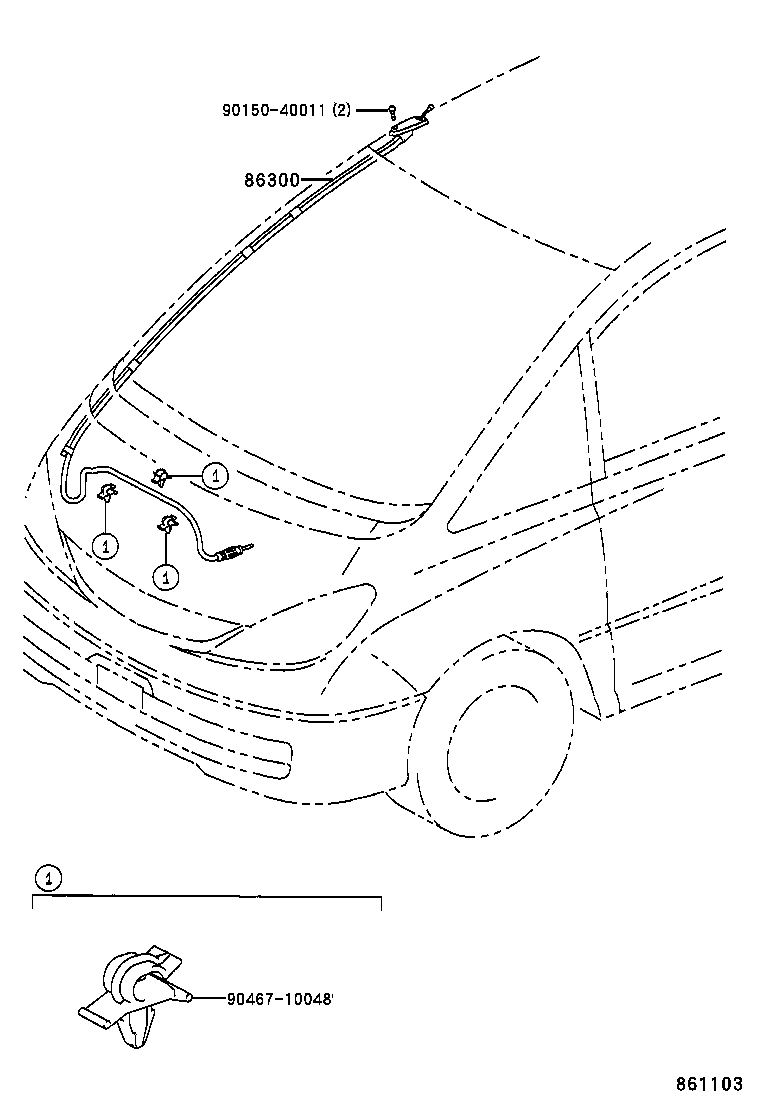

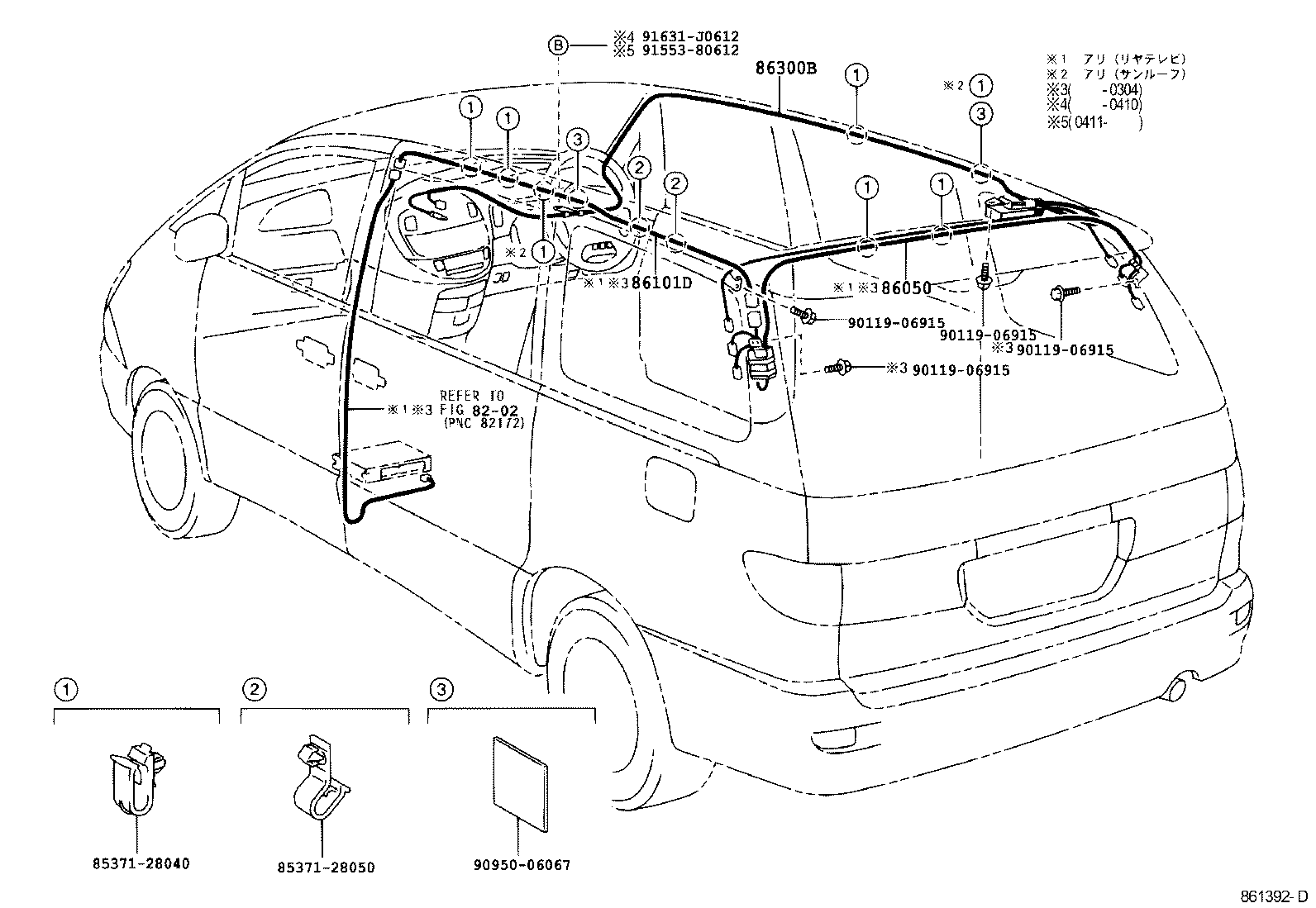

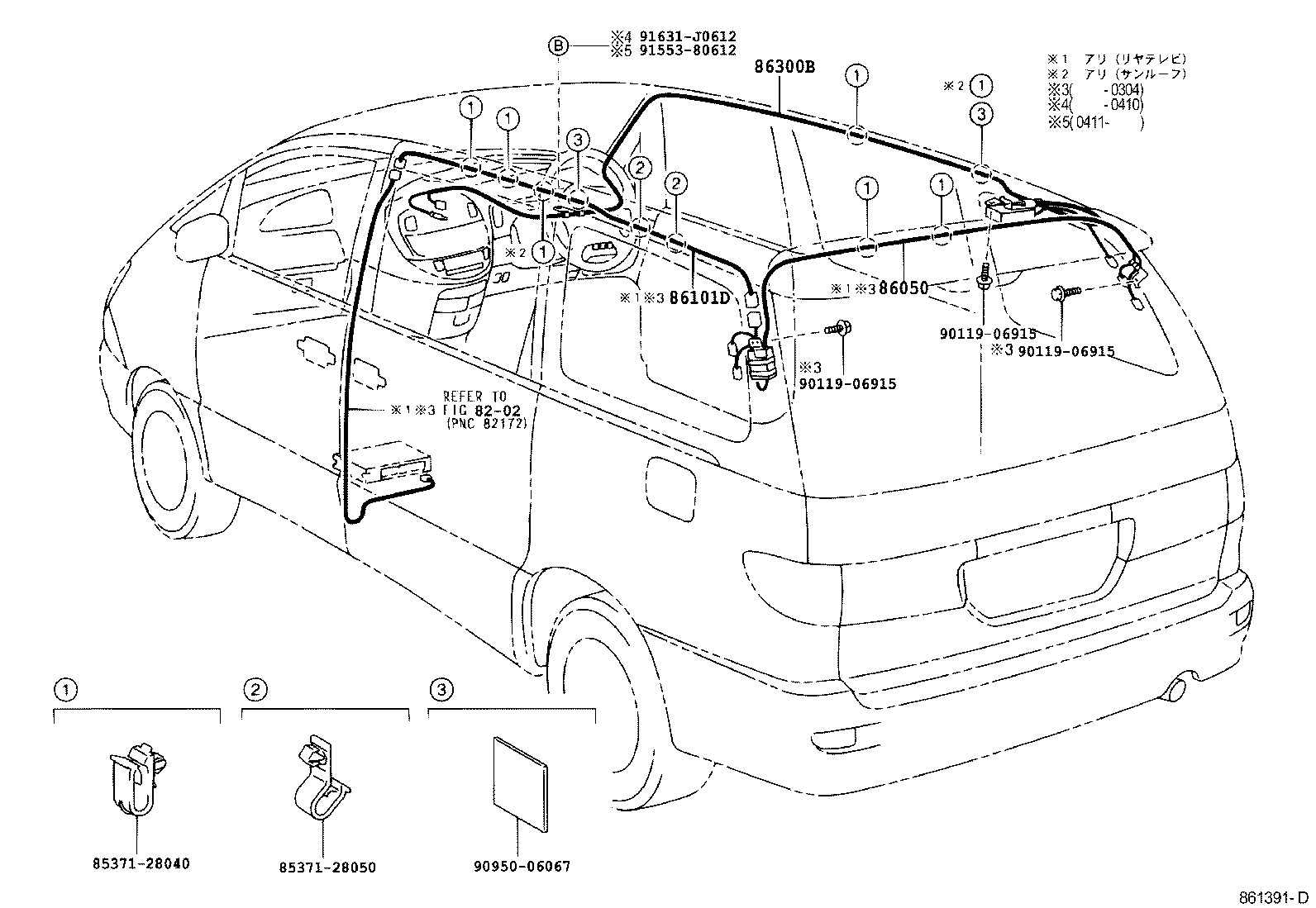

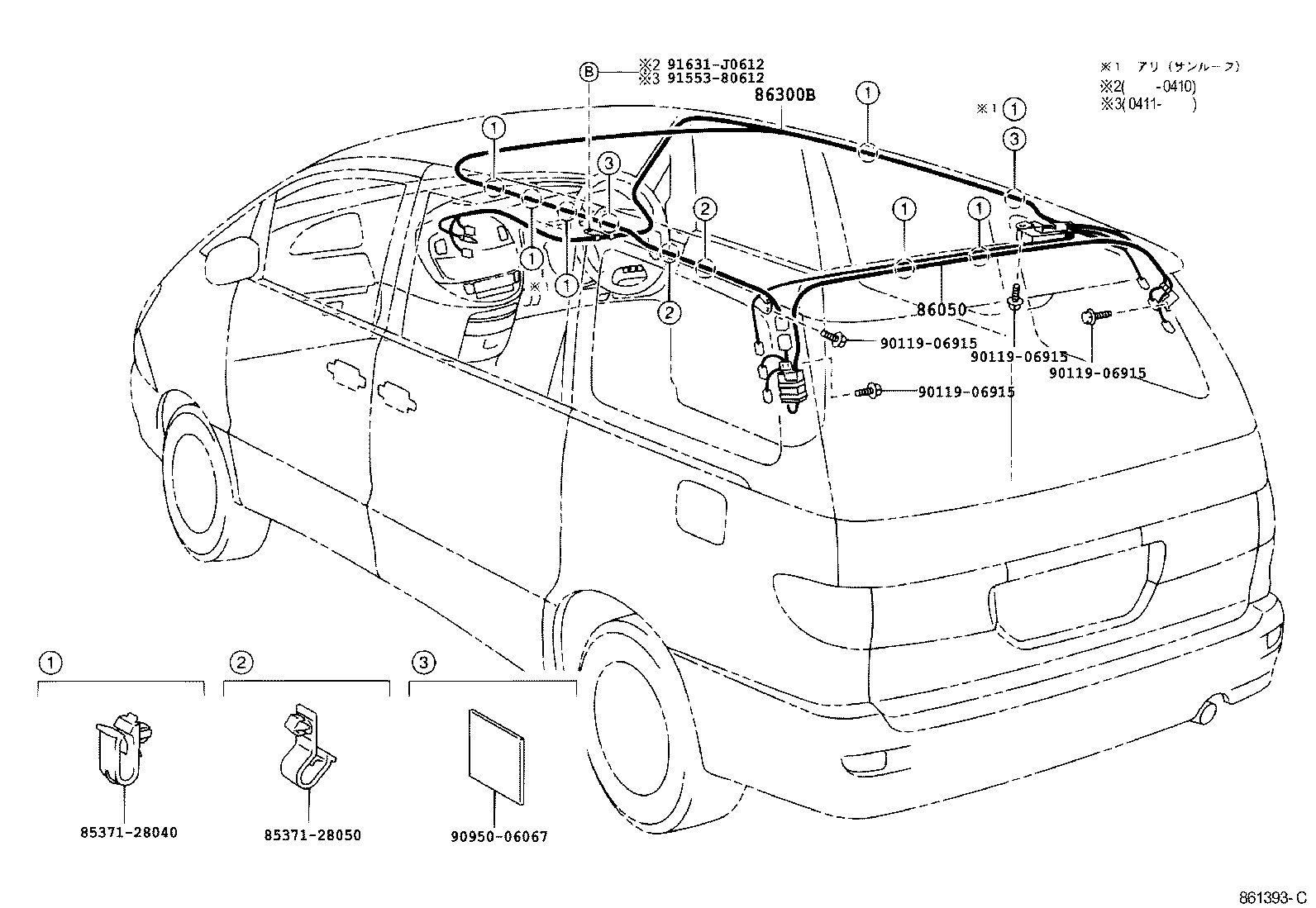

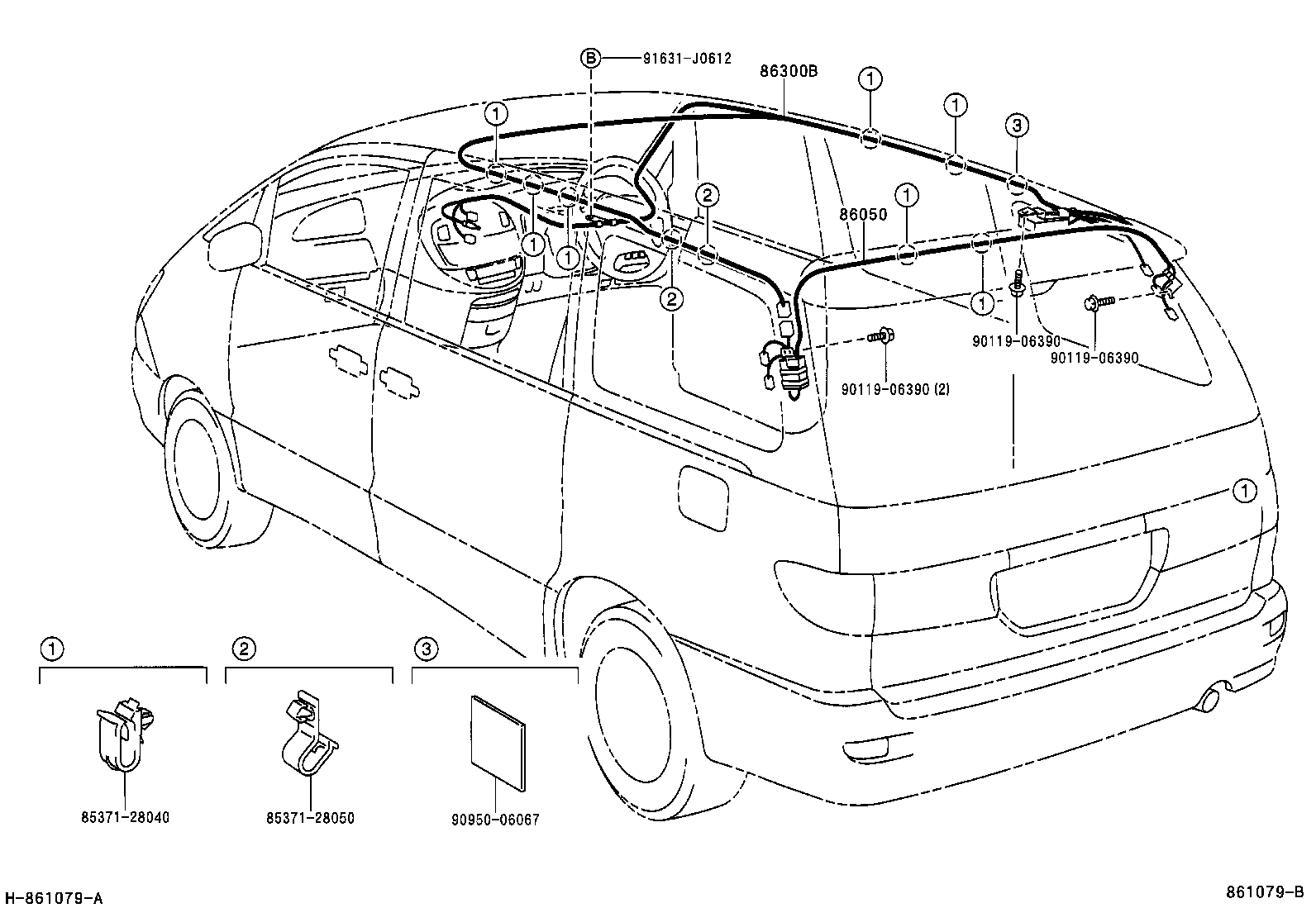

Figure 861077B 861077B 1999-12 → 2001-04 Figure 861078B 861078B 1999-12 → 2001-04 Figure 861079B 861079B 1999-12 → 2001-04 Figure 861103 861103 2000-02 → 2003-04 Figure 861391D 861391D 2001-04 → — Figure 861392D 861392D 2001-04 → — Figure 861393C 861393C 2001-04 → — Figure 861394C 861394C 2001-04 → 2003-04

Part groups

PNCDescription
86050 Antenna Assy, Television
86101D Cord Sub-assy, Antenna, NO.3
86300 Antenna Assy, W/Holder
86300B Antenna Assy, Amplifier, NO.1
86681C Divider, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
