Toyota Estima T/L
1999-12 → 2006-01 · chassis ACR30,40,MCR30,40 · catalogue 652150 · Japan
Discontinued model
Data version 2006-10

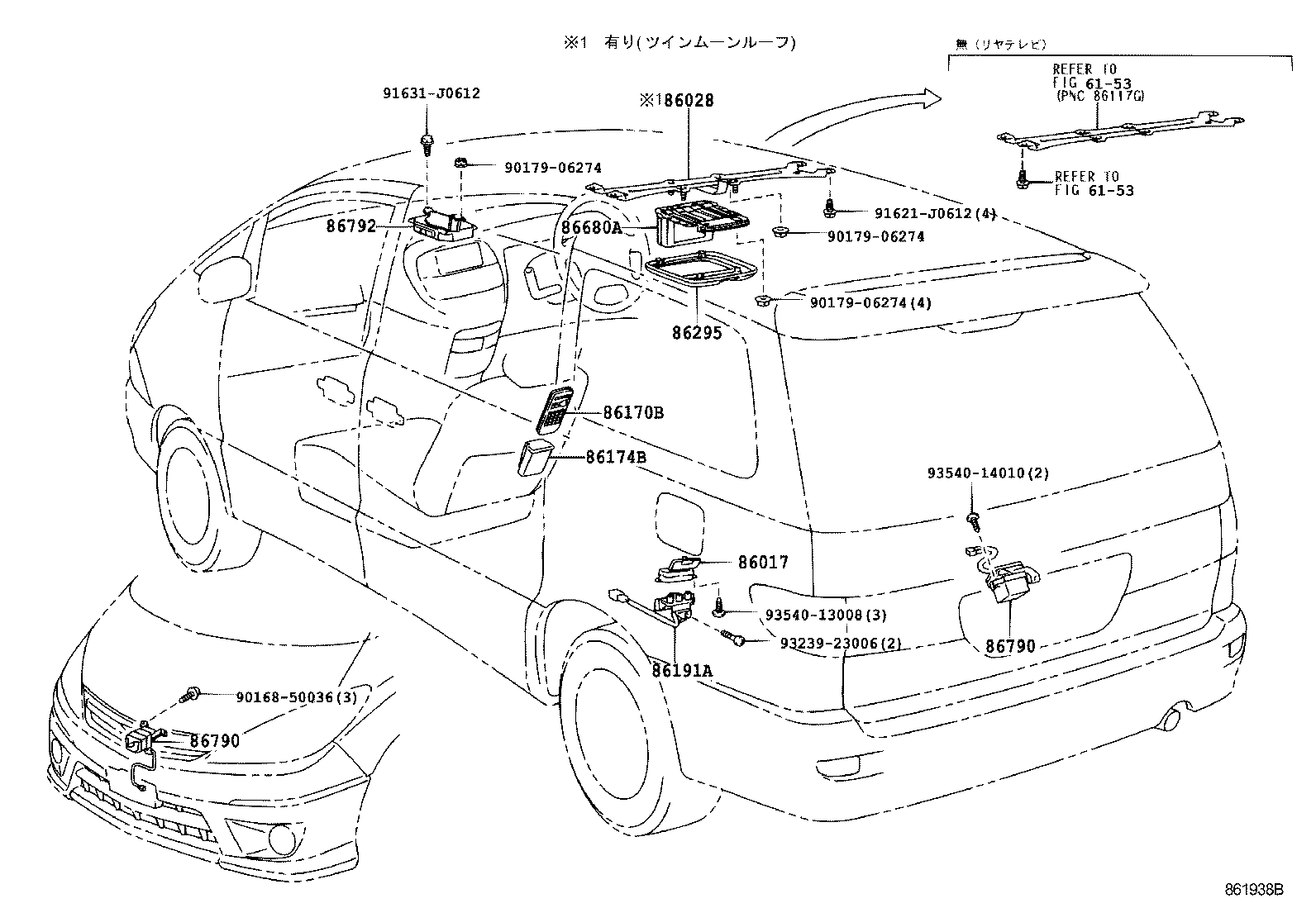

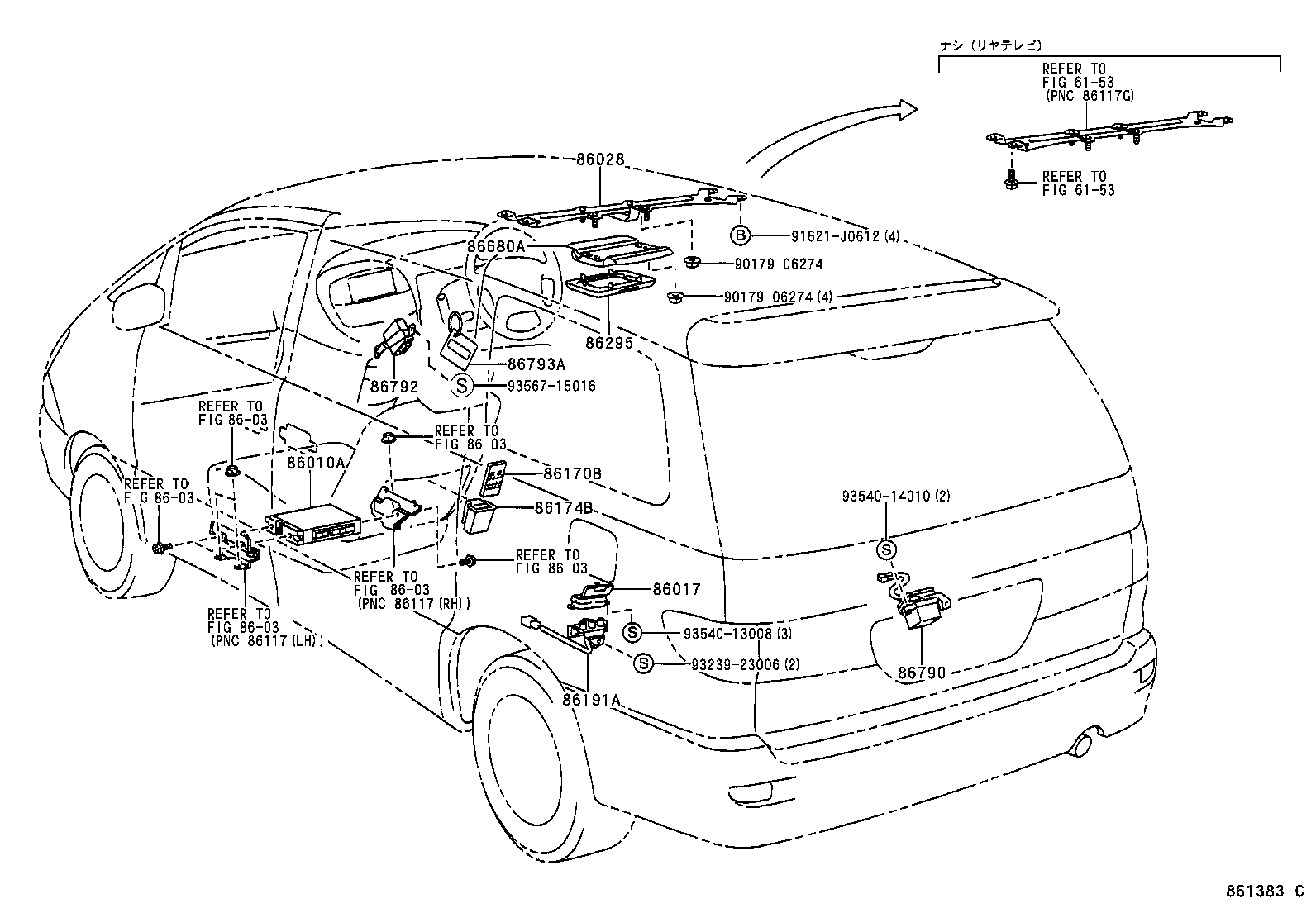

Camera & Rear Monitor Display
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010A | Tuner Assy, Television |
| 86017 | Parts Set, Video |
| 86028 | Bracket Sub-assy, Television |
| 86170B | Switch & Volume Assy, Television |
| 86174B | Case, Switch & Volume |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790 | Camera Assy, Television |
| 86792 | Controller, Television Camera |
| 86793A | Label, Television Camera Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
