Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 6 illustrations

Illustrations

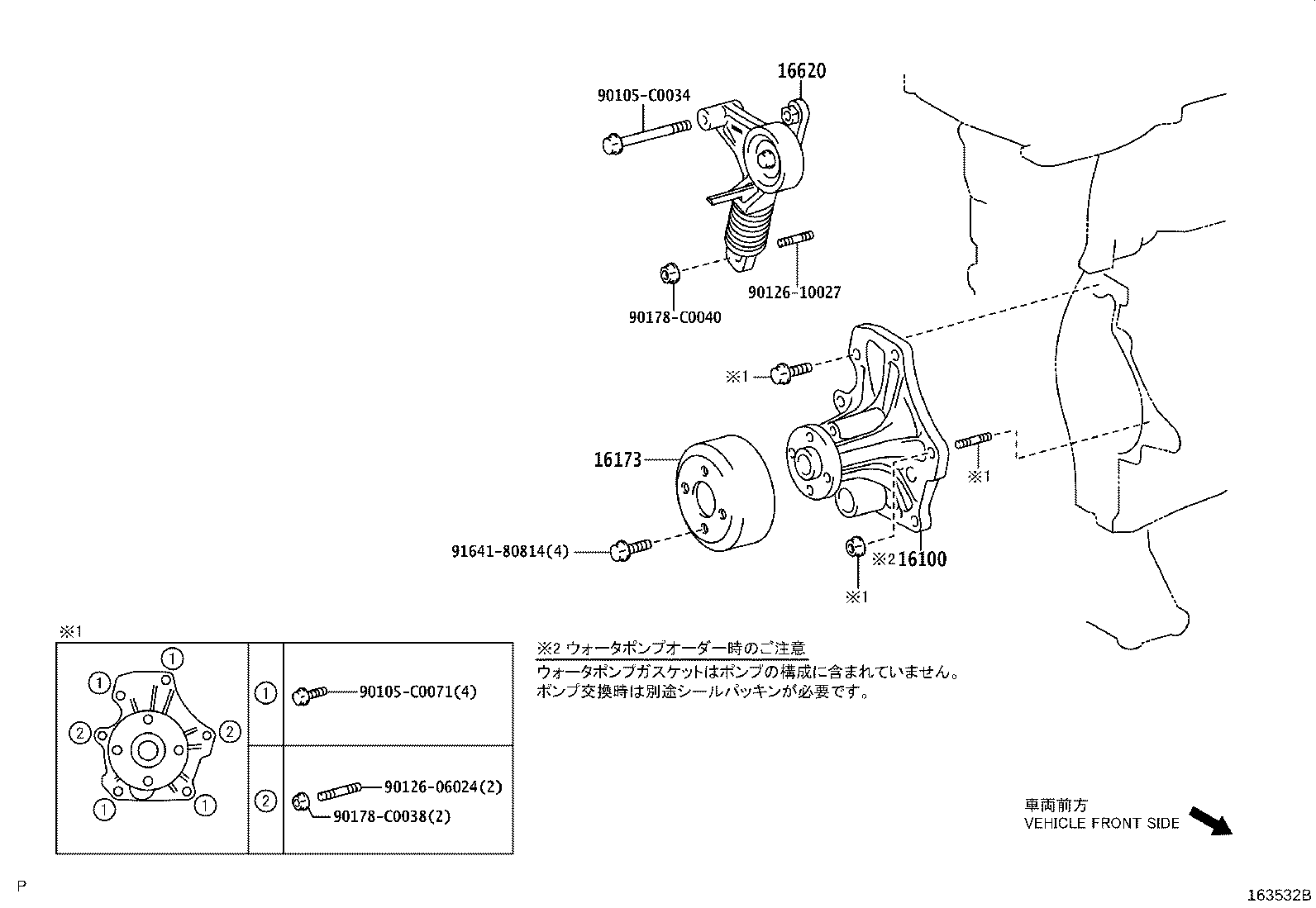

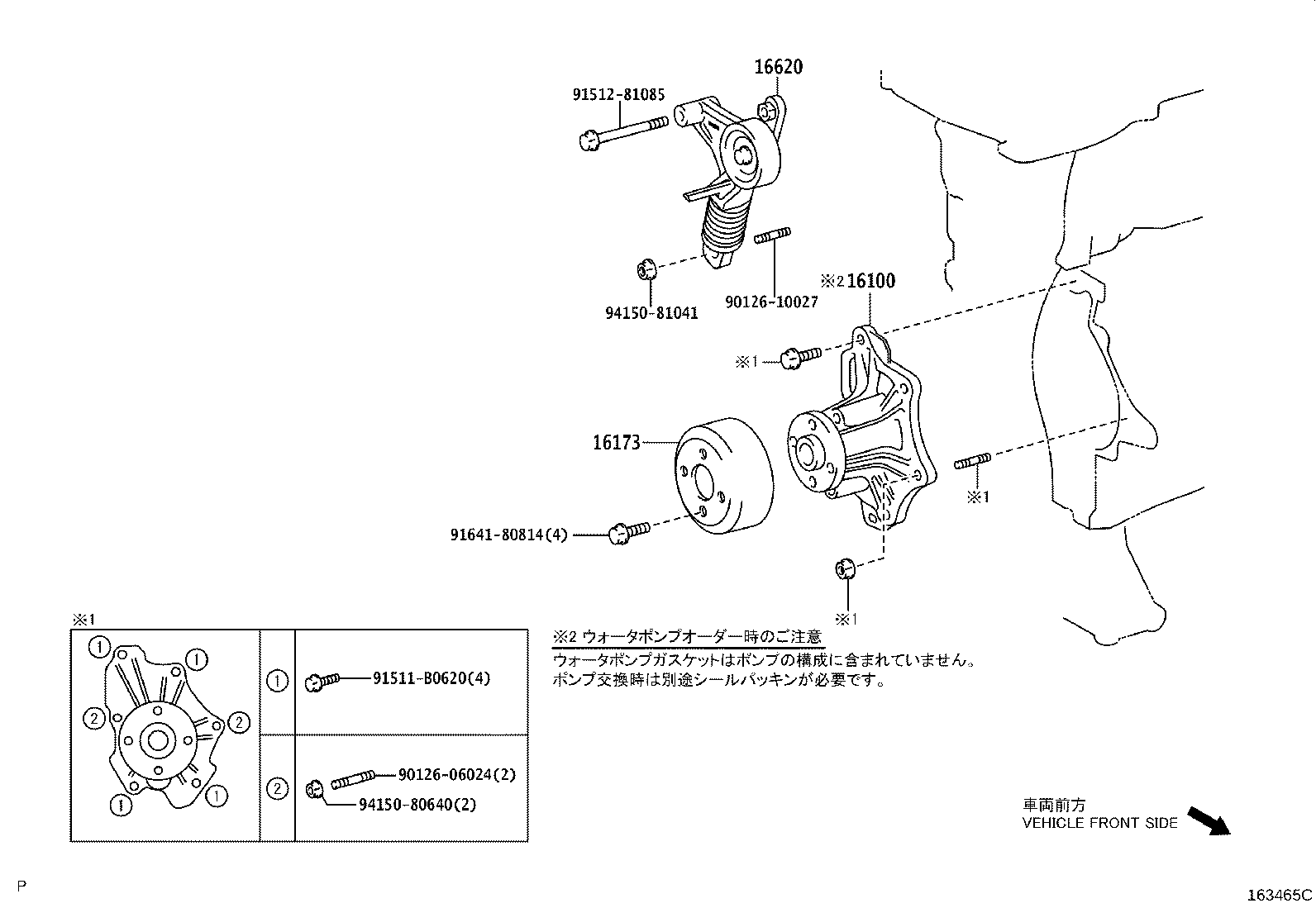

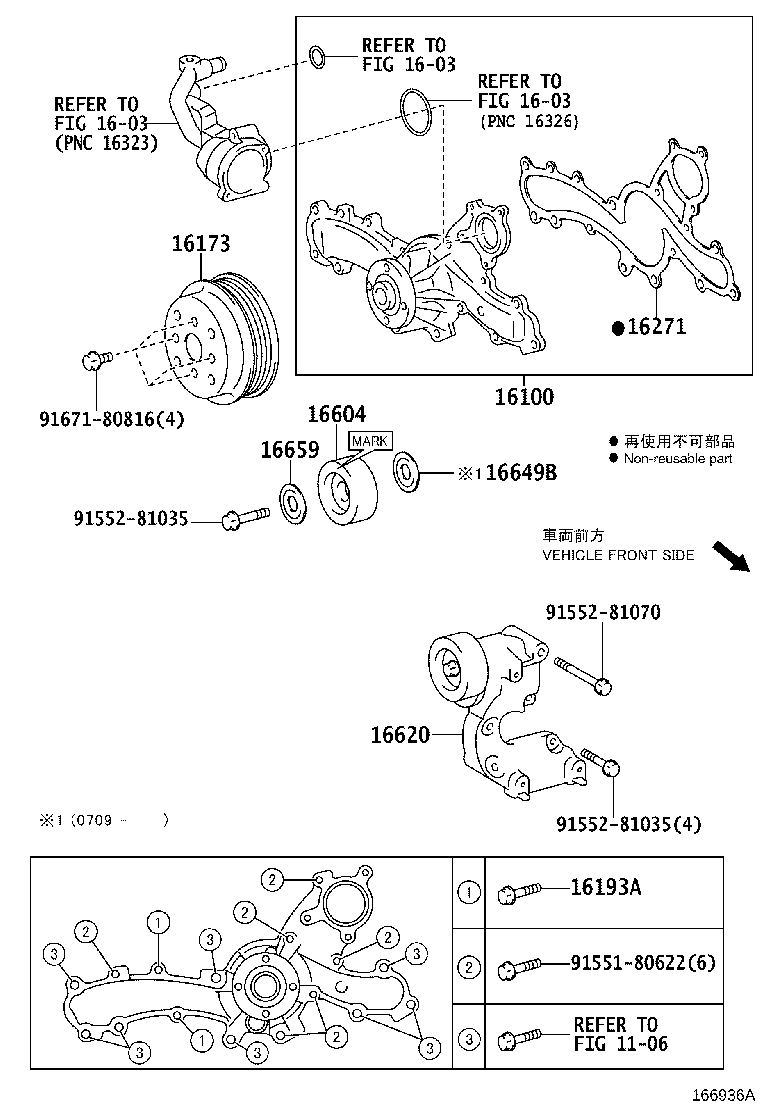

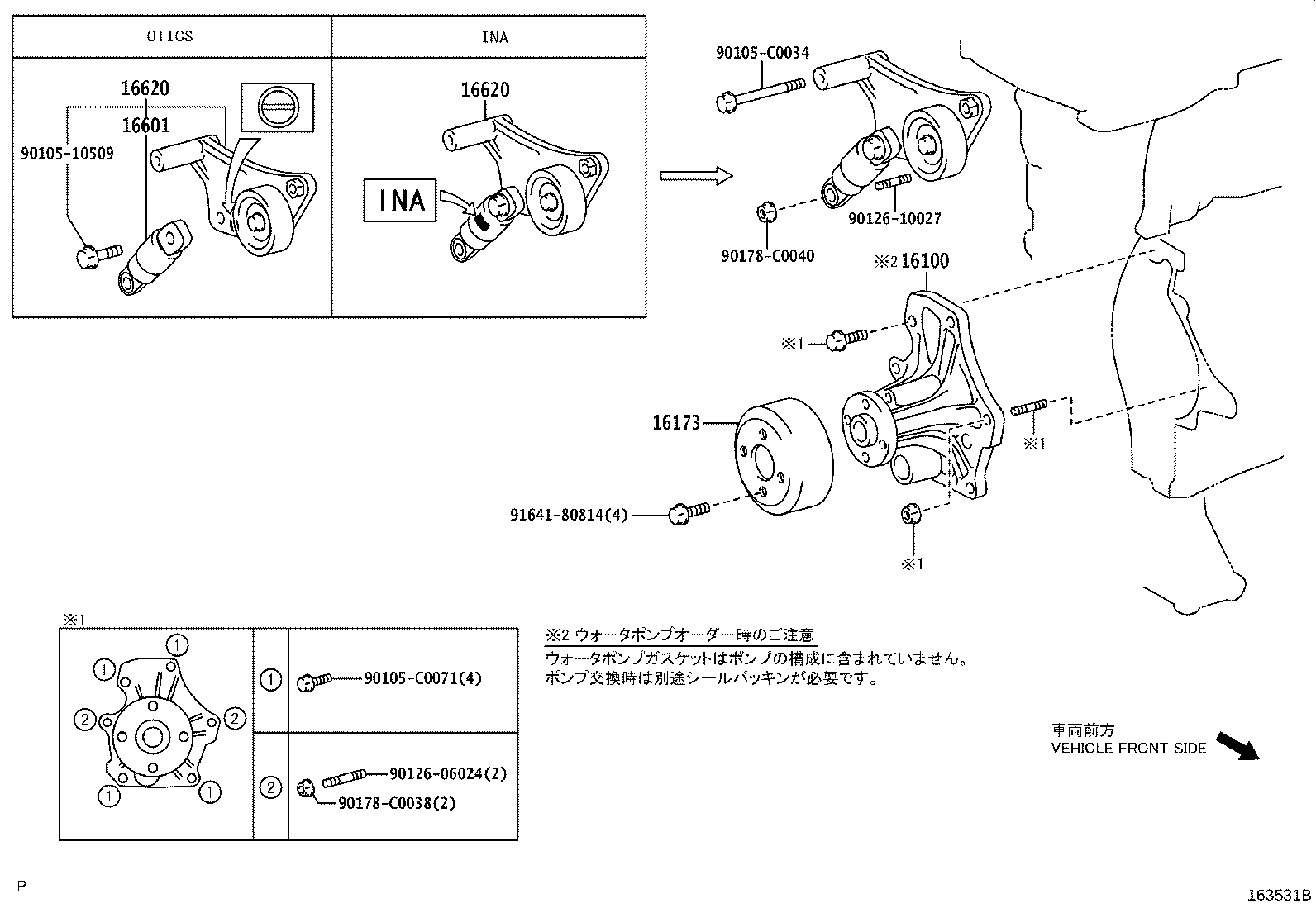

Figure 162603J 162603J 2006-01 → 2008-04 Figure 163531B 163531B 2006-01 → 2008-05 Figure 163465C 163465C 2008-04 → 2016-05 Figure 163532B 163532B 2008-05 → 2016-05 Figure 166421A 166421A 2016-05 → — Figure 166936A 166936A 2006-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
