Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10

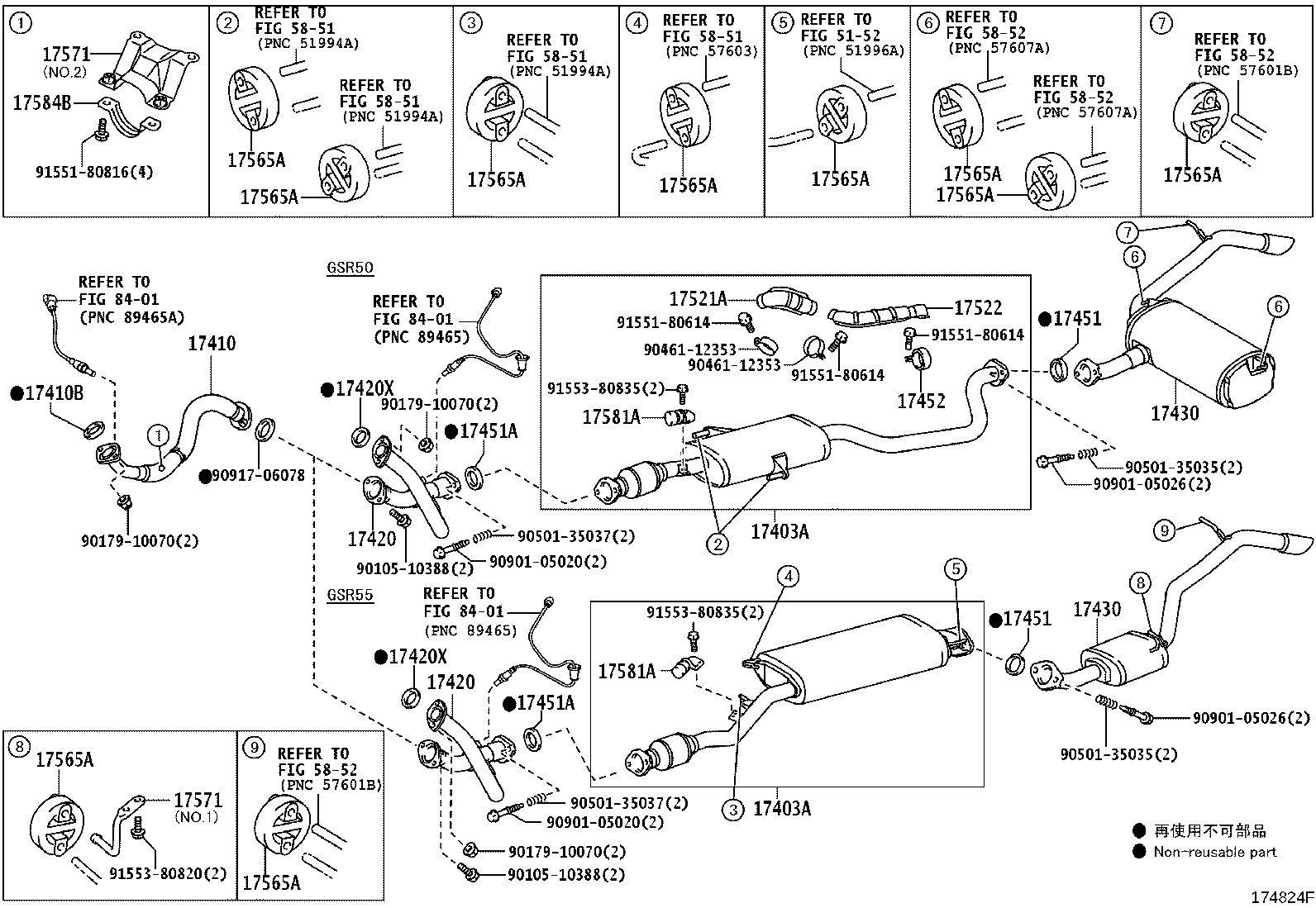

Exhaust Pipe
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17401 | Pipe Sub-assy, Exhaust, Front |
| 17403A | Pipe Sub-assy, Exhaust, Center NO.2 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17452 | Clamp, Exhaust Pipe |
| 17521 | Protector, Exhaust Pipe, Front NO.1 |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17581A | Damper, Exhaust Pipe |
| 17584B | Bracket, Exhaust Pipe NO.1 Support |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594 | Protector, Exhaust Pipe, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
