Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

23 part groups · 2 illustrations

Illustrations

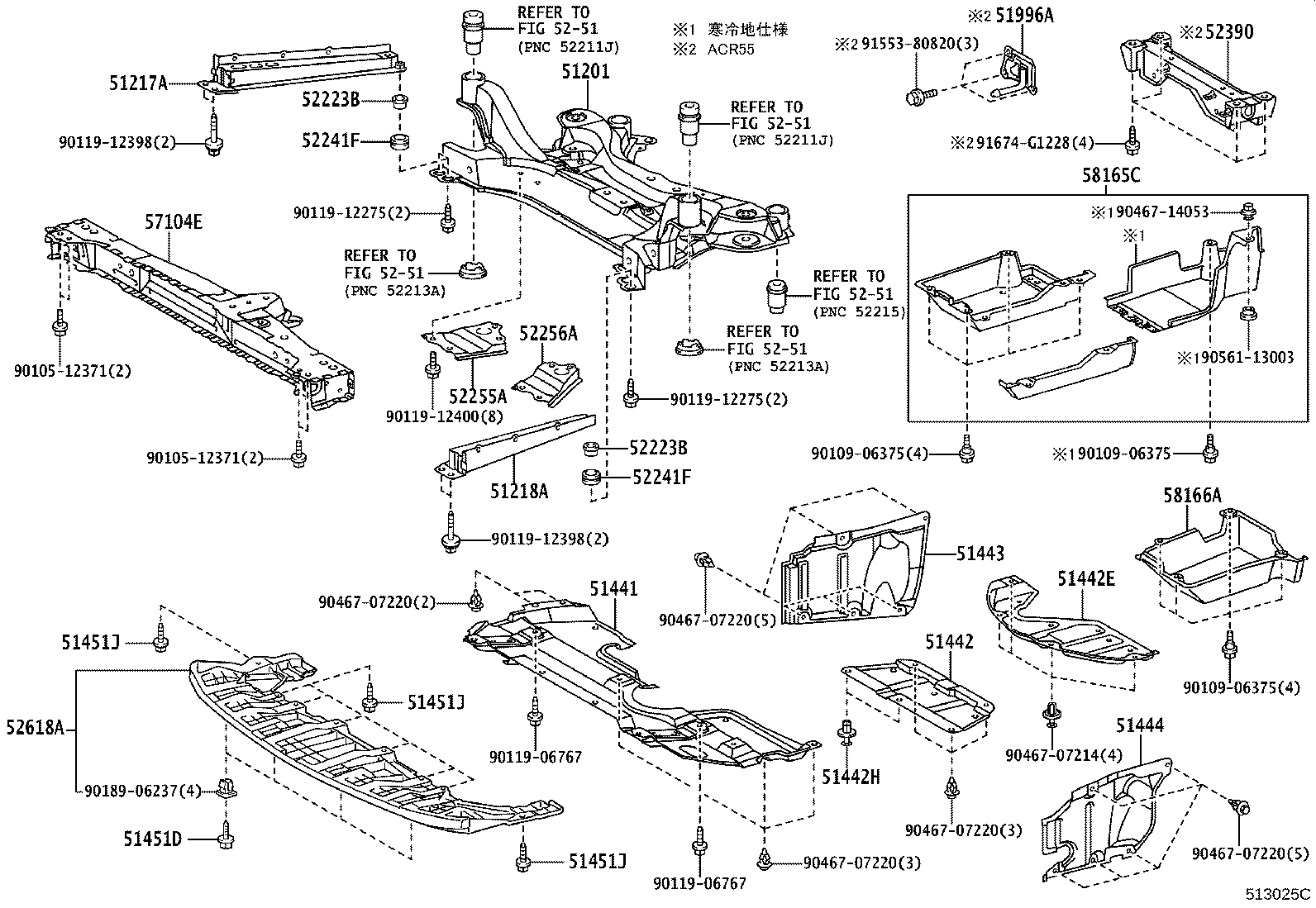

Figure 511427T 511427T 2006-01 → 2016-05 Figure 513025C 513025C 2016-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51441M Nut
51442 Cover, Engine Under, NO.2
51442E Cover, Engine Under, NO.2
51442H Clip, Engine Under Cover, NO.2
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451J Bolt, NO.1
51996A Bracket, Pintle Hook Support, LH
52223B Spacer, Front Suspension Member Mountiong, Lower
52241F Cushion, Front Suspension Member Mounting, Lwr
52255A Brace, Front Suspension Member, Front RH
52256A Brace, Front Suspension Member, Front LH
52390 Support Assy, Front Differential, Rear
52618A Absorber, Front Bumper, Lower
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58166A Cover, Front Floor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
