Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

32 part groups · 6 illustrations

Illustrations

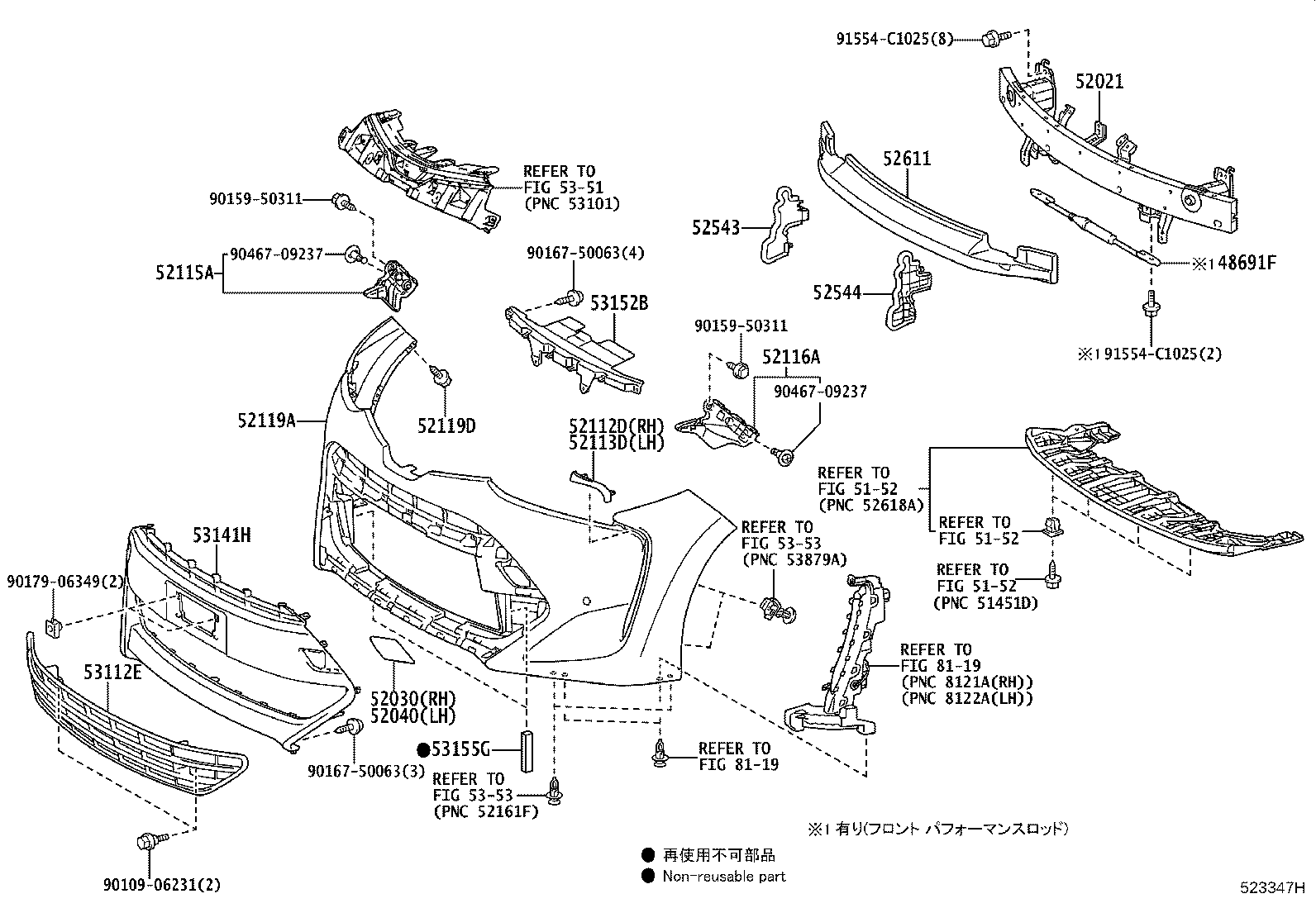

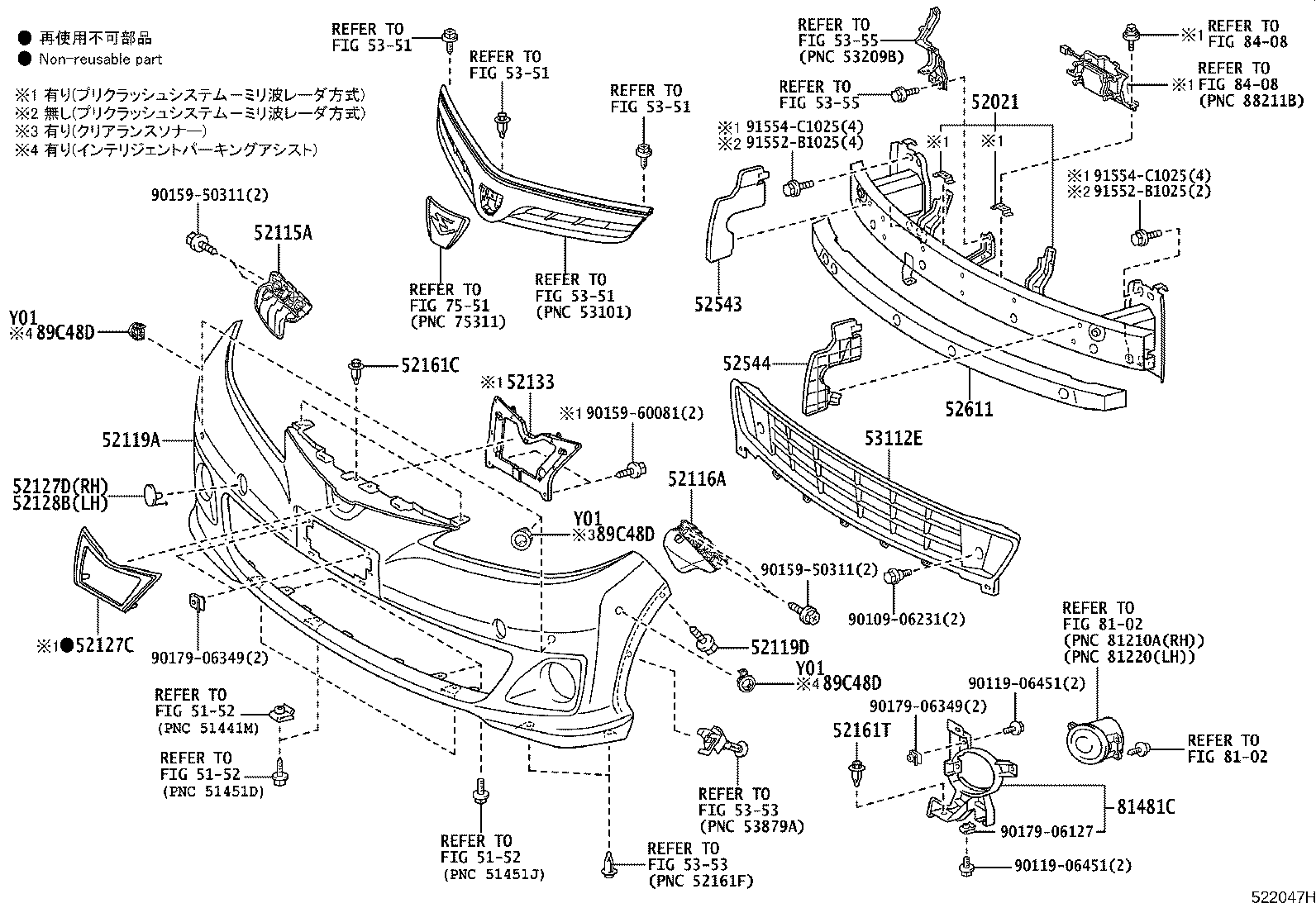

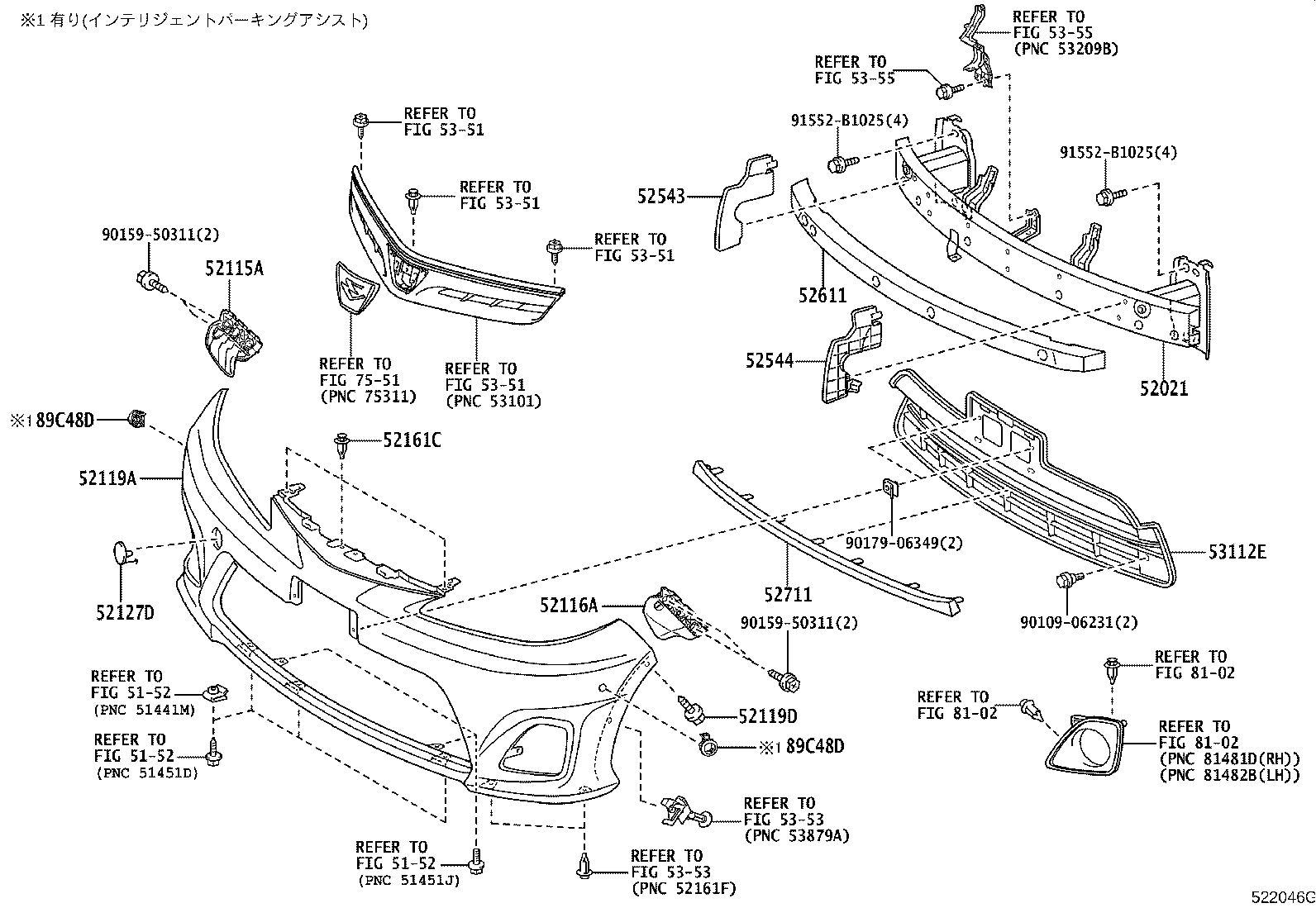

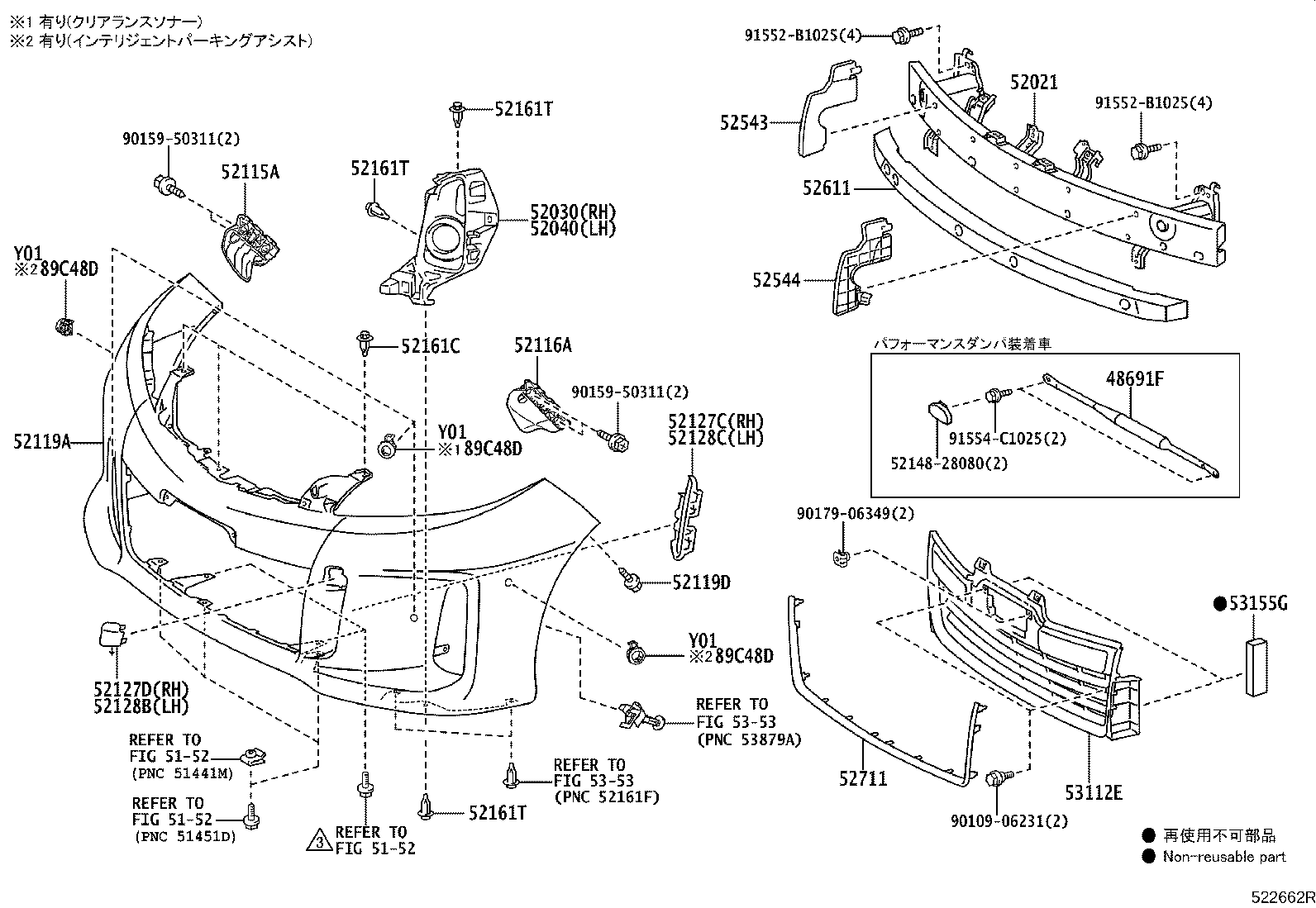

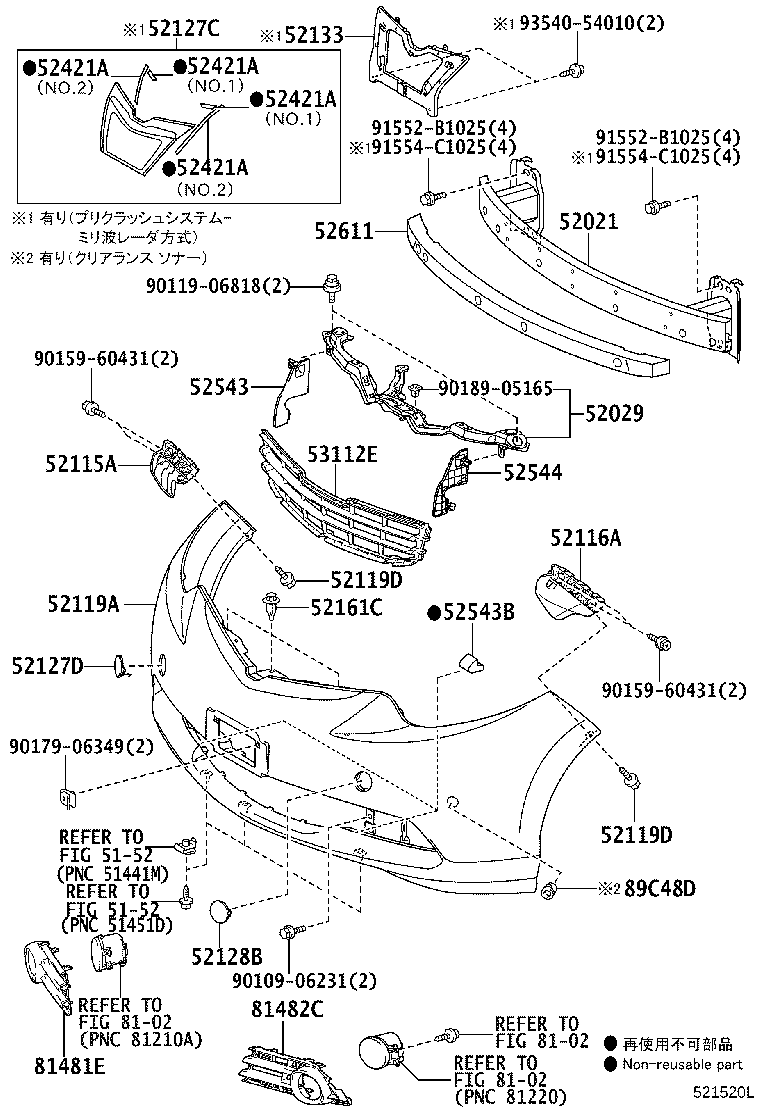

Figure 521521H 521521H 2006-01 → 2008-12 Figure 521520L 521520L 2006-01 → 2008-12 Figure 522046H 522046H 2008-12 → 2012-04 Figure 522047I 522047I 2008-12 → 2016-05 Figure 522662T 522662T 2012-04 → 2016-05 Figure 523347H 523347H 2016-05 → —

Part groups

PNCDescription
48691F Damper, Front Reinforcement
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52133 Reinforcement, Front Bumper
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52421A Pad, Front Bumper
52543 Seal, Front Bumper Side, RH
52543B Seal, Front Bumper
52544 Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
53141H Garnish, Radiator Grille
53152B Guide, Radiator Grille Air
53155G Seal, Radiator Grille
81481C Bracket, Fog Lamp
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
