Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

16 part groups · 3 illustrations

Illustrations

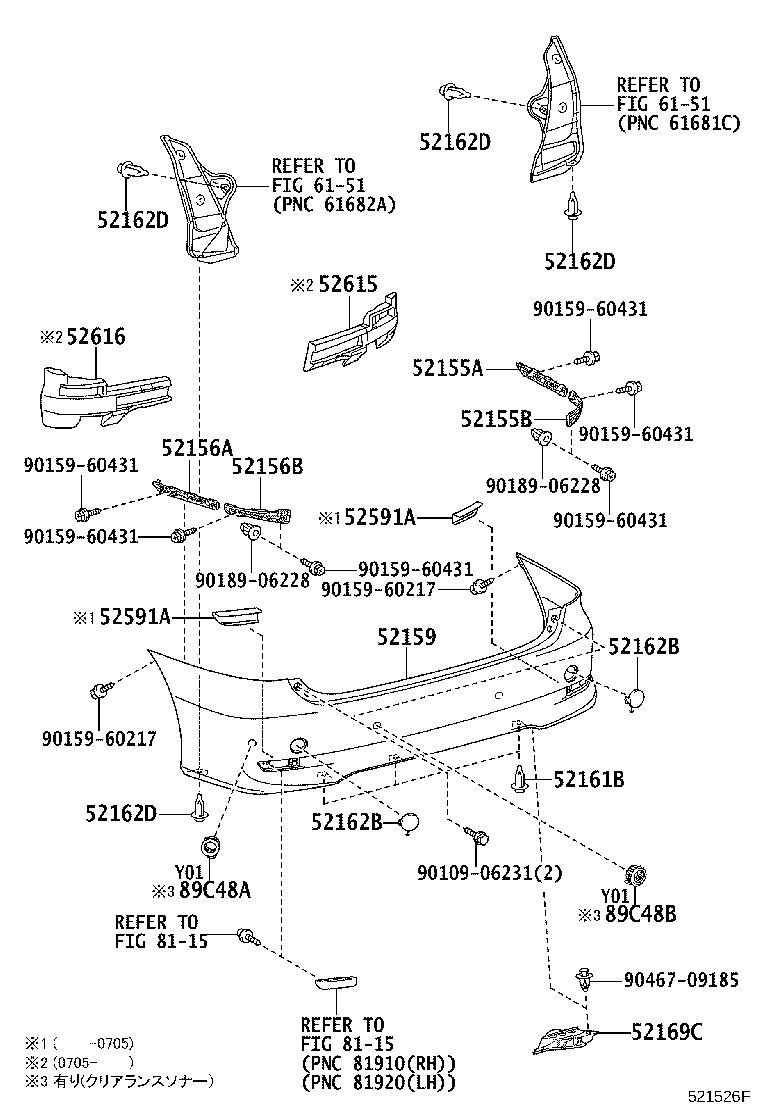

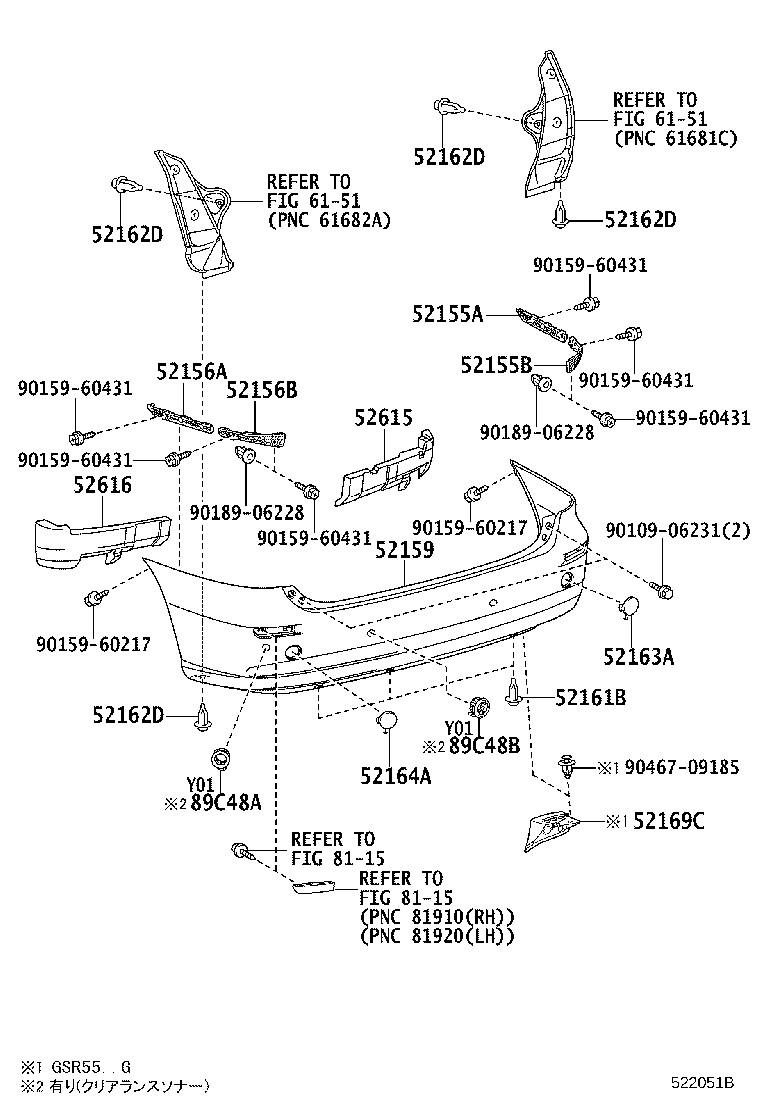

Figure 521523G 521523G 2006-01 → 2008-12 Figure 522051B 522051B 2008-12 → 2016-05 Figure 521526F 521526F 2006-01 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52155B Support, Rear Bumper Side, NO.2 RH
52156A Support, Rear Bumper Side, LH
52156B Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52162D Piece, Rear Bumper
52163A Plate, Rear Bumper, RH
52164A Plate, Rear Bumper, LH
52169C Cover, Rear Bumper, Lower
52591A Seal, Rear Bumper
52615 Absorber, Rear Bumper Energy
52616 Absorber, Rear Bumper Energy, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
