Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10

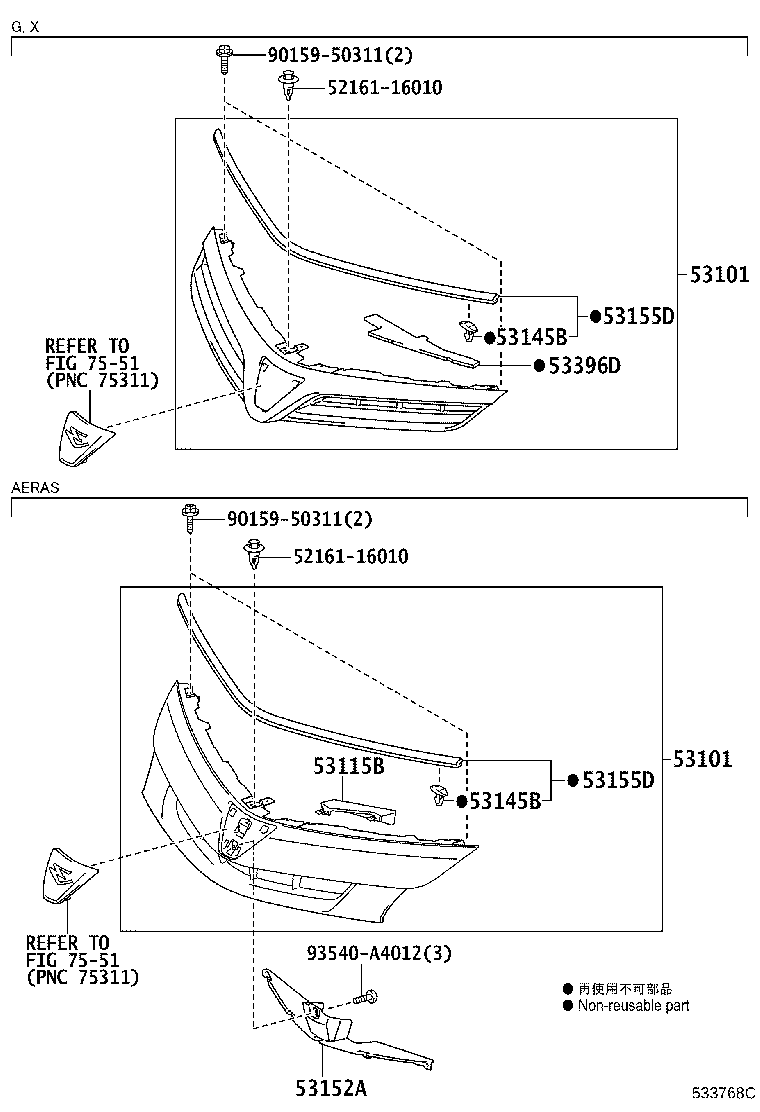

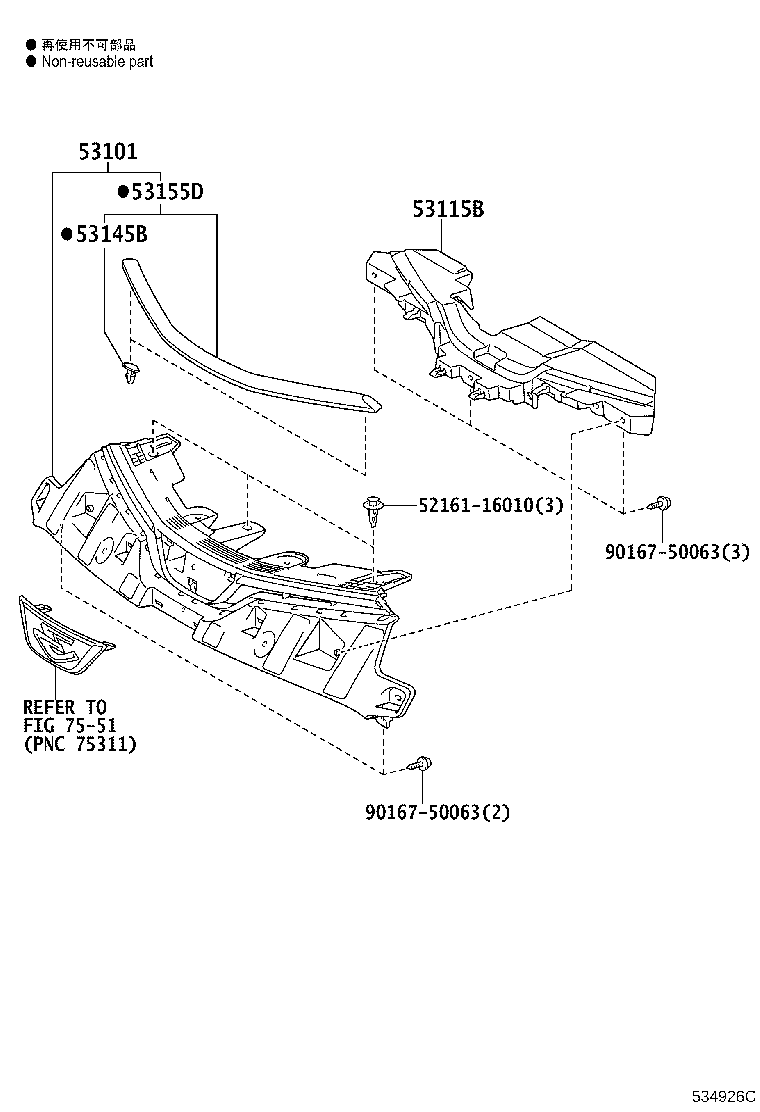

Radiator Grille
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53101 | Grille Sub-assy, Radiator |
| 53115B | Bracket, Radiator Grille |
| 53145B | Clip, Radiator Grille Garnish |
| 53152A | Guide, Radiator Grille Air |
| 53155D | Seal, Radiator Grille, NO.1 |
| 53396D | Seal, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
