Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

15 part groups · 4 illustrations

Illustrations

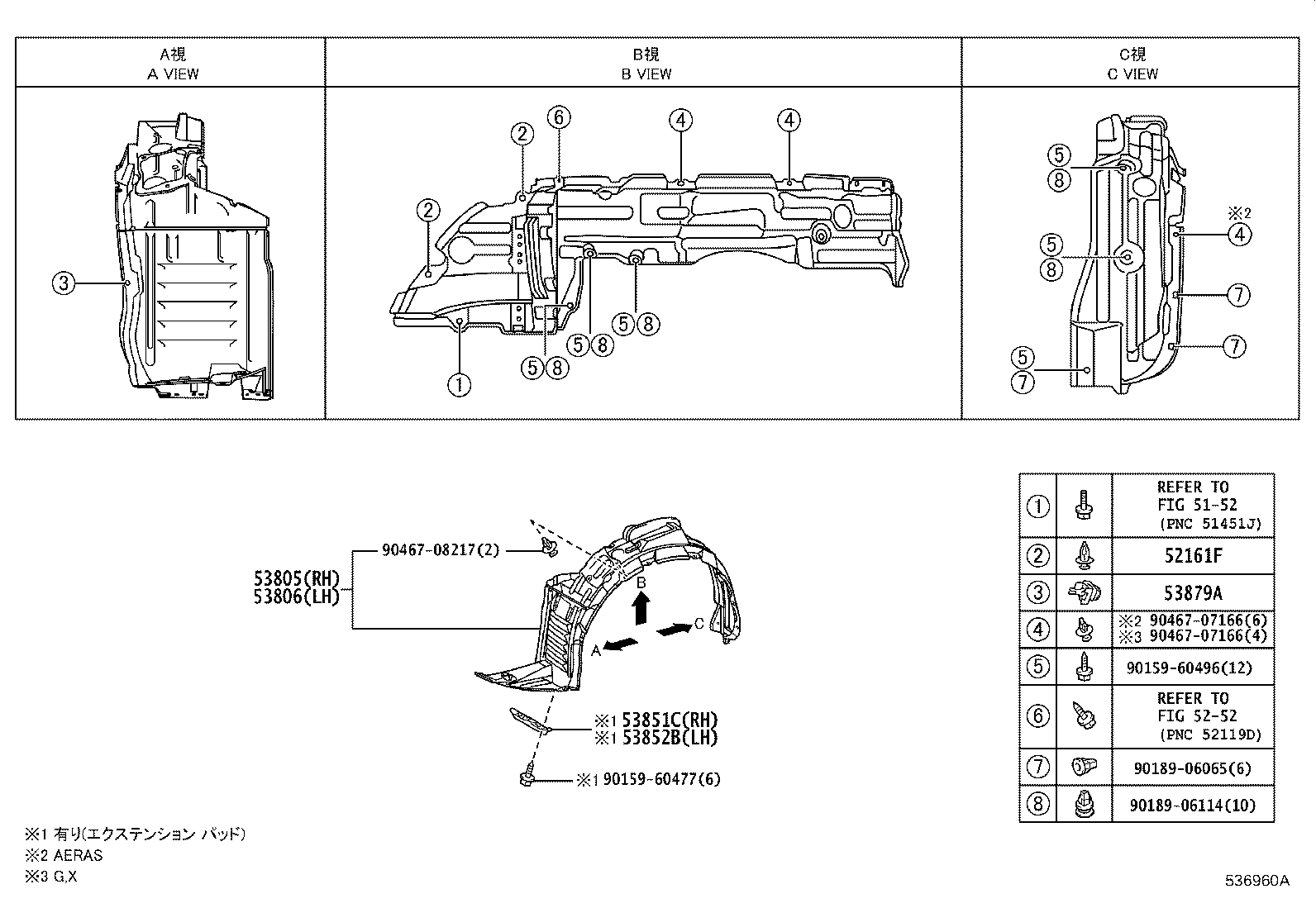

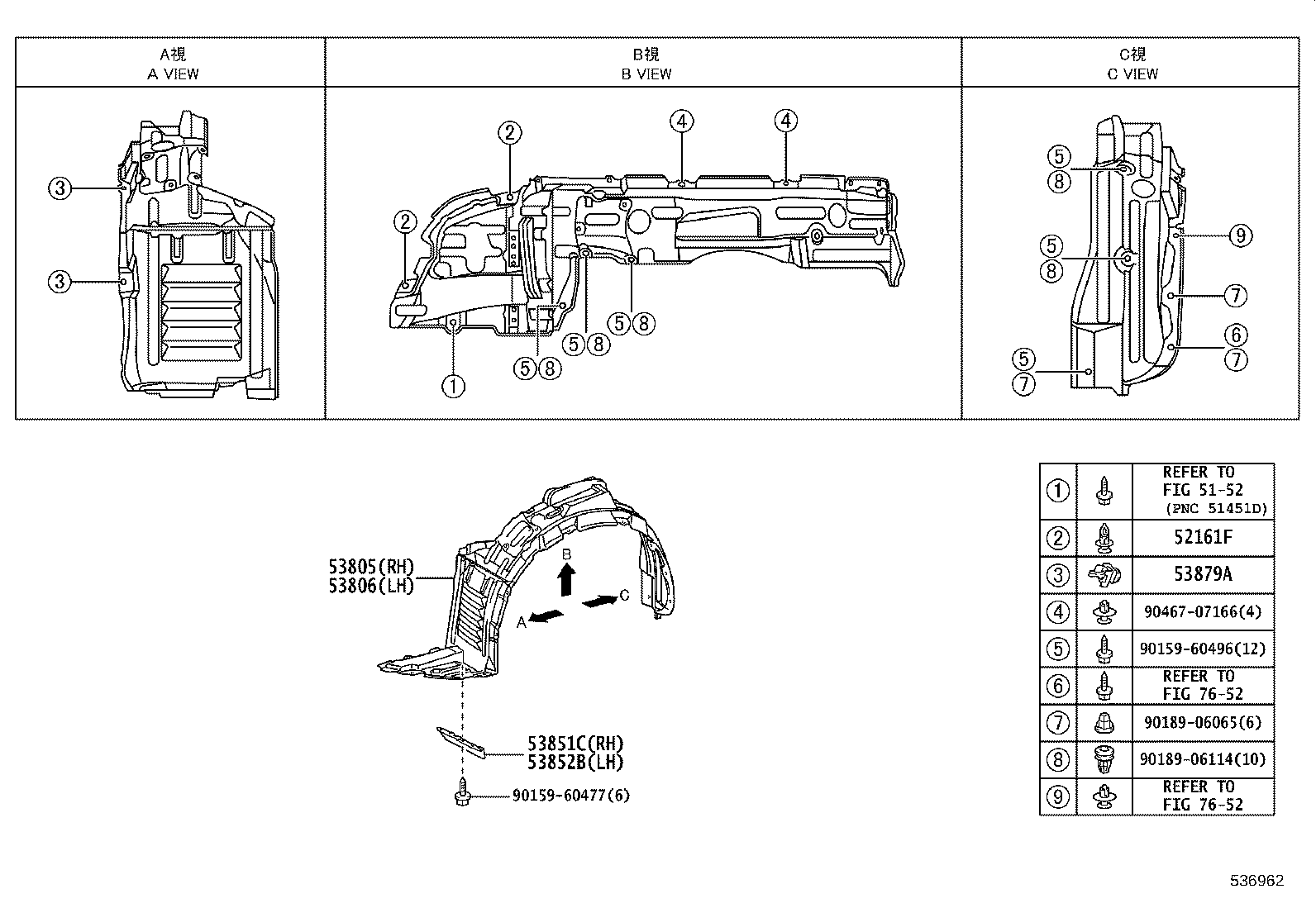

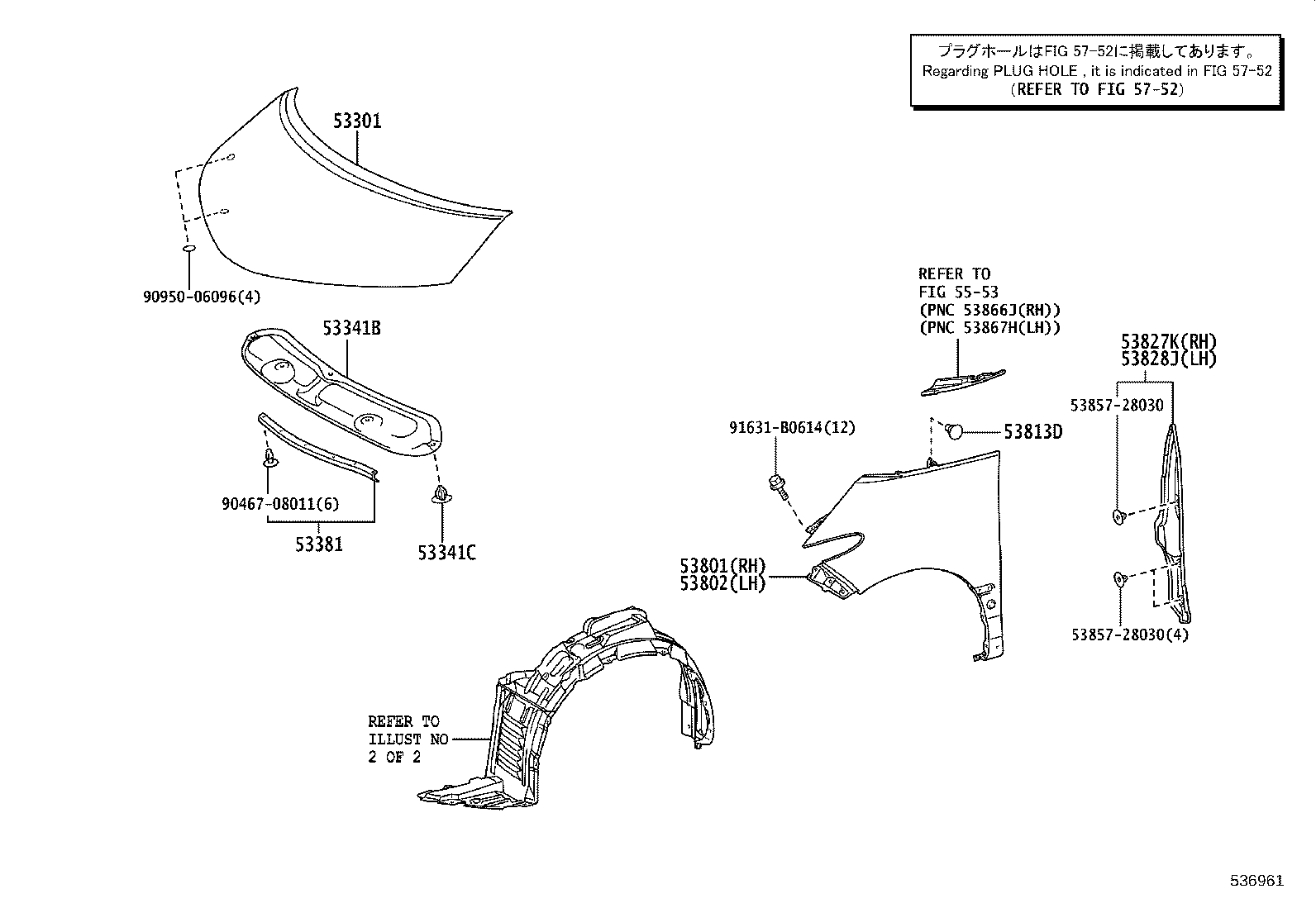

Figure 536959 536959 2006-01 → 2016-05 Figure 536960A 536960A 2006-01 → 2016-05 Figure 536961 536961 2016-05 → — Figure 536962 536962 2016-05 → —

Part groups

PNCDescription
52161F Piece, Front Bumper
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53813D Extension, Front Fender
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53851C Pad, Front Wheel Opening Extension, NO.1
53852B Pad, Front Wheel Opening Extension, LH
53879A Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
