Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10
Floor Mat & Silencer Pad

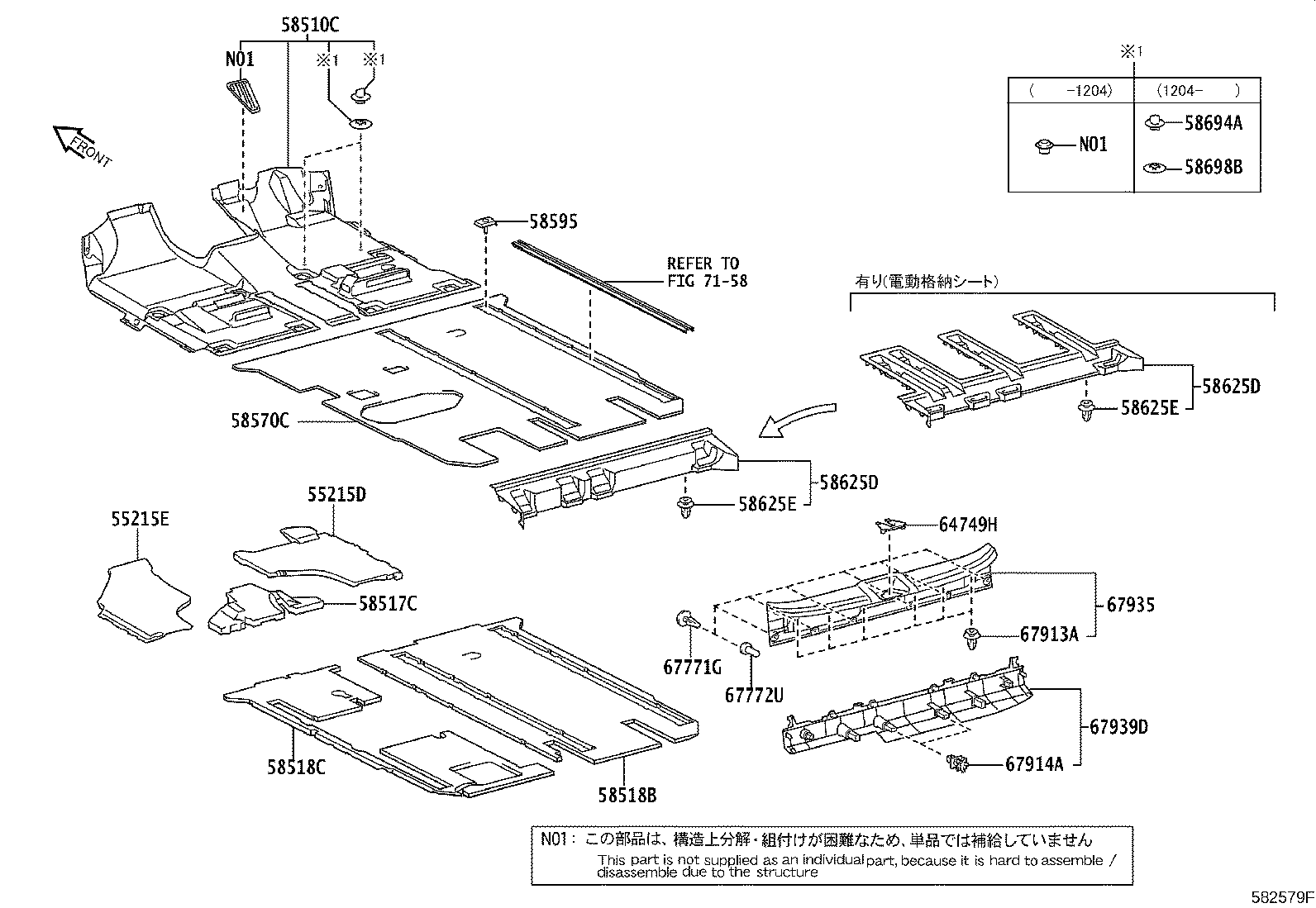

20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55215D | Pad, Dash Panel Insulator, NO.3 |
| 55215E | Pad, Dash Panel Insulator, NO.3 |
| 58510C | Carpet Assy, Front Floor, Front |
| 58517C | Pad, Front Floor Mat |
| 58518B | Mat, Rear Floor, NO.2 |
| 58518C | Mat, Rear Floor, NO.2 |
| 58570C | Carpet Assy, Rear Floor |
| 58595 | Moulding, Floor Carpet, NO.3 |
| 58595C | Moulding, Floor Carpet, NO.1 |
| 58625D | Plate, Rear Floor Mat, NO.1 |
| 58625E | Clip(FOR REAR FLOOR MAT PLATE) |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 64749H | Cover, Back Door Striker |
| 67771G | Retainer, Back Door Center Garnish |
| 67772U | Cap, Back Door Center Garnish Retainer |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914A | Clip(FOR SCUFF PLATE) |
| 67935 | Plate, Back Door Scuff |
| 67939D | Garnish, Back Door, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
