Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 2 illustrations

Illustrations

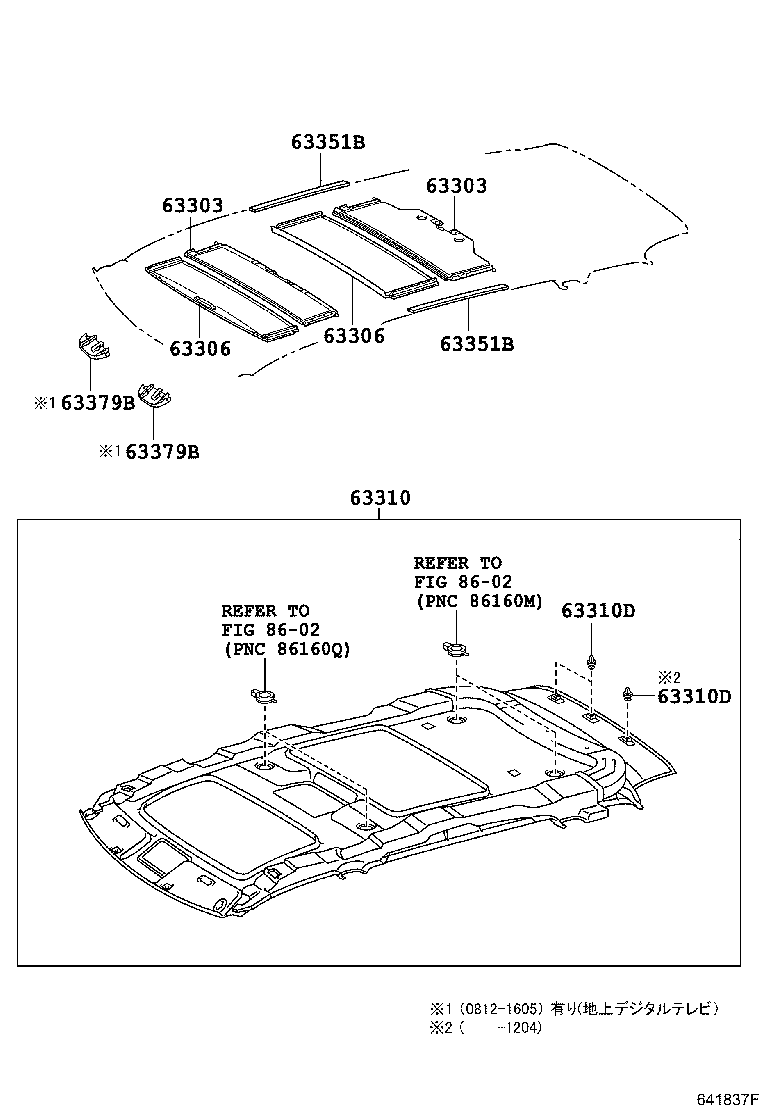

Figure 641836I 641836I 2006-01 → — Figure 641837F 641837F 2006-01 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63379B Cover, Roof Headlining Moulding End
63388A Cover, Roof Headlining Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
