Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10

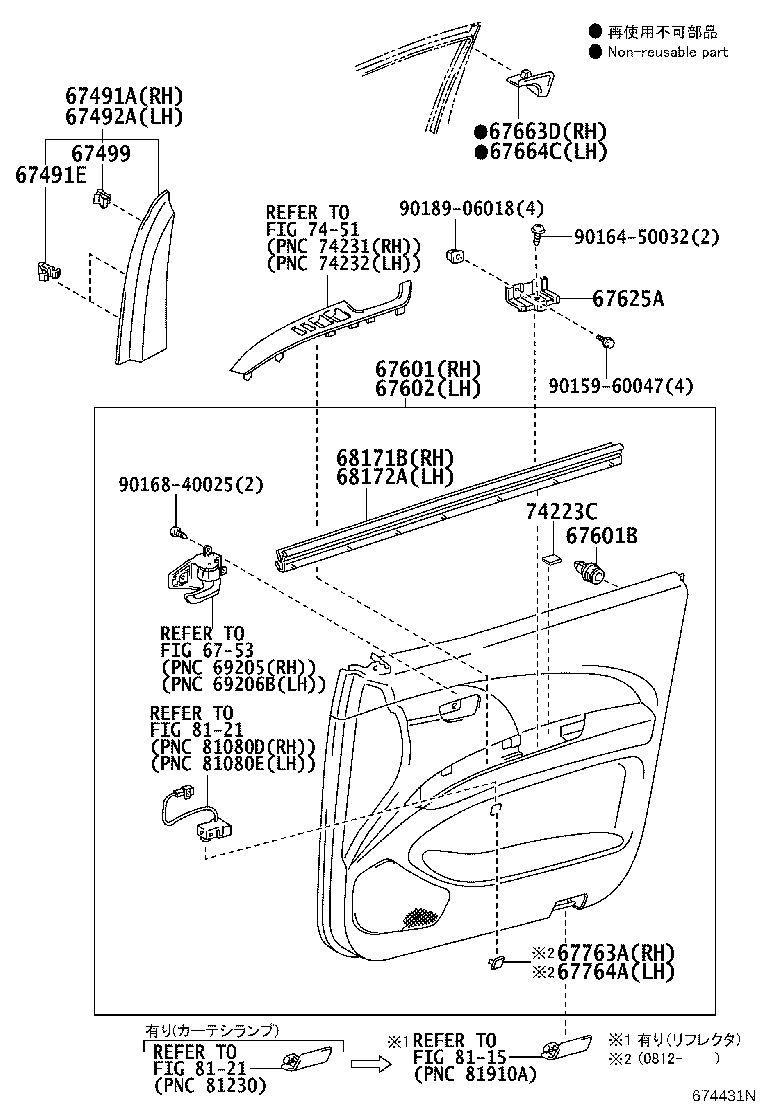

Front Door Panel & Glass
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62110 | Window Assy, Front Side Fix, RH |
| 62120A | Window Assy, Front Side Fix, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491E | Retainer, Door Trim |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67663D | Garnish, Door Frame, RH |
| 67664C | Garnish, Door Frame, LH |
| 67763A | Cover, Front Door Trim, Lower RH |
| 67764A | Cover, Front Door Trim, Lower LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869J | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151E | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74223C | Cap, Door Armrest |
| 75929 | Tape, Black Out Front Door, Inner Upper RH |
| 75939 | Tape, Black Out Front Door, Inner Upper LH |
| 75955B | Tape, Black Out Front Door, Outer Upper RH |
| 75956B | Tape, Black Out Front Door, Outer Upper LH |
| 75957C | Tape, Black Out Front Door, Outer Rear RH |
| 75958B | Tape, Black Out Front Door, Outer Rear LH |
| 75968 | Tape, Black Out Front Door, Inner Rear RH |
| 75969 | Tape, Black Out Front Door, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
