Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10

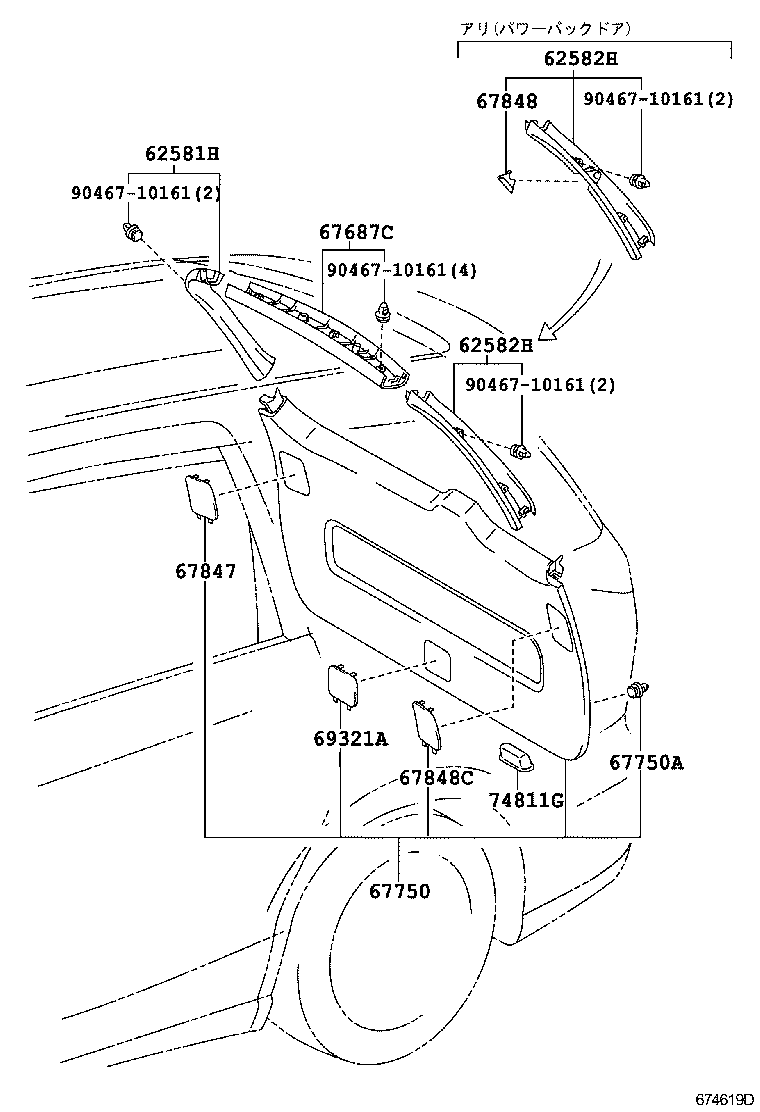

Back Door Panel & Glass
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62581H | Garnish, Rear Window Side, RH |
| 62582H | Garnish, Rear Window Side, LH |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 64885C | Channel, Back Door Glass, RH |
| 64886B | Channel, Back Door Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67687C | Garnish, Back Window |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 69321A | Cover, Back Door Lock |
| 74811G | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75819 | Clip, Luggage Compartment Door Moulding |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76802C | Garnish Sub-assy, Back Door, Outside NO.2 |
| 76817 | Clip, Back Door Outside Garnish |
| 76825 | Protector, Back Door Outside Garnish |
| 76832A | Cover, Back Door Finish Panel, LH |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
