Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10

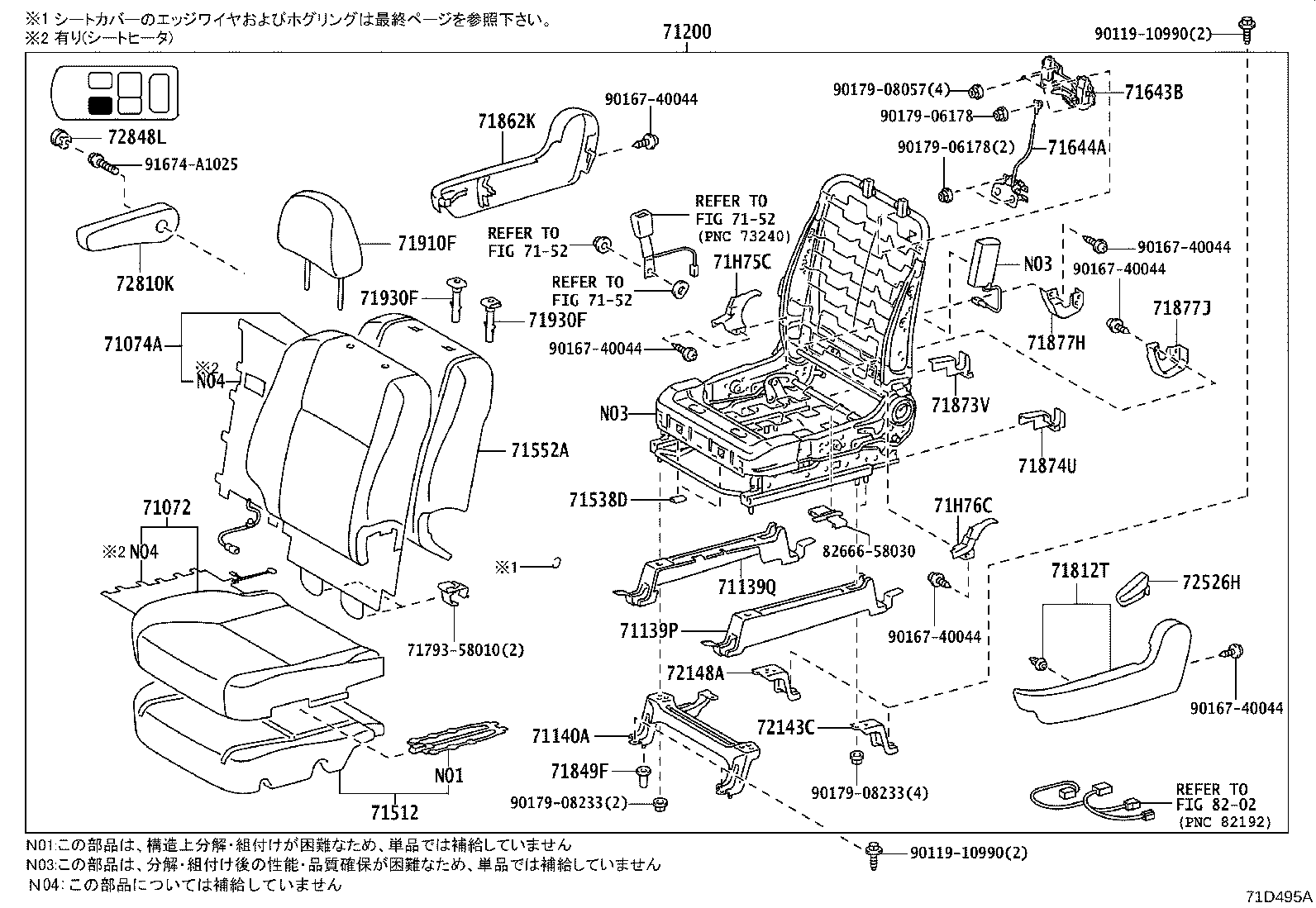

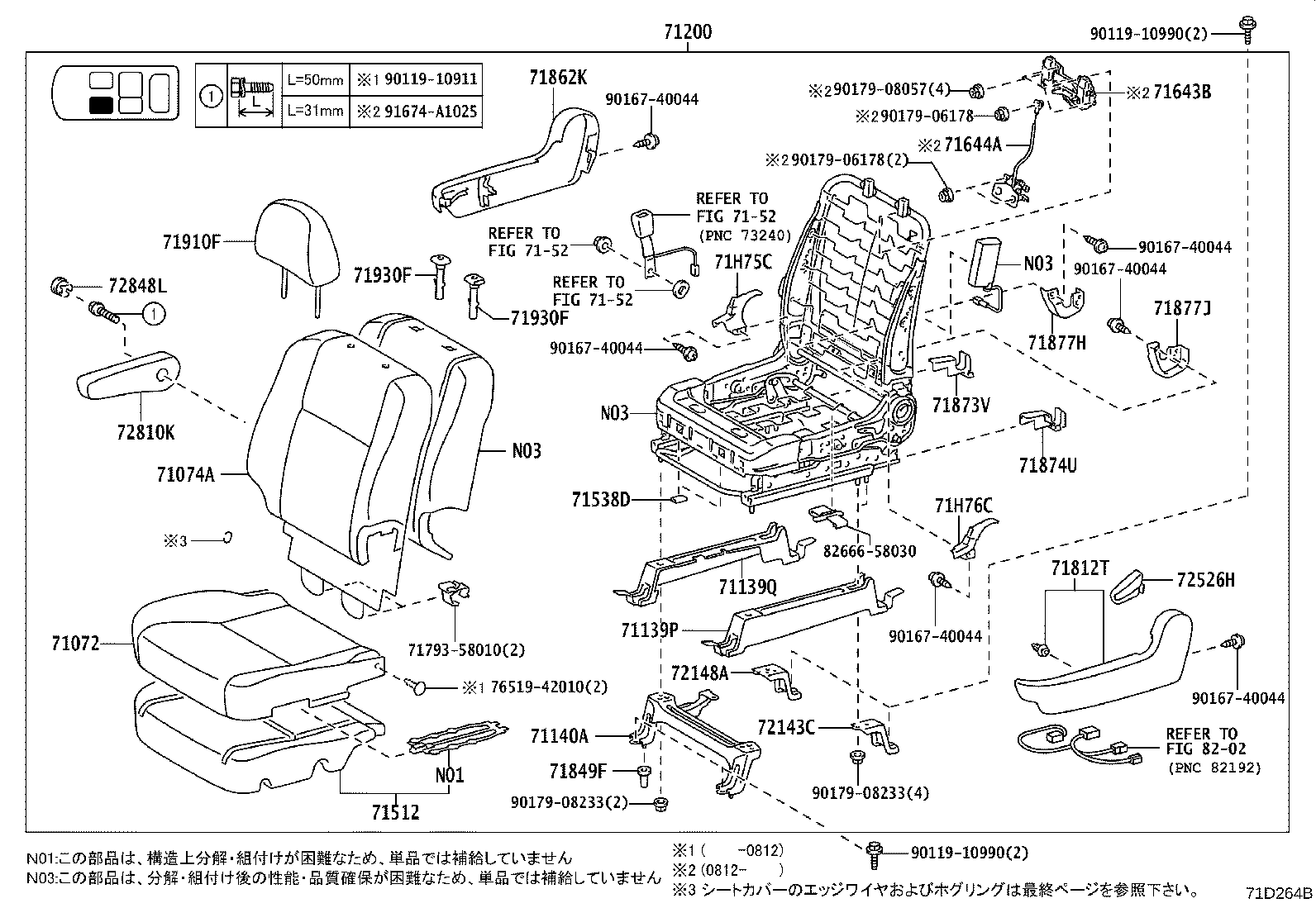

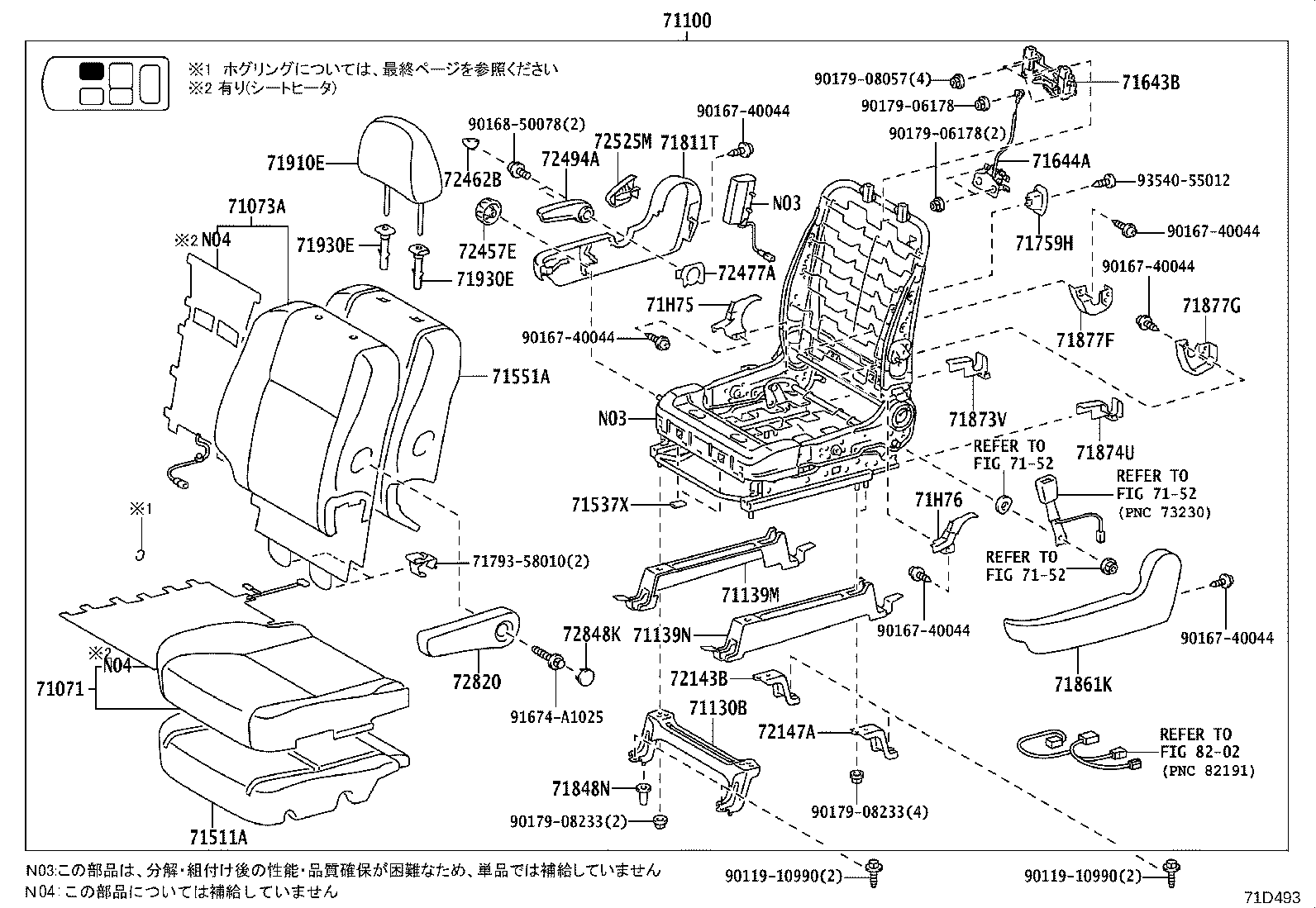

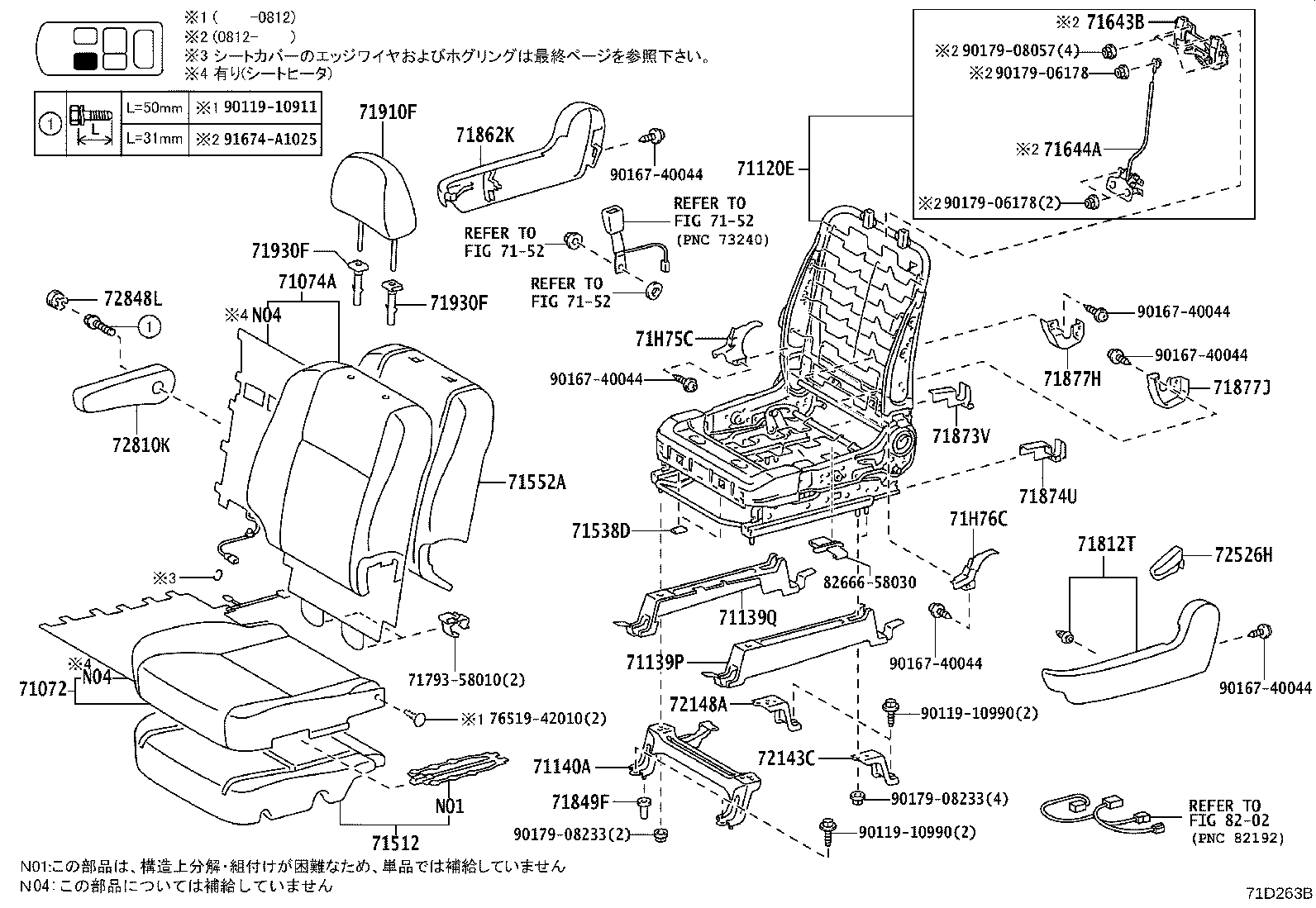

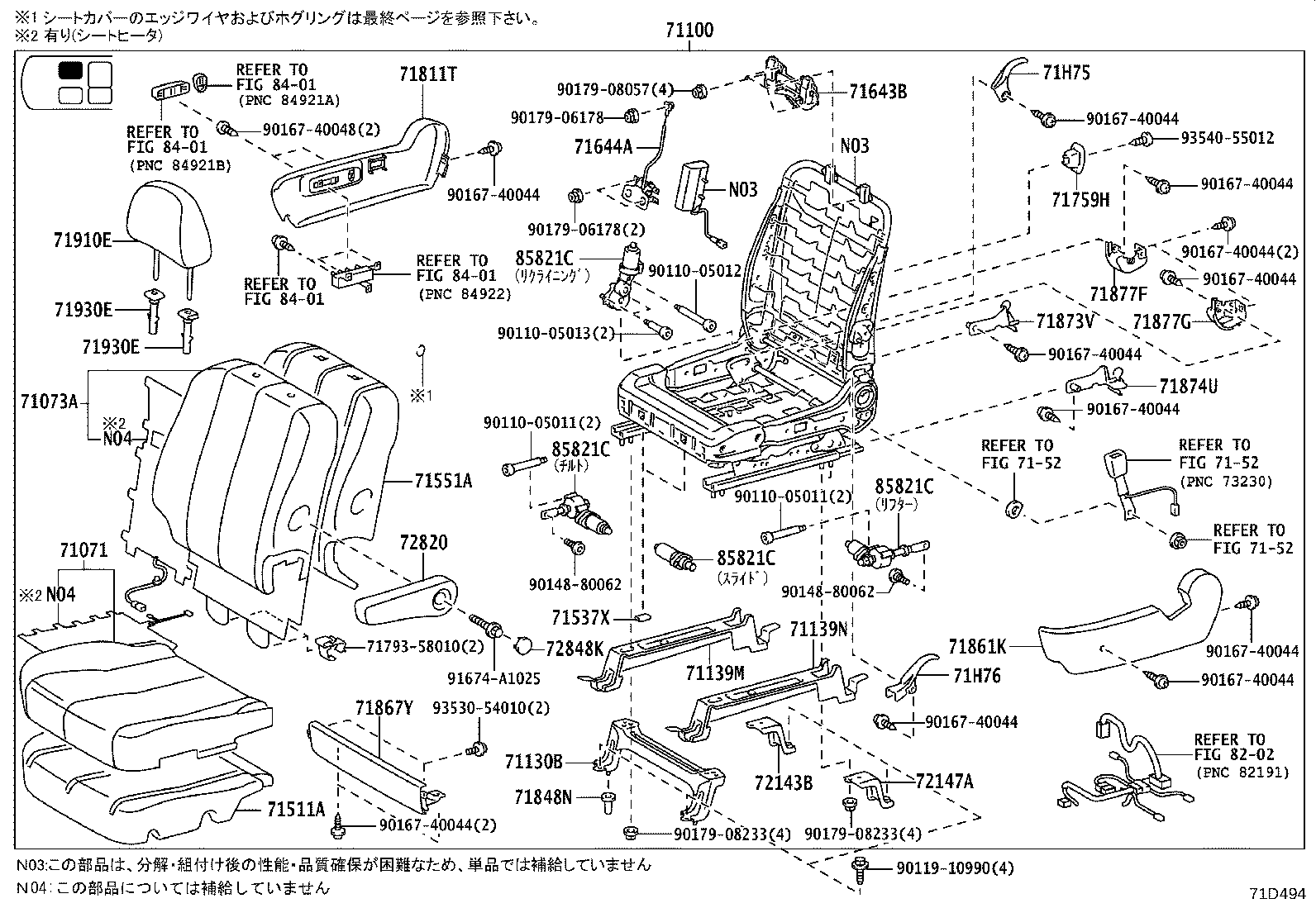

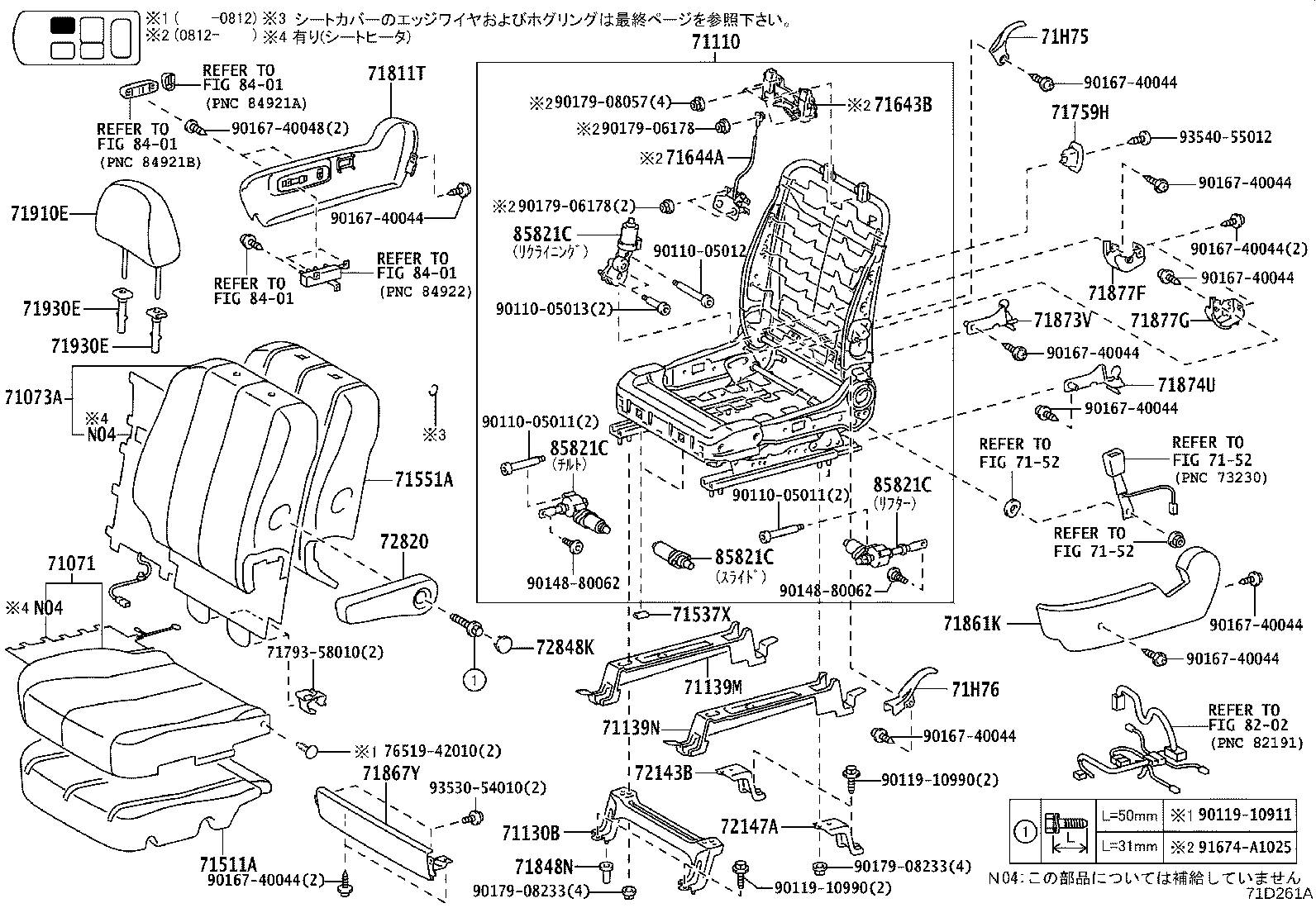

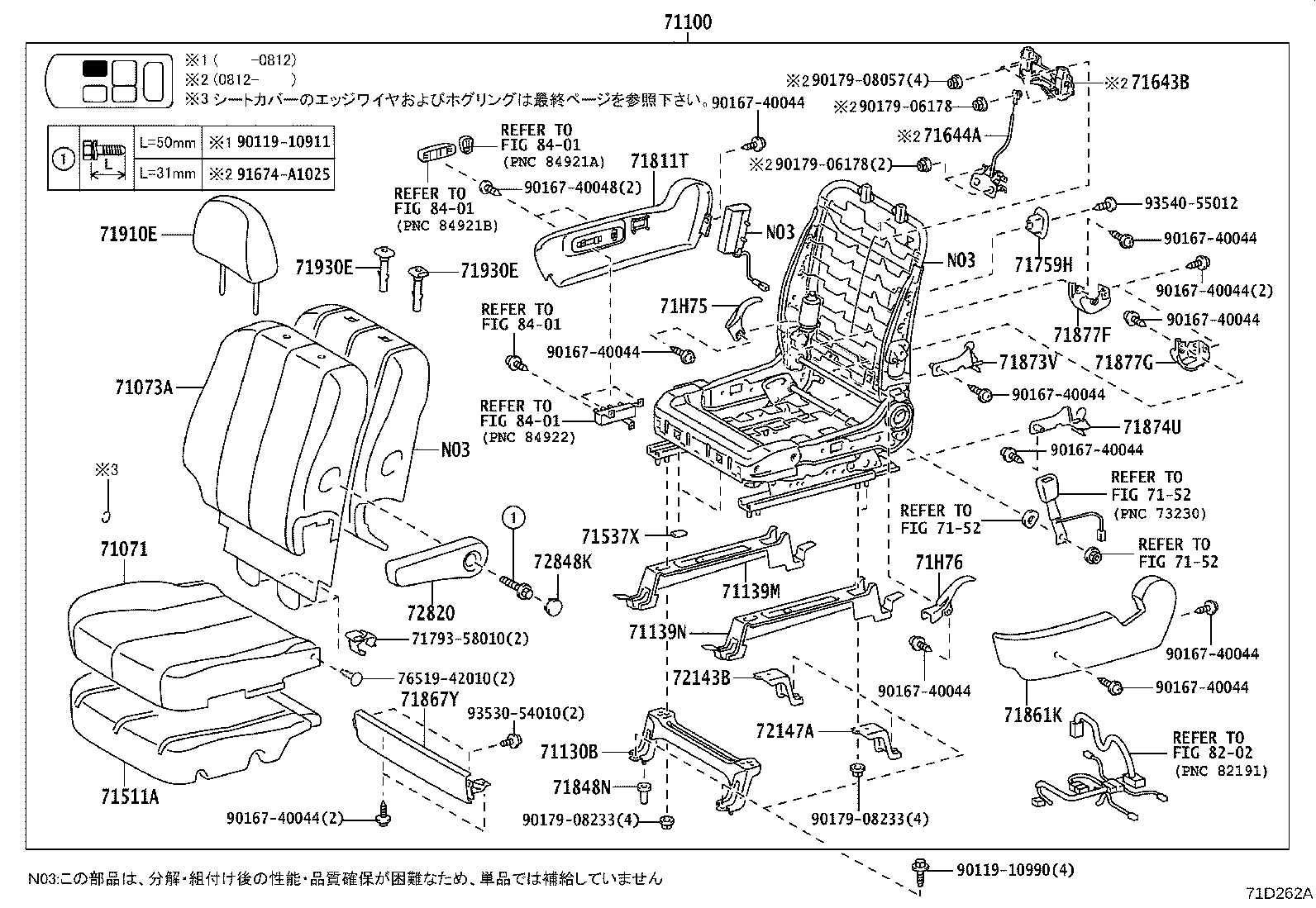

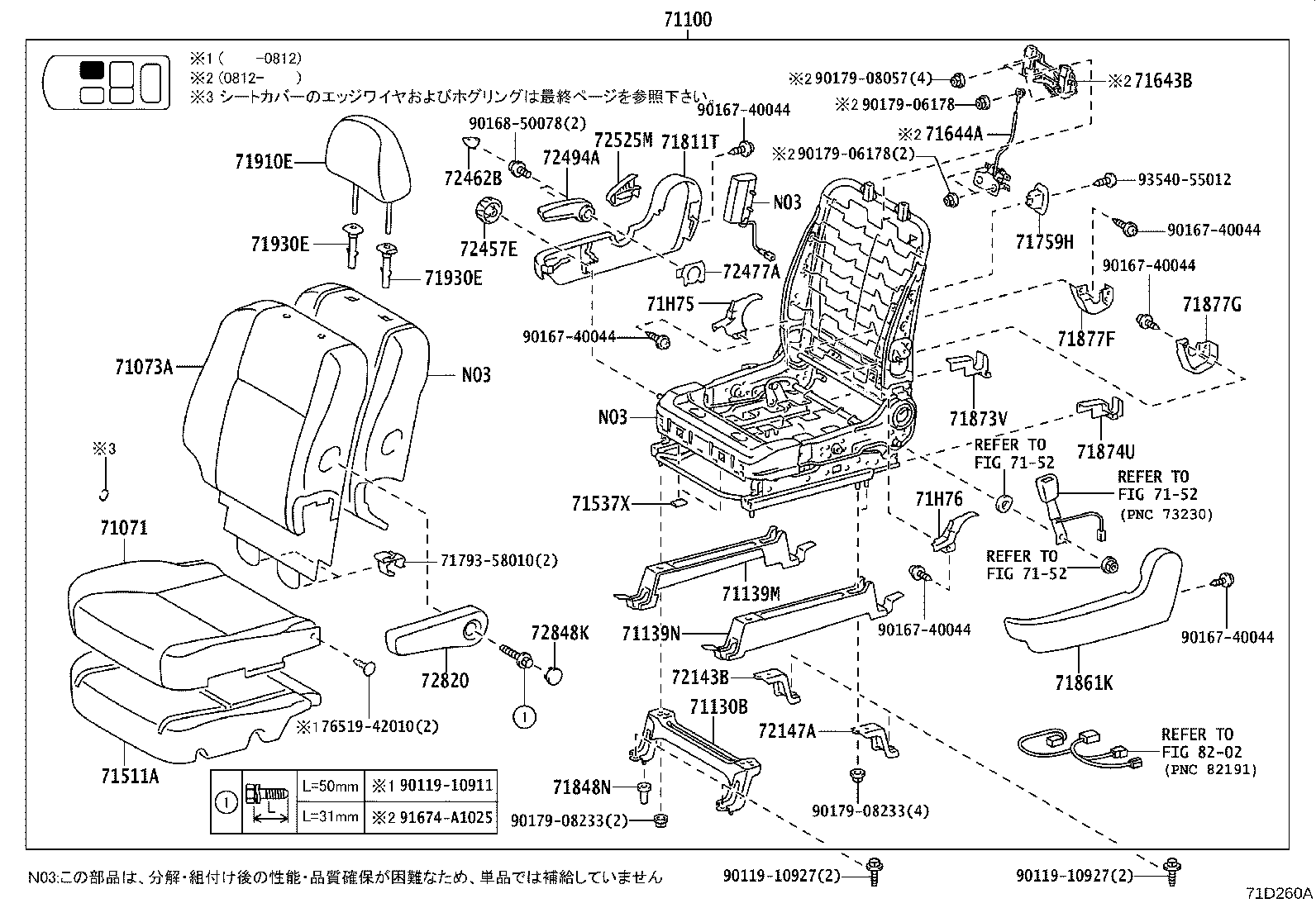

Front Seat & Seat Track
59 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71100 | Seat Assy, Front RH |
| 71110 | Frame Assy, Front Seat W/Adjuster, RH |
| 71120E | Frame Assy, Front Seat W/Adjuster, LH |
| 71130B | Leg Assy, Front Seat, RH |
| 71139M | Cover, Front Seat Leg, RH Outer |
| 71139N | Cover, Front Seat Leg, RH Inner |
| 71139P | Cover, Front Seat Leg, LH Outer |
| 71139Q | Cover, Front Seat Leg, LH Inner |
| 71140A | Leg Assy, Front Seat, LH |
| 71200 | Seat Assy, Front LH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71537X | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71538D | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71643B | Unit, Active Headrest, Upr |
| 71644A | Unit, Active Headrest, Lwr |
| 71759H | Hook, Front Seatback |
| 71811T | Shield, Front Seat Cushion, RH |
| 71812T | Shield, Front Seat Cushion, LH |
| 71848N | Cap, Front Seat Adjuster Cover, RH NO.1 |
| 71849F | Cap, Seat Adjuster Cover, LH(FOR LH SEAT) |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71867Y | Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT) |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71877F | Cover, Reclining Adjuster Inside, RH(FOR RH SEAT) |
| 71877G | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71877H | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71877J | Cover, Reclining Adjuster Inside, LH(FOR LH SEAT) |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71H75 | Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT) |
| 71H75C | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71H76 | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71H76C | Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT) |
| 72143B | Bracket, Front Seat Track, Lower Rear RH(FOR RH SEAT) |
| 72143C | Bracket, Front Seat Track, Lower Rear(FOR LH SEAT) |
| 72147A | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148A | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72457E | Knob, Vertical Seat Adjuster, RH |
| 72462B | Cover, Vertical Adjuster RH |
| 72477A | Spacer, Vertical Adjuster |
| 72494A | Handle, Front Seat Vertical Adjuster, RH |
| 72525M | Handle, Reclining Adjuster Release, RH |
| 72526H | Handle, Reclining Adjuster Release, LH |
| 72810K | Armrest Assy, Front Seat, RH(FOR LH SEAT) |
| 72820 | Armrest Assy, Front Seat, LH(FOR RH SEAT) |
| 72848K | Cap, Seat Armrest, NO.1(FOR RH SEAT) |
| 72848L | Cap, Seat Armrest, NO.1(FOR LH SEAT) |
| 85821C | Motor Assy, Power Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
