Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

36 part groups · 9 illustrations

Illustrations

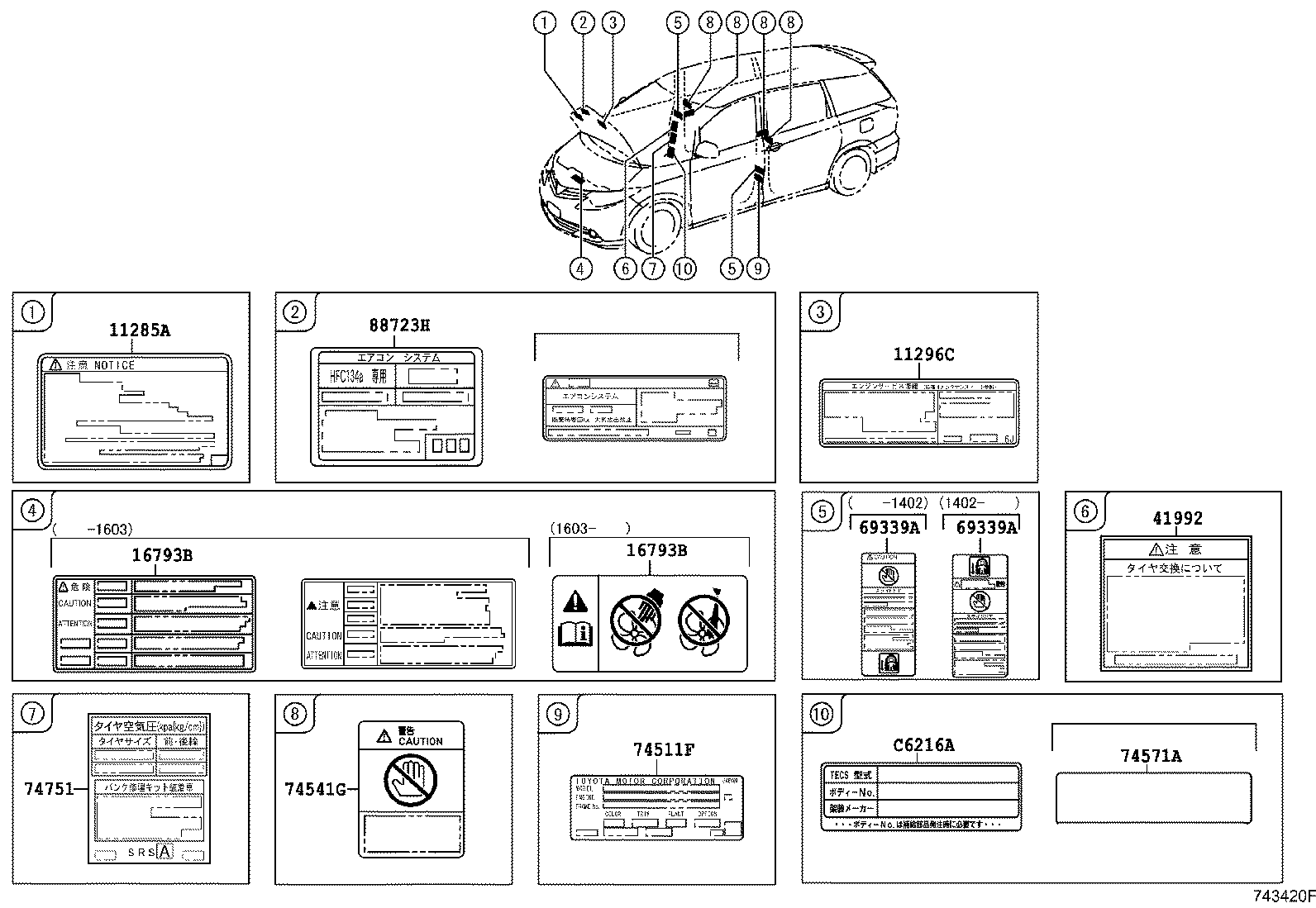

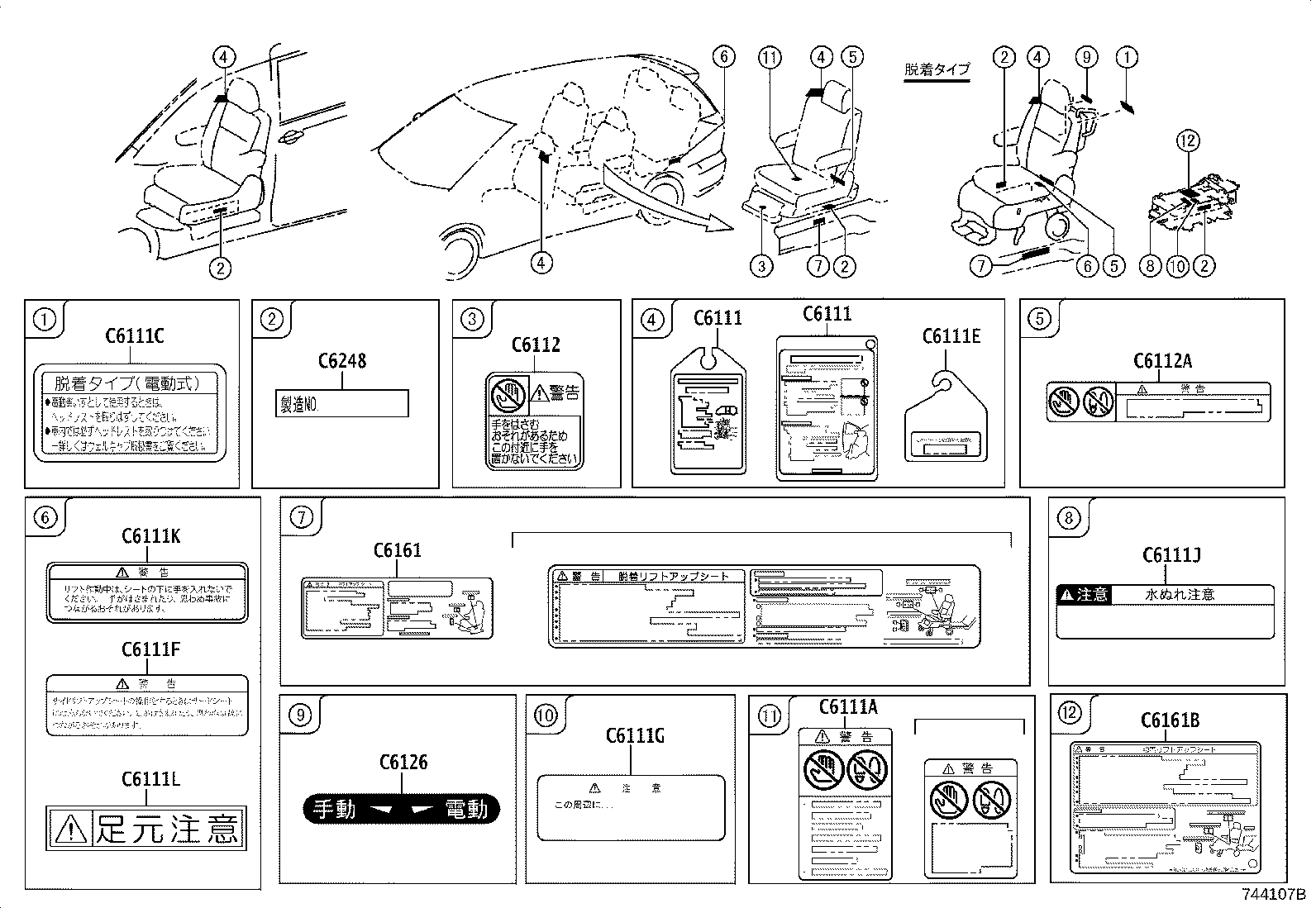

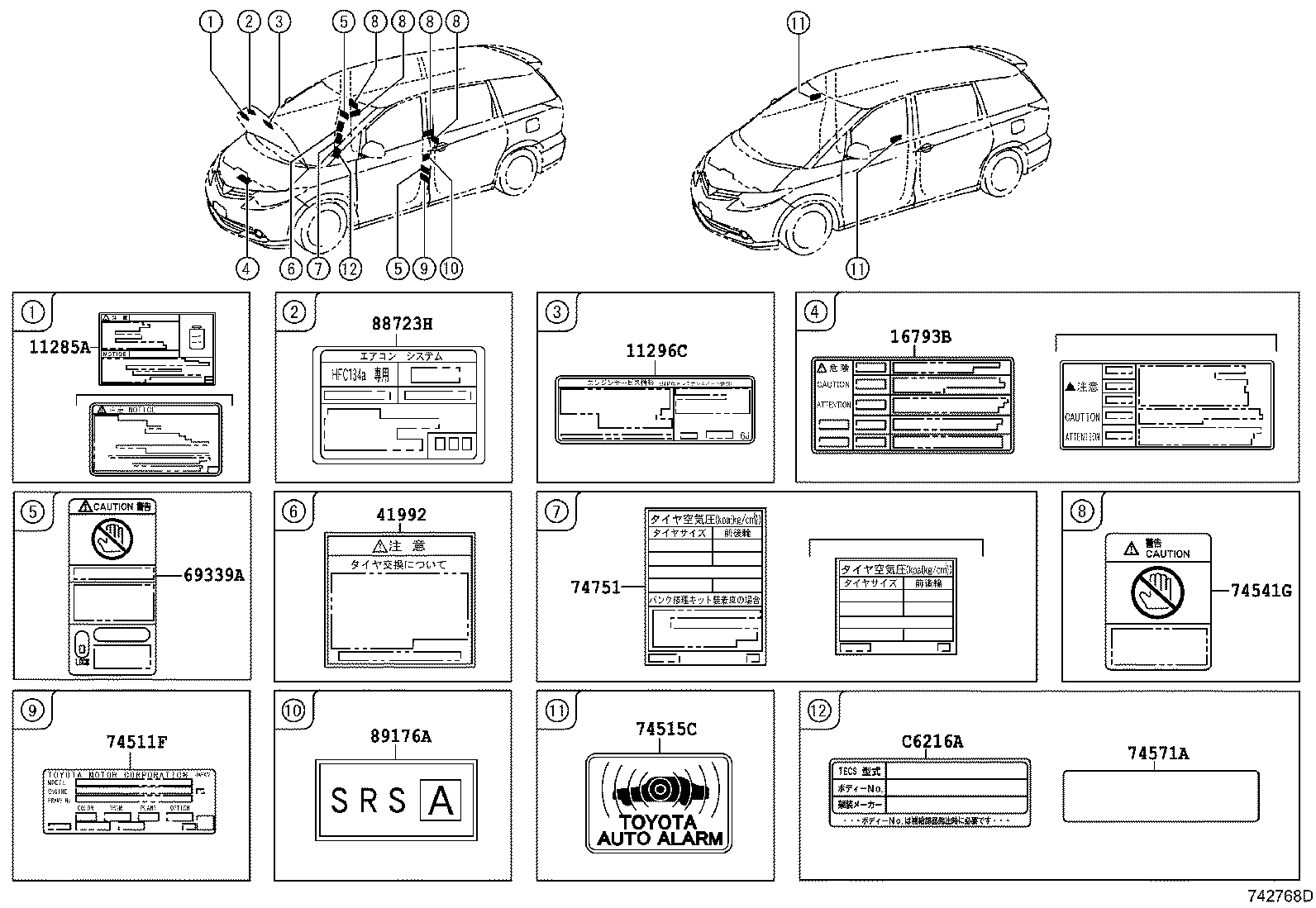

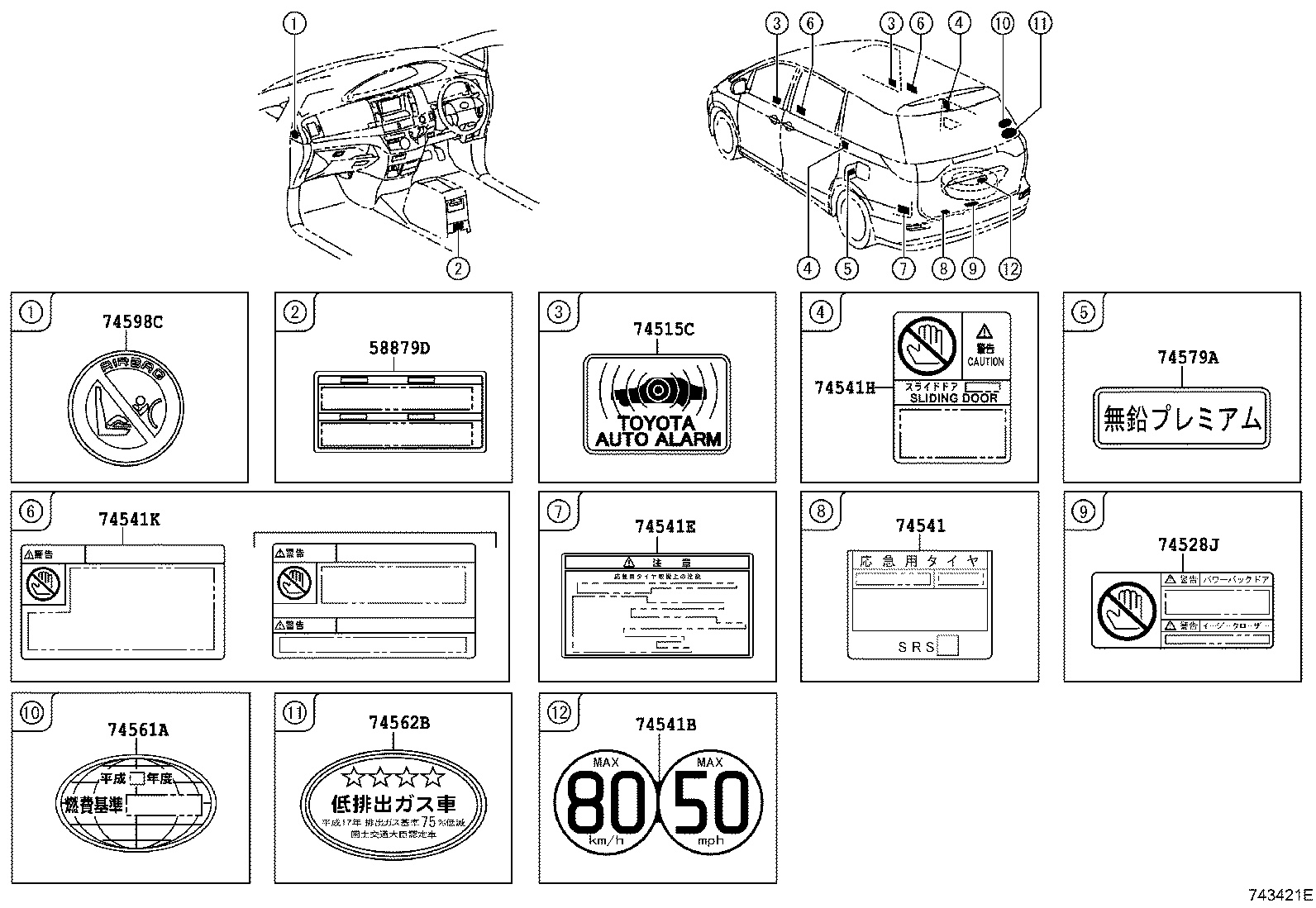

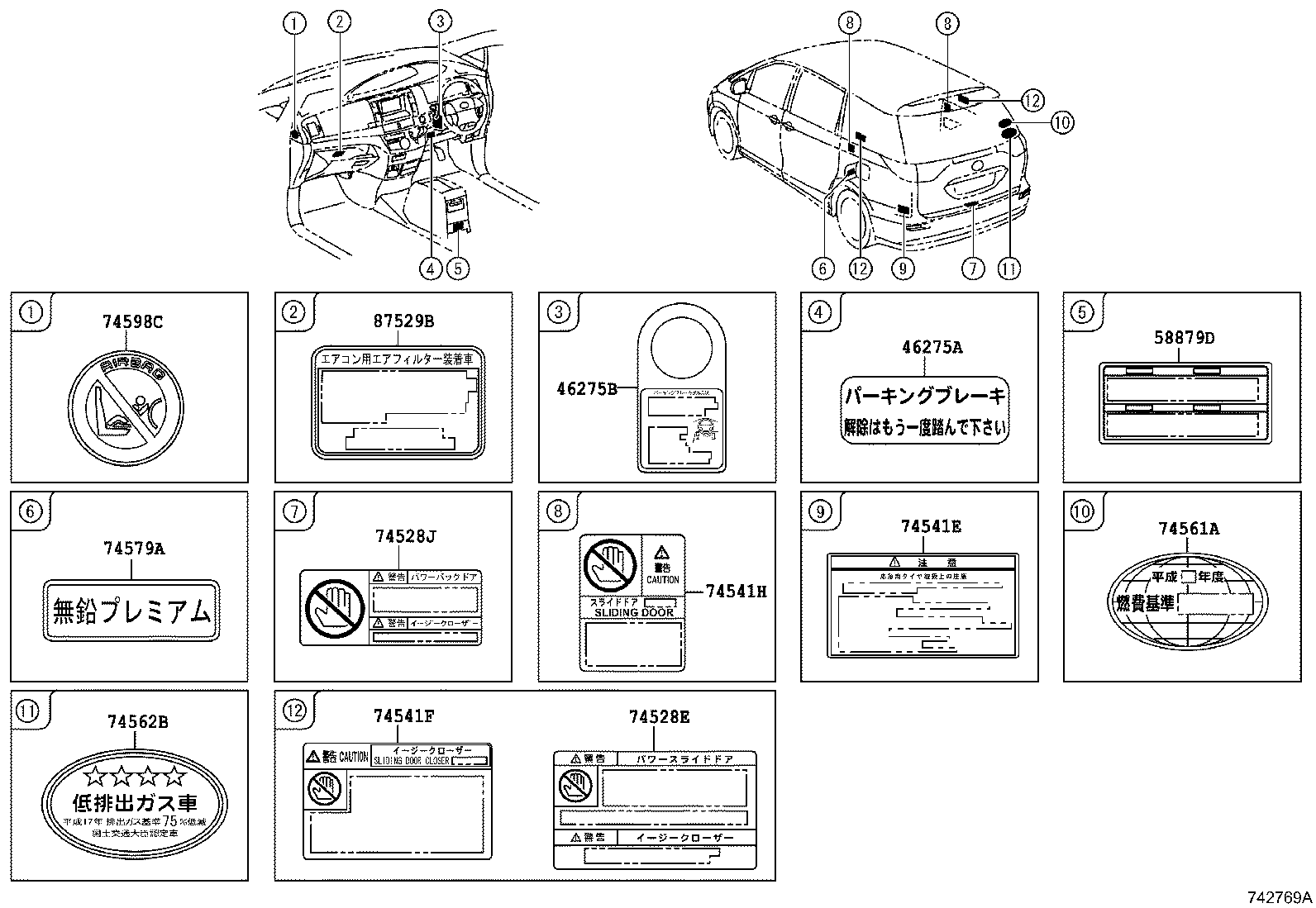

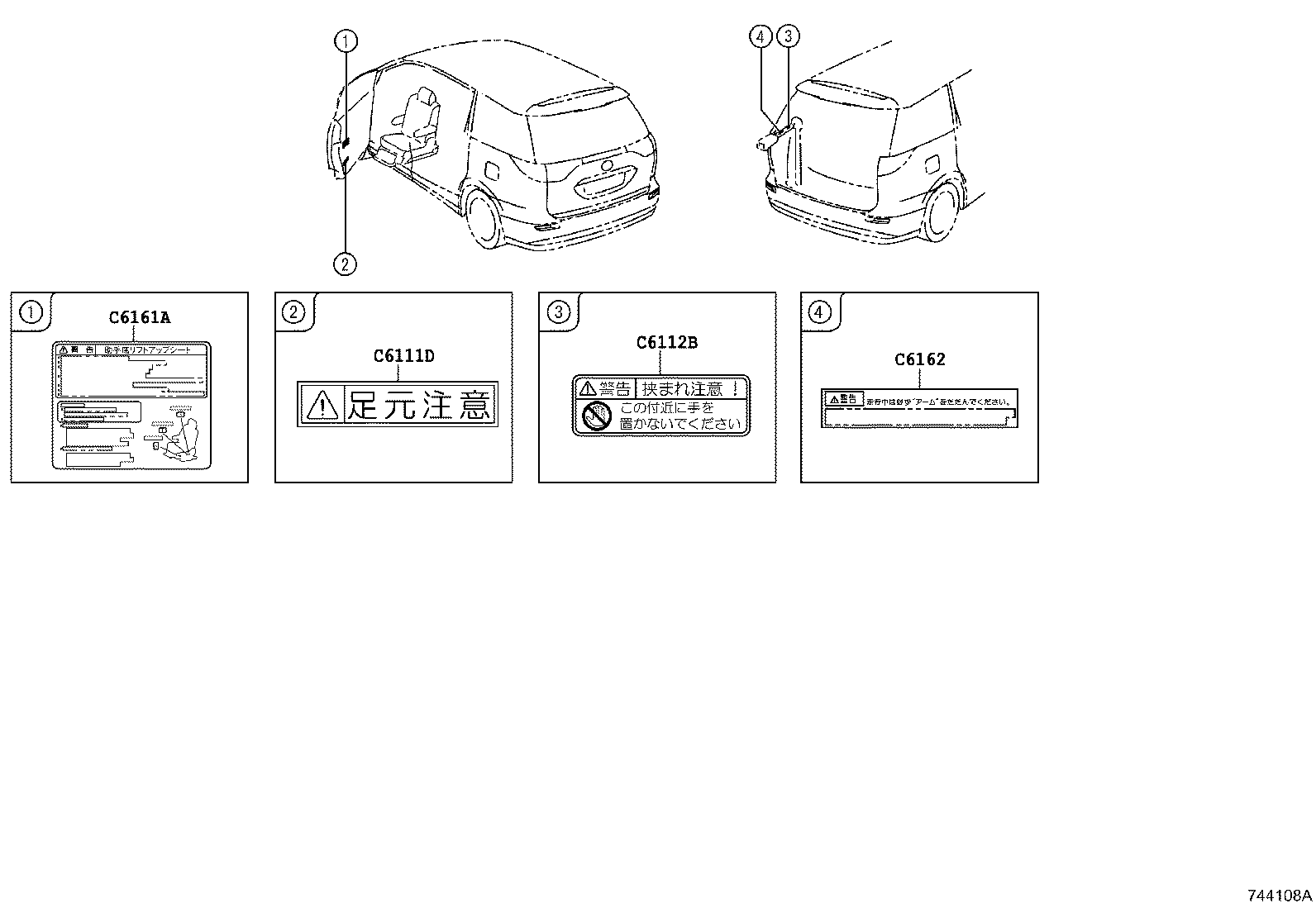

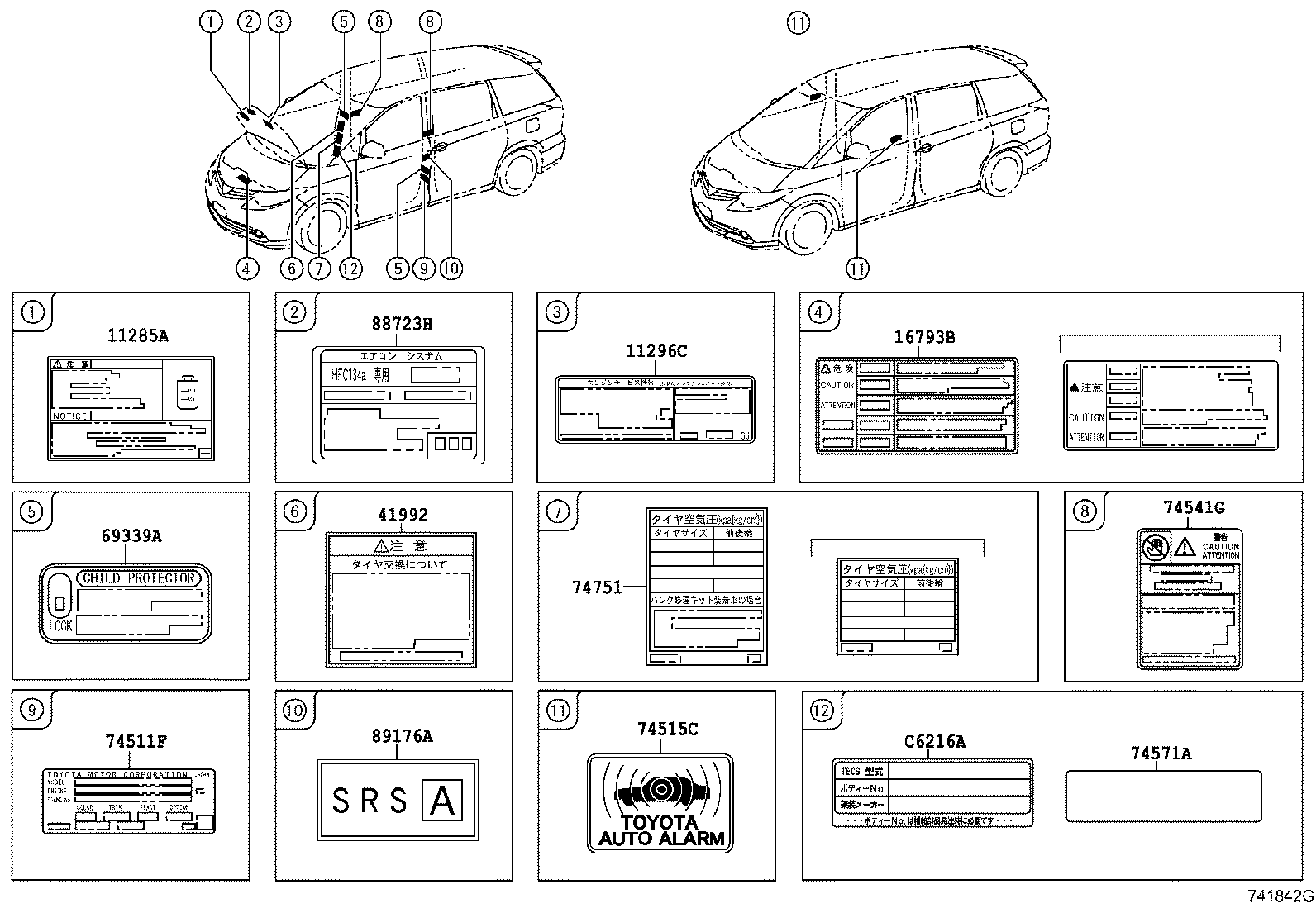

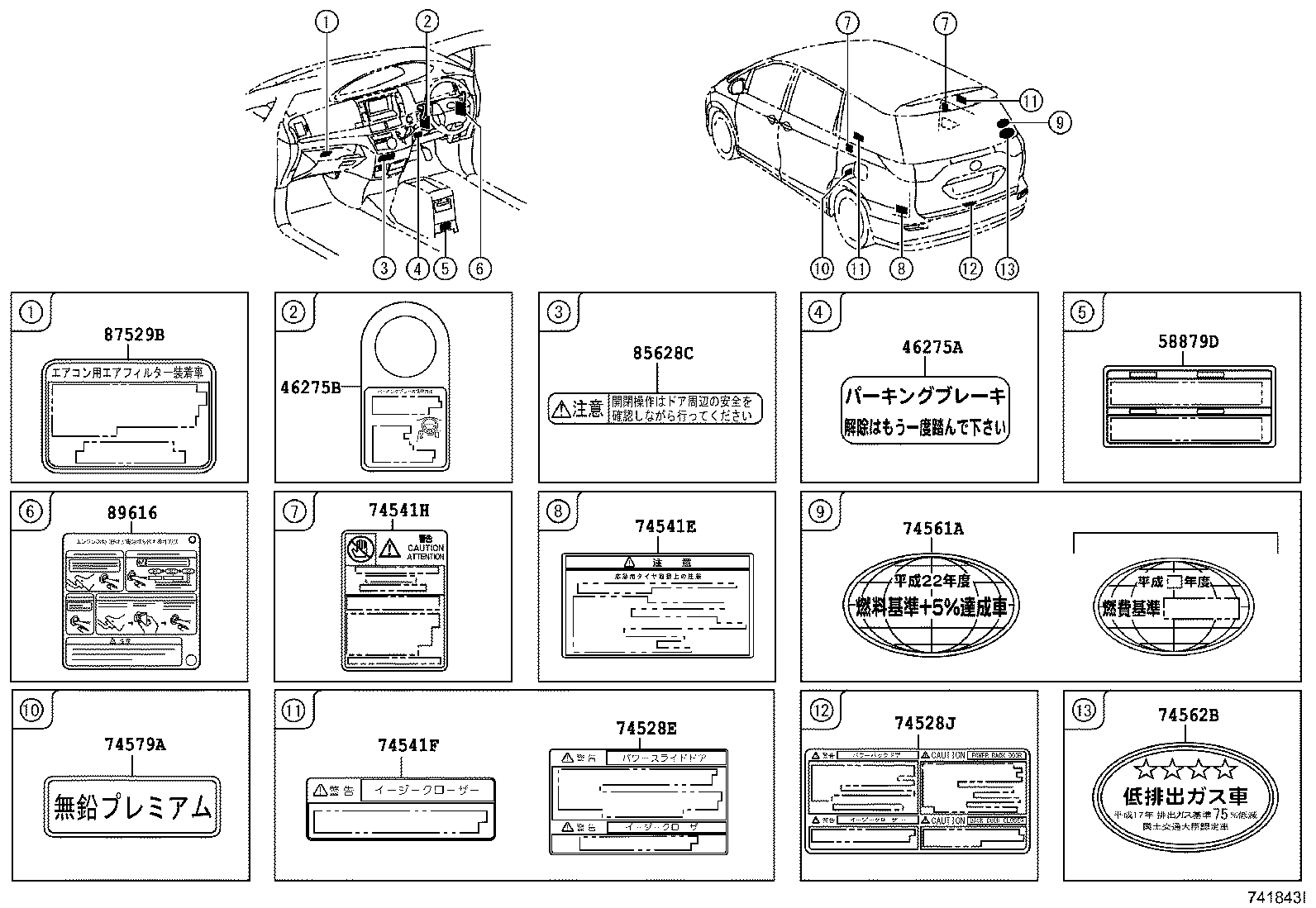

Figure 746049 746049 2006-01 → 2007-01 Figure 741842G 741842G 2006-01 → 2008-12 Figure 742768D 742768D 2008-12 → 2012-04 Figure 743420F 743420F 2012-04 → — Figure 741843I 741843I 2006-01 → 2008-12 Figure 742769A 742769A 2008-12 → 2012-04 Figure 743421E 743421E 2012-04 → — Figure 744107B 744107B 2006-01 → — Figure 744108A 744108A 2006-01 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
58879D Label, Console Door Lock Caution
69339A Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
74528E Label, Power Slide Door Notice
74528J Label, Power Back Door Caution
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74541F Label, Slide Door Glass Caution
74541G Plate, Safety Caution
74541H Plate, Body Caution
74541K Label, Slide Door Glass Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
85628C Label, Automatic Door
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
C6111 Plate, Safety Caution
C6111A Plate, Safety Caution
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6161 Label, Power Lift Caution
C6248 Label, Body Number
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
