Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10

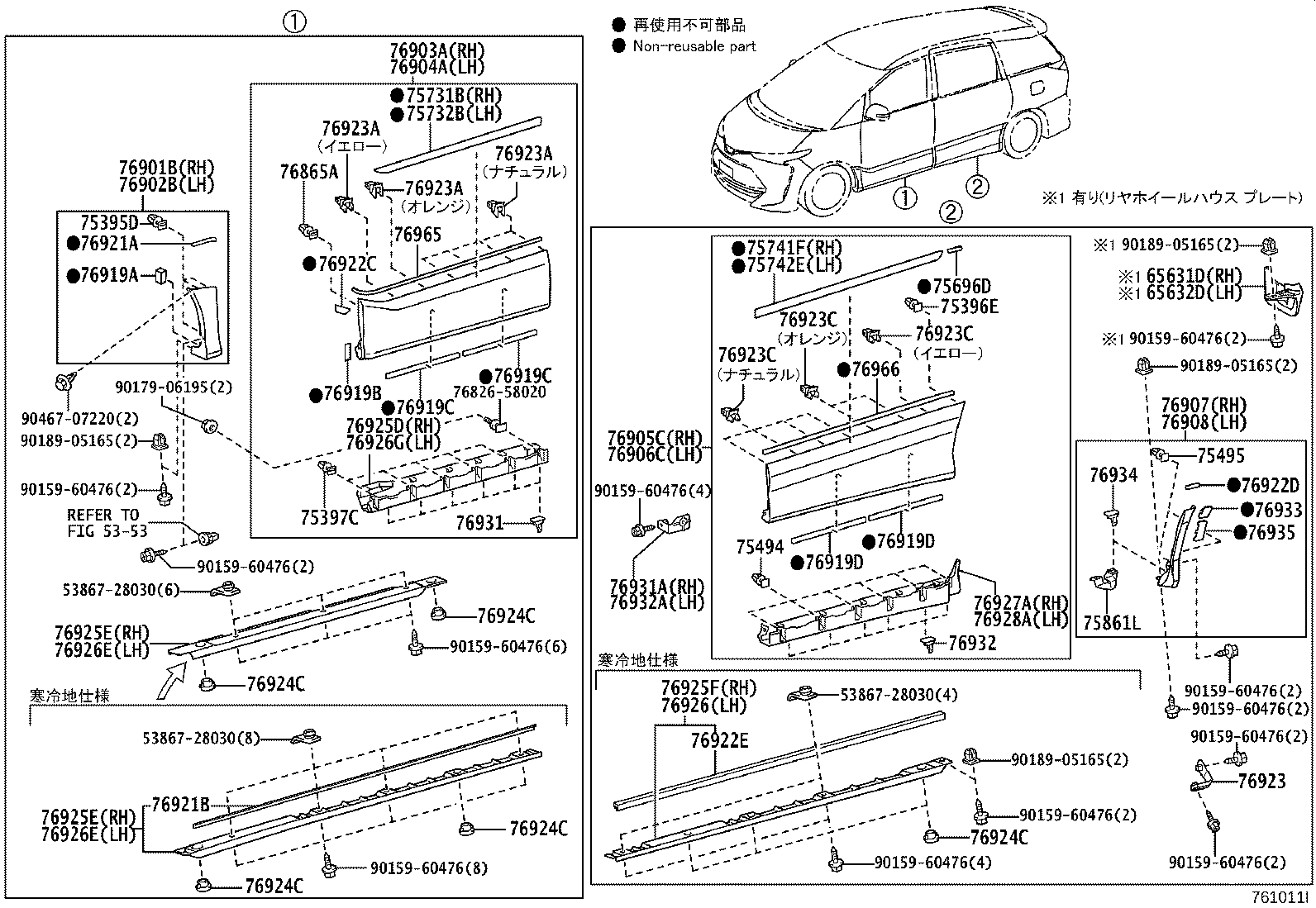

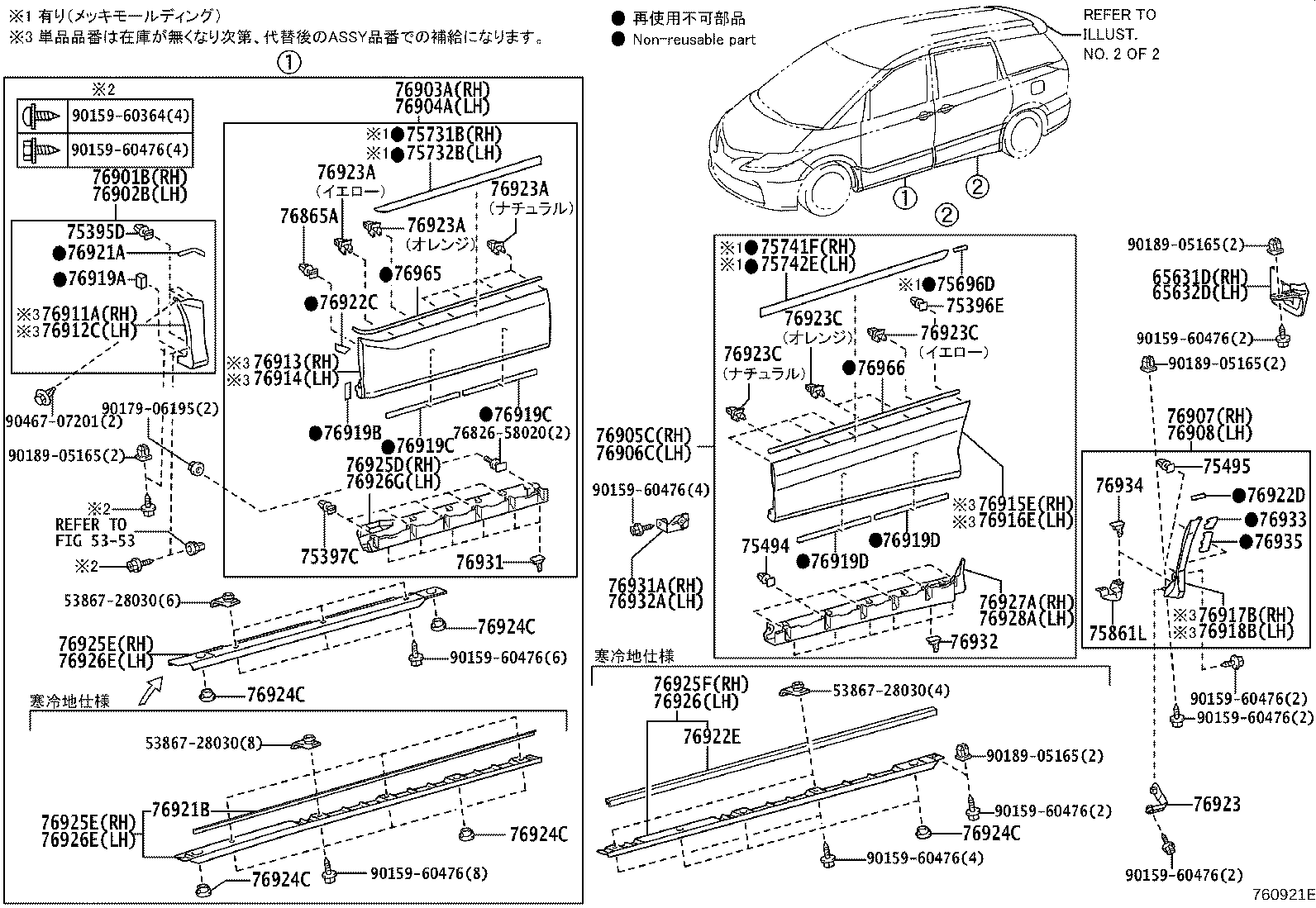

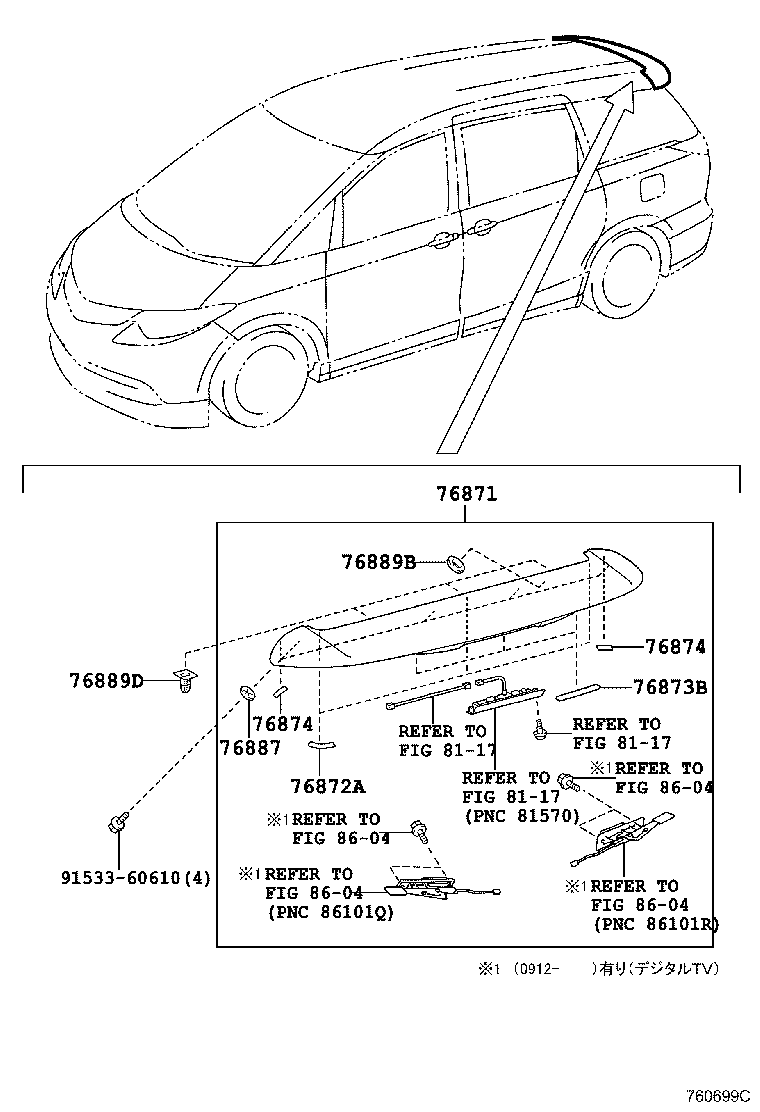

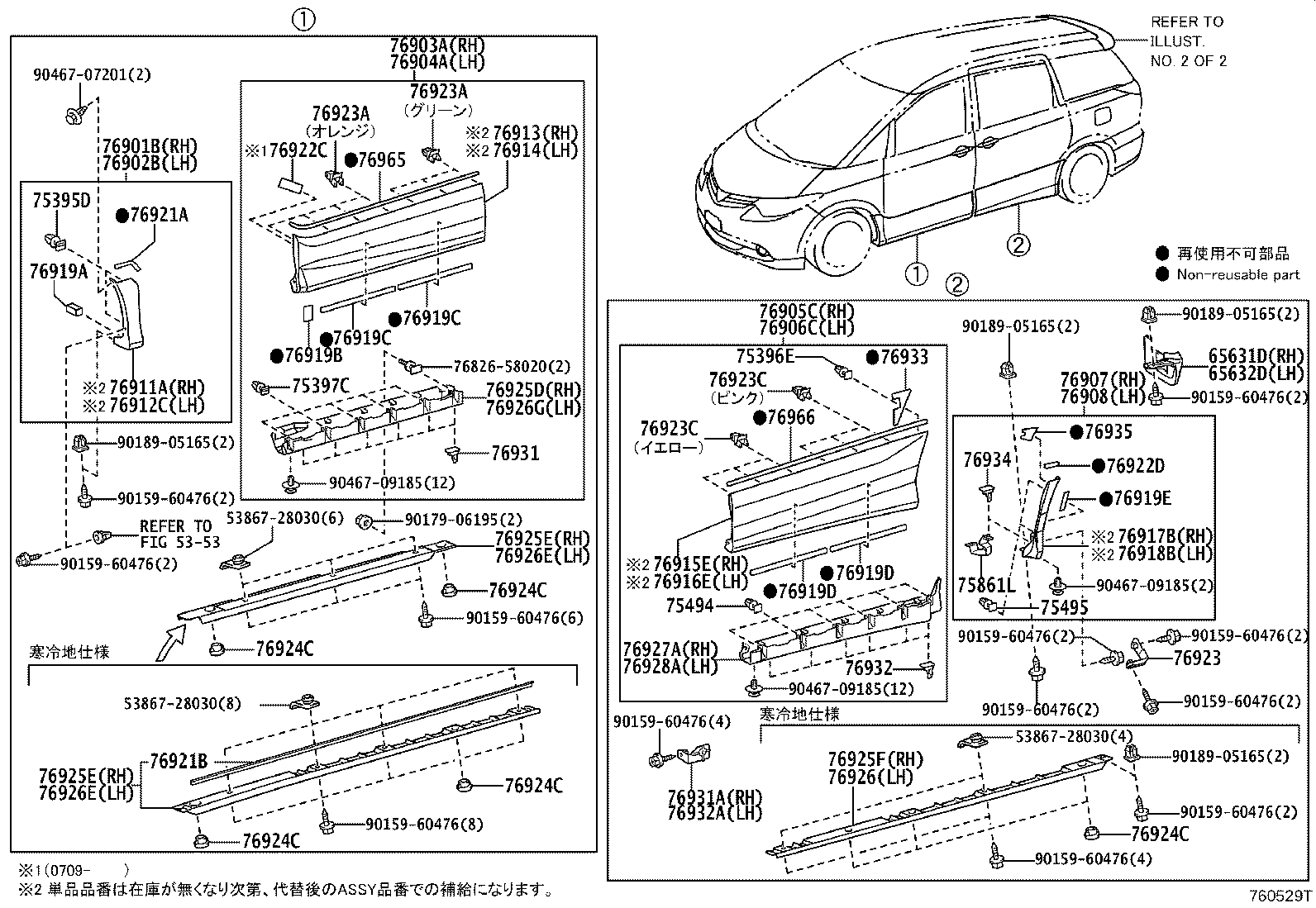

Spoiler & Side Mudguard
70 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75395D | Clip, Outside Moulding, NO.1 |
| 75396E | Clip, Outside Moulding, NO.2 |
| 75397C | Clip, Outside Moulding, NO.3 |
| 75494 | Clip, Outside Moulding, NO.3 |
| 75495 | Clip, Outside Moulding, NO.4 |
| 75696D | Pad, Body Outside Moulding |
| 75731B | Moulding, Front Door, Outside RH |
| 75732B | Moulding, Front Door, Outside LH |
| 75741F | Moulding, Rear Door, Outside RH |
| 75742E | Moulding, Rear Door, Outside LH |
| 75861L | Retainer, Rocker Panel Moulding, NO.1 |
| 76865A | Retainer, Side Mudguard |
| 76871 | Spoiler, Rear |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76887 | Seal, Rear Spoiler |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76901B | Mudguard Sub-assy, Fender Panel, RH |
| 76902B | Mudguard Sub-assy, Fender Panel, LH |
| 76903A | Mudguard Sub-assy, Front Door, RH |
| 76904A | Mudguard Sub-assy, Front Door, LH |
| 76905C | Mudguard Sub-assy, Slide Door, RH |
| 76906C | Mudguard Sub-assy, Slide Door, LH |
| 76907 | Mudguard Sub-assy, Quarter Panel, RH |
| 76908 | Mudguard Sub-assy, Quarter Panel, LH |
| 76911A | Mudguard, Fender Panel, RH |
| 76912C | Mudguard, Fender Panel, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76915E | Mudguard, Slide Door, RH |
| 76916E | Mudguard, Slide Door, LH |
| 76917B | Mudguard, Quarter Panel, RH |
| 76918B | Mudguard, Quarter Panel, LH |
| 76919A | Pad, Side Mudguard |
| 76919B | Pad, Side Mudguard |
| 76919C | Pad, Side Mudguard |
| 76919D | Pad, Side Mudguard |
| 76919E | Pad, Side Mudguard |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76921B | Protector, Side Mudguard, NO.1 |
| 76921C | Protector, Side Mudguard, RH |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76922E | Protector, Side Mudguard, NO.2 |
| 76922F | Protector, Side Mudguard, LH |
| 76923 | Retainer, Side Mudguard |
| 76923A | Retainer, Side Mudguard |
| 76923C | Retainer, Side Mudguard |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76925E | Protector, Side Mudguard, Front RH |
| 76925F | Protector, Side Mudguard, RH |
| 76926 | Protector, Side Mudguard, LH |
| 76926E | Protector, Side Mudguard, Front LH |
| 76926G | Protector, Side Mudguard, LH |
| 76927A | Protector, Side Mudguard, Rear RH |
| 76928A | Protector, Side Mudguard, Rear LH |
| 76931 | Retainer, Side Mudguard, NO.3 |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932 | Retainer, Side Mudguard, NO.4 |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76933 | Retainer, Side Mudguard, NO.5 |
| 76934 | Retainer, Side Mudguard, NO.6 |
| 76935 | Retainer, Side Mudguard, NO.7 |
| 76965 | Protector, Front Door Lower Mudguard |
| 76966 | Protector, Slide Door Lower Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
