Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

34 part groups · 7 illustrations

Illustrations

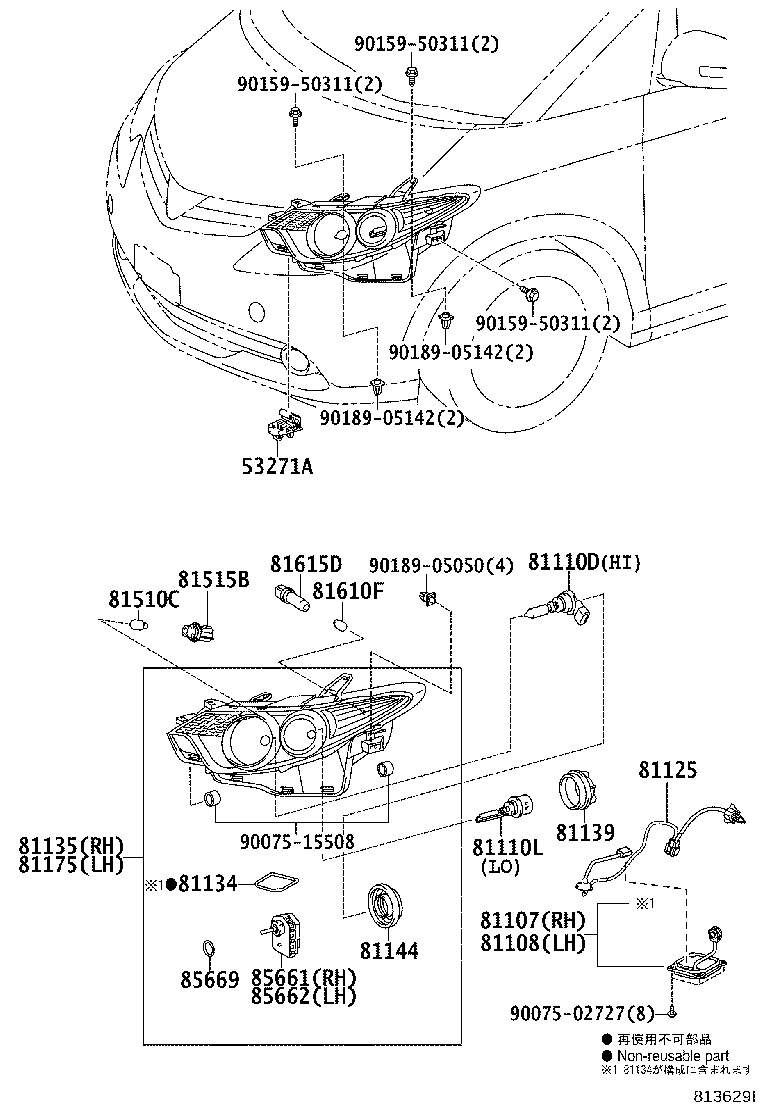

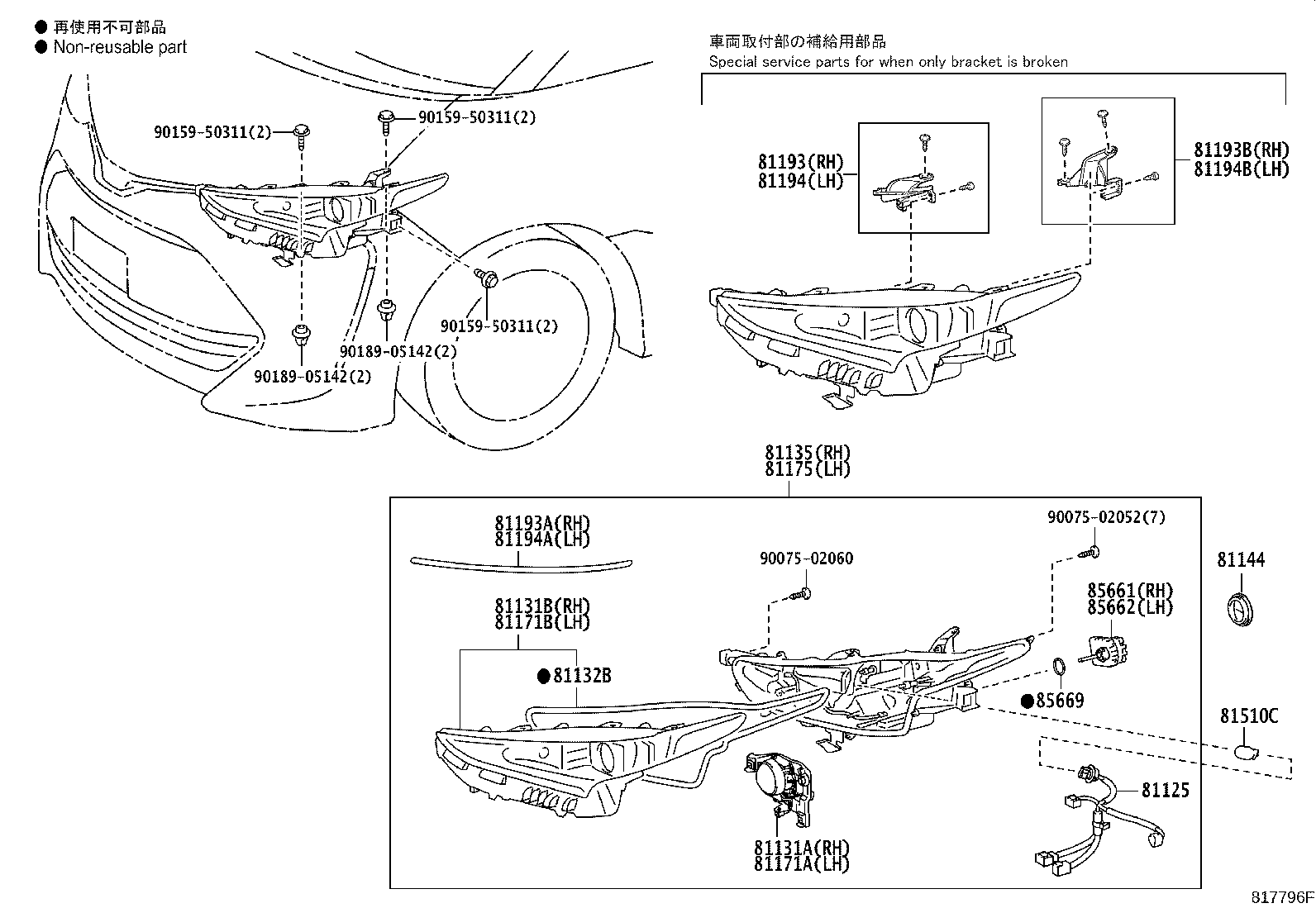

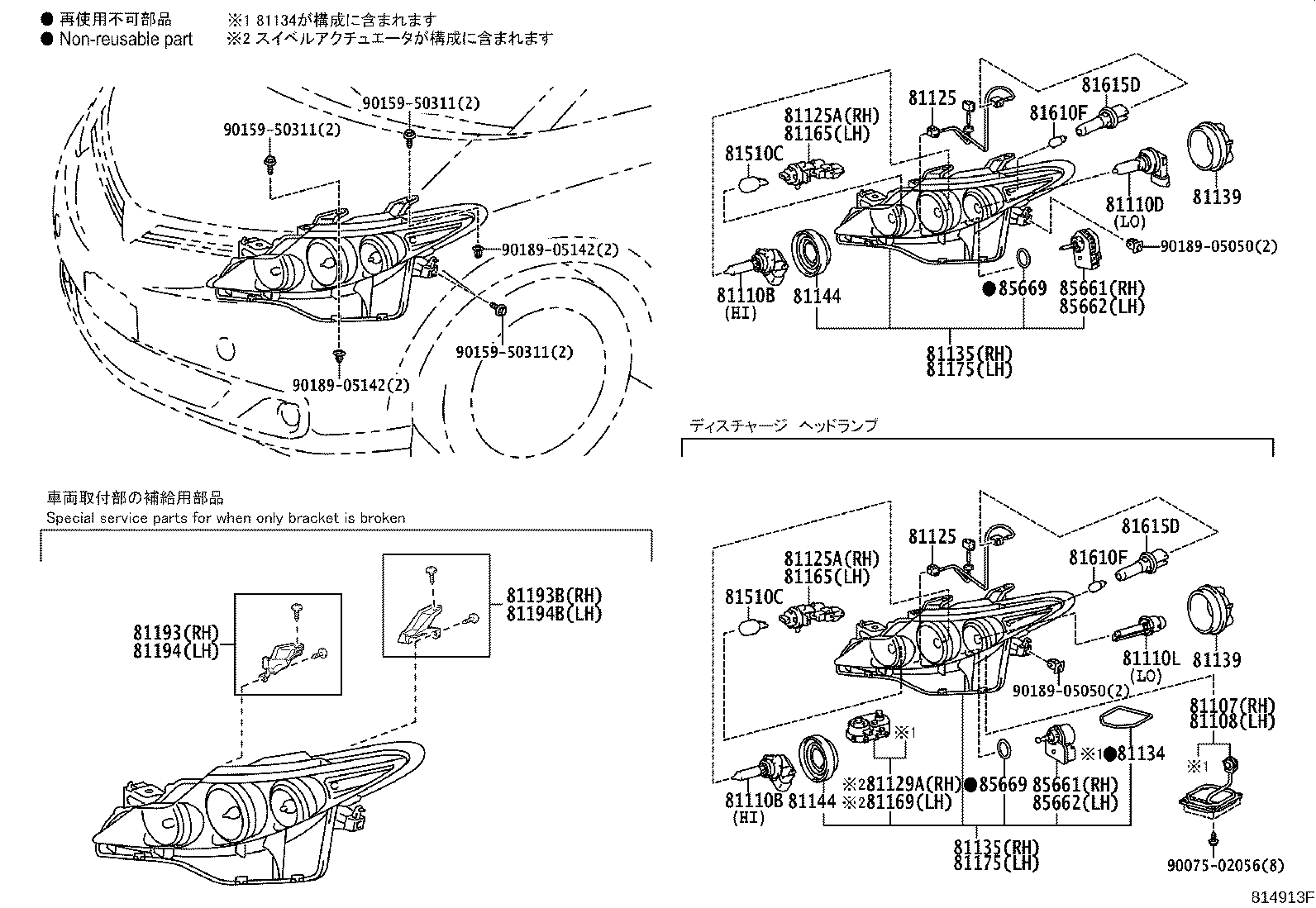

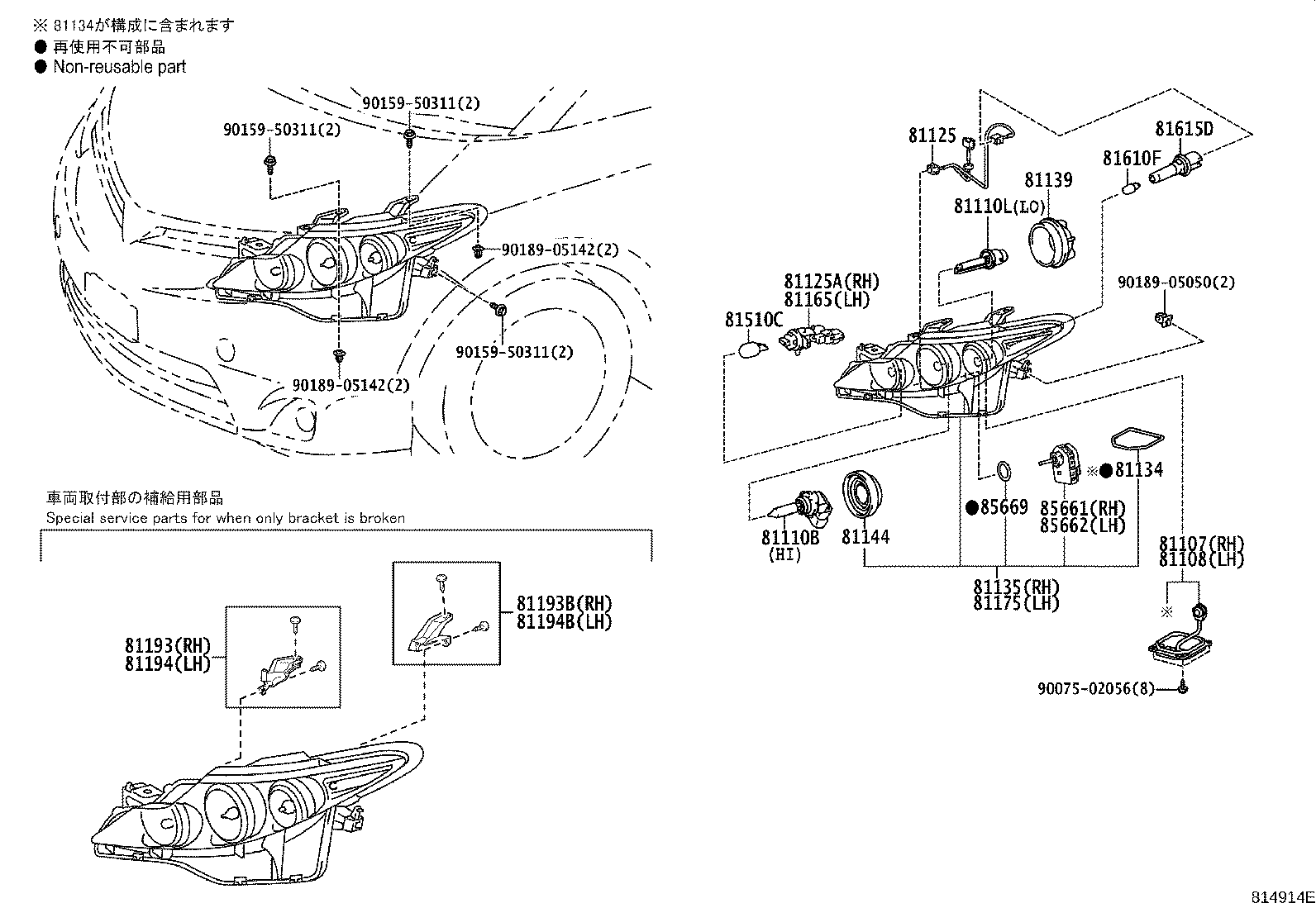

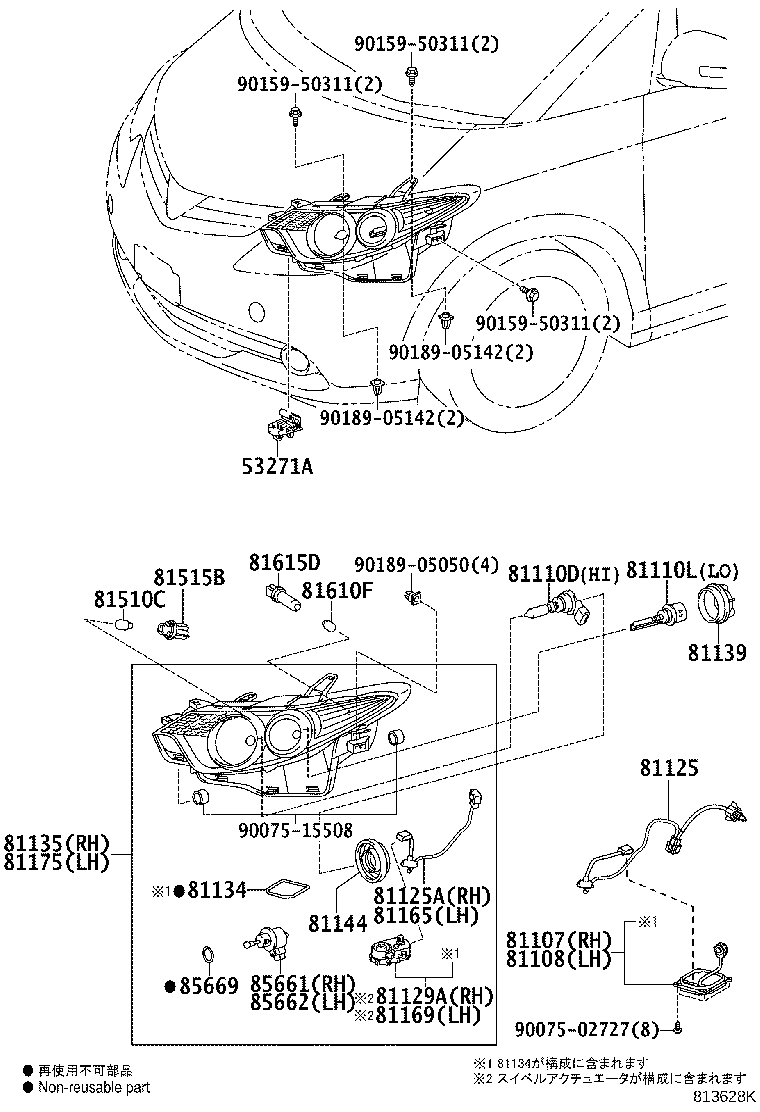

Figure 813630J 813630J 2006-01 → 2008-12 Figure 813629I 813629I 2006-01 → 2008-12 Figure 813628K 813628K 2006-01 → 2008-12 Figure 813737A 813737A 2006-01 → 2008-12 Figure 814913F 814913F 2008-12 → 2016-05 Figure 814914E 814914E 2008-12 → 2016-05 Figure 817796F 817796F 2016-05 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81125A Cord, Headlamp, RH
81129A Reflector, Headlamp, RH
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81165 Cord, Headlamp, LH
81169 Reflector, Headlamp, LH
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
