Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

12 part groups · 5 illustrations

Illustrations

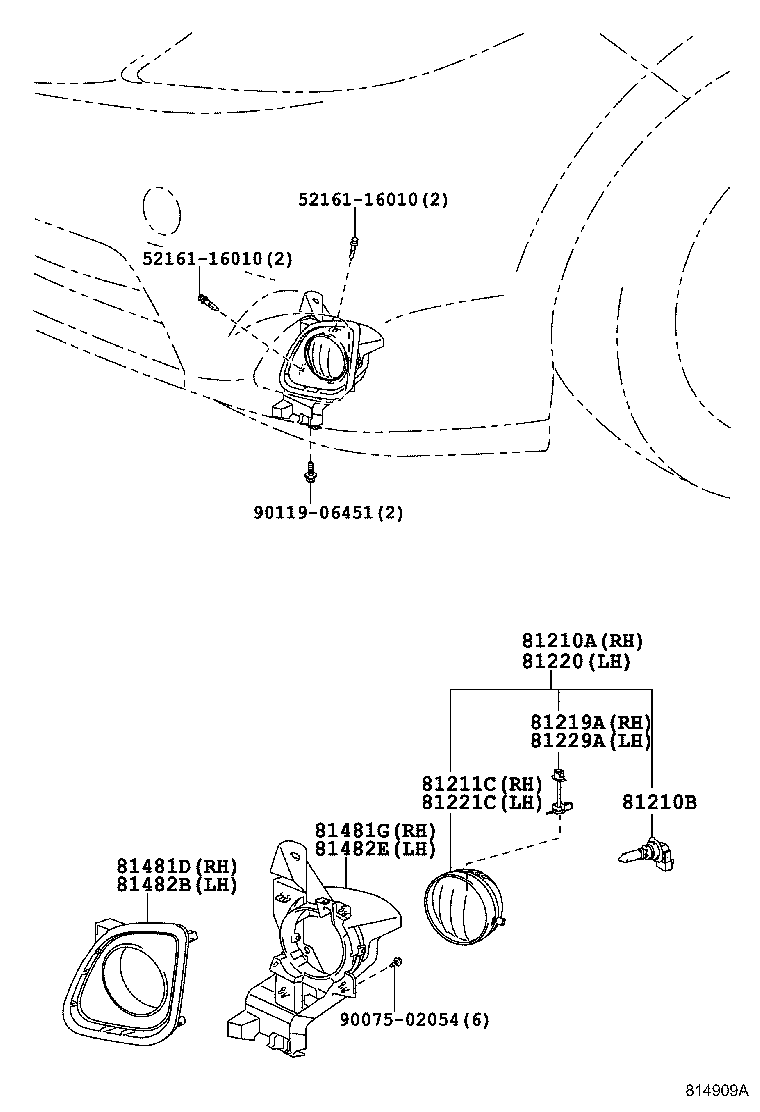

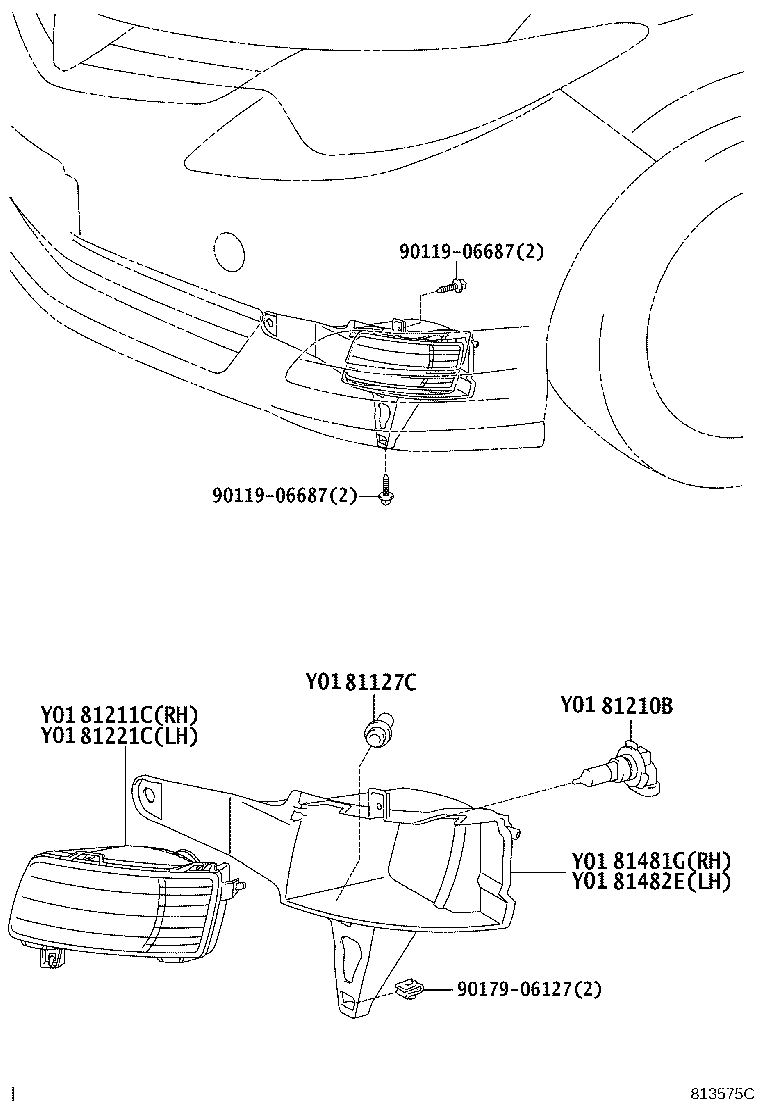

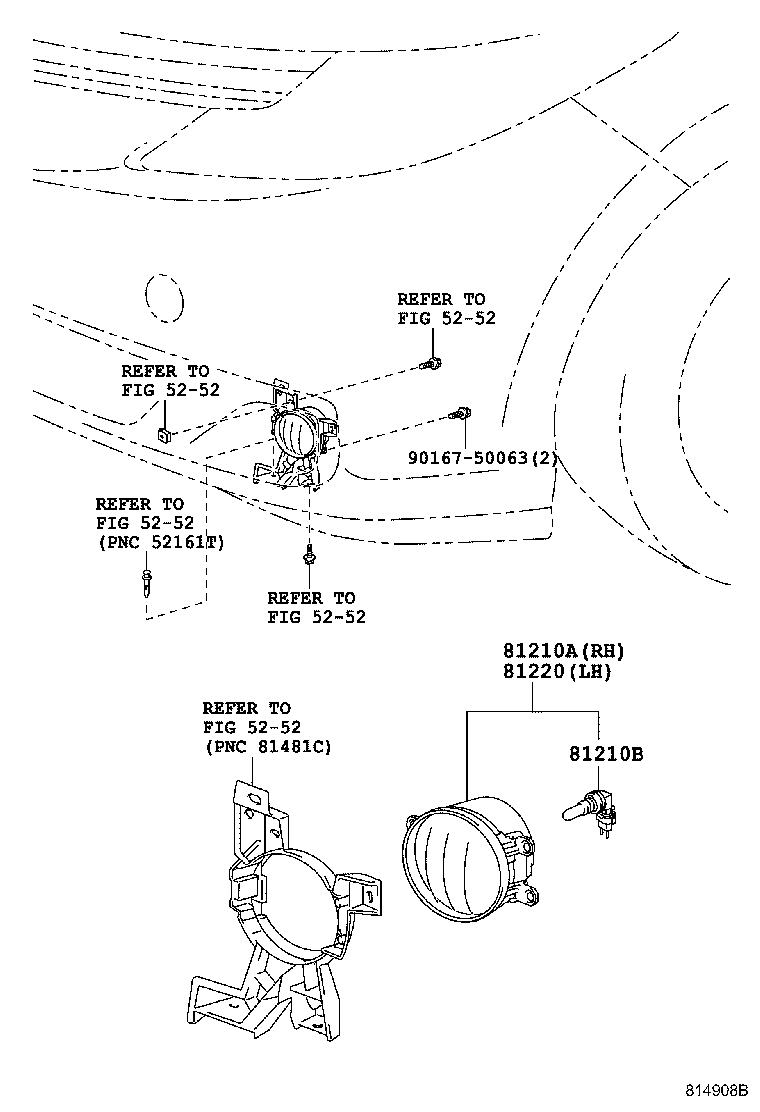

Figure 813576C 813576C 2006-01 → 2008-12 Figure 813575C 813575C 2006-01 → 2008-12 Figure 814908B 814908B 2008-12 → — Figure 814909A 814909A 2008-12 → 2012-04 Figure 816185 816185 2012-04 → —

Part groups

PNCDescription
81127C Bearing Fog Lamp
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481D Cover, Fog Lamp, RH
81481G Bracket, Fog Lamp, RH
81482B Cover, Fog Lamp, LH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
