Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

138 part groups · 15 illustrations

Illustrations

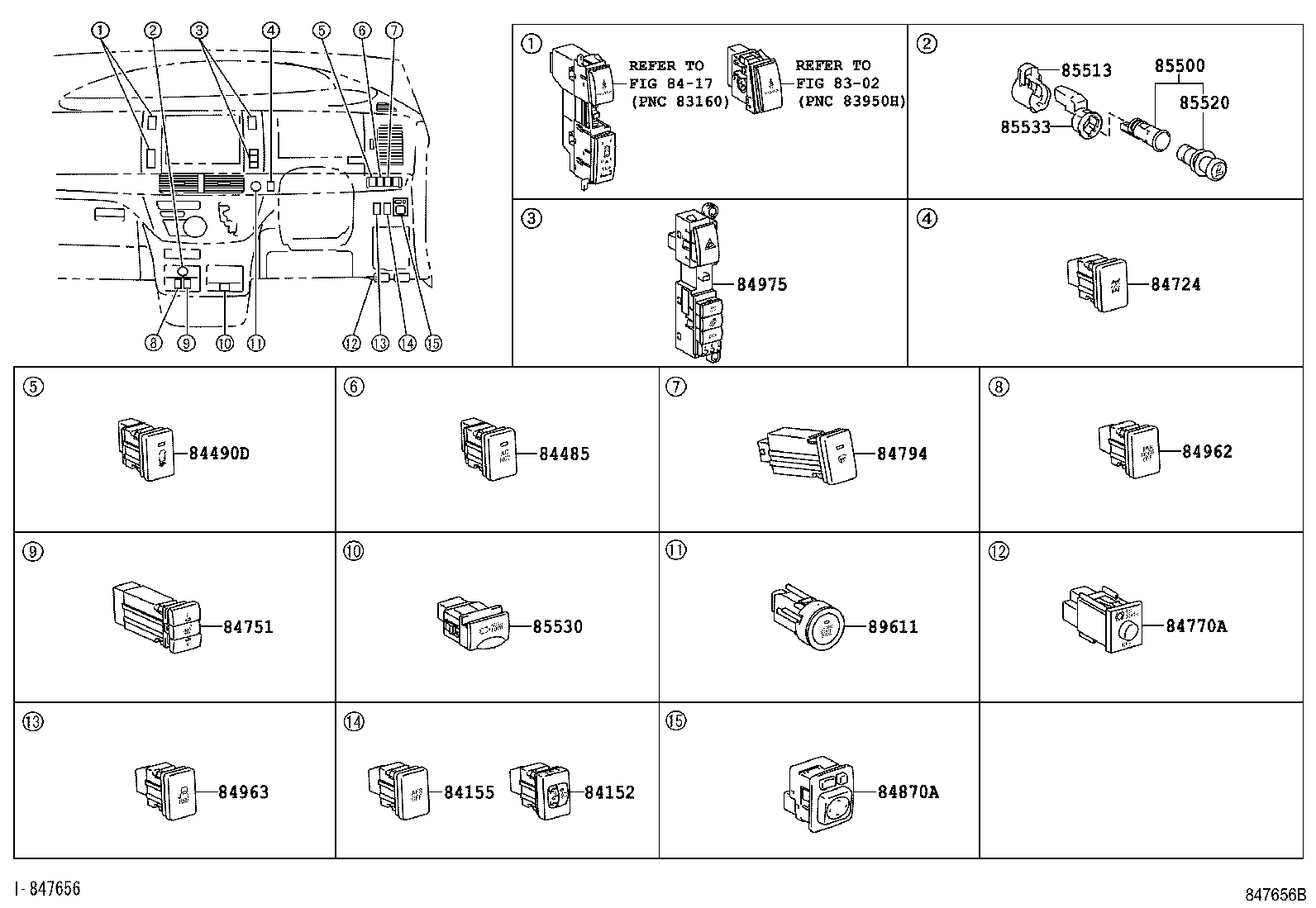

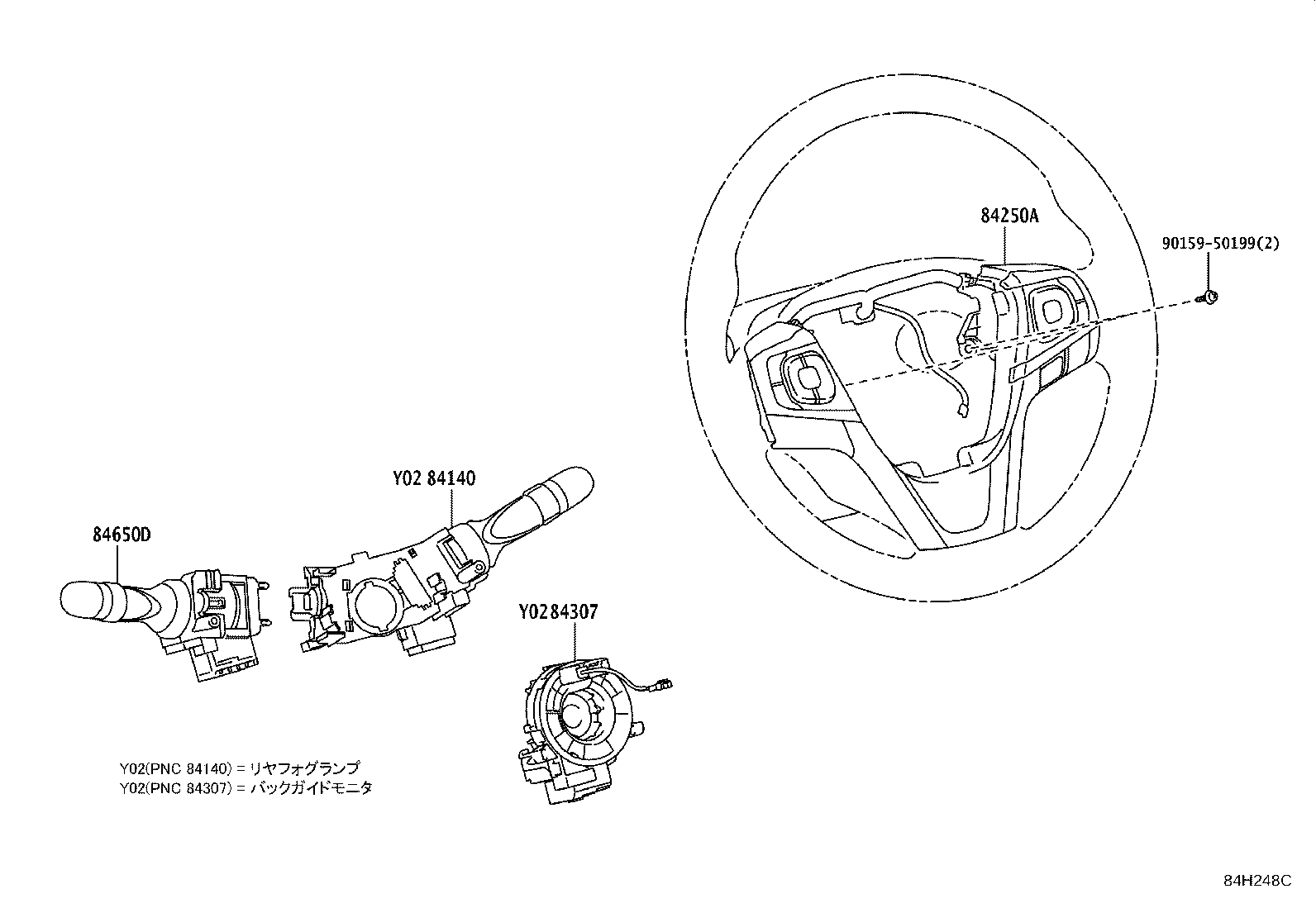

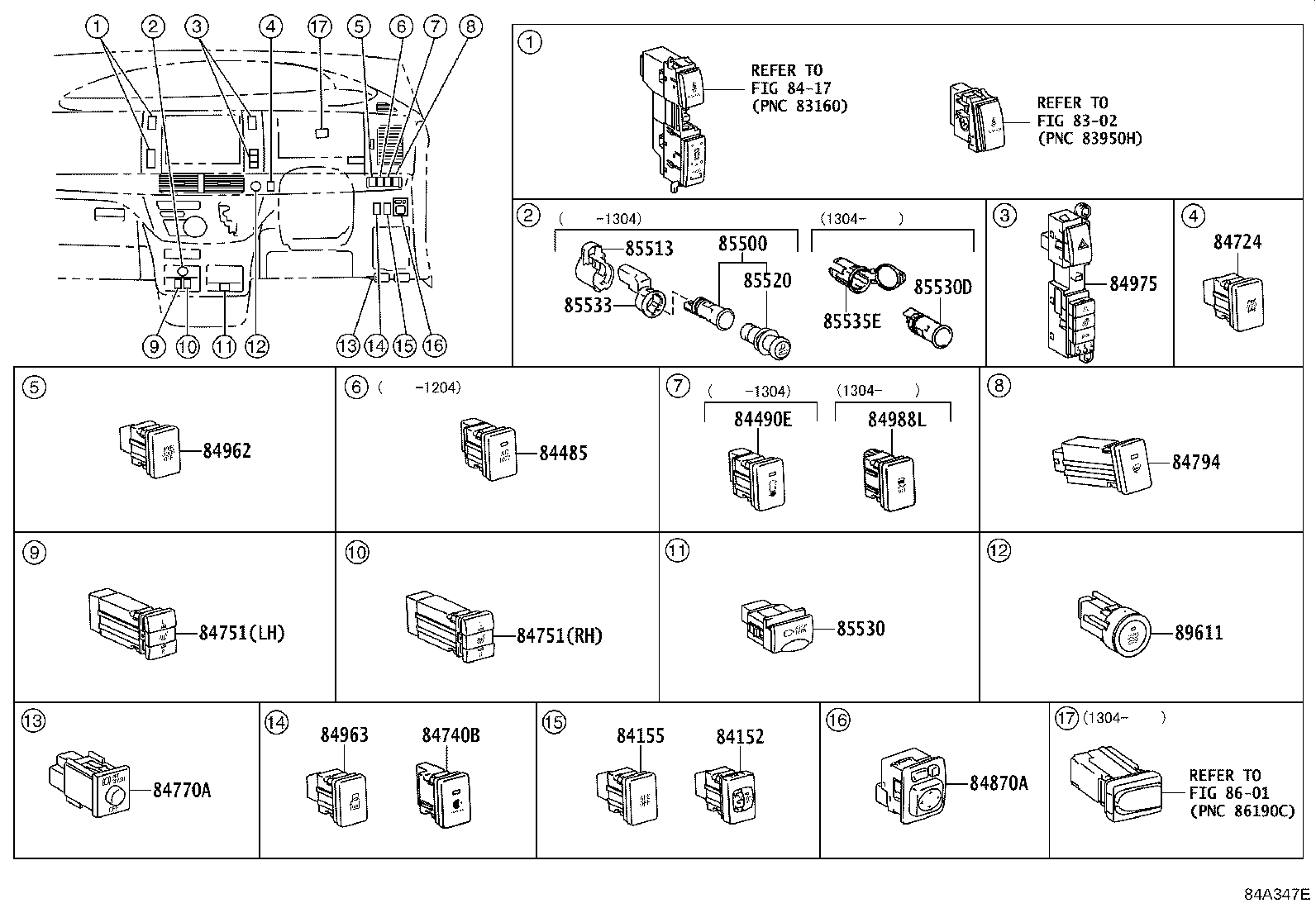

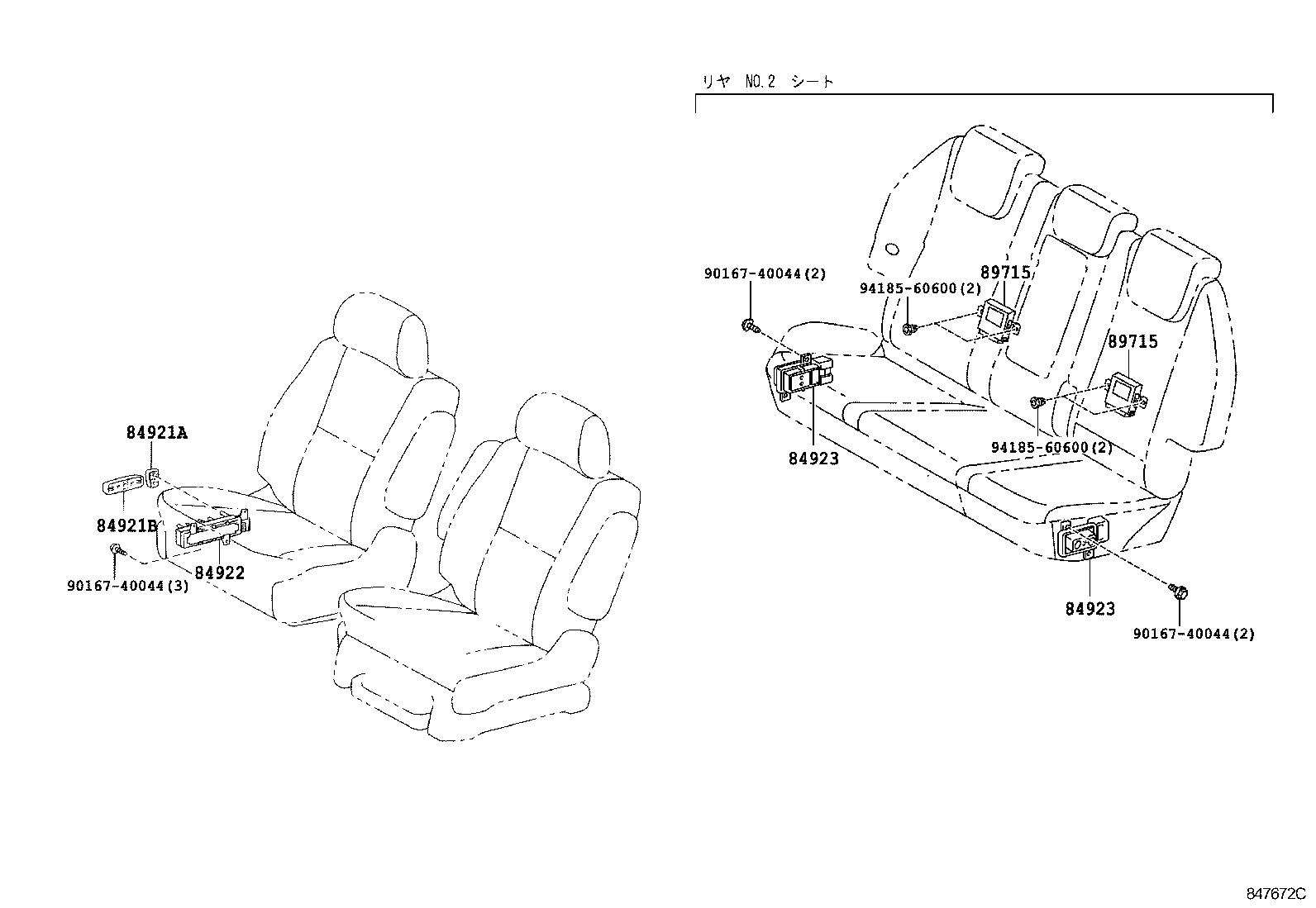

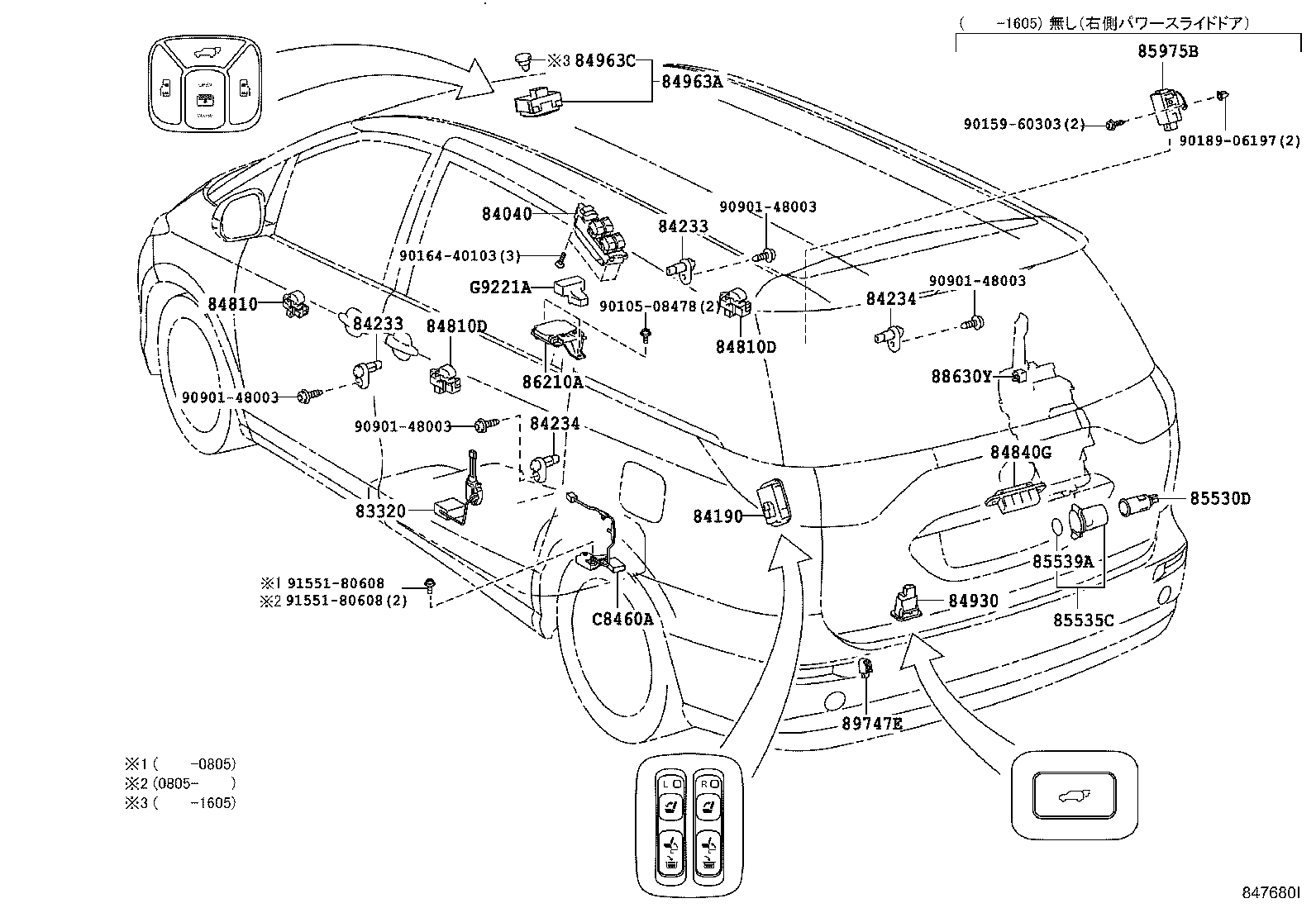

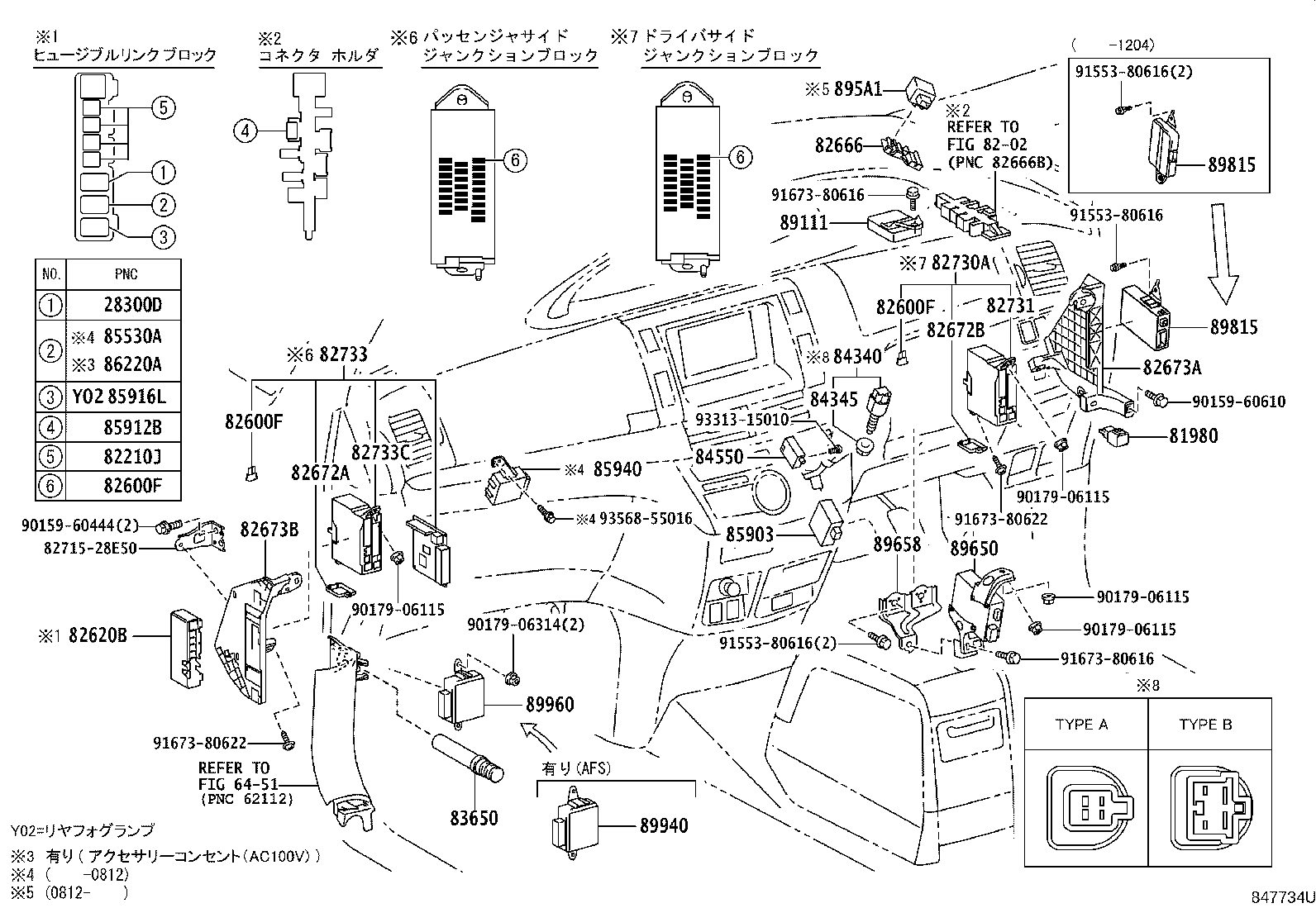

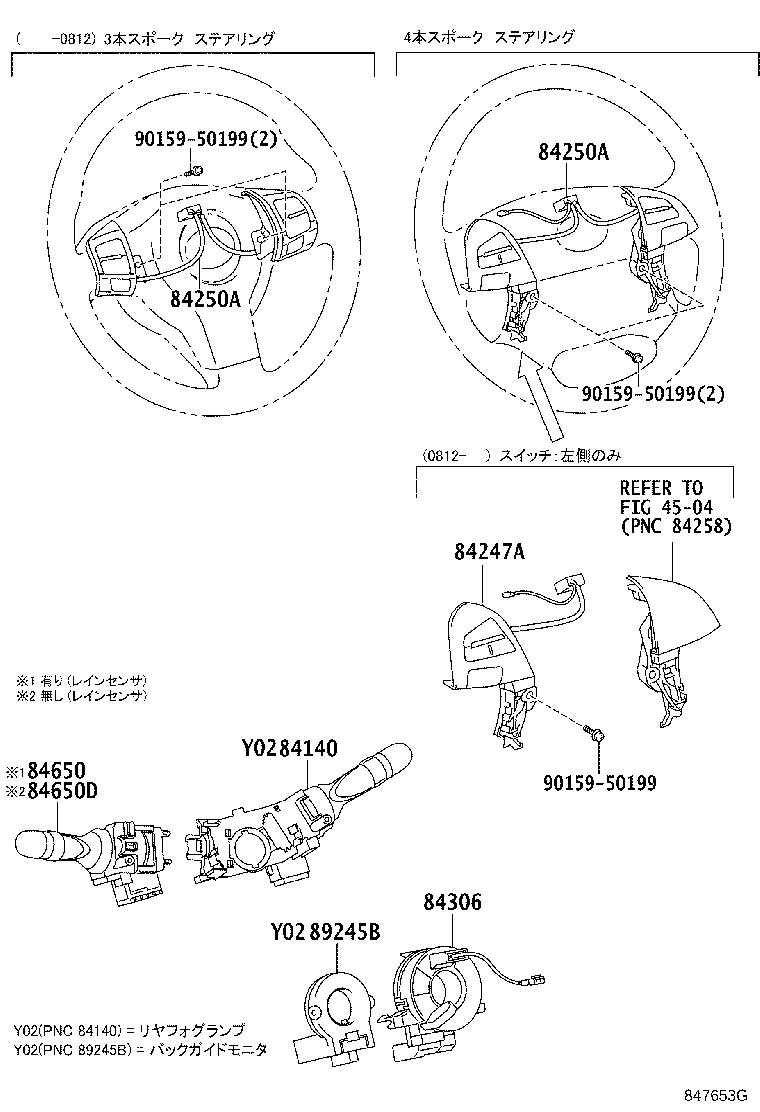

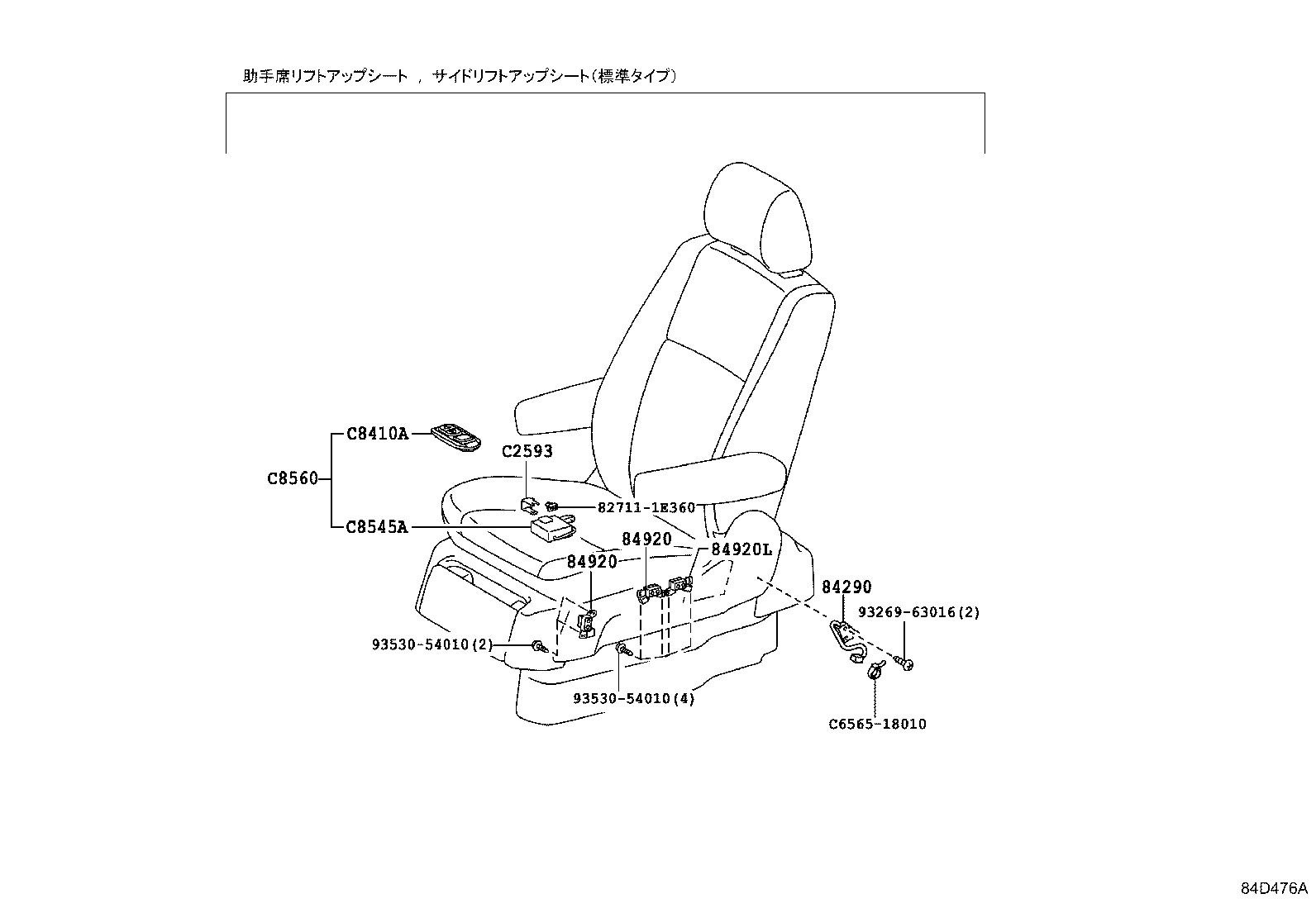

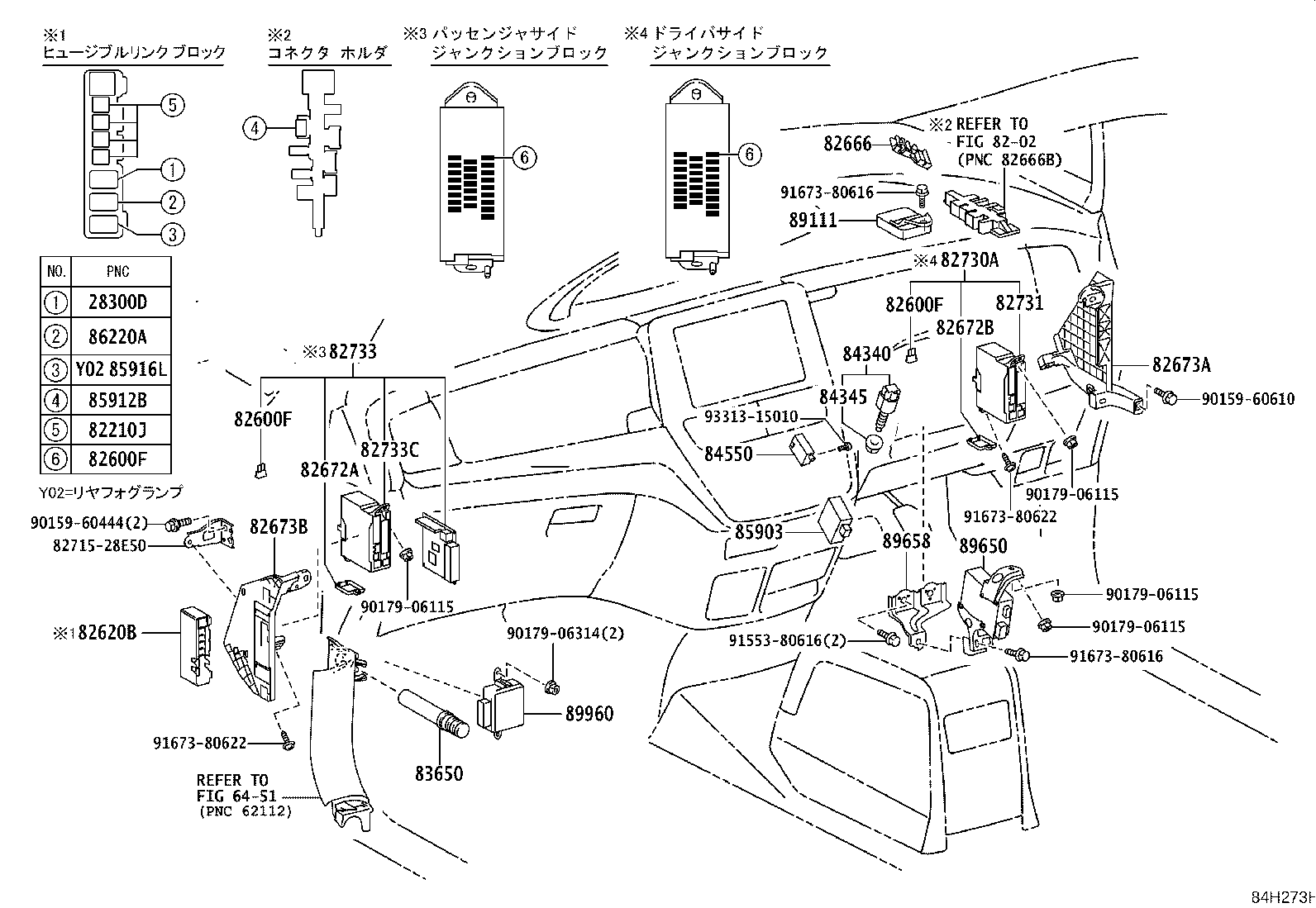

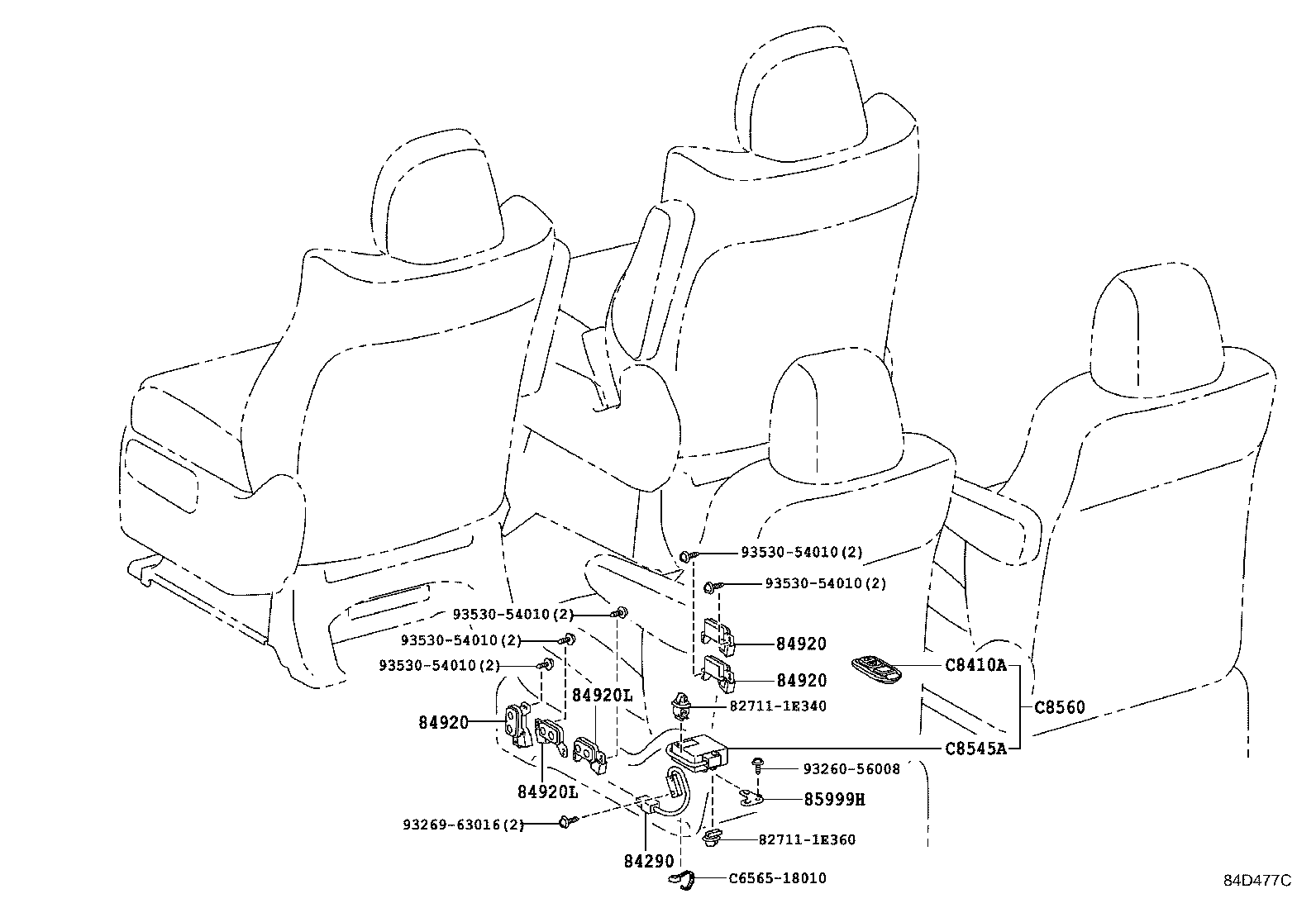

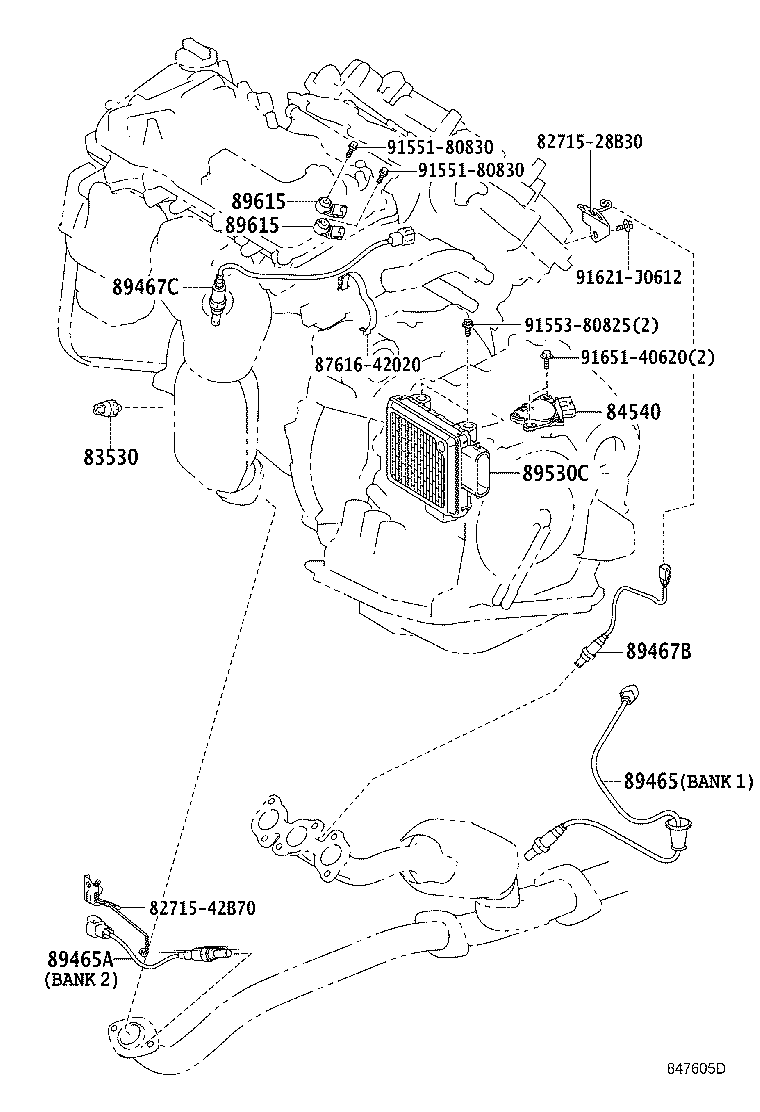

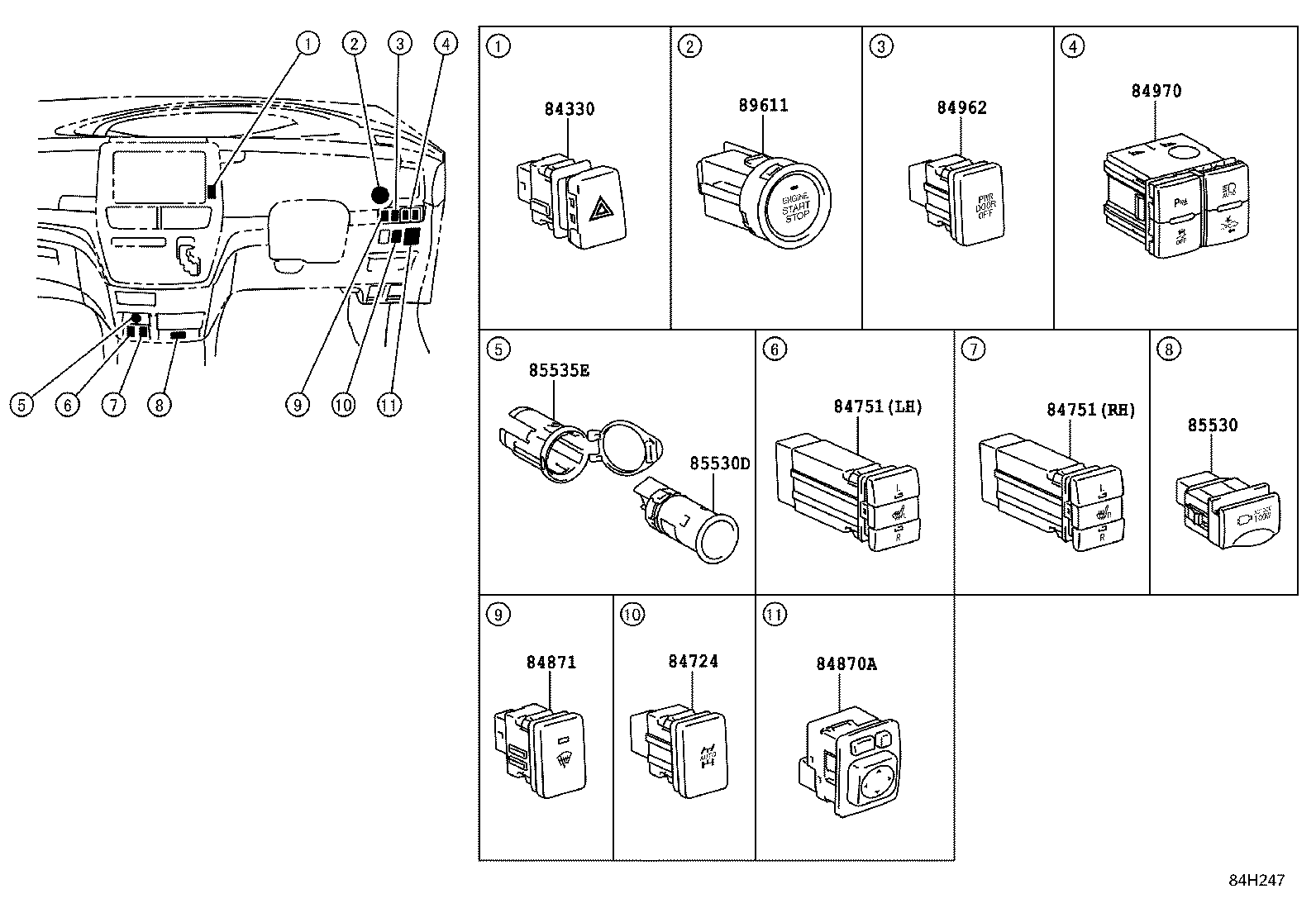

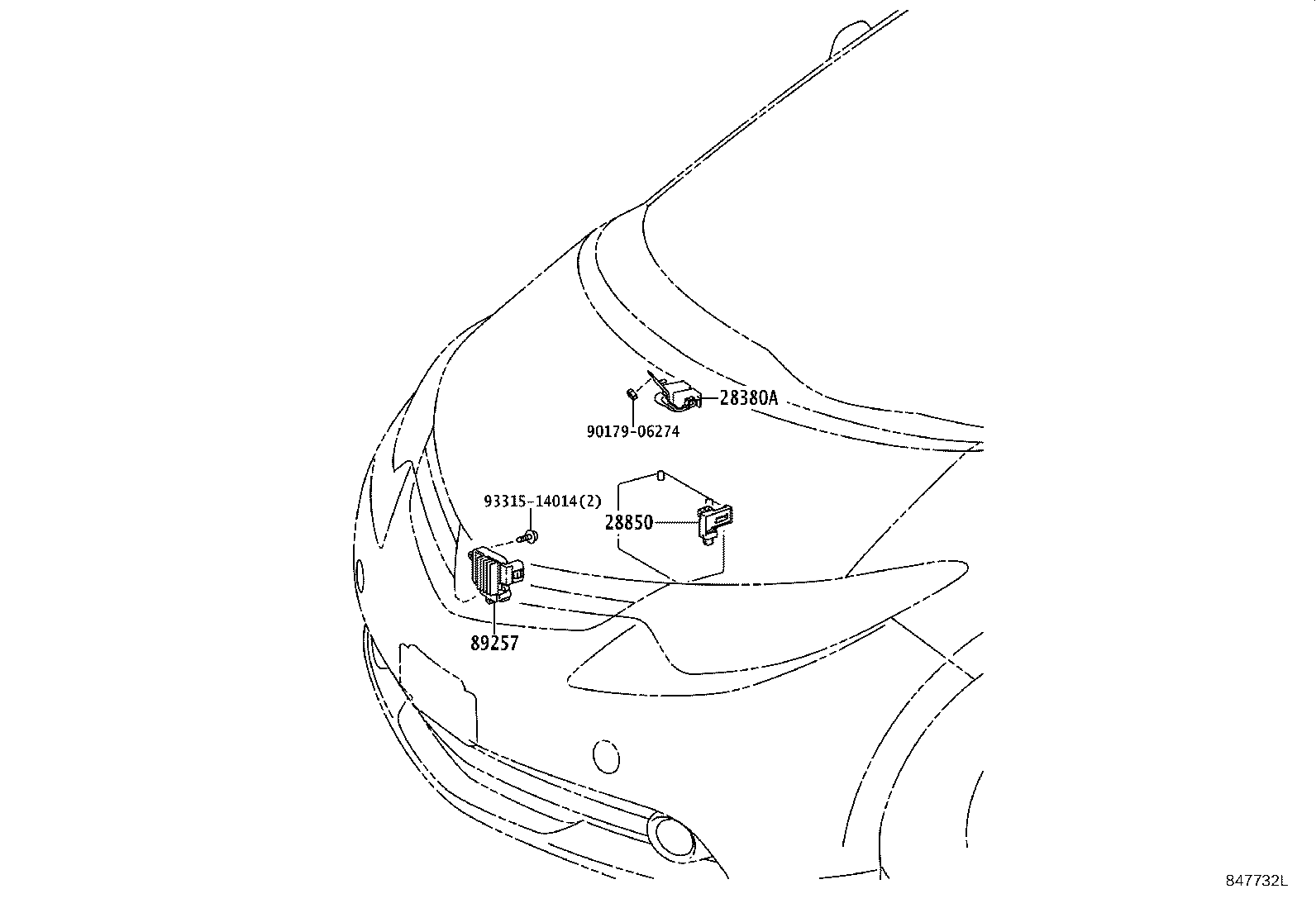

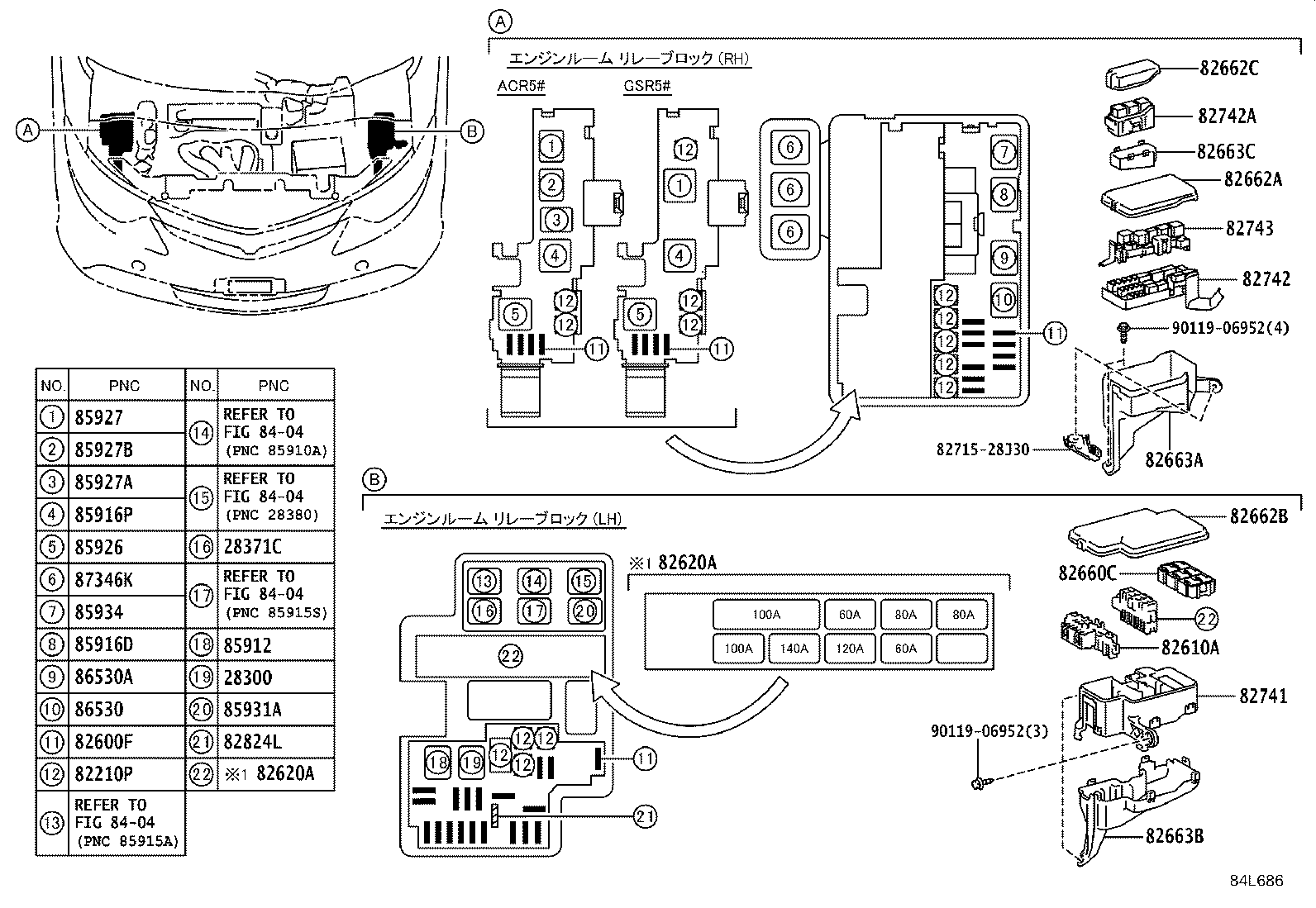

Figure 84E936A 84E936A 2006-01 → — Figure 847605D 847605D 2006-01 → 2016-05 Figure 847732L 847732L 2006-01 → — Figure 84L686 84L686 2006-01 → — Figure 847734U 847734U 2006-01 → 2016-05 Figure 84H273H 84H273H 2016-05 → — Figure 847656B 847656B 2006-01 → 2008-12 Figure 84A347E 84A347E 2008-12 → 2016-05 Figure 84H247 84H247 2016-05 → — Figure 847653G 847653G 2006-01 → 2016-05 Figure 84H248C 84H248C 2016-05 → — Figure 847672C 847672C 2006-01 → — Figure 84D476A 84D476A 2006-01 → 2012-04 Figure 84D477C 84D477C 2012-04 → — Figure 847680I 847680I 2006-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371C Relay, Ignition, NO.2
28380A Resister, Fuel Pump
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82210P Engine Room Fusible Link
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82666 Holder, Connector
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82730A Block Assy, Driver Side Junction
82731 Block, Driver Side Junction
82733 Block, Passenger Side Junction
82733C Block, Passenger Side Junction, W/O Body Computer
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82742A Block, Engine Room Relay, NO.5
82743 Block, Engine Room Relay, NO.3
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84155 Switch, Headlamp Swivel Main
84190 Switch Assy, Fold Seat
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84290 Switch Assy, Limit
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84485 Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84490D Switch Assy, Ipa Main
84490E Switch Assy, Ipa Pre Support
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84724 Switch, 4 Wheel Drive Control
84740B Switch Assy, Air Purifier
84751 Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84871 Switch Assy, Outer Mirror Heater
84920 Switch Assy, Power Seat
84920L Switch Assy, Power Seat, NO.2
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922 Switch, Front Power Seat
84923 Switch, Rear Power Seat
84930 Switch Assy, Door Control
84962 Switch, Power Slide Door Main
84963 Switch, Power Slide Door Control, NO.1
84963A Switch, Power Slide Door Control, NO.2
84963C Bulb, Power Slide Control Switch, NO.2
84970 Switch Assy, Combination
84975 Switch, Trip
84988L Switch, Vsc Off
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530D Socket Assy, Power Outlet, NO.2
85533 Lens, Cigarette Lighter Indicator
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85539A Label, Power Outlet Notice, Rear
85903 Computer Sub-assy, Shift Lock Control
85912 Relay, Defogger
85912B Relay, Defogger(FOR FRONT WINDOW)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85931A Relay, Brake Lamp
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85975B Relay, Slide Door Closer, RH
85999H Bracket, Relay
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
86530A Relay, Horn
87346K Relay, Ptc Heater
88610N Switch Assy, Cooler Control
88630Y Relay, Rear Cooler
89111 Computer, Network Gateway
89245B Sensor, Steering
89257 Computer, Cooling Fan
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89530C Computer Assy, Transmission Control
895A1 Relay, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89658 Bracket, Power Steering Computer
89715 Computer, Fold Seat Control
89747E Buzzer, Power Back Door Warning
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
C2593 Bracket, Wireless Box, FR
C8410A Switch Assy, Power Lift Control
C8460A Switch Assy, Limit, LH NO.2
C8545A Relay, Power Lift Control
C8560 Relay Assy, Lifter
G9221A Cover, Inverter, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
