Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 4 illustrations

Illustrations

Figure 847600E

847600E 2006-01 → 2016-05

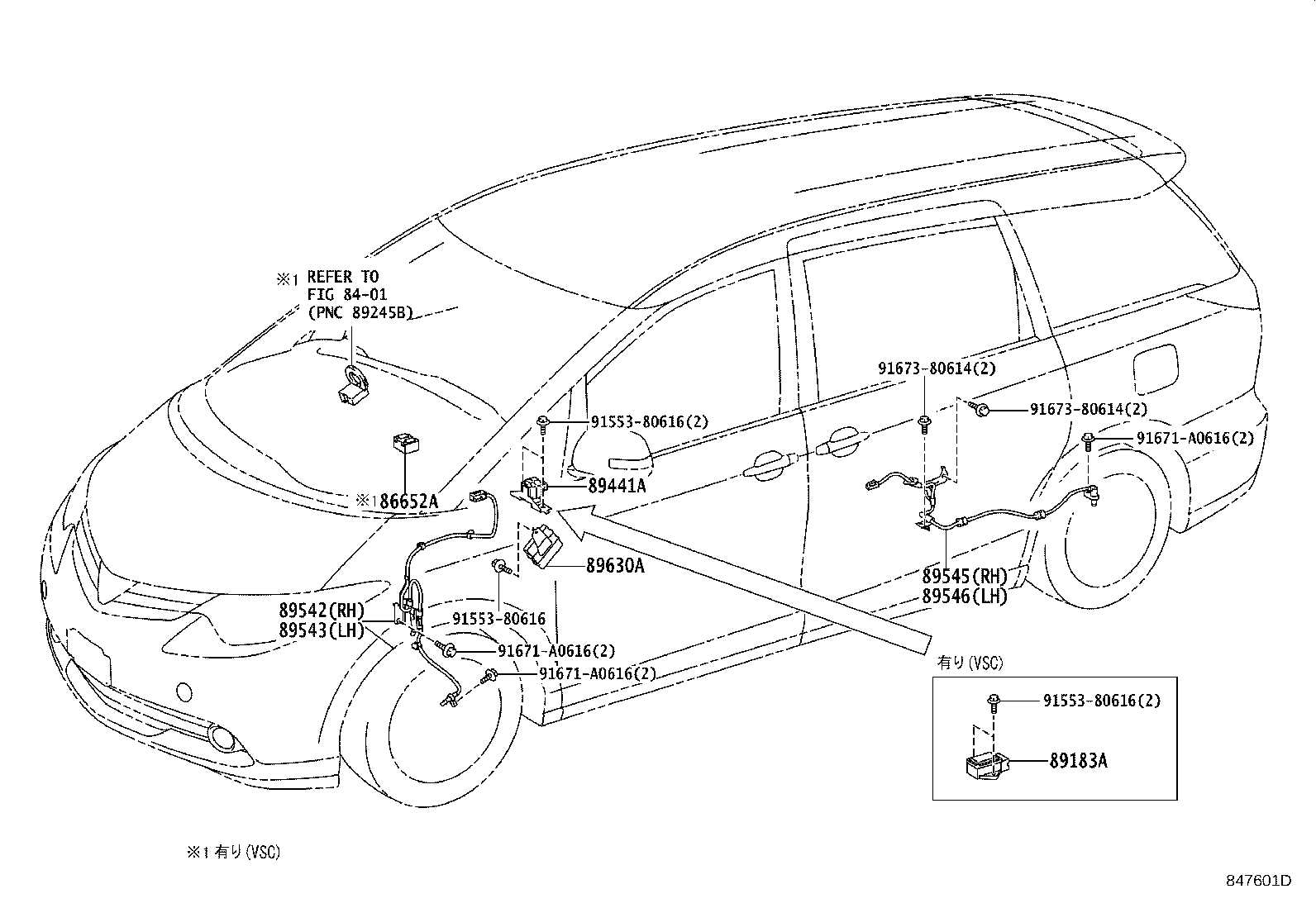

Figure 847601D

847601D 2006-01 → 2016-05

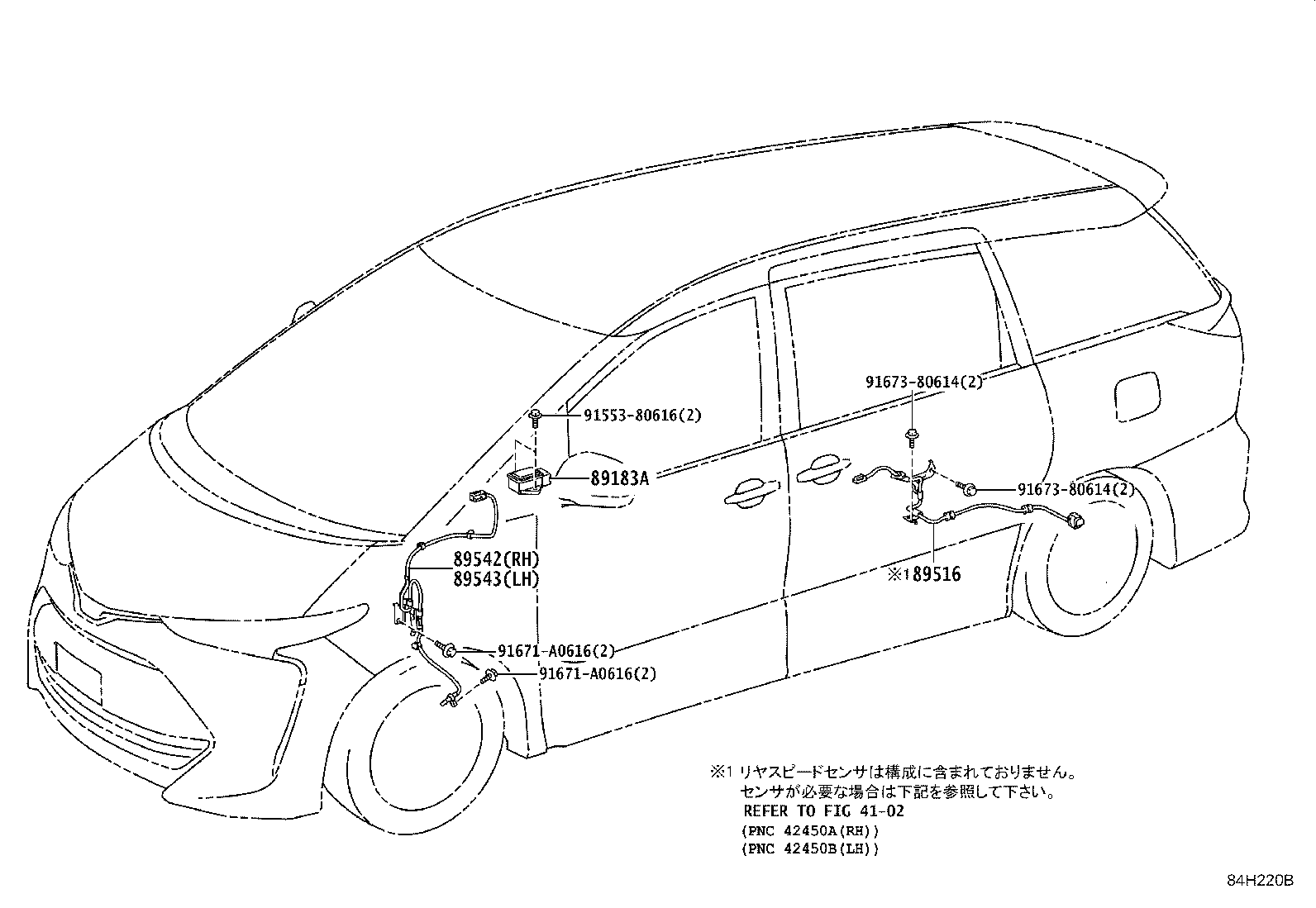

Figure 84H220B

84H220B 2016-05 → —

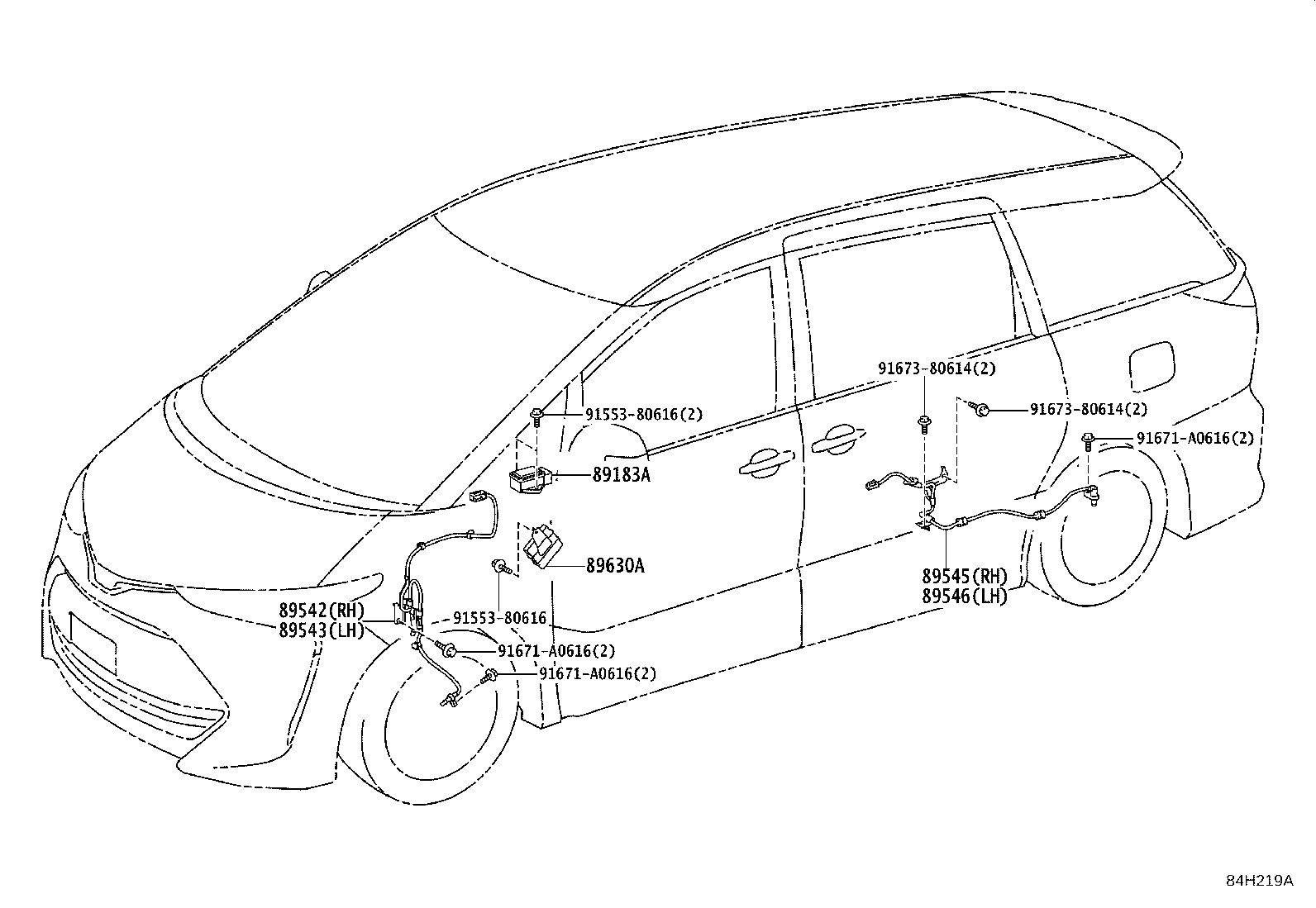

Figure 84H219A

84H219A 2016-05 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263P	Relay, Stop Lamp Control
89183A	Sensor, Yawrate
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
